3-55 — BRAKE PIPING; OIL,REAR (#171170) — 43 parça

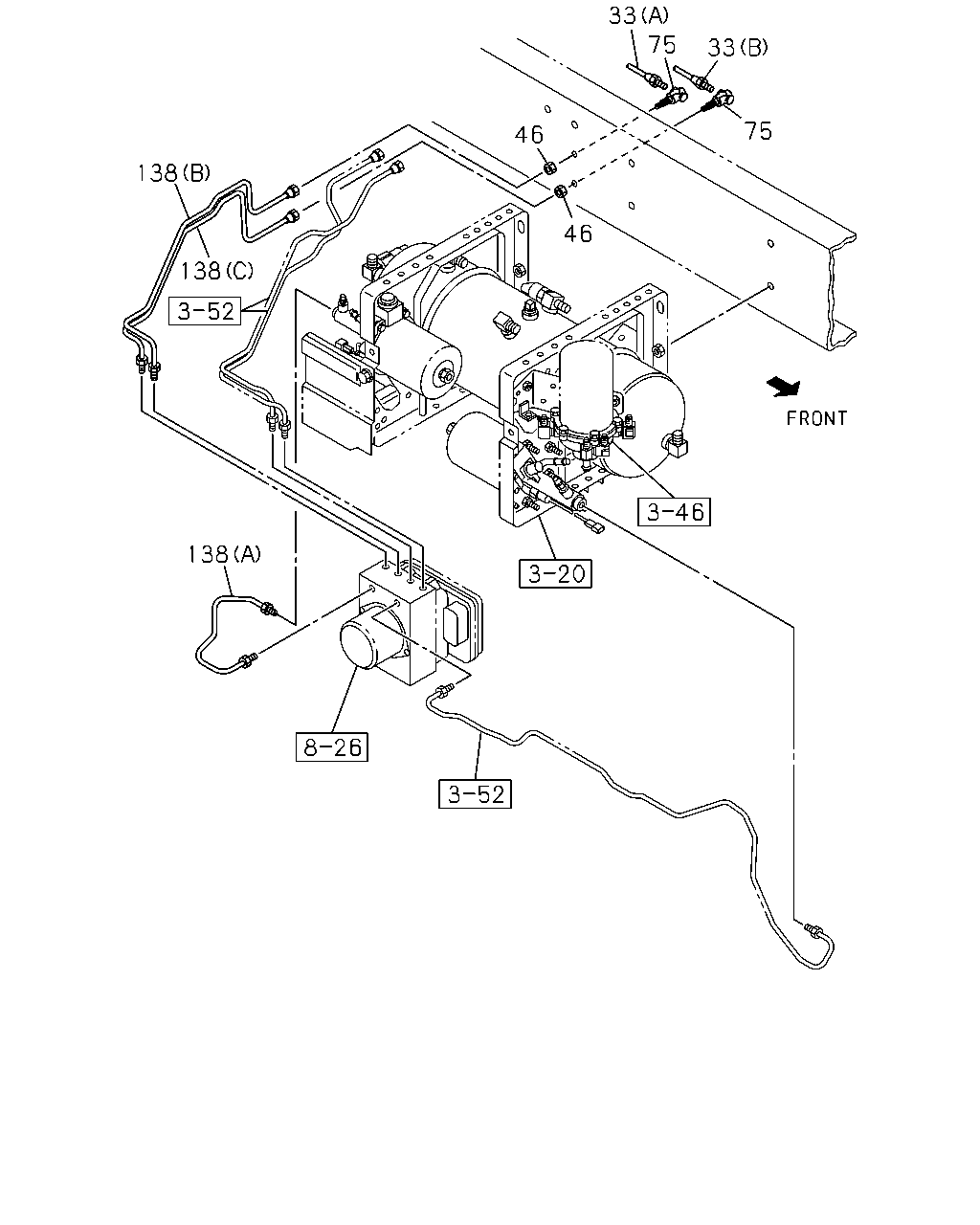

çizim 507337
138 138 138 46 46 75 33 33 75
BalonParca AdiParca NoAdetTipApplied Date
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=789 		8-98204-069-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=741 		8-98204-070-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1612 		8-98222-502-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1584 		8-98222-503-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2218 		8-98222-506-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2189 		8-98222-507-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2547 		8-98222-508-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2520 		8-98222-509-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2877 		8-98222-510-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2850 		8-98222-511-0 01 1 1507-
46 NUT; UNION,OIL PIPE
M10 H=8 		1-09400-029-0 02 1 1507-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1507-
138 PIPE; HYDRAULIC UNIT
(A) L=279 		8-98245-158-0 01 1 1507-
138 PIPE; HYDRAULIC UNIT
(B) LH LINE L=521 		8-98287-321-0 01 1 1507-
138 PIPE; HYDRAULIC UNIT
(C) RH LINE L=515 		8-98287-322-0 01 1 1507-

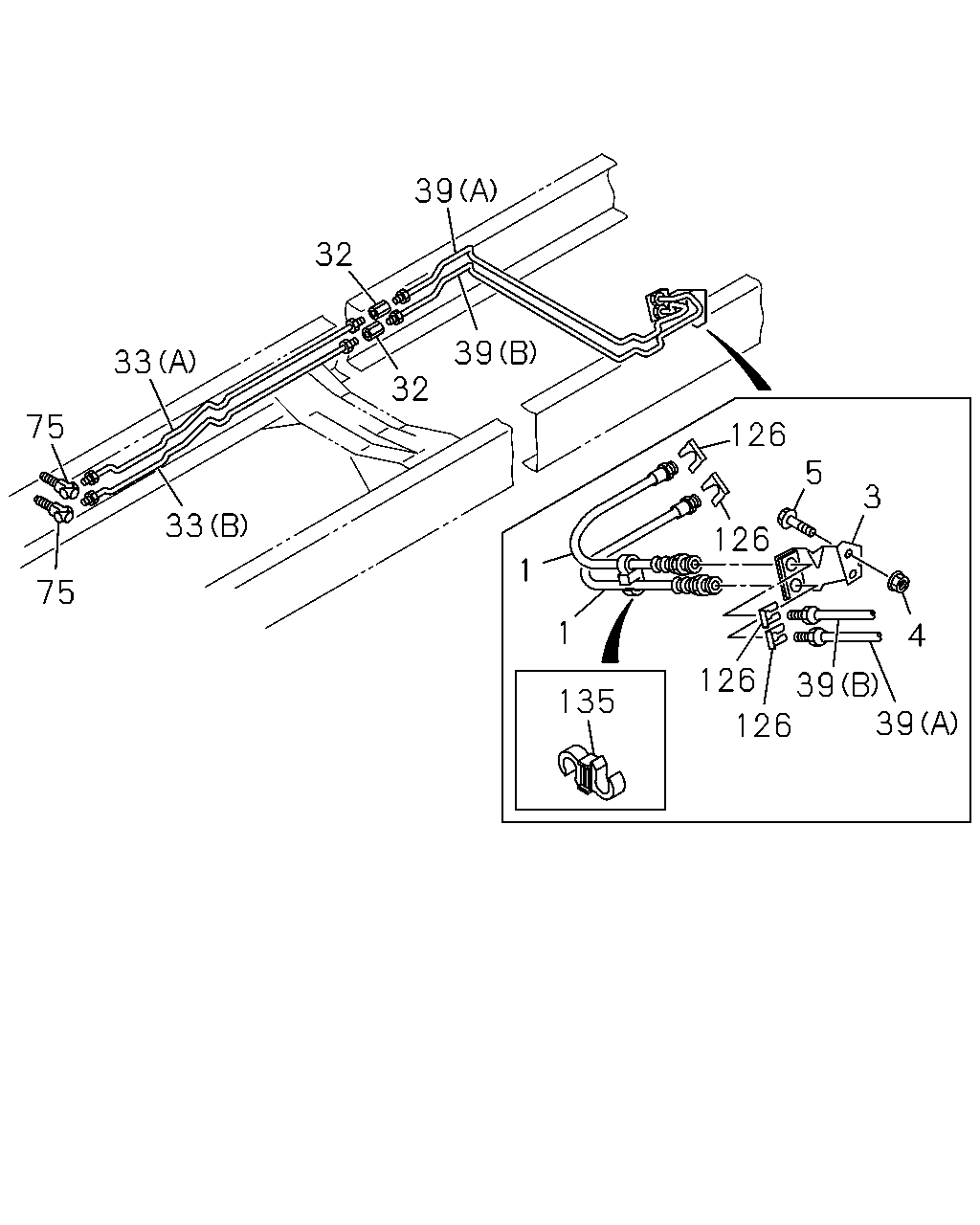

çizim 507353
33 75 33 75 32 39 39 32 126 1 1 135 126 126 126 5 4 39 3 39
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 1507-
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1507-
3 BRACKET; FLEX HOSE,RR BRK 8-98065-999-2 01 1 1507-
4 NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE 		0-91180-108-0 02 1 1507-
5 BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE 		0-28650-830-0 02 1 1507-
32 UNION; OIL PIPE
M10 STRAIGHT 		0-92107-005-0 02 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (B) RH LINE L=789 		8-98204-069-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 3400MM(34W) (A) LH LINE L=741 		8-98204-070-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (A) LH LINE L=1612 		8-98222-502-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4000MM(40W) (B) RH LINE L=1584 		8-98222-503-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (A) LH LINE L=2218 		8-98222-506-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4600MM(46W) (B) RH LINE L=2189 		8-98222-507-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (A) LH LINE L=2547 		8-98222-508-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 4900MM(49W) (B) RH LINE L=2520 		8-98222-509-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2877 		8-98222-510-0 01 1 1507-
33 PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2850 		8-98222-511-0 01 1 1507-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3400MM(34W) (A) LH LINE L=1937 		8-98204-144-0 01 1 1507-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 3400MM(34W) (B) RH LINE L=1862 		8-98204-145-0 01 1 1507-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) LH LINE L=1678 		8-98222-512-0 01 1 1507-
39 PIPE; OIL,UNION TO RR FLEX HOSE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) RH LINE L=1696 		8-98222-513-0 01 1 1507-
75 UNION; OIL PIPE
M10X2 ELBOW 		8-98018-438-0 02 1 1507-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1507-
135 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 1507-

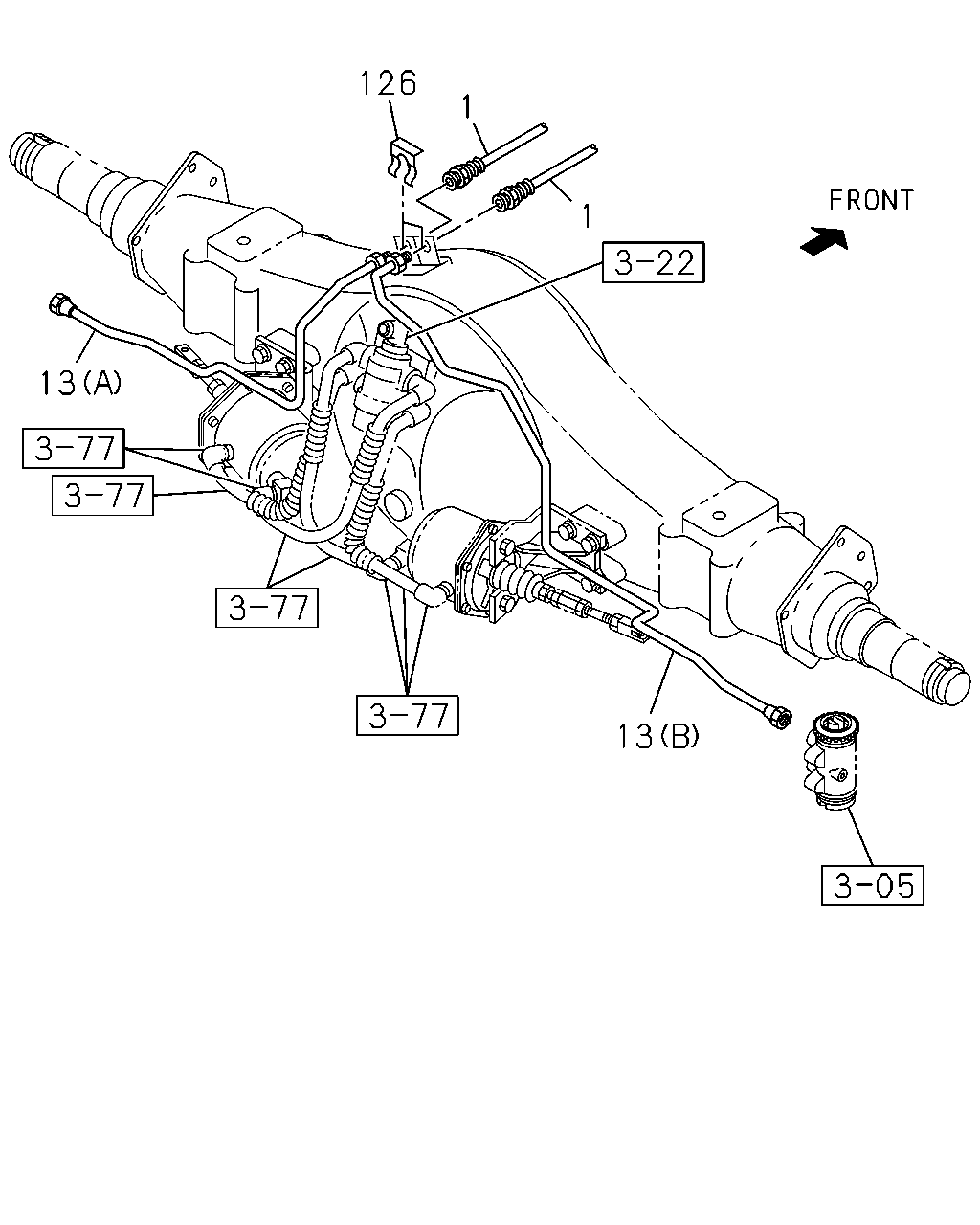

çizim 507354
126 1 1 13 13
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,RR BRK
WHEEL BASE 3400MM(34W) L=320 		8-98067-397-0 02 1 1507-
1 HOSE; FLEX,RR BRK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) L=350 		8-97138-885-0 02 1 1507-
13 PIPE; BRK,RR AXLE
(B) RH LINE 		8-98281-557-0 01 1 1507-
13 PIPE; BRK,RR AXLE
(A) LH LINE 		8-98281-558-0 01 1 1507-
126 CLIP; FLEX HOSE 8-97360-054-0 04 1 1507-
