◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#171160) — 82 parça

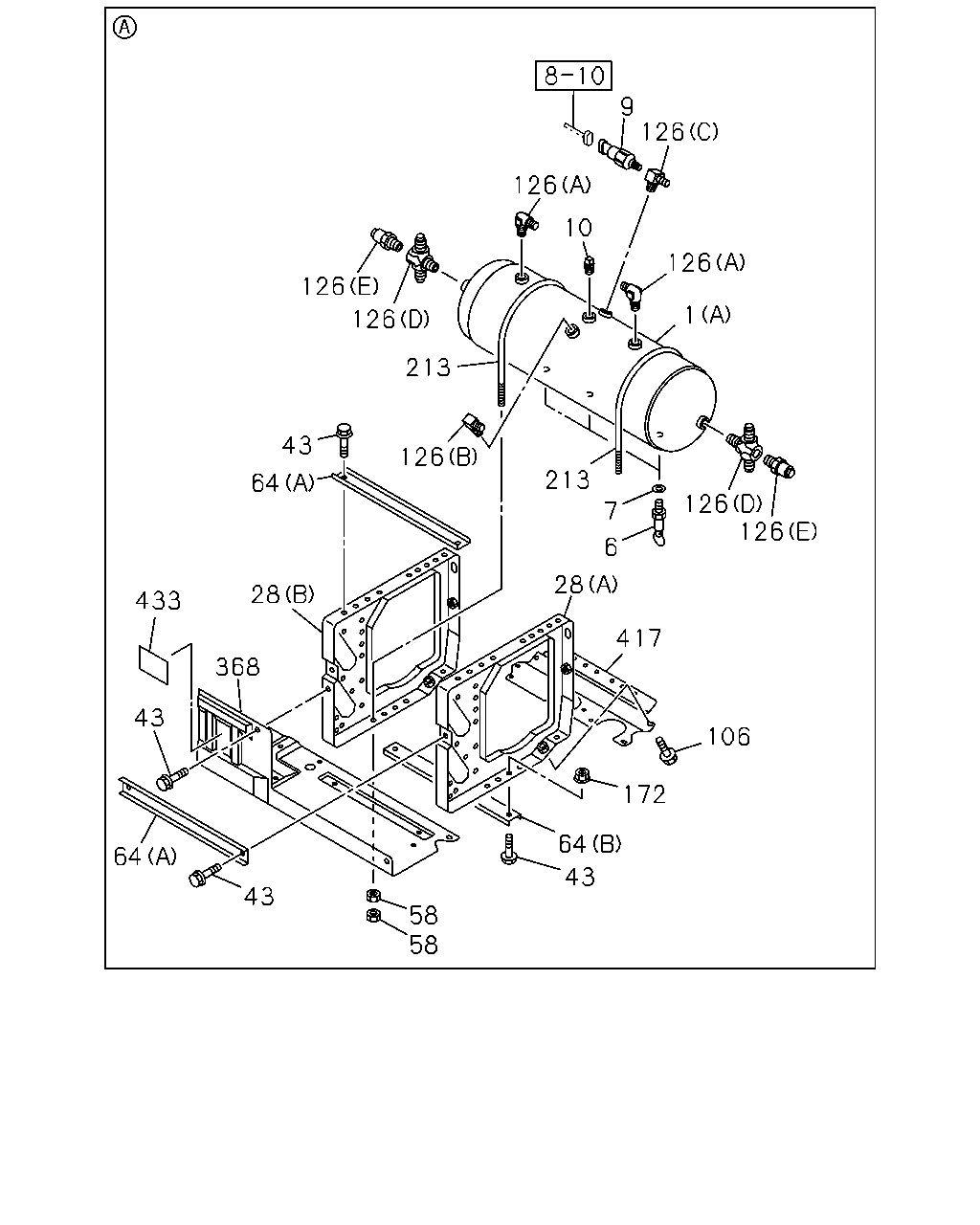

çizim 507319
126 9 126 126 1 10 126 126 6 7 213 28 417 106 172 64 43 58 58 43 64 43 433 368 28 126 213 126 43 64 126
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98210-864-1 01 1 1507-
1 TANK ASM; AIR
(A) 		8-98206-068-1 01 1 1507-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1507-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1507-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1507-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1507-
10 PLUG; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT3/8 		9-09204-517-0 01 1 1507-
10 PLUG; AIR TANK
TRANSMISSION CONTROL-SMOOTHER(8GF) PT3/8 		9-09204-517-0 01 1 1507-
28 BRACKET; AIR TANK
(A) 		8-98021-918-5 01 1 1507-
28 BRACKET; AIR TANK
(B) 		8-98044-509-5 01 1 1507-
43 BOLT; STAY,AIR TANK,MAIN
M8X16 FLANGE 		0-28050-816-0 10 1 1507-
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 08 1 1507-
64 STAY; AIR TANK,MAIN
(A) 		8-98044-510-3 02 1 1507-
64 STAY; AIR TANK,MAIN
(B) 		8-98044-511-2 01 1 1507-
106 BOLT; COVER
M8X16 FLANGE 		0-28050-816-0 04 1 1507-
126 CONNECTOR; ELBOW
(A) M16 & PT3/8 ELBOW 		1-09650-438-0 02 1 1507-
126 CONNECTOR; ELBOW
(C) DIN8X2 & PT1/4 3WAY 		1-09656-759-0 01 1 1507-
126 CONNECTOR; ELBOW
(E) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1507-
126 CONNECTOR; ELBOW
(D) M16X2 & R3/8 & RC1/4 4WAY ELBOW 		8-98061-136-0 02 1 1507-
126 CONNECTOR; ELBOW
(B) M20 & PT3/4 ELBOW 		8-98067-083-1 01 1 1507-
172 NUT; STAY,AIR TANK,MAIN
M8 FLANGE 		0-91180-108-0 02 1 1507-
213 BOLT; U AIR TANK 8-98022-041-0 02 1 1507-
368 COVER; AIR TANK 8-98061-625-3 01 1 1507-
417 COVER; HARNESS 8-98111-401-0 01 1 1507-
433 PLATE; NAME 8-98121-999-0 01 1 1507-

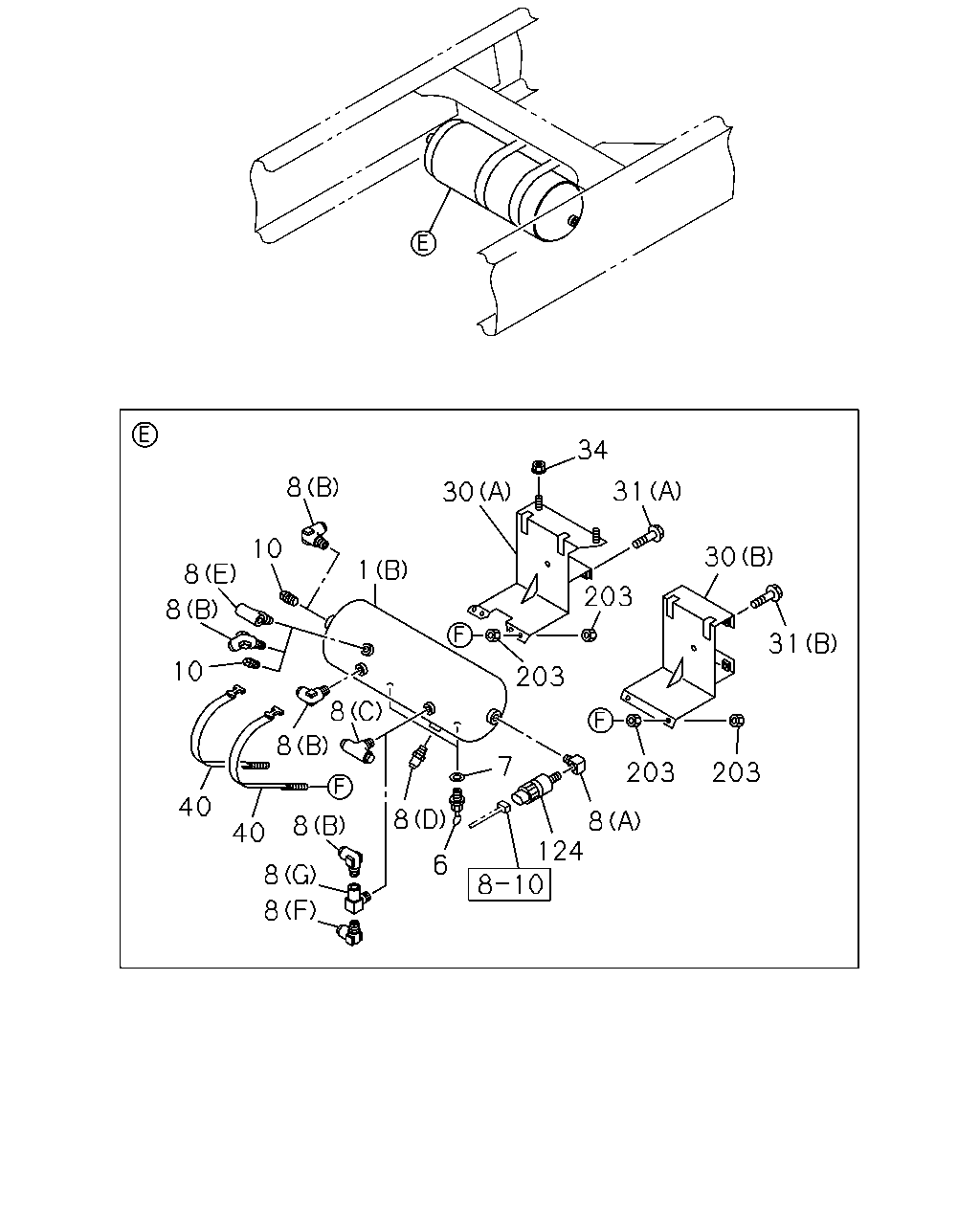

çizim 507369
8 10 8 8 10 40 40 8 8 8 8 1 30 203 34 30 31 31 203 203 203 8 124 6 8 8 7
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(B) 		8-98210-864-1 01 1 1507-
1 TANK ASM; AIR
(A) 		8-98206-068-1 01 1 1507-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 02 1 1507-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 03 1 1507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1507-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 03 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 3400MM(34W) (F) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 3400MM(34W) (G) R3/8 & RC3/8 & RC1/4 3WAY 		8-98166-127-0 01 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 3400MM(34W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 04 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 02 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) DIN8 & DIN12 & R3/8 3WAY 		1-09660-821-0 01 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 1507-
8 CONNECTOR; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (E) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 1507-
8 CONNECTOR; AIR TANK
(A) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 1507-
8 CONNECTOR; AIR TANK
(D) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1507-
10 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 1507-
10 PLUG; AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) PT3/8 		9-09204-517-0 01 1 1507-
10 PLUG; AIR TANK
TRANSMISSION CONTROL-SMOOTHER(8GF) PT3/8 		9-09204-517-0 01 1 1507-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 3400MM(34W) (B) 		8-98233-421-0 01 1 1507-
30 BRACKET; AIR TANK,SUB
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) 		8-98233-422-1 01 1 1507-
31 BOLT; BRKT TO FRAME
WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE 		0-28651-030-0 04 1 1507-
31 BOLT; BRKT TO FRAME
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X30 FLANGE 		0-28650-830-0 02 1 1507-
34 NUT; BRKT,AIR TANK
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M12 FLANGE 		0-91180-212-0 02 1 1507-
40 BAND ASM; AIR TANK 8-98228-052-1 02 1 1507-
124 SWITCH; AIR PRESSURE
STAMP 5.5 		8-97609-249-0 01 1 1507-
203 NUT
M8 		0-91110-508-0 04 1 1507-

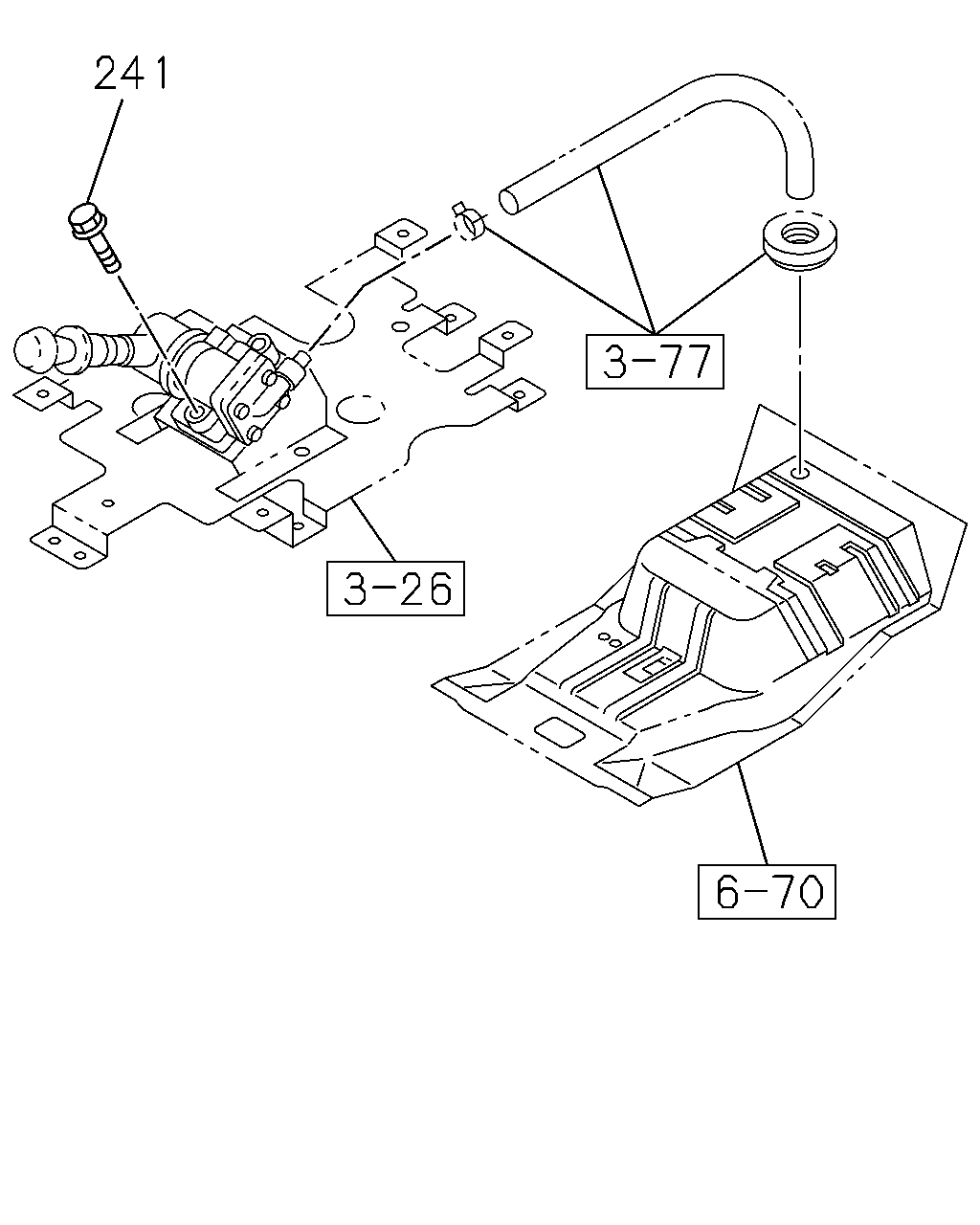

çizim 507553
241
BalonParca AdiParca NoAdetTipApplied Date
241 BOLT; SET,CONT VLV
M8X70 FLANGE 		0-28050-870-0 02 1 1507-

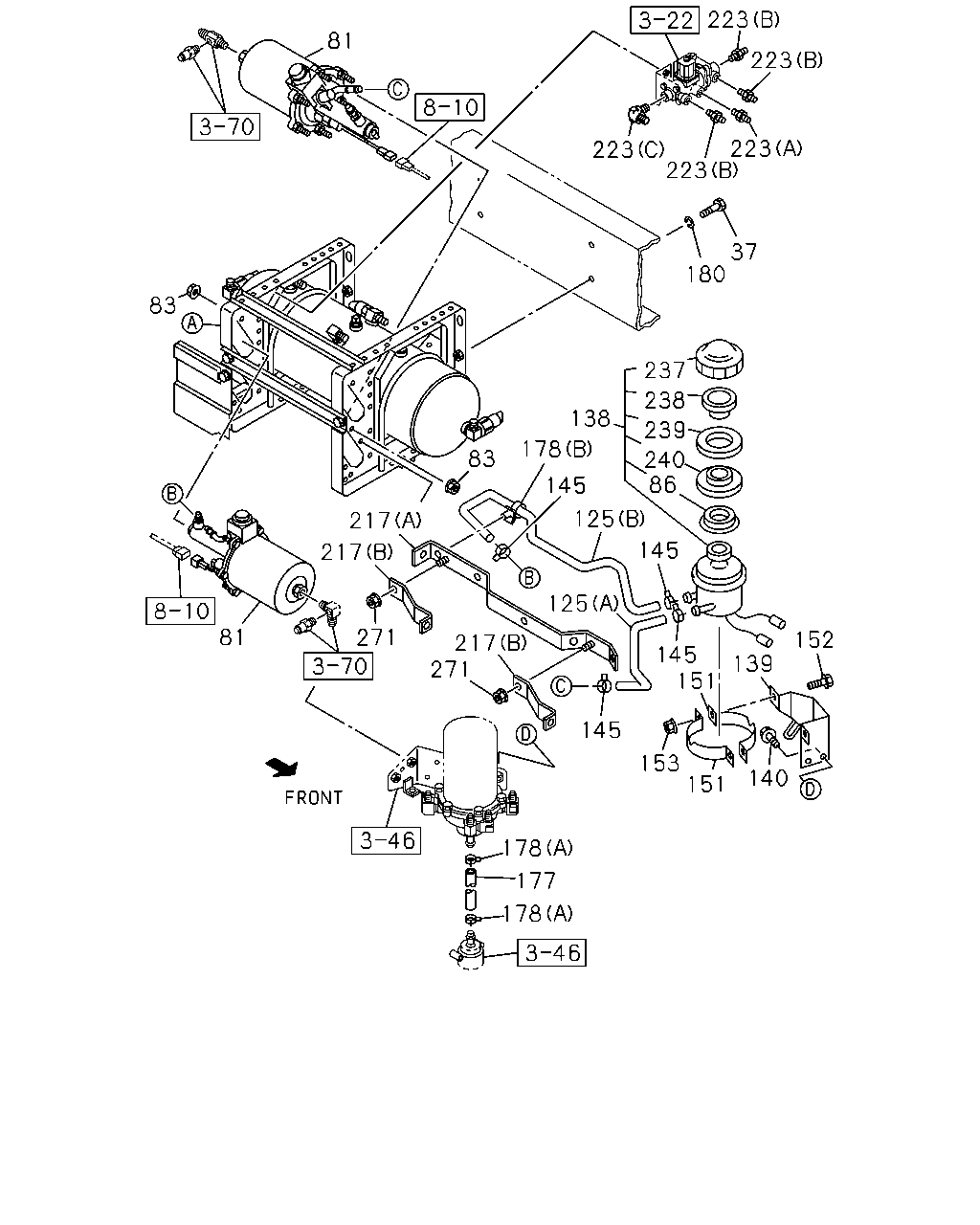

çizim 507709
81 223 223 223 223 223 37 180 237 238 239 240 86 138 178 145 125 145 152 139 145 151 83 217 217 271 271 217 81 125 145 153 151 140 178 177 178 83
BalonParca AdiParca NoAdetTipApplied Date
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 04 1 1507-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-826-0 02 1 1507-
83 NUT; AIR MASTER
M8 FLANGE 		0-91180-108-0 09 1 1507-
86 SEAL; DUST 1-47529-019-0 01 1 1507-
125 HOSE; OIL TANK TO AIR MASTER
(A) 		8-98051-217-0 01 1 1507-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98051-218-1 01 1 1507-
138 TANK ASM; OIL,AIR MASTER 1-47530-186-0 01 1 1507-
139 BRACKET; OIL TANK 8-98051-105-0 01 1 1507-
140 BOLT; OIL TANK TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1507-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1507-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1507-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1507-
177 HOSE; RUBBER,DRAIN
L=60 SERVICED BY L=3000 		0-03566-300-0 01 1 1507-
178 CLIP; HOSE
(B) ID=13-18 L=14.5 		1-09709-290-0 08 1 1507-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 02 1 1507-
180 WASHER; LK
ID=12.5 OD=32 		0-91614-712-0 04 1 1507-
217 BRACKET; RUBBER HOSE
(A) 		8-98082-871-0 01 1 1507-
217 BRACKET; RUBBER HOSE
(B) 		8-98085-273-1 02 1 1507-
223 UNION
H.S.A SYSTEM<6EP> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 1507-
223 UNION
H.S.A SYSTEM<6EP> (B) M16 & PT3/8 STRAIGHT 		1-09650-179-1 03 1 1507-
223 UNION
H.S.A SYSTEM<6EP> (C) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1507-
237 CAP; OIL TANK 1-47525-030-0 01 1 1507-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1507-
239 FILTER; DUST 1-47529-017-0 01 1 1507-
240 HOLDER; FILTER 1-47529-018-0 01 1 1507-
271 NUT; BRKT,HOSE
M8 FLANGE 		0-91180-108-0 02 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
