Isuzu WW
▶
TRUCKS
▶
FRR
▶
11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE
▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE
(#171149) — 22 parça
◀

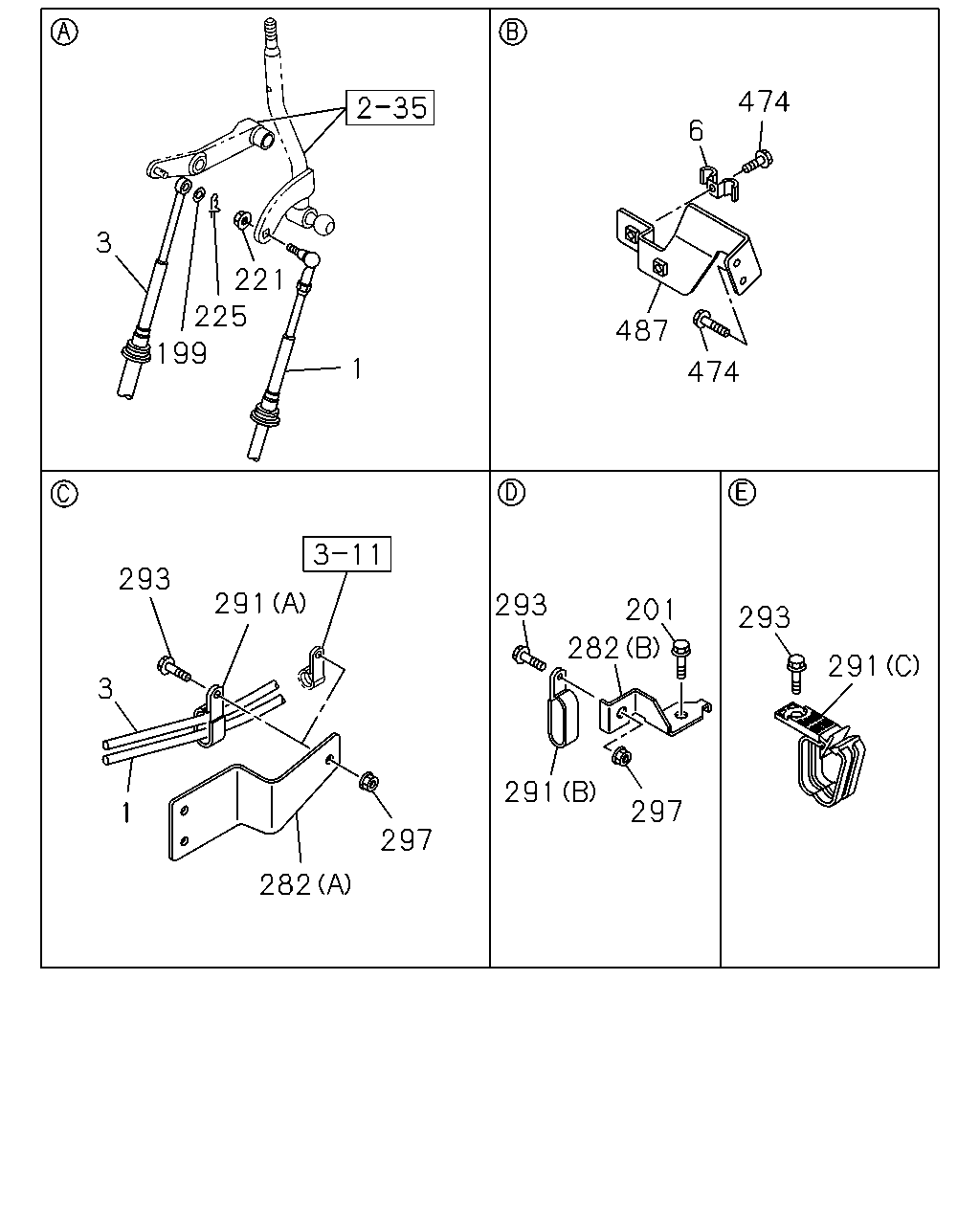

[236A] BRACKET AND CLIP (18 parça)

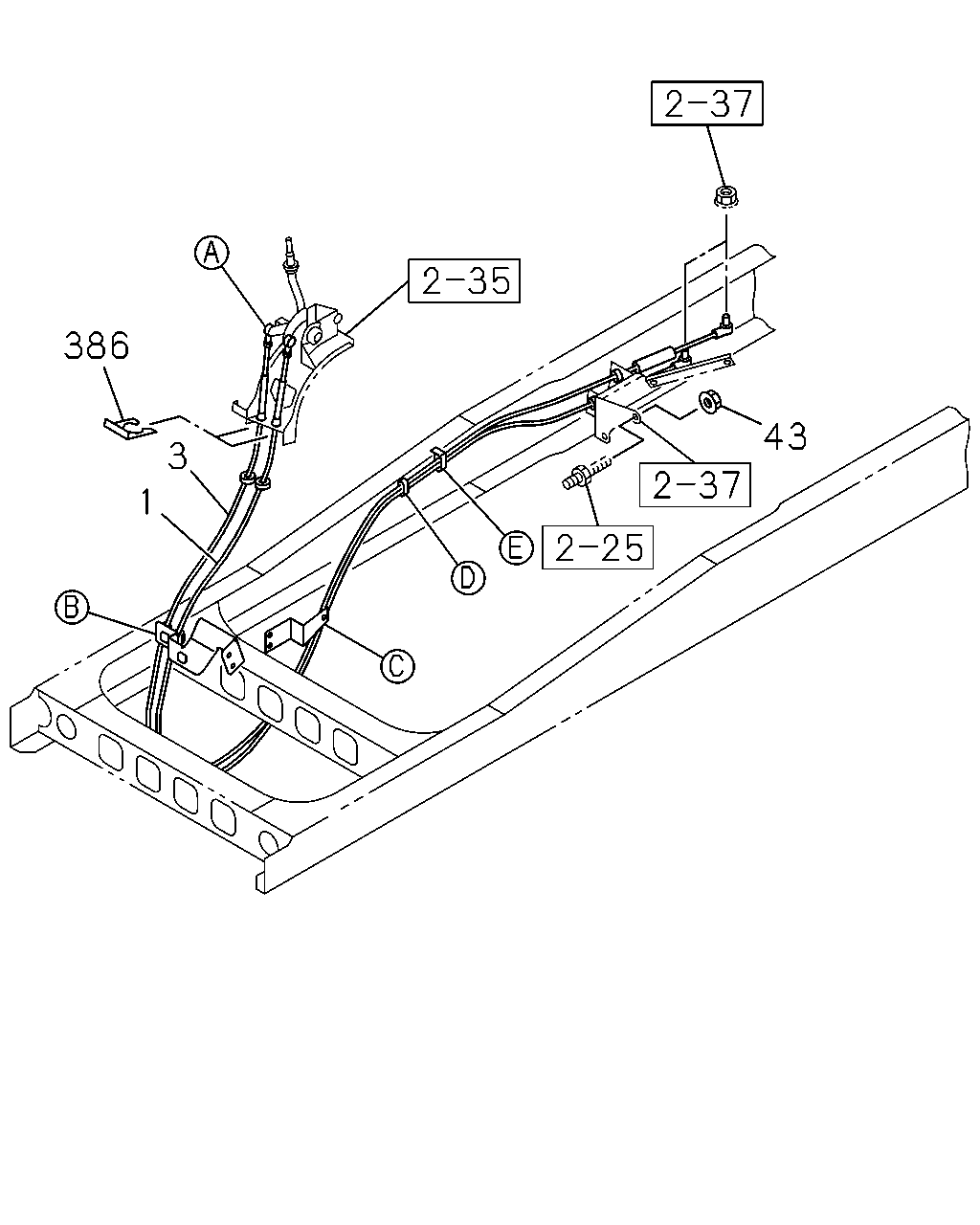

[236A] CABLE; TRANS CONT (4 parça)
▶
3
221
225
199
1
487
474
474
6
293
291
297
291
201
282
293
291
297
282
1
3
293
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3040
8-98041-382-3
01
1
1507-
3
CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3155
8-98041-387-4
01
1
1507-
6
CLIP; CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
01
1
1507-
199
WASHER; PL,SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=8.4 OD=16
0-91614-508-0
01
1
1507-
201
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE
0-28650-825-0
01
1
1507-
201
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1507-
221
NUT; SHIFT WIRE TO LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
1-09440-062-1
01
1
1507-
225
PIN; SELECT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=27.7
8-94111-137-0
01
1
1507-
282
BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98126-426-0
01
1
1507-
282
BRACKET; TRANS SIDE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)
8-98287-327-0
01
1
1507-
291
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=11X2 L=16
0-95325-026-0
01
1
1507-
291
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=11X2 L=32
0-95325-066-0
01
1
1507-
291
CLIP; SHIFT TO SELECT,FRAME
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=13 & 10 & 10 L=43.5
8-98292-921-0
01
1
1507-
293
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X16 FLANGE
0-28050-816-0
01
1
1507-
293
BOLT; CLIP,SHIFT TO SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE
0-28650-825-0
02
1
1507-
297
NUT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 FLANGE
0-91180-108-0
01
1
1507-
474
BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WASHER
0-51640-825-0
03
1
1507-
487
BRACKET; CONT CABLE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-98080-013-2
01
1
1507-
1
3
386
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; SHIFT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3040
8-98041-382-3
01
1
1507-
3
CABLE; SELECT,TRANS CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=3155
8-98041-387-4
01
1
1507-
43
NUT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE
0-91180-210-0
02
1
1507-
386
CLIP; CONT CABLE & TUBE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
1-09700-966-1
02
1
1507-
