◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#171148) — 34 parça

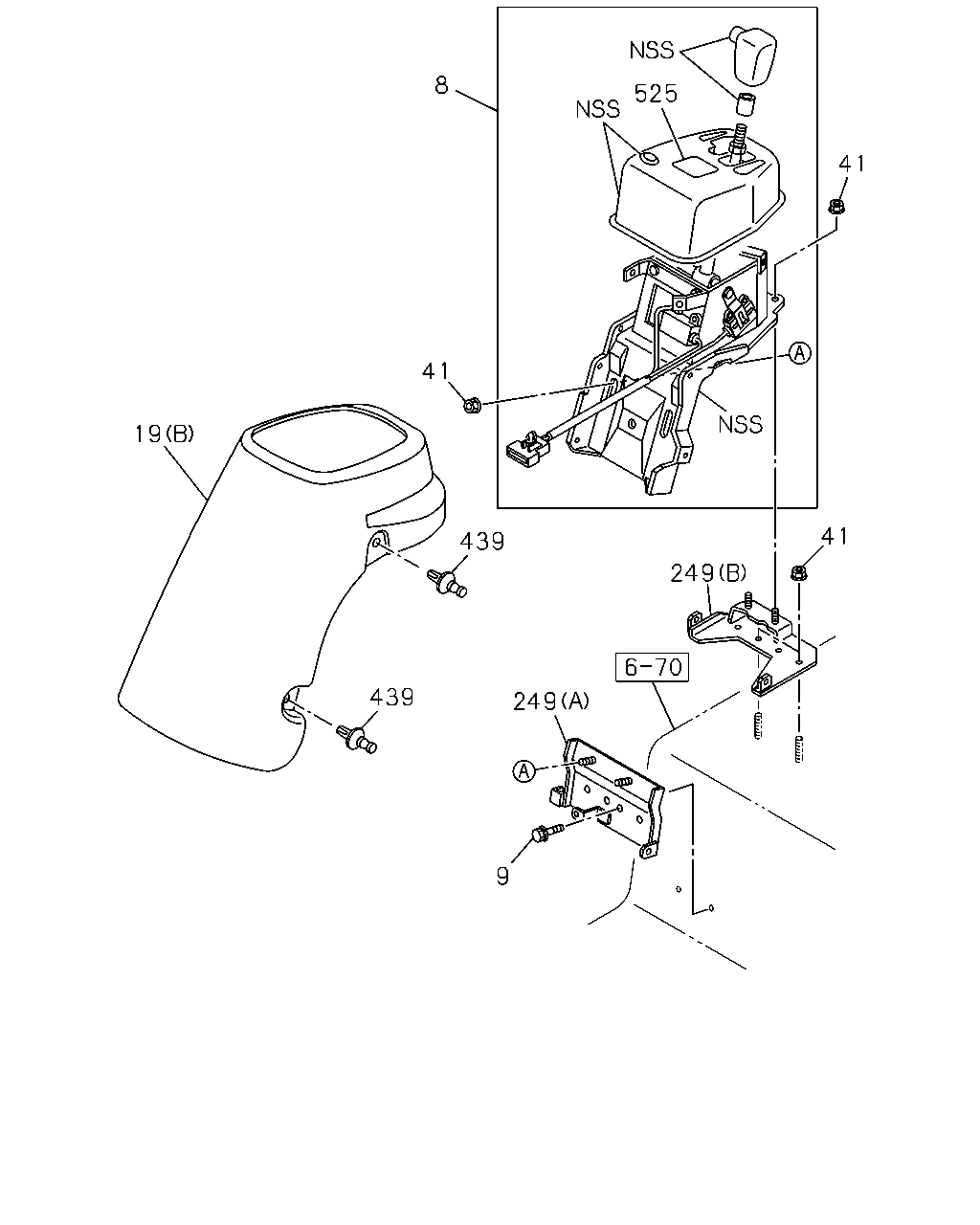

çizim 507174
8 41 525 41 439 439 19 249 9 249 41
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-739-1 01 1 1507-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-452-0 01 1 1507-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1507-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97409-847-0 01 1 1507-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1507-
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) 		8-97623-278-1 01 1 1507-
249 BRACKET; COVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (A) 		8-98016-951-3 01 1 1507-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1507-
525 LABEL; SHIFT POSITION
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-98048-480-1 01 1 1507-

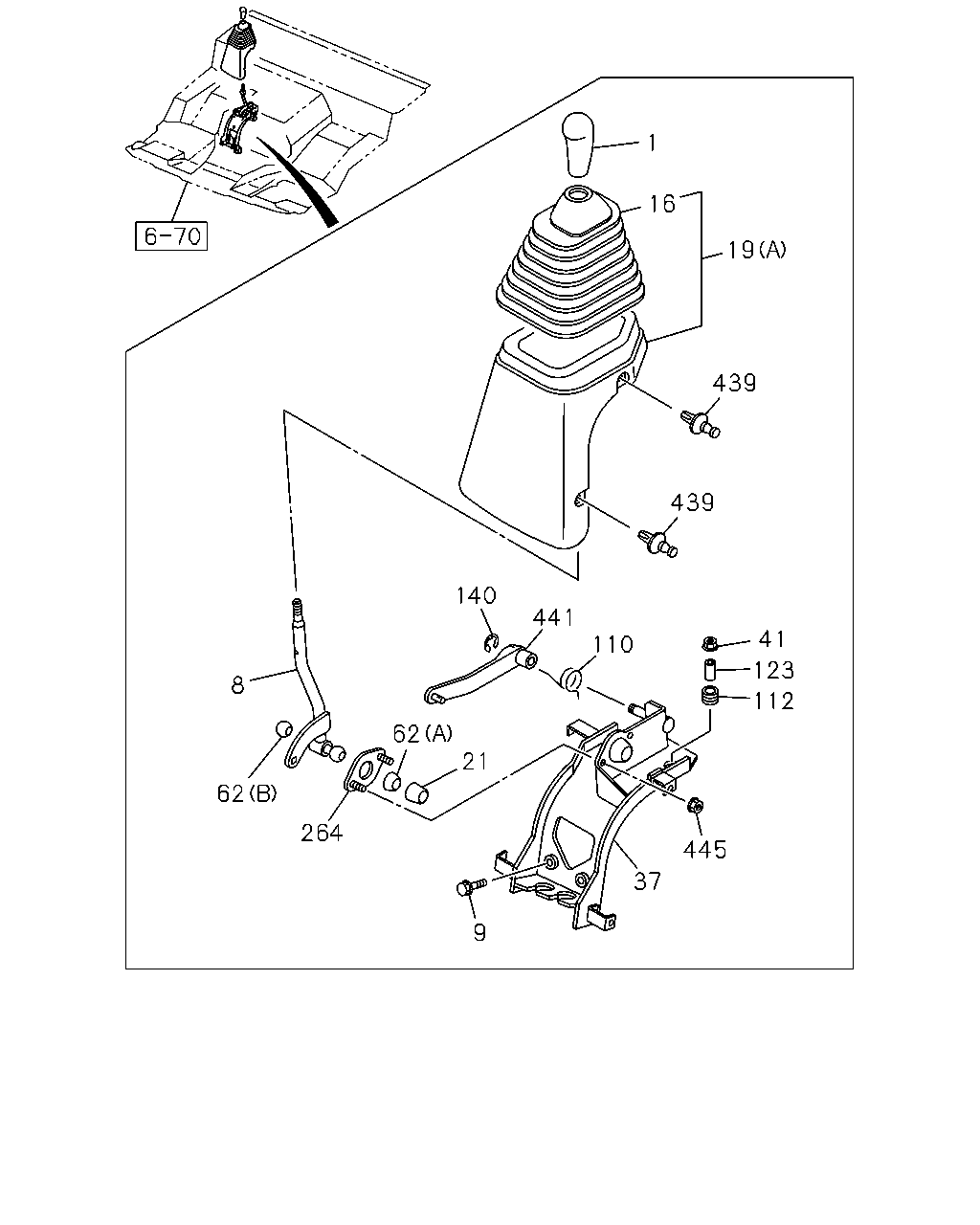

çizim 507205
1 16 19 439 439 41 123 112 445 37 9 110 441 140 21 62 264 62 8
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33611-070-1 01 1 1507-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER(8GF) DARK GRAY 		8-97465-739-1 01 1 1507-
8 LEVER; CHANGE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-452-0 01 1 1507-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1507-
9 BOLT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8X20 FLANGE 		0-28650-820-0 02 1 1507-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-913-1 01 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) (B) GRAY 		8-97407-501-0 01 1 1507-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97409-847-0 01 1 1507-
21 SEAT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-429-0 01 1 1507-
37 BRACKET; CHANGE LEVER SUPPORT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98093-441-0 01 1 1507-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8 W/DISHED WASHER 		8-97329-625-0 02 1 1507-
41 NUT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER(8GF) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1507-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		1-33619-427-0 01 1 1507-
62 SEAT; BALL,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-97049-147-0 01 1 1507-
110 SPRING; RETURN,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-586-0 01 1 1507-
112 RUBBER; CUSHION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-442-0 04 1 1507-
123 COLLAR; DIST,CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-443-0 04 1 1507-
140 RING; SNAP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 		0-91805-510-0 01 1 1507-
264 PLATE; COVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-33619-430-0 01 1 1507-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1507-
441 LEVER; SELECT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98071-283-0 01 1 1507-
445 NUT; PLATE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M6 FLANGE 		0-91180-106-0 02 1 1507-
