2-26 — MANUAL TRANSMISSION GEAR (#171146) — 126 parça

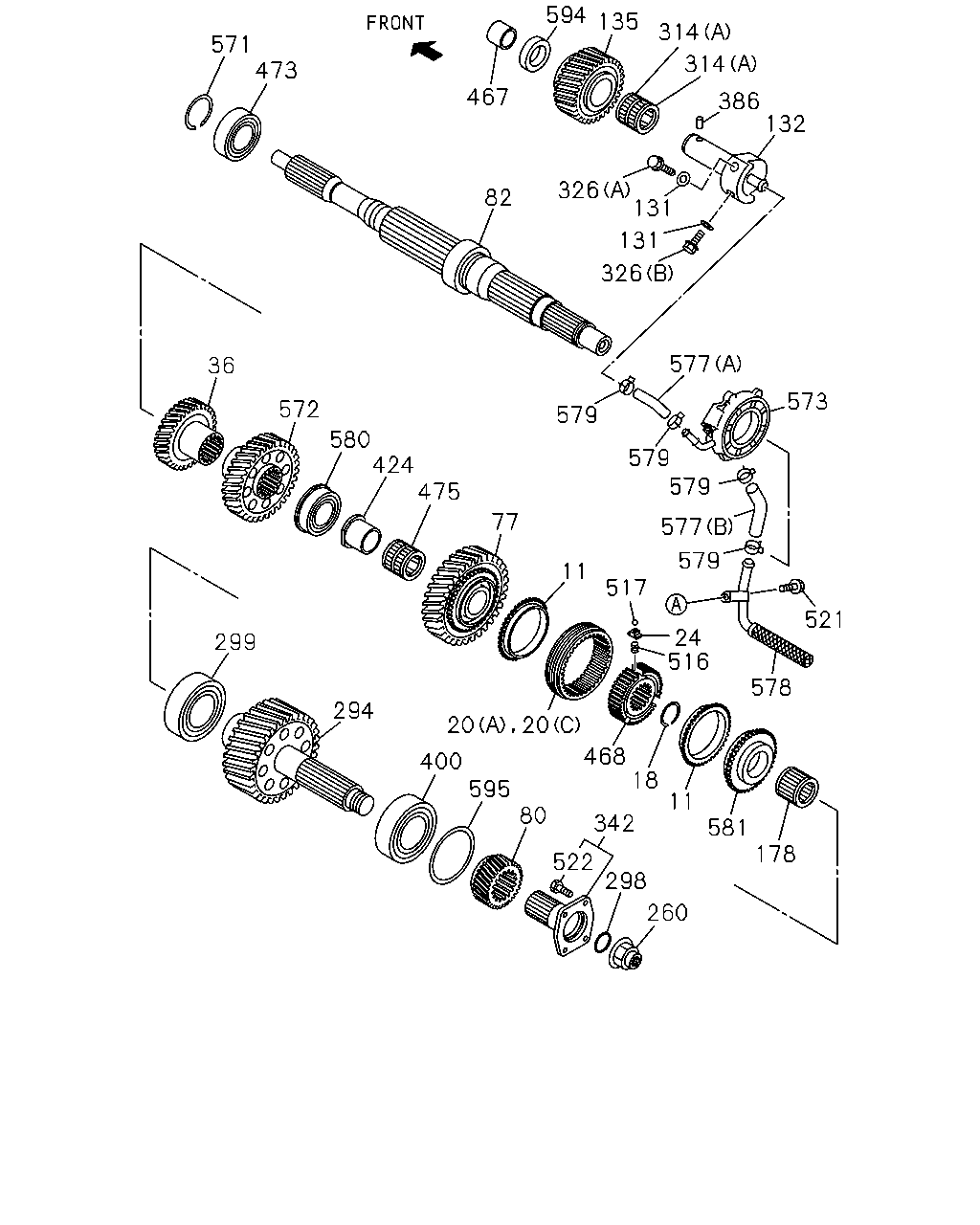

571 36 473 572 299 580 475 294 424 77 20 400 595 80 522 298 260 342 468 20 18 11 581 178 578 521 579 577 517 11 579 579 579 577 573 516 24 326 131 131 326 82 467 594 314 135 314 132 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
11	RING; BLOCK,5TH & 6TH Z=45	8-97241-306-1	02	1	1507-
18	RING; SNAP,CLU HUB ID=35.7 T=1.8	8-97256-855-0	01	1	1507-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1507-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1507-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1507-
36	GEAR; 3RD,MAINSHAFT Z=29	8-98168-499-0	01	1	1507-
77	GEAR; 6TH,MAINSHAFT Z=46	8-98137-256-0	01	1	1507-
80	GEAR; SPD DRIVE Z=5	8-97377-978-1	01	1	1507-
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=13-21-19-26	8-98245-057-0	01	1	1507-
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98245-058-0	01	1	1507-1507
82	SHAFT; MAIN,TRANS TRANSMISSION CONTROL-SMOOTHER(8GF) Z=14-13-21-19-26	8-98292-396-0	01	1	1508-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0	9-09571-410-0	02	1	1507-
132	SHAFT; REV	8-98009-372-0	01	1	1507-
135	GEAR; REV IDLER Z=27	8-98005-601-1	01	1	1507-
178	BEARING; NEEDLE,MAINSHAFT	8-97253-099-1	01	1	1507-
260	NUT; MAINSHAFT END M36 FLANGE	8-98014-140-0	01	1	1507-
294	SHAFT; OUTPUT Z=43	8-97380-571-0	01	1	1507-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	1507-
299	BEARING; OUTPUT SHAFT FRT	8-97377-970-0	01	1	1507-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1507-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1507-
326	BOLT; REV SHAFT (A) M10X50 FLANGE	0-29261-050-0	01	1	1507-
326	BOLT; REV SHAFT (B) M10X50	8-98014-738-0	01	1	1507-
342	FLANGE; OUTPUT	8-98155-334-0	01	1	1507-
386	PIN; REV SHAFT OD=4 L=8	9-08150-408-0	01	1	1507-
400	BEARING; OUTPUT SHAFT RR	8-97377-977-0	01	1	1507-
424	COLLAR; 6TH GEAR	8-98125-318-0	01	1	1507-
467	COLLAR; SHAFT TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97255-183-1	01	1	1507-
468	HUB; CLU,5TH & 6TH Z=45	8-98075-734-0	01	1	1507-
473	BEARING; INPUT SHAFT	8-97377-950-0	01	1	1507-
475	BEARING; 6TH COLLAR OD=-49.999	8-98101-505-0	01	1	1507-
475	BEARING; 6TH COLLAR OD=50.000-	8-98142-265-0	01	1	1507-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1507-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1507-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1507-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1507-
521	BOLT M8X12 FLANGE	0-28050-812-0	01	1	1507-
522	BOLT; FLANGE M14X43 KNURL	8-98014-003-0	04	1	1507-
571	RING; SNAP,BRG	8-97377-951-0	01	1	1507-
572	GEAR; 4TH,INPUT Z=37	8-98168-500-0	01	1	1507-
573	PUMP ASM; OIL	8-98212-241-0	01	1	1507-
577	HOSE; OIL PUMP (A)	8-98033-981-0	02	1	1507-
577	HOSE; OIL PUMP (B)	8-98033-982-0	02	1	1507-
578	SCREEN; OIL PUMP	8-98009-345-0	02	1	1507-
579	CLAMP; HOSE ID=16	8-97329-628-0	07	1	1507-
580	BEARING; MAINSHAFT RR	8-97377-953-0	01	1	1507-
581	CLUTCH; DOG,5TH GEAR	8-97377-956-0	01	1	1507-
594	WASHER; THRUST,REV IDLE	8-98005-633-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.44	8-97377-984-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.50	8-97377-985-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.56	8-97377-986-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.62	8-97377-987-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.68	8-97377-988-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.74	8-97377-989-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.80	8-97377-990-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.86	8-97377-991-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.38	8-98009-379-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.26	8-98022-221-0	01	1	1507-
595	SHIM; OUTPUT SHAFT T=1.32	8-98022-222-0	01	1	1507-

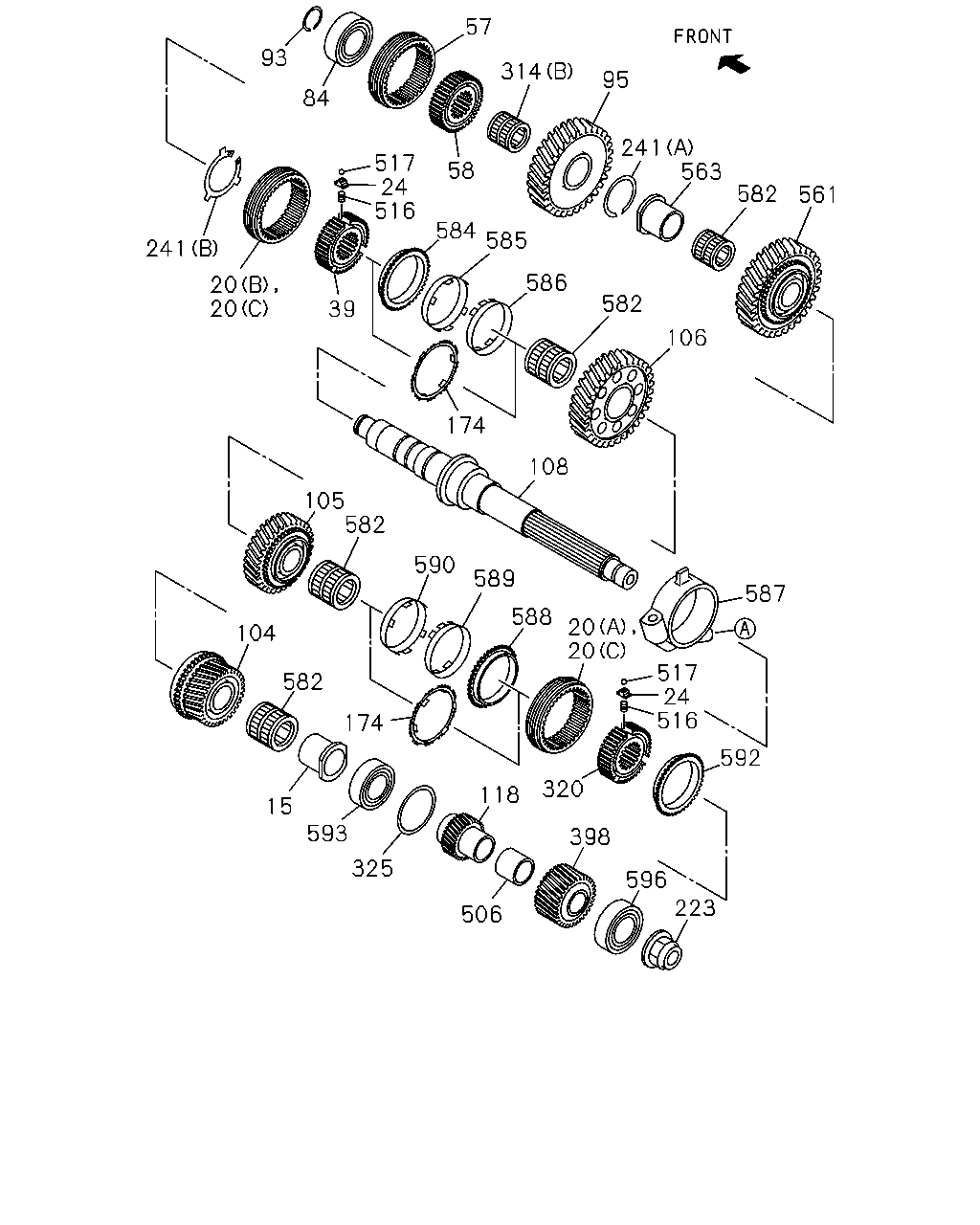

57 314 95 241 582 563 561 582 586 585 584 516 24 58 517 84 93 106 39 20 20 241 174 108 587 105 582 590 589 588 20 20 517 24 516 592 223 596 398 320 118 174 582 104 15 593 325 506

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	COLLAR; 4TH GEAR	8-98146-345-0	01	1	1507-
20	SLEEVE (B) Z=45	8-98034-769-0	01	1	1507-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (B) Z=45	8-98034-769-0	01	1	1509-
20	SLEEVE (A) Z=45	8-98258-279-0	02	1	1507-1508
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) Z=45	8-98258-279-0	03	1	1509-
20	SLEEVE TRANSMISSION CONTROL-SMOOTHER(8GF) (A) Z=45	8-98258-279-0	02	1	1509-
24	BLOCK; INDEX,SYN	8-97241-313-1	09	1	1507-
39	HUB; CLU,LOW & 2ND Z=45	8-98303-646-0	01	1	1507-1507
39	HUB; CLU,LOW & 2ND Z=45	8-98309-852-0	01	1	1508-
57	SLEEVE; REV Z=45	8-94421-871-1	01	1	1507-
58	HUB; CLU,REV Z=45-27	8-98005-296-0	01	1	1507-
84	BEARING; COUNTER SHAFT,FRT	8-97377-957-1	01	1	1507-
93	RING; SNAP,COUNTER FRT BRG	8-97377-958-0	01	1	1507-
95	GEAR; REV,COUNTER Z=44	8-98005-229-0	01	1	1507-
104	GEAR; 4TH,COUNTER Z=29	8-98198-297-0	01	1	1507-
105	GEAR; 3RD,COUNTER Z=35	8-98168-501-0	01	1	1507-
106	GEAR; 2ND,COUNTER Z=44	8-98140-884-0	01	1	1507-
108	SHAFT; COUNTER Z=27-42-26	8-98303-643-0	01	1	1507-
118	GEAR; 6TH,COUNTER Z=17	8-98005-292-1	01	1	1507-
174	SYNCHRONIZER ASM; 2ND-3RD TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98315-823-2	02	1	1509-
223	NUT; COUNTER SHAFT END M34 FLANGE	8-98005-894-0	01	1	1507-
241	RING; SNAP (A) ID=46.5 T=1.8	8-97254-743-0	01	1	1507-
241	RING; SNAP (B) ID=96 T=2.5	8-98009-391-0	01	1	1507-
314	BEARING; NEEDLE,REV GEAR (A) JTEKT	1-09811-017-0	02	1	1507-
314	BEARING; NEEDLE,REV GEAR (B) NSK	8-97253-111-0	01	1	1507-
320	HUB; CLU,4TH & 3RD Z=45	8-98303-649-0	01	1	1507-1507
320	HUB; CLU,4TH & 3RD Z=45	8-98309-859-0	01	1	1508-
325	SHIM; COUNTER SHAFT BRG T=1.56	8-97377-994-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.62	8-97377-995-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.68	8-97377-996-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.74	8-97377-997-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.80	8-97377-998-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.26	8-98009-373-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.32	8-98009-374-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.38	8-98009-375-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.44	8-98009-376-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.50	8-98009-377-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.14	8-98022-218-0	01	1	1507-
325	SHIM; COUNTER SHAFT BRG T=1.20	8-98022-219-0	01	1	1507-
398	GEAR; COUNTER Z=22	8-97380-568-0	01	1	1507-
506	COLLAR; 6TH,COUNTER	8-97377-965-0	01	1	1507-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98032-197-0	09	1	1507-
516	SPRING; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-98054-981-0	09	1	1507-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97252-935-0	09	1	1507-
517	BALL; SYNCHRO,INDEX TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97252-935-0	10	1	1507-
561	GEAR; LOW,COUNTER Z=44	8-98000-330-0	01	1	1507-
563	COLLAR; 1ST GEAR	8-98146-345-0	01	1	1507-
582	BEARING; NEEDLE,COUNTER GEAR	8-97253-110-0	04	1	1507-
584	RING; BLOCK,2ND Z=45	8-98034-770-0	01	1	1507-1508
584	RING; BLOCK,2ND TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-98034-770-0	01	1	1509-
585	RING; OUTSIDE,2ND	8-97241-309-1	01	1	1507-1508
585	RING; OUTSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-
586	RING; INSIDE,2ND	8-97241-312-1	01	1	1507-1508
586	RING; INSIDE,2ND TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-
587	CASE; PUMP,COUNTER	8-98303-650-0	01	1	1507-
588	RING; BLOCK,3RD Z=45	8-97241-306-1	01	1	1507-1508
588	RING; BLOCK,3RD TRANSMISSION CONTROL-SMOOTHER(8GF) Z=45	8-97241-306-1	01	1	1509-
589	RING; OUTSIDE,3RD	8-97241-309-1	01	1	1507-1508
589	RING; OUTSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-309-1	01	1	1509-
590	RING; INSIDE,3RD	8-97241-312-1	01	1	1507-1508
590	RING; INSIDE,3RD TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97241-312-1	01	1	1509-
592	RING; BLOCK,4TH Z=45	8-97241-306-1	01	1	1507-
593	BEARING; COUNTER MIDDLE	8-97377-976-0	01	1	1507-
596	BEARING; ROOLER,COUNTER END	8-97377-968-0	01	1	1507-
