◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#171140) — 40 parça

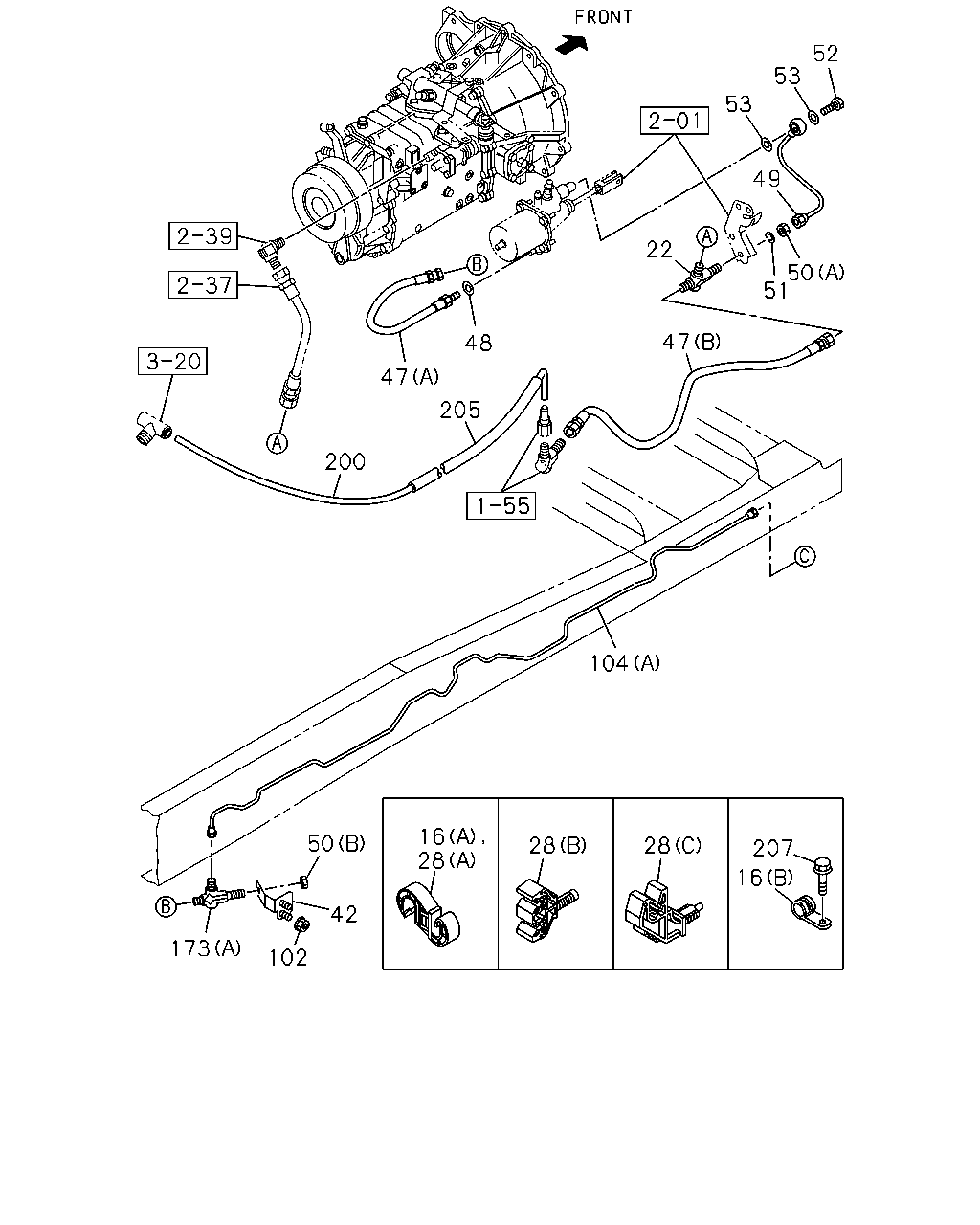

çizim 507163
53 53 52 49 50 51 47 22 104 205 48 47 200 28 207 16 28 28 16 50 42 102 173
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=18 L=28 		1-09701-067-0 01 1 1507-
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=10 & 12 		1-09709-278-1 01 1 1507-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1507-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) ID=6.35 		1-09701-247-1 01 1 1507-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1507-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98012-254-1 03 1 1507-
42 BRACKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98203-636-0 01 1 1507-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=500 		1-09363-733-0 01 1 1507-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=440 		8-98072-346-0 01 1 1507-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1507-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) 		8-98222-994-0 01 1 1507-
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1507-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1507-
52 BOLT; EYE,AIR PIPE
14" CLUTCH(WF6) M14X27 FLANGE 		1-09675-086-0 01 1 1507-
53 GASKET; JOINT BOLT
14" CLUTCH(WF6) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1507-
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1450 		8-98281-680-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1507-
200 TUBE; NYLON
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1507-
200 TUBE; NYLON
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 1507-
205 TUBE; CORRUGATE
WHEEL BASE 3400MM(34W),WHEEL BASE 4000MM(40W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=2000 ID=10 		1-87411-019-0 01 1 1507-
205 TUBE; CORRUGATE
WHEEL BASE 4600MM(46W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) SERVICED BY L=4000 ID=10 		1-87411-020-0 01 1 1507-
207 BOLT; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X20 FLANGE 		0-28650-820-0 01 1 1507-
çizim 507768
48 101 239 50 104 173 39 50 173
BalonParca AdiParca NoAdetTipApplied Date
39 GASKET; CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		9-09920-268-0 01 1 1507-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1507-
50 NUT; UNION
ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 01 1 1507-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 		0-91111-512-0 02 1 1507-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=510 		8-98059-811-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2464 SERVICED BY L=2500 		1-47428-742-0 01 1 1507-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=1450 		8-98281-680-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 2WAY 		1-09654-059-2 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) 		8-98203-740-0 01 1 1507-
173 CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) 		8-98205-344-0 01 1 1507-
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 2WAY 		1-09654-059-2 01 1 1507-
