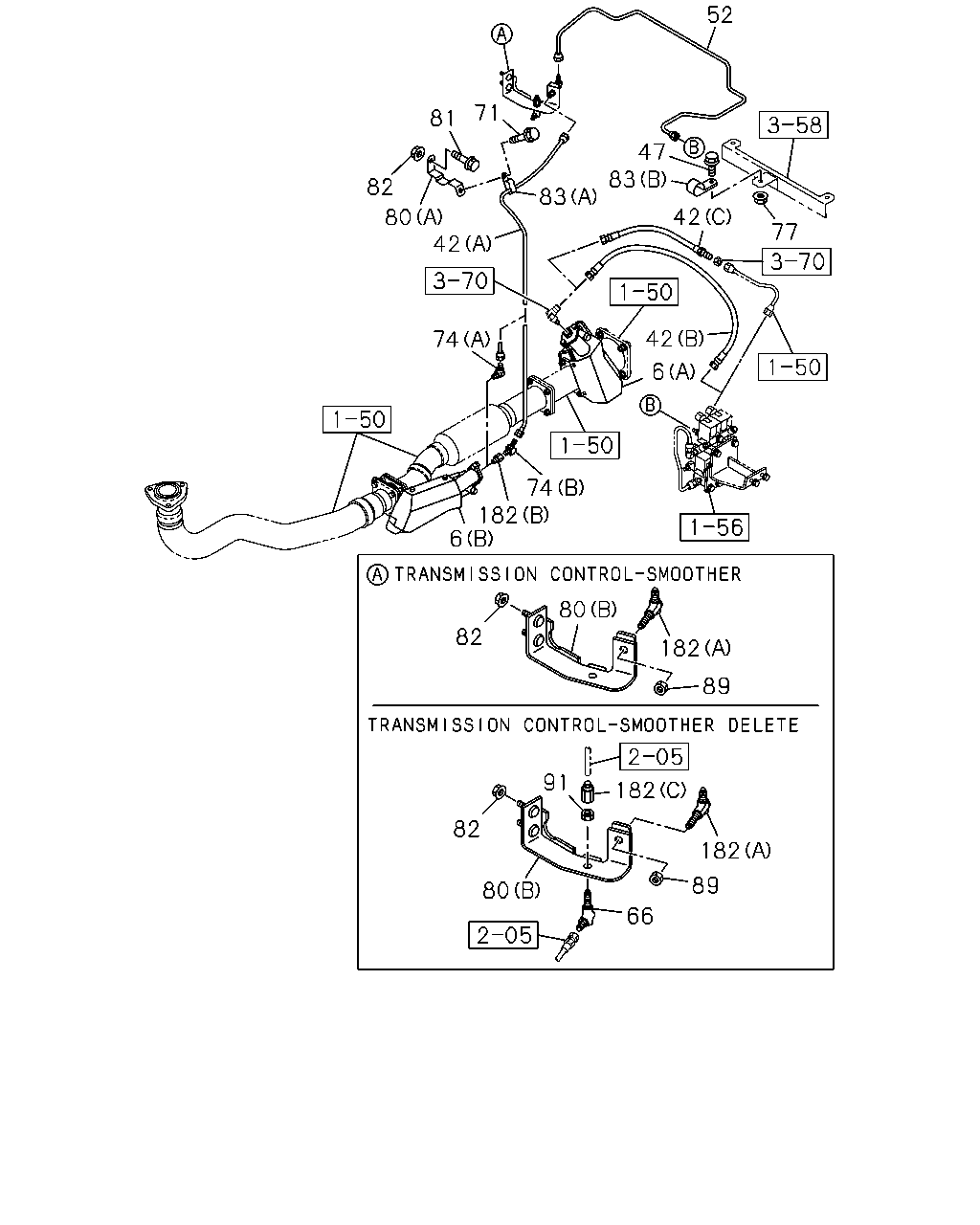

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#171136) — 25 parça

81 82 42 74 182 6 74 6 42 77 42 83 83 47 52 71 80 82 80 182 89 91 182 82 80 66 182 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	VALVE; EXH BRAKE (A)	8-98160-836-3	01	1	1507-
6	VALVE; EXH BRAKE (B)	8-98193-416-1	01	1	1507-
42	HOSE; FLEX,EXH BRK WHEEL BASE 3400MM(34W) (C) L=300	1-09363-608-0	01	1	1507-
42	HOSE; FLEX,EXH BRK WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=530	8-98236-996-0	01	1	1507-
42	HOSE; FLEX,EXH BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (A) L=440	8-98238-300-0	01	1	1507-
42	HOSE; FLEX,EXH BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=310	1-09363-713-0	01	1	1507-
47	BOLT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1507-
52	PIPE ASM; AIR FLEX HOSE WHEEL BASE 3400MM(34W)	8-98203-575-0	01	1	1507-
52	PIPE ASM; AIR FLEX HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W)	8-98232-881-0	01	1	1507-
66	UNION TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 ELBOW	0-92125-206-0	01	1	1507-
71	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	1507-
74	CONNECTOR; EXH BRK VLV TRANSMISSION CONTROL-SMOOTHER(8GF) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1507-
74	CONNECTOR; EXH BRK VLV TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M12 & PT1/4 ELBOW	8-98299-777-0	01	1	1507-
77	NUT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	01	1	1507-
80	BRACKET; FLEX HOSE (A)	8-98078-153-0	01	1	1507-
80	BRACKET; FLEX HOSE (B)	8-98232-877-0	01	1	1507-
81	BOLT; HOSE BRKT M10X25 FLANGE	0-28051-025-0	01	1	1507-
82	NUT; HOSE BRKT M10 FLANGE	0-91180-210-0	03	1	1507-
83	CLIP; FLEX HOSE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=13 L=20	0-95235-235-0	01	1	1507-
83	CLIP; FLEX HOSE (A) ID=11X2 L=16	1-09700-820-0	01	1	1507-
89	NUT; BRKT M12	9-09840-280-0	01	1	1507-
91	NUT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12	9-09840-280-0	01	1	1507-
182	CONNECTOR (A) M12 ELBOW	0-92125-206-0	01	1	1507-
182	CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) PS1/4 & PT1/4 STRAIGHT	1-09660-090-0	01	1	1507-
182	CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1507-
