◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#171135) — 106 parça

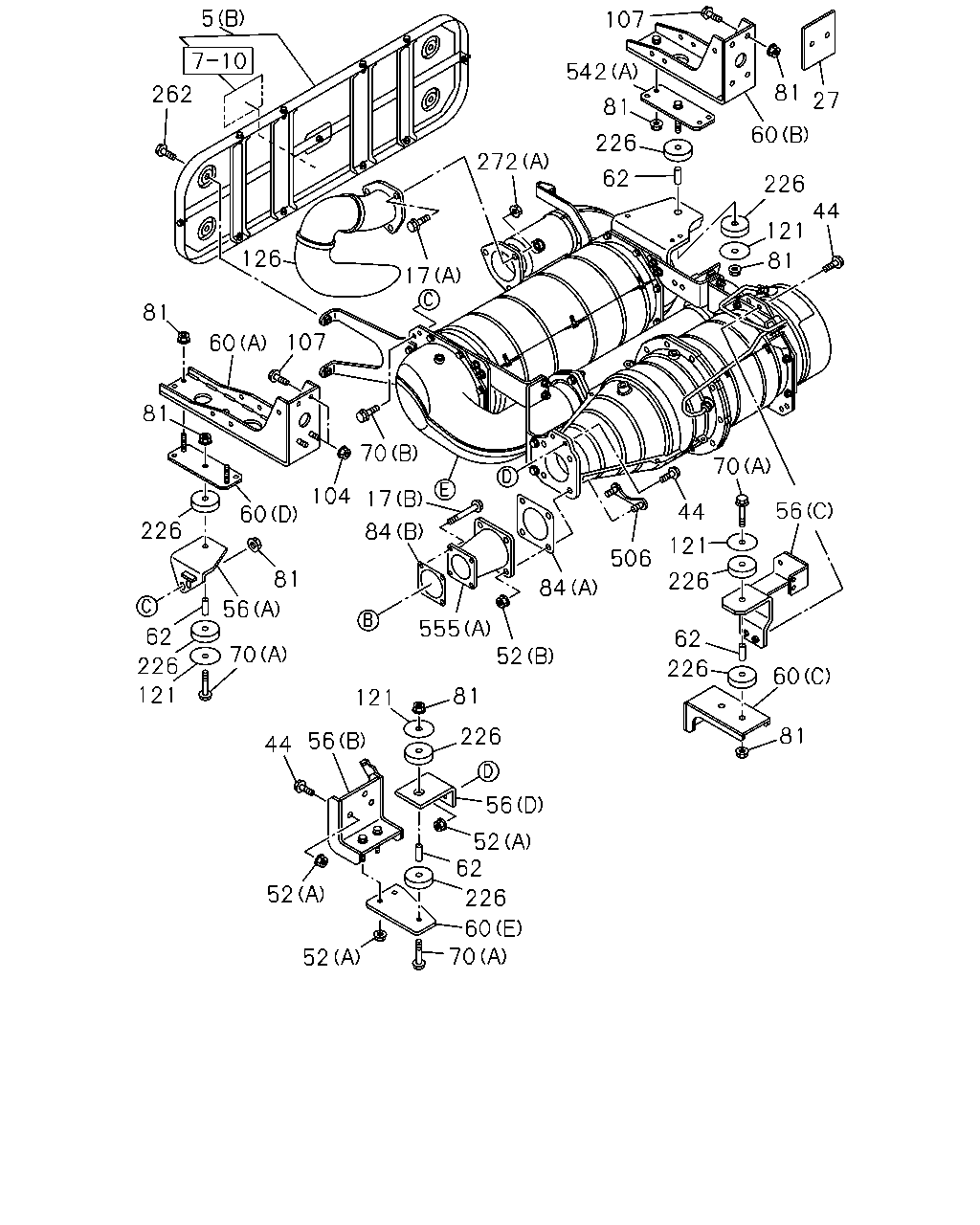

çizim 507182
70 226 60 52 62 56 226 81 121 56 44 52 52 555 52 84 226 62 226 506 121 44 70 56 60 81 81 121 44 226 60 27 81 107 542 226 272 62 17 70 84 17 104 60 81 70 56 121 62 226 226 81 81 126 107 60 81 262 5
BalonParca AdiParca NoAdetTipApplied Date
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1507-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1507-
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 1507-
17 BOLT; EXH PIPE
(B) M8X65 FLANGE 		1-09044-072-1 04 1 1507-
27 STUD; EXH PIPE
WHEEL BASE 3400MM(34W) 		8-98203-963-0 01 1 1507-
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 09 1 1507-
52 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 07 1 1507-
52 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-98203-966-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98228-981-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98229-042-0 01 1 1507-
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98229-237-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(A) 		8-98159-854-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(D) 		8-98159-985-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(B) 		8-98223-954-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(E) 		8-98228-982-0 01 1 1507-
60 BRACKET; FRAME TO BRKT
(C) 		8-98229-041-0 01 1 1507-
62 TUBE; DIST,BRKT 8-98131-254-0 04 1 1507-
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 03 1 1507-
70 BOLT; BRKT
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1507-
81 NUT; BRKT
WHEEL BASE 3400MM(34W) M10 FLANGE 		0-91180-210-0 06 1 1507-
81 NUT; BRKT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M10 FLANGE 		0-91180-210-0 04 1 1507-
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 1507-
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=64 		8-97373-108-0 01 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1507-
104 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1507-
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 1507-
121 WASHER; PL,BRKT
ID=10.5 OD=70 		8-97625-671-0 04 1 1507-
126 PIPE; EXH,RR 8-98224-713-0 01 1 1507-
226 RUBBER; CUSHION 8-97625-670-0 08 1 1507-
262 BOLT; HANGER TO BODY
M8X25 W/LK&PL WASHER 		1-09980-548-0 04 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
555 PIPE; EXH,DPD
WHEEL BASE 3400MM(34W) (B) L=184 		8-98203-576-0 01 1 1507-
555 PIPE; EXH,DPD
(A) 		8-98224-353-0 01 1 1507-

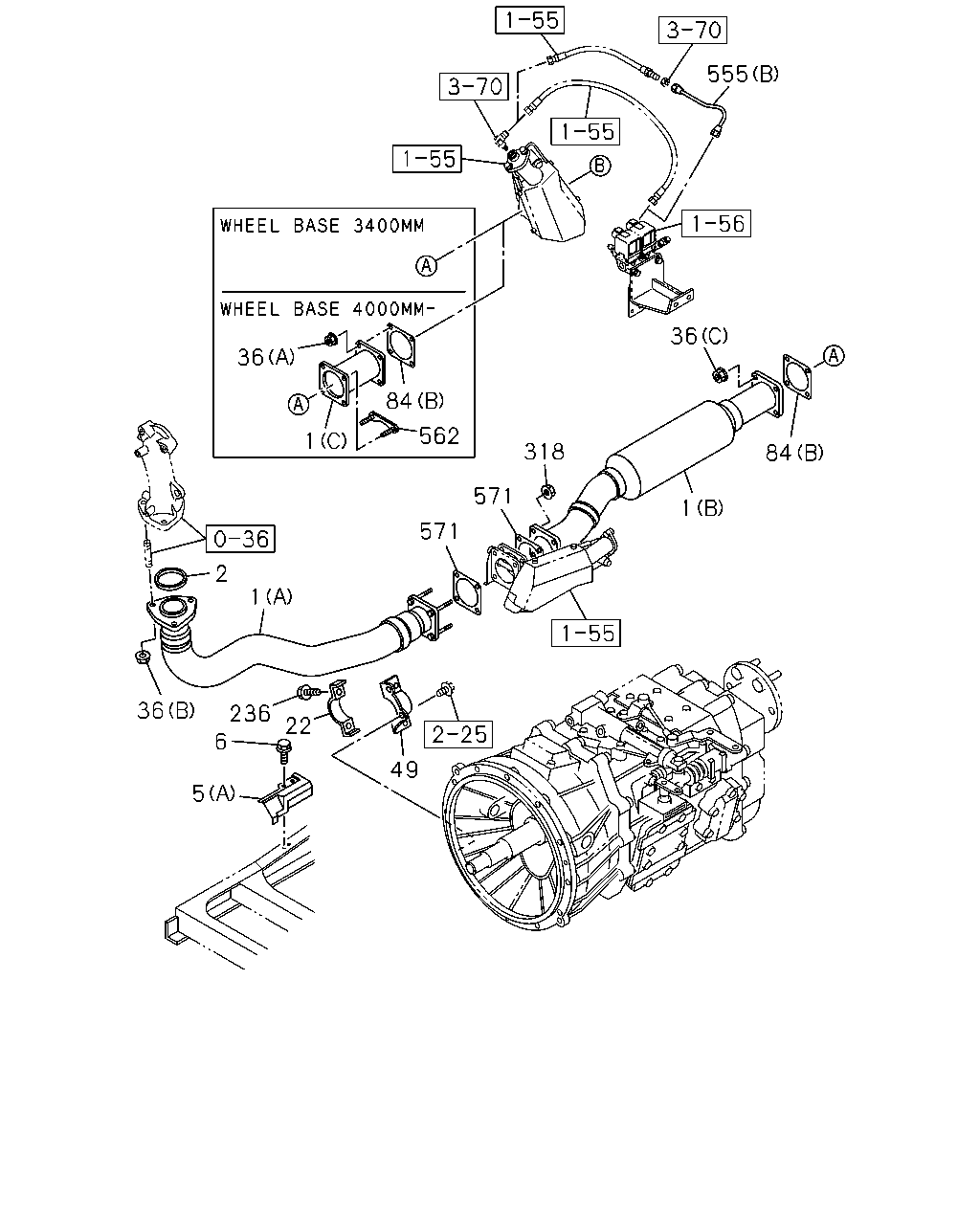

çizim 507207
555 36 84 1 318 571 571 49 22 236 6 5 36 1 2 1 562 84 36
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C) 		8-98229-233-0 01 1 1507-
1 PIPE; EXH
(B) 		8-98229-236-0 01 1 1507-
1 PIPE; EXH
(A) 		8-98243-550-0 01 1 1507-
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97381-455-0 01 1 1507-
5 PROTECTOR; HEAT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) 		8-98044-122-0 01 1 1507-
5 PROTECTOR; HEAT
(B) 		8-98236-295-0 01 1 1507-
6 BOLT; HEAT PROTECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M8X25 FLANGE 		0-28650-825-0 02 1 1507-
22 CLAMP; EXH PIPE 8-97646-674-0 01 1 1507-
36 NUT; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE 		0-91180-108-0 04 1 1507-
36 NUT; EXH PIPE
(B) M10 FLANGE 		8-97096-192-1 03 1 1507-
36 NUT; EXH PIPE
(C) M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
49 BRACKET; EXH PIPE TO TRANS 8-98208-167-0 01 1 1507-
84 GASKET; EXH PIPE
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) ID=64 		8-97373-108-0 01 1 1507-
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 1507-
84 GASKET; EXH PIPE
(B) ID=64 		8-97373-108-0 02 1 1507-
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 02 1 1507-
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1507-
555 PIPE; EXH,DPD
WHEEL BASE 3400MM(34W) (B) L=184 		8-98203-576-0 01 1 1507-
555 PIPE; EXH,DPD
(A) 		8-98224-353-0 01 1 1507-
562 PLATE; STUD,BOLT
WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) 		8-97373-966-0 02 1 1507-
571 GASKET
ID=64 		8-97373-108-0 02 1 1507-

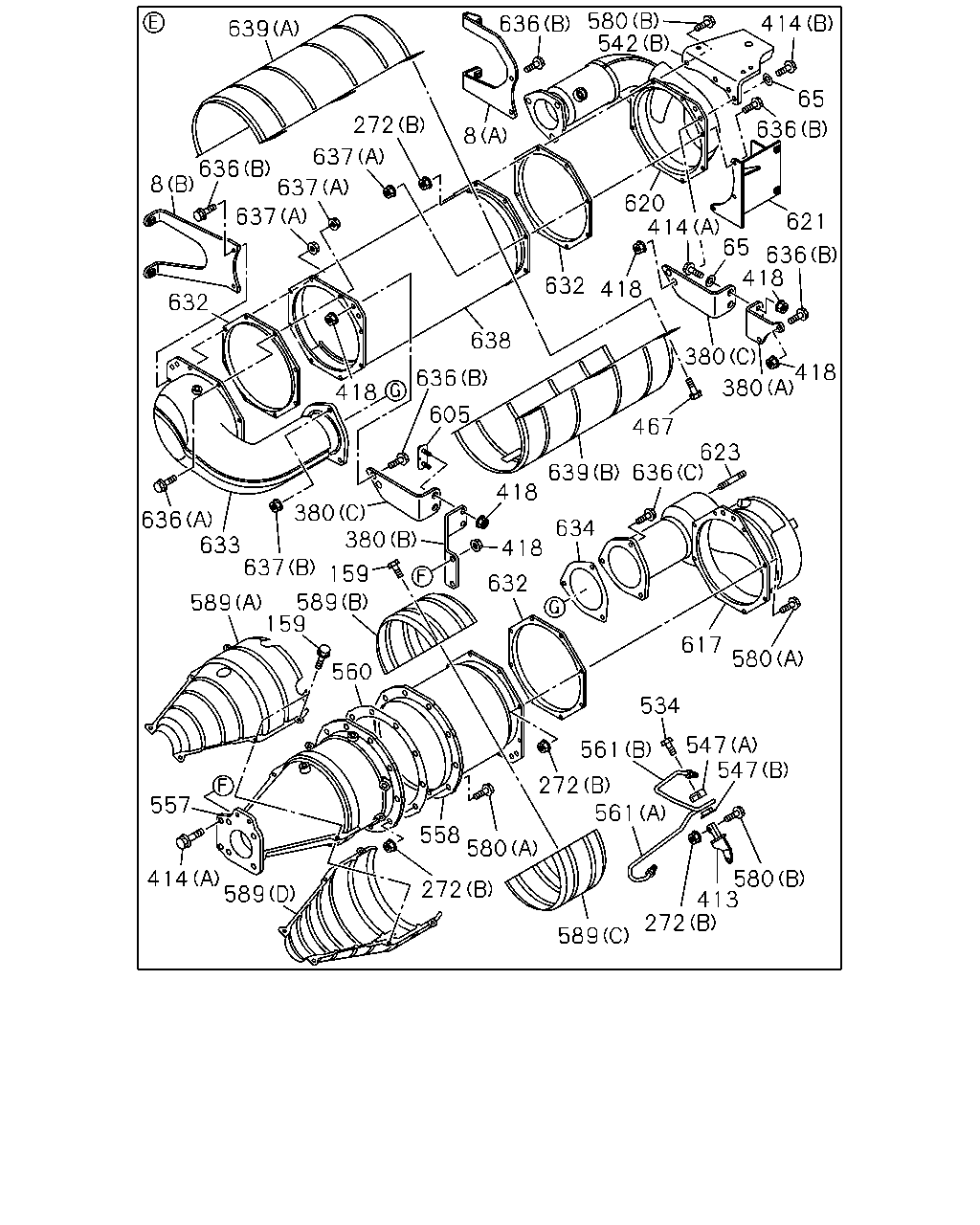

çizim 507542
580 413 272 589 580 558 272 561 547 547 580 617 534 561 272 632 560 557 414 589 159 589 633 636 637 589 380 159 418 634 639 638 636 418 636 467 380 380 418 418 636 621 65 414 620 636 65 414 542 580 636 8 418 632 272 637 637 637 636 8 632 605 380 418 623 639
BalonParca AdiParca NoAdetTipApplied Date
8 BRACKET; EXH PIPE
(A) 		8-98144-459-0 01 1 1507-
8 BRACKET; EXH PIPE
(B) 		8-98203-726-0 01 1 1507-
65 WASHER; PL
ID=10.5 OD=22 		0-91614-610-0 06 1 1507-
159 BOLT; HEAT PROTECTOR
M6X16 		8-98019-179-0 10 1 1507-
272 NUT; FLANGE
(B) M8 FLANGE 		0-91180-108-0 18 1 1507-
272 NUT; FLANGE
(A) M12 FLANGE 		0-91180-212-0 03 1 1507-
380 BRACKET; STAY
(A) 		8-98118-879-0 01 1 1507-
380 BRACKET; STAY
(C) 		8-98138-457-1 02 1 1507-
380 BRACKET; STAY
(B) 		8-98205-012-0 01 1 1507-
413 BRACKET; EXH PIPE,CONN 8-98138-485-0 01 1 1507-
414 BOLT; BRKT
(A) M10X35 FLANGE 		0-28051-035-0 06 1 1507-
414 BOLT; BRKT
(B) M10X45 FLANGE 		0-28051-045-0 02 1 1507-
418 NUT; BRKT
M10 FLANGE 		0-91180-110-0 10 1 1507-
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 06 1 1507-
534 BOLT; CLIP
M6X30 FLANGE 		0-28050-630-0 01 1 1507-
542 BRACKET
(B) 		8-98232-788-0 01 1 1507-
542 BRACKET
(A) 		8-98236-728-0 01 1 1507-
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 01 1 1507-
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 01 1 1507-
557 CATALYST ASM 8-98204-940-1 01 1 1507-
558 FILTER ASM 8-98204-942-0 01 1 1507-
560 GASKET; DPD 8-97611-080-0 01 1 1507-
561 PIPE; DPD
(A) 		8-98138-575-0 01 1 1507-
561 PIPE; DPD
(B) 		8-98138-576-0 01 1 1507-
580 BOLT; FLANGE
(A) M8X30 FLANGE 		0-28050-830-0 14 1 1507-
580 BOLT; FLANGE
(B) M8X40 FLANGE 		0-28050-840-0 04 1 1507-
589 PROTECTOR; HEAT,DPD
(A) 		8-97611-086-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(B) 		8-97628-261-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(C) 		8-97628-262-0 01 1 1507-
589 PROTECTOR; HEAT,DPD
(D) 		8-98140-713-0 01 1 1507-
605 PLATE; NUT 8-98148-511-0 01 1 1507-
617 CHAMBER SUB ASM; MIXER 8-98204-944-1 01 1 1507-
620 CHAMBER ASM; RR 8-98205-011-0 01 1 1507-
621 BRACKET; PROTECTOR 8-98159-190-1 01 1 1507-
623 STUD; FLANGE
M6 		8-98141-351-0 03 1 1507-
632 GASKET; FILTER,DEF 8-97628-257-0 03 1 1507-
633 CHAMBER SUB ASM; DEF,FRONT 8-98138-451-0 01 1 1507-
634 GASKET; MIXER 8-98118-422-1 01 1 1507-
636 BOLT; FLANGE,DEF FRONT
(A) M8X30 FLANGE 		0-28050-830-0 07 1 1507-
636 BOLT; FLANGE,DEF FRONT
(B) M8X40 FLANGE 		0-28050-840-0 09 1 1507-
636 BOLT; FLANGE,DEF FRONT
(C) M10X40 FLANGE 		0-28051-040-0 03 1 1507-
637 NUT; FLANGE,DEF FRONT
(A) M8 FLANGE 		0-91180-108-0 15 1 1507-
637 NUT; FLANGE,DEF FRONT
(B) M10 FLANGE 		0-91180-110-0 03 1 1507-
638 CATALYST ASM; DEF 8-98205-010-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(A) 		8-98136-188-0 01 1 1507-
639 PROTECTOR; HEAT,CATALYST ASM DEF
(B) 		8-98136-189-1 01 1 1507-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
