Sayfa 1-46 - Isuzu EPC

1-46 — DEF TANK AND PIPING (#171134) — 239 parça

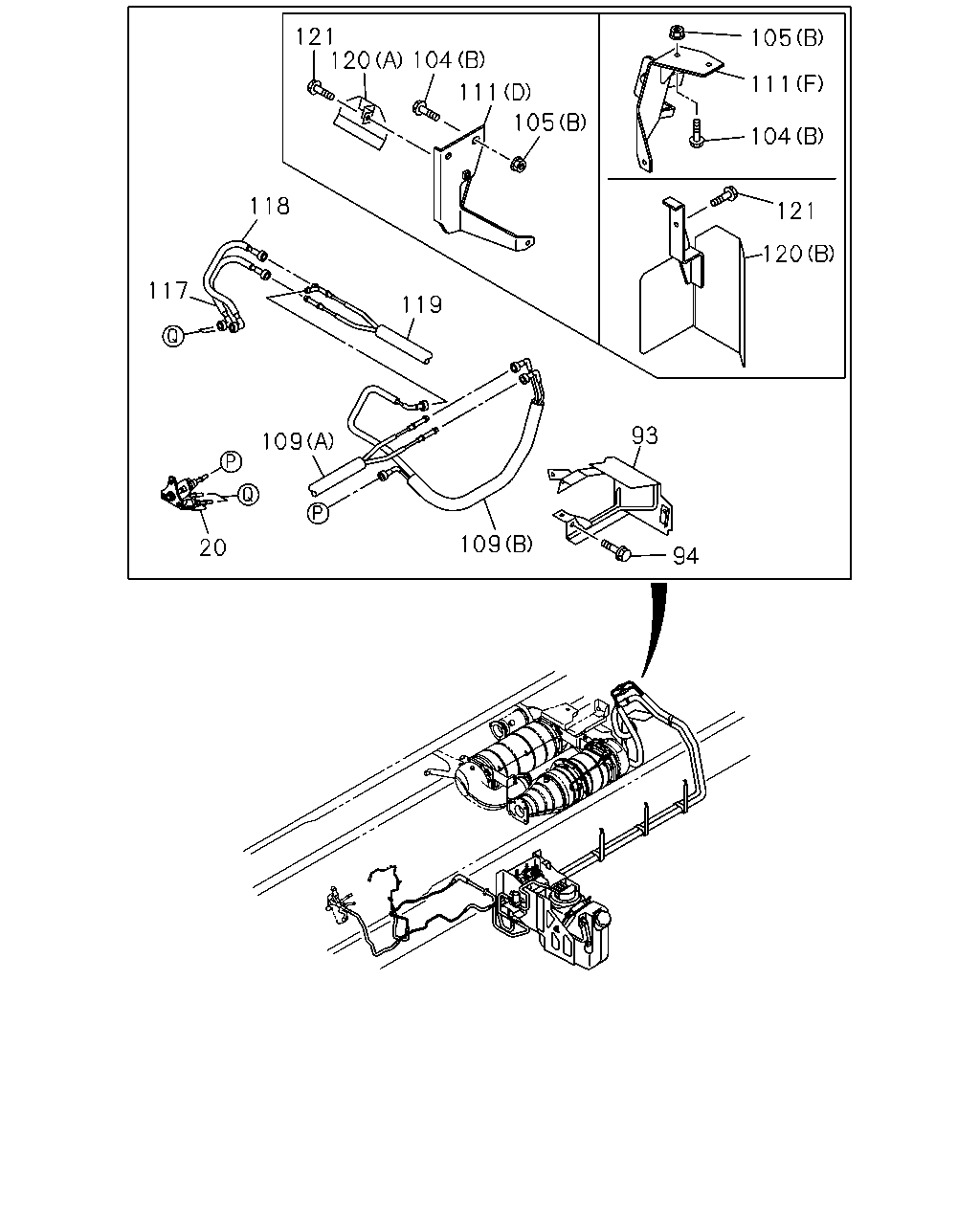

105 104 111 121 120 105 111 104 120 121 118 119 109 20 109 93 94 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1507-
93	PROTECTOR; DEF DCM	8-98166-811-0	01	1	1507-
94	BOLT; PROTECTOR,DEF DCM M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1507-
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1507-
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98206-718-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98329-858-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98206-720-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98206-714-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98329-851-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98210-290-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98329-854-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98206-717-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98329-853-0	01	1	1510-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98309-774-0	05	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98309-774-0	07	1	1507-
117	TUBE ASM; DEF DCM COOL DLVY	8-98169-122-0	01	1	1507-
118	TUBE ASM; DEF DCM COOL RTN	8-98169-121-0	01	1	1507-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98206-721-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98329-860-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W)	8-98210-287-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W)	8-98329-862-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98210-366-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98329-863-0	01	1	1510-
120	PROTECTOR; DEF COOL & HTR WAT TUBE WHEEL BASE 3400MM(34W) (B)	8-98236-477-0	01	1	1507-
120	PROTECTOR; DEF COOL & HTR WAT TUBE WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A)	8-98169-727-0	01	1	1507-
121	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	01	1	1507-

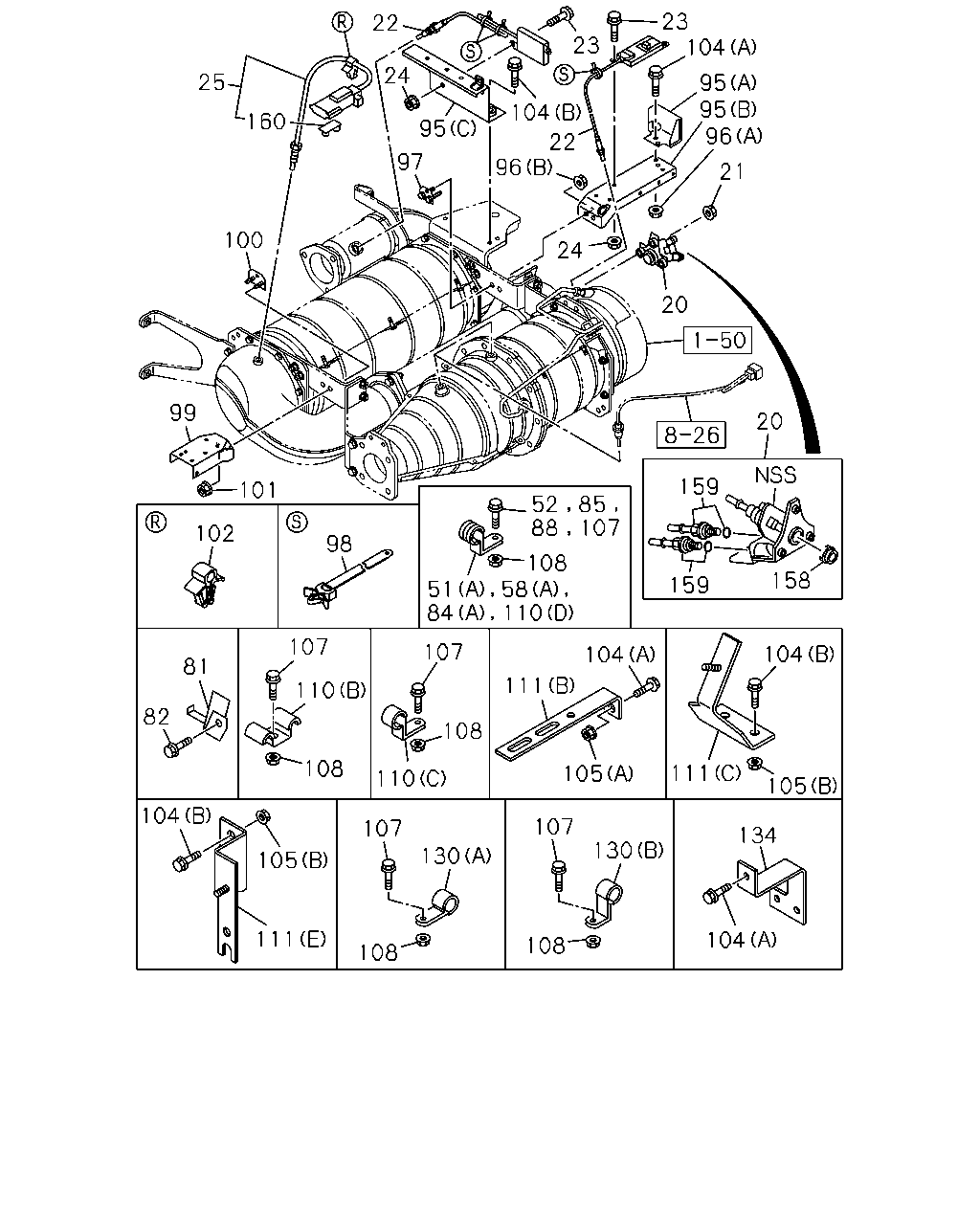

22 24 95 97 100 160 25 96 22 104 23 23 96 95 95 104 21 20 24 20 159 159 158 104 111 105 104 134 130 107 130 108 108 107 105 111 104 108 110 108 111 107 104 110 107 81 82 98 102 51 84 110 108 58 88 52 85 107 101 99 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	INJECTOR ASM; DEF DCM	8-98231-898-2	01	1	1507-
21	NUT; INJECTOR ASM,DEF DCM M6 FLANGE	0-91180-106-0	03	1	1507-
22	SENSOR; DEF DCM EXH NOX	8-98302-394-0	02	1	1507-
23	BOLT; SENSOR,DEF DCM EXH NOX	8-98155-181-0	04	1	1507-
24	NUT; SENSOR,DEF DCM EXH NOX M6 FLANGE	0-91180-106-0	04	1	1507-
25	SENSOR; DEF DCM EXH TEMP	8-98086-329-0	01	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1507-
52	BOLT; DEF DCM MDL COOL DLVY HOSE CLIP M8X12 FLANGE	0-28050-812-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1507-
81	BRACKET; DEF DCM MDL COOL RTN HOSE	8-98239-525-0	01	1	1507-
82	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE B M8X30 FLANGE	0-28650-830-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	02	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1507-
85	BOLT/SCREW;DEF DCM MDL COOL RTN HOSE C M8X20 FLANGE	0-28650-820-0	01	1	1507-
88	BOLT; CLIP,DEF RSVR HTR DLVY HOSE M8X25 FLANGE	0-28650-825-0	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (B)	8-98142-266-3	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (A)	8-98170-211-0	01	1	1507-
95	BRACKET; HARN,DEF DCM EXH NOX SEN (C)	8-98241-870-0	01	1	1507-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (A) M8 FLANGE	0-91180-108-0	02	1	1507-
96	NUT; BRACKET,DEF DCM EXH NOX SEN HARN (B) M10 FLANGE	0-91180-210-0	02	1	1507-
97	STUD; BRACKET,DEF DCM EXH NOX SEN HARN	8-98005-985-0	01	1	1507-
98	CLIP; DEF DCM EXH NOX SEN HARN L=112	8-94232-618-0	08	1	1507-
99	BRACKET; DEF DCM EXH TEMP SEN HARN	8-98248-149-0	01	1	1507-
100	BOLT; BRKT,DEF DCM EXH TEMP SEN HARN	8-98005-985-0	01	1	1507-
101	NUT; CLIP,DEF DCM EXH TEMP SEN HARN M10 FLANGE	0-91180-210-0	02	1	1507-
102	CLIP; DEF DCM EXH TEMP SEN HARN ID=4.8	1-09701-218-0	03	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1507-
107	BOLT; CLIP WHEEL BASE 3400MM(34W) M8X25 FLANGE	0-28650-825-0	01	1	1507-
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1507-
107	BOLT; CLIP WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) M8X20 FLANGE	0-28650-820-0	01	1	1507-
107	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1507-
107	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	02	1	1507-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1507-
108	NUT; CLIP M8 FLANGE	0-91180-108-0	04	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) L=350	1-09707-183-0	07	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	08	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1507-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1507-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	03	1	1507-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1507-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98309-774-0	05	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98309-774-0	07	1	1507-
130	CLIP; PIPE ASM (A) ID=13 L=20	0-95235-235-0	01	1	1507-
130	CLIP; PIPE ASM (A) ID=13 L=40	0-95235-276-0	01	1	1507-
130	CLIP; PIPE ASM (B) ID=13 H=18 L=20	1-09700-813-0	03	1	1507-
134	BRACKET; PIPE ASM	8-98206-701-0	01	1	1507-
158	GASKET; INJECTOR ASM,DEF DCM	8-98086-333-0	01	1	1507-
159	CONNECTOR KIT; COOLANT,INJECTOR ASM DE	8-98169-416-1	02	1	1507-
160	CLIP; HARNESS,SENSOR DEF DCM EXH TEMP	8-98170-331-0	01	1	1507-

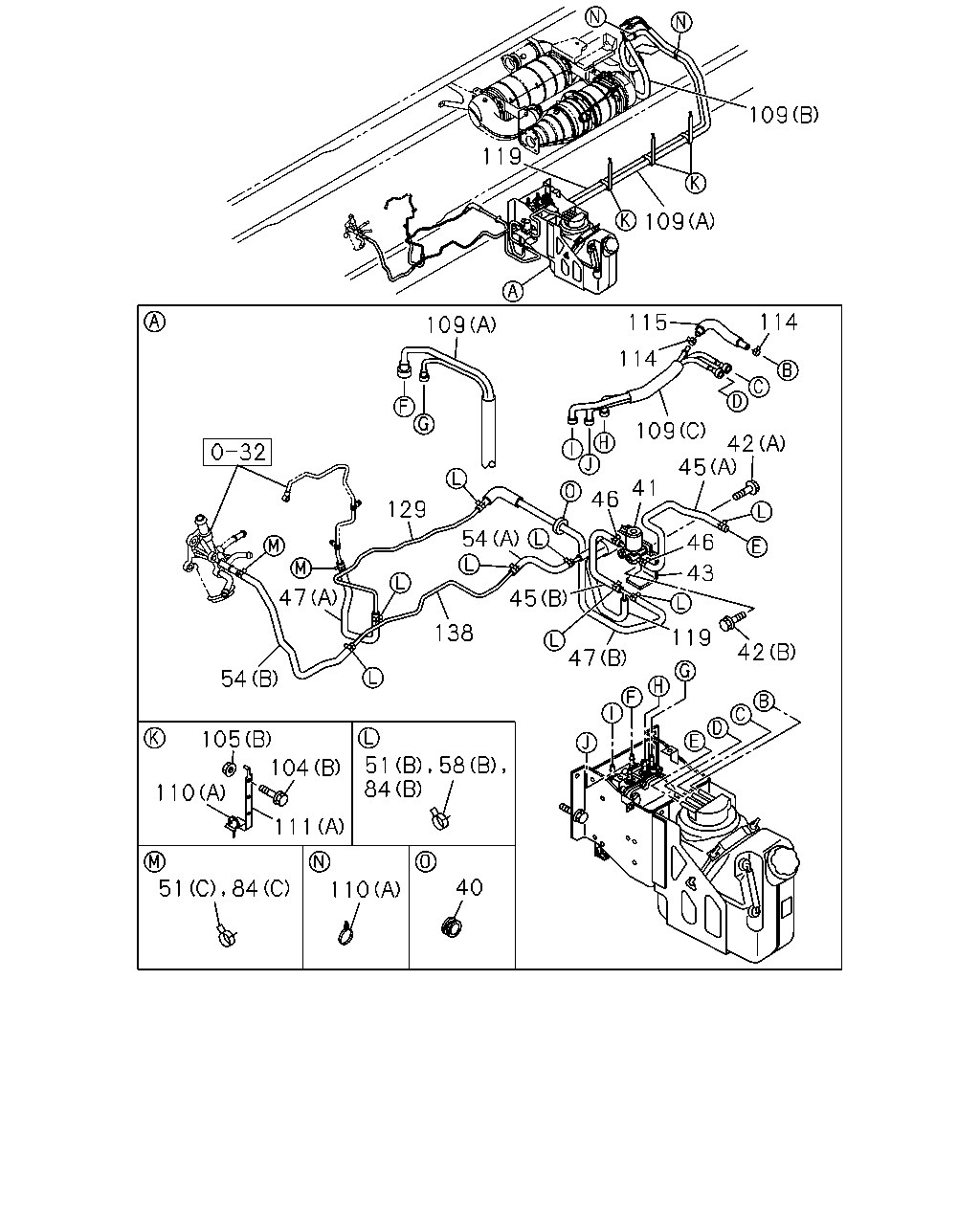

109 109 119 109 129 47 138 54 105 110 104 111 51 84 40 110 84 51 58 42 119 47 45 43 42 45 109 46 41 46 54 114 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1507-
41	VALVE ASM; DEF TANK HTR DLVY	8-97628-956-1	01	1	1507-
42	BOLT; DEF RSVR HTR DLVY VLV (A) M8X16 FLANGE	0-28050-816-0	02	1	1507-
42	BOLT; DEF RSVR HTR DLVY VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	1507-
43	BRACKET; DEF RSVR HTR DLVY VLV	8-98206-706-0	01	1	1507-
45	HOSE ASM; DEF TANK HTR DLVY (B)	8-98206-772-0	01	1	1507-
45	HOSE ASM; DEF TANK HTR DLVY (A)	8-98206-773-1	01	1	1507-
46	CLAMP; DEF TANK HTR DLVY ID=16	8-97329-628-0	02	1	1507-
47	HOSE; DEF DCM COOL DLVY (A)	8-98206-774-0	01	1	1507-
47	HOSE; DEF DCM COOL DLVY (B)	8-98245-739-1	01	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (B) ID=16	8-97329-628-0	03	1	1507-
51	CLIP; DEF DCM MDL COOL DLVY HOSE (C) ID=16	8-98008-098-0	01	1	1507-
54	HOSE; DEF DCM COOL RTN (A)	8-98233-333-0	01	1	1507-
54	HOSE; DEF DCM COOL RTN (B)	8-98239-522-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
58	CLIP; DEF RSVR HTR DLVY HOSE (B) ID=16	8-97329-628-0	02	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (A) ID=18 H=23 L=28	1-09700-860-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	01	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (B) ID=16	8-97329-628-0	02	1	1507-
84	CLIP; DEF DCM MDL COOL RTN HOSE (C) ID=16	8-98008-098-0	01	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X25 FLANGE	0-28651-025-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 3400MM(34W) (B) M10X30 FLANGE	0-28651-030-0	05	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8X25 FLANGE	0-28650-825-0	02	1	1507-
104	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1507-
104	BOLT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	06	1	1507-
104	BOLT; BRKT WHEEL BASE 4600MM(46W) (B) M10X30 FLANGE	0-28651-030-0	07	1	1507-
104	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	1507-
104	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1507-
104	BOLT; BRKT (B) M10X35 FLANGE	0-28651-035-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 3400MM(34W) (B) M10 FLANGE	0-91180-210-0	05	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W) (B) M10 FLANGE	0-91180-210-0	04	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (A) M8 FLANGE	0-91180-108-0	02	1	1507-
105	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1507-
105	NUT; BRKT WHEEL BASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	06	1	1507-
109	TUBE ASM; DEF & WATER (C)	8-98233-439-0	01	1	1507-
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98206-718-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (B)	8-98329-858-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98206-720-0	01	1	1507-1508
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B)	8-98329-849-0	01	1	1509-
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98206-714-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 3400MM(34W) (A)	8-98329-851-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98210-290-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98329-854-0	01	1	1510-
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98206-717-1	01	1	1507-1509
109	TUBE ASM; DEF & WATER WHEEL BASE 4600MM(46W) (A)	8-98329-853-0	01	1	1510-
110	CLIP; TUBE ASM WHEEL BASE 3400MM(34W) (A) L=350	1-09707-183-0	06	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A) L=350	1-09707-183-0	07	1	1507-
110	CLIP; TUBE ASM WHEEL BASE 4600MM(46W) (A) L=350	1-09707-183-0	08	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	1507-
110	CLIP; TUBE ASM (B) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	1507-
110	CLIP; TUBE ASM (C) ID=13 H=18 L=20	1-09700-813-0	01	1	1507-
110	CLIP; TUBE ASM (A) L=350	1-09707-183-0	03	1	1507-
110	CLIP; TUBE ASM (D) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1507-1508
110	CLIP; TUBE ASM (D) ID=24.5 H=23 L=25	1-09700-862-0	01	1	1509-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (E)	8-98206-697-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (F)	8-98236-826-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 3400MM(34W) (A)	8-98309-774-0	05	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (B) L=225	1-47477-646-3	02	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (C)	8-98206-696-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4600MM(46W), WHEELBASE 4900MM(49W),WHEEL BASE 5300MM(53W) (D)	8-98206-700-0	01	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W) (A)	8-98309-774-0	06	1	1507-
111	BRACKET; CLIP,TUBE ASM WHEEL BASE 4600MM(46W) (A)	8-98309-774-0	07	1	1507-
114	CLIP; HOSE ID=16	8-97329-628-0	02	1	1507-
115	HOSE; DEF TANK HTR RTN	8-98237-190-0	01	1	1507-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98206-721-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 3400MM(34W)	8-98329-860-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W)	8-98210-287-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4000MM(40W),WHEEL BASE 4900MM(49W), WHEELBASE 5300MM(53W)	8-98329-862-0	01	1	1510-
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98210-366-2	01	1	1507-1509
119	TUBE ASM; DEF COOL & HTR WAT WHEEL BASE 4600MM(46W)	8-98329-863-0	01	1	1510-
129	PIPE ASM; DEF DCM COOL DLVY	8-98245-736-0	01	1	1507-
138	PIPE ASM; DEF DCM COOL RTN	8-98233-324-0	01	1	1507-

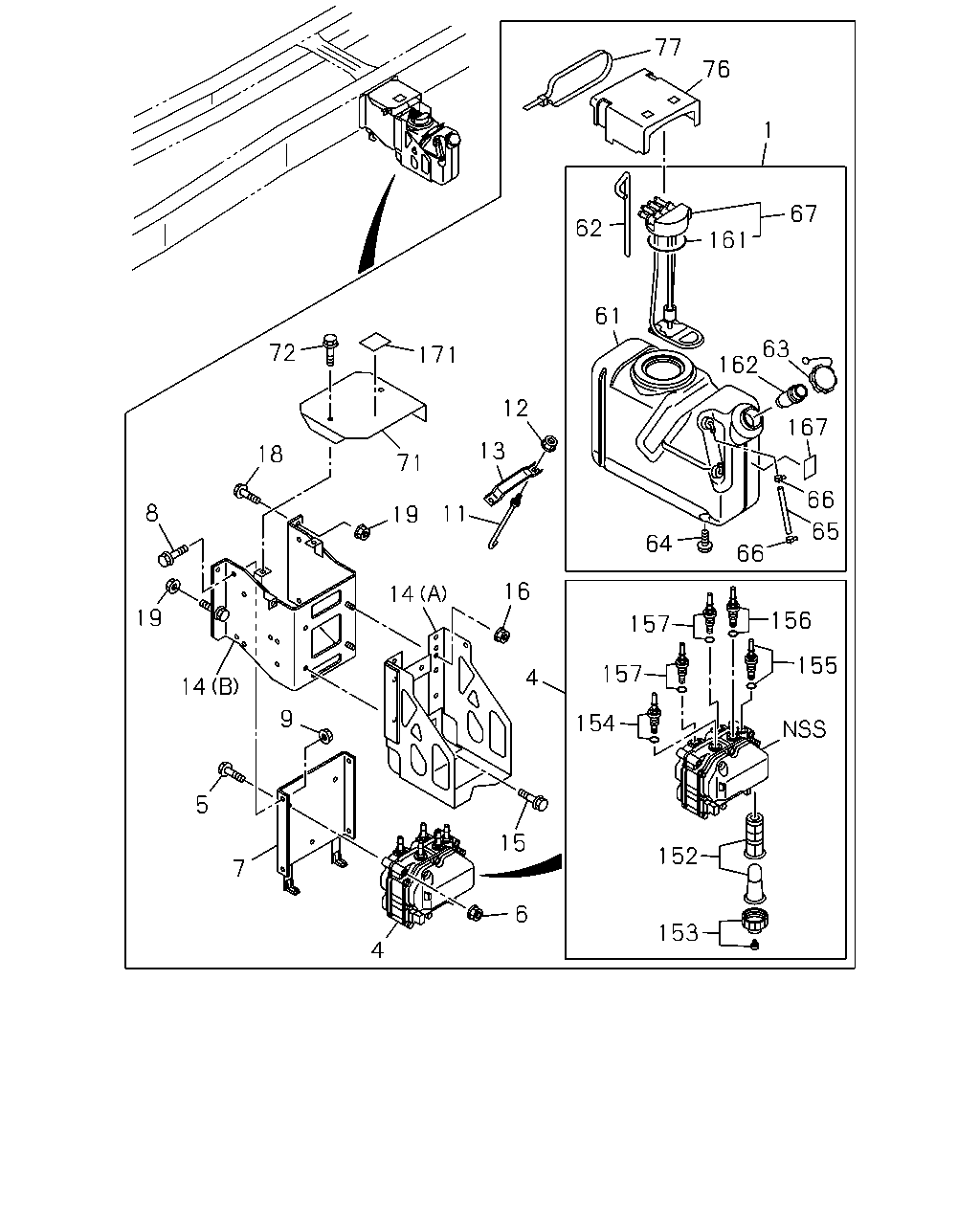

77 1 76 67 161 62 61 162 63 167 66 66 65 64 156 155 157 157 154 152 153 6 15 4 16 13 12 171 71 14 19 11 18 72 8 19 14 5 9 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; DEF	8-98239-382-3	01	1	1507-
4	PUMP ASM; DEF,DCM SPLY	8-98268-812-0	01	1	1507-
5	BOLT; PUMP ASM,DEF DCM SPLY M8X90 FLANGE	0-28050-890-0	03	1	1507-
6	NUT; DEF DCM SPLY M8 FLANGE	0-91180-108-0	03	1	1507-
7	BRACKET; DEF DCM SPLY	8-98239-367-0	01	1	1507-
8	BOLT; BRKT,DEF DCM SPLY M8X20 FLANGE	0-28050-820-0	04	1	1507-
9	NUT; BRKT,DEF DCM SPLY M8 FLANGE	0-91180-208-0	04	1	1507-
11	BOLT; DEF TANK	8-98157-936-0	02	1	1507-
12	NUT; DEF TANK M10 FLANGE	0-91180-110-0	02	1	1507-
13	RETAINER; DEF TANK	8-98156-747-0	01	1	1507-
14	BRACKET ASM; DEF TANK (A)	8-98214-590-0	01	1	1507-
14	BRACKET ASM; DEF TANK (B)	8-98239-989-1	01	1	1507-
15	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1507-
16	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1507-
18	BOLT; BRKT,DEF TANK M10X40 FLANGE	0-28651-040-0	02	1	1507-
19	NUT; BRKT,DEF TANK M10 FLANGE	0-91180-210-0	04	1	1507-
61	BODY ASM; DEF TANK	8-98220-878-1	01	1	1507-
62	HOSE; VENT,DEF TANK	8-98239-981-1	01	1	1507-
63	CAP ASM; FILLER,DEF TANK	8-98147-581-1	01	1	1507-
64	PLUG; DRAIN,DEF TANK	8-98120-263-0	01	1	1507-
65	HOSE; WATER LEVEL	8-98120-264-1	01	1	1507-
66	CLAMP; WATER LEVEL HOSE	8-98120-265-1	02	1	1507-
67	SENSOR ASM; DEF TANK	8-98213-926-1	01	1	1507-
71	COVER; DEF DCM SPLY	8-98233-434-0	01	1	1507-
72	BOLT; COVER,DEF DCM SPLY M8X20 FLANGE	0-28650-820-0	02	1	1507-
76	COVER; DEF TANK CAP	8-98156-298-1	01	1	1507-
77	CLIP; DEF TANK CAP CVR L=350	1-09707-183-0	01	1	1507-
152	FILTER KIT; PUMP ASM,DEF DCM SPLY	8-98169-403-0	01	1	1507-
153	COVER KIT; PUMP ASM,DEF DCM SPLY	8-98169-408-0	01	1	1507-
154	CONNECTOR KIT; INLET PUMP,DEF	8-98169-409-0	01	1	1507-
155	CONNECTOR KIT; OUTLET PUMP,DEF	8-98169-411-0	01	1	1507-
156	CONNECTOR KIT; RETURN PUMP,DEF	8-98268-813-0	01	1	1507-
157	CONNECTOR KIT; COOLANT PUMP,DEF	8-98169-414-1	02	1	1507-
161	GASKET; SENSOR ASM,DEF TANK	8-98170-383-0	01	1	1507-
162	ADAPTER; DEF TANK	8-98131-158-0	01	1	1507-
167	PLATE; CAUTION,DEF	8-98231-935-0	01	1	1507-
171	LABEL; NO STEP	8-98158-131-0	01	1	1507-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
