2-85 — POWER TAKE OFF CONTROL (#17112) — 18 parça

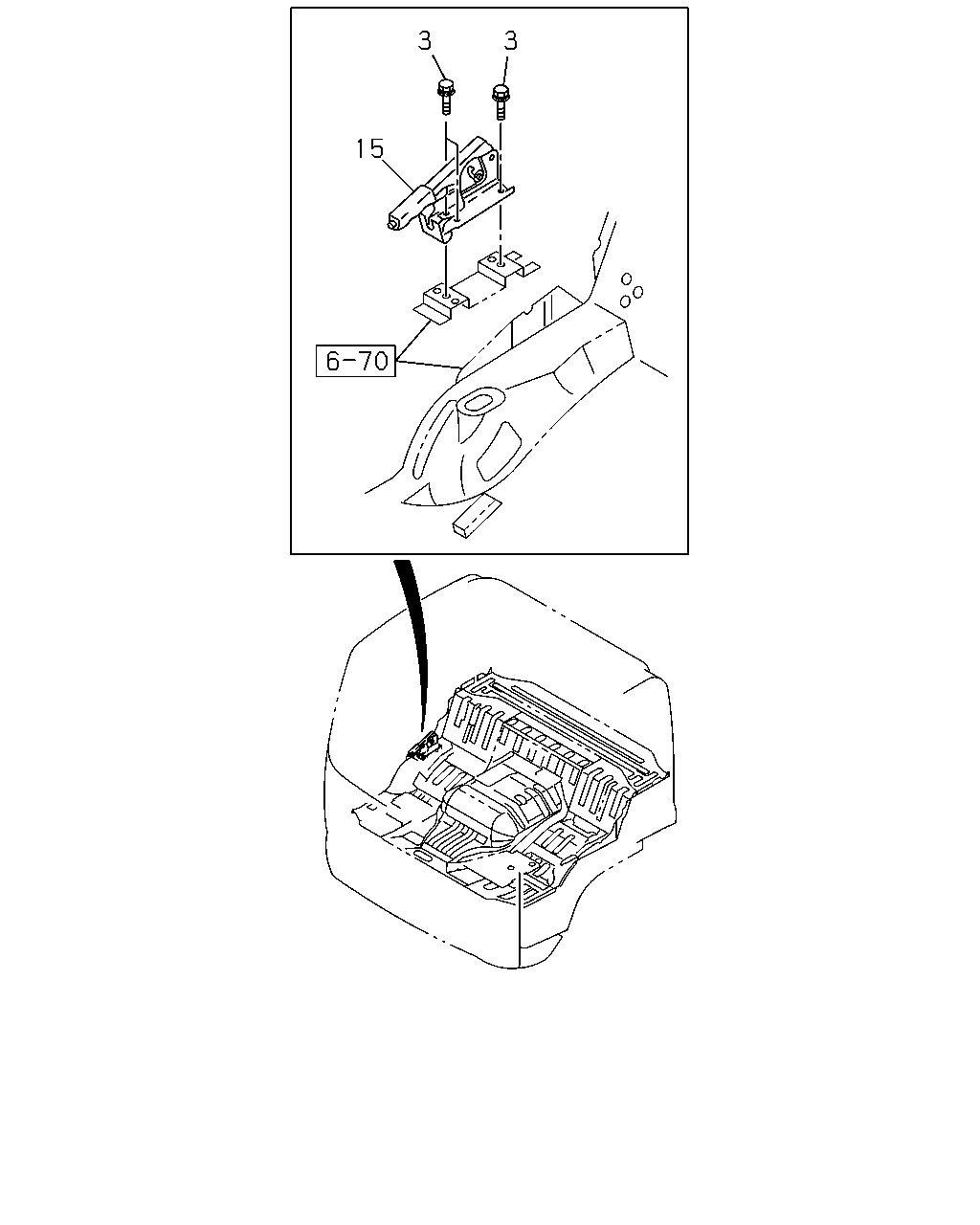

3 3 15

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER SOU	8-94279-207-0	03	1	1001-
	15	LEVER ASM; PTO CONT DUMP CONTROL LEVER<RC4> SOU	1-79996-092-0	01	1	1001-

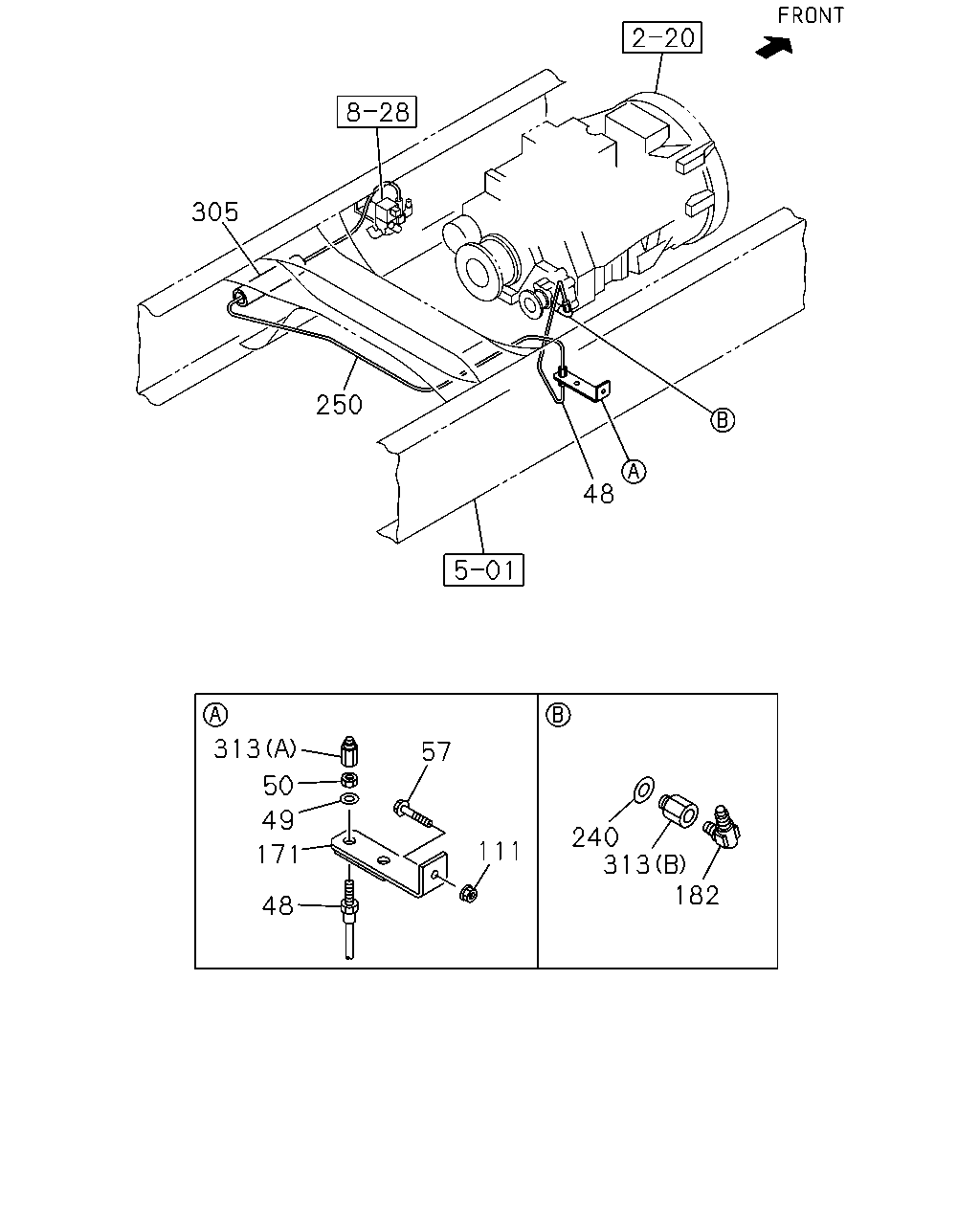

305 250 48 313 57 50 49 240 313 182 111 171 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) VIN MODEL YEAR 2011<VZB> L=350	1-09363-624-0	01	1	1012-1102
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) L=350	1-09363-624-0	01	1	1103-
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) L=420	1-09363-633-0	01	1	1001-1011
48	HOSE; FLEX,PTO PTO ZF TRANS RR(BDM) EXC. VIN MODEL YEAR 2011<VZB> L=420	1-09363-633-0	01	1	1012-1102
49	WASHER; LK,FLEX HOSE PTO ZF TRANS RR(BDM) ID=12.2	9-09150-512-0	01	1	1001-1011
50	NUT; FLEX HOSE PTO ZF TRANS RR(BDM) M12	9-09840-280-0	01	1	1001-
57	BOLT; BRKT PTO ZF TRANS RR(BDM) M8X30 FLANGE	0-28650-830-0	01	1	1001-
111	NUT; BRKT PTO ZF TRANS RR(BDM) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
171	BRACKET; FLEX HOSE PTO ZF TRANS RR(BDM)	8-98100-228-0	01	1	1001-
182	CONNECTOR; FLARE PTO ZF TRANS RR(BDM) M12 & PT1/4 ELBOW SOU	1-09650-430-0	01	1	1001-
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	1-09630-084-0	01	1	1001-1312
240	GASKET; CONNECTOR,PTO PTO ZF TRANS RR(BDM) ID=12.2	8-98251-344-0	01	1	1401-
250	TUBE; NYLON PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	1001-
305	TUBE; CORRUGATE PTO ZF TRANS RR(BDM) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	1001-
313	ADAPTER PTO ZF TRANS RR(BDM) (B) PT1/4	1-09654-396-0	01	1	1001-
313	ADAPTER PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	1001-
