Isuzu WW
▶
TRUCKS
▶
FRR
▶
11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#171107) — 36 parça
◀

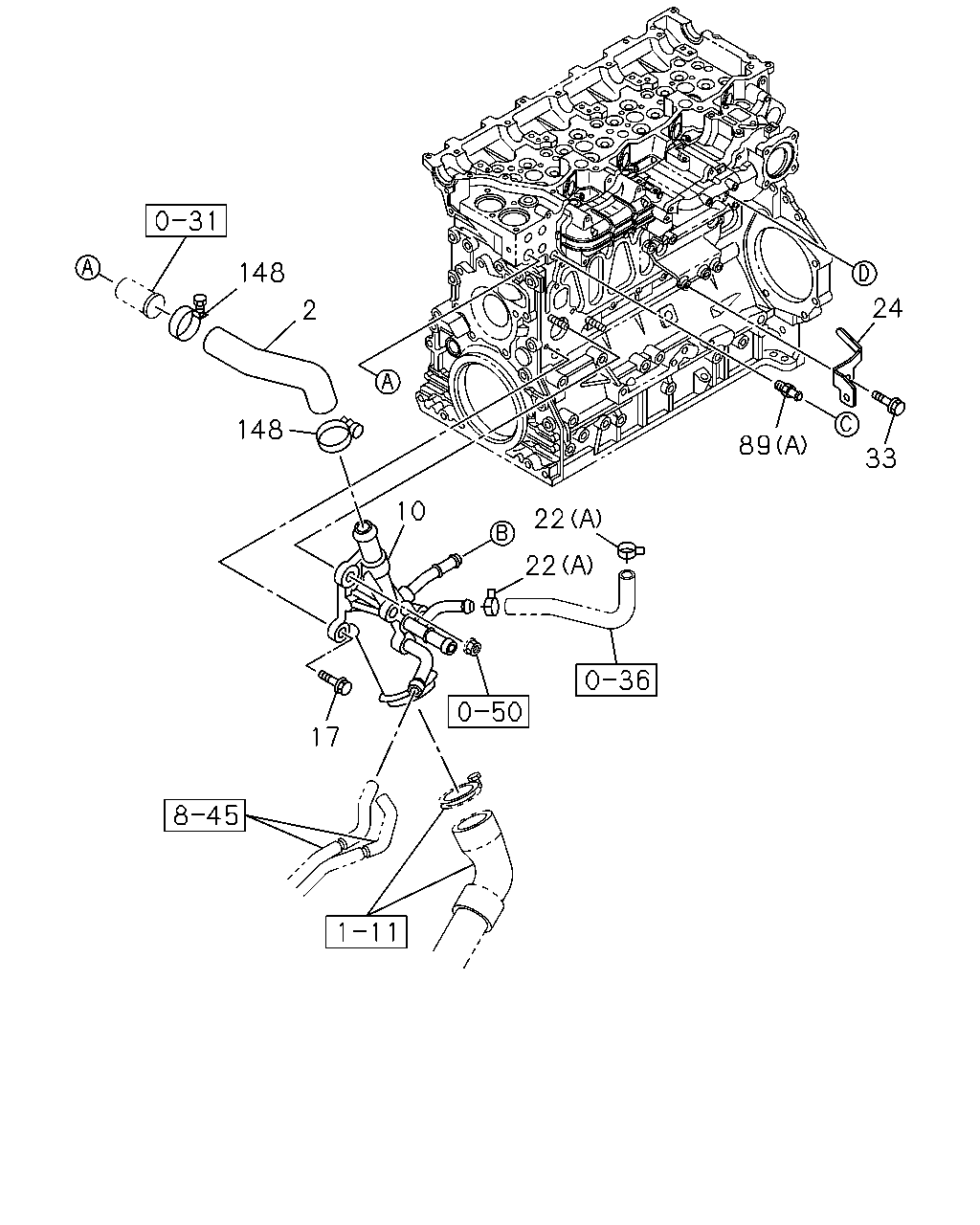

[032A] SUCTION PIPE (10 parça)

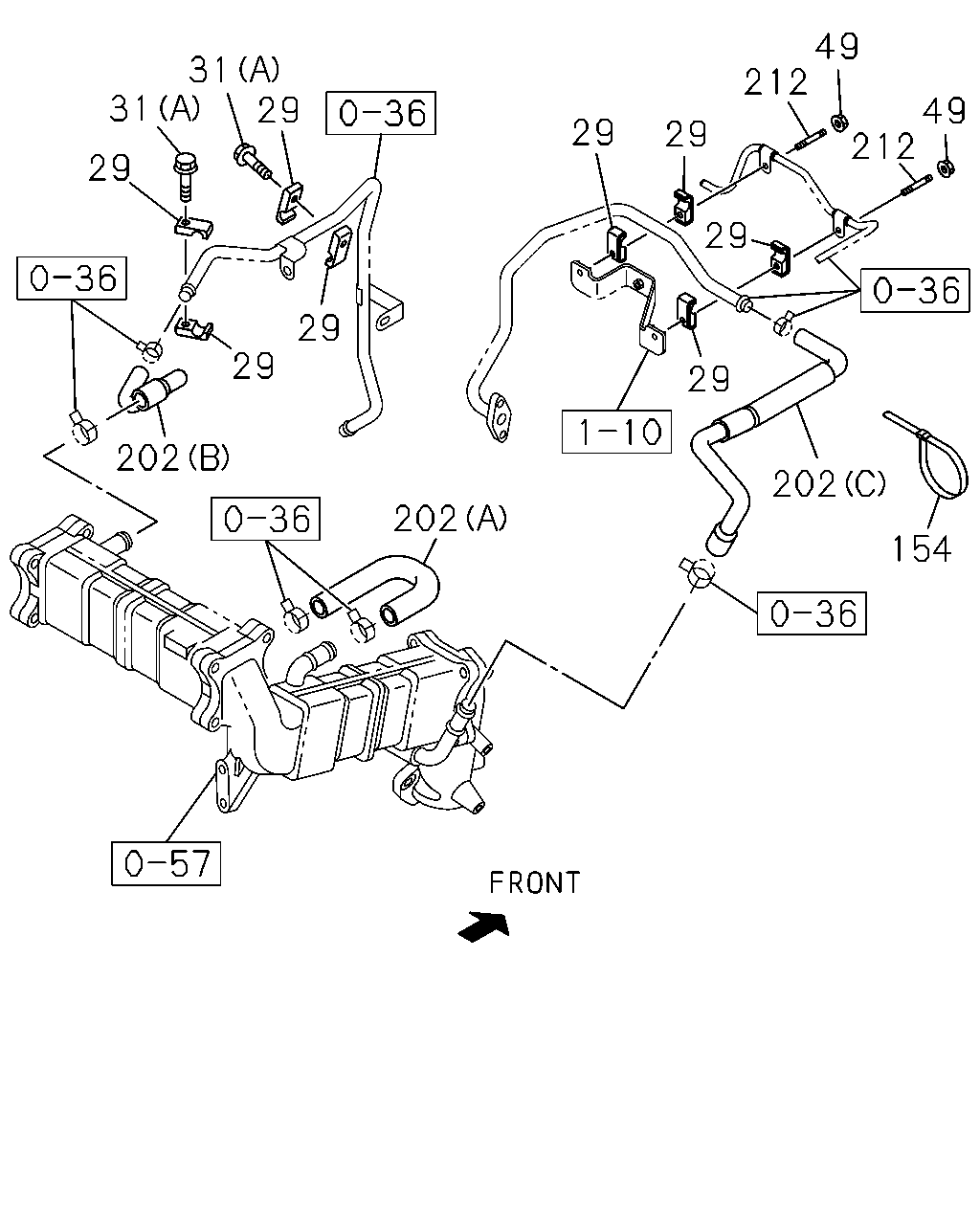

[032A] EGR COOLER SIDE (9 parça)

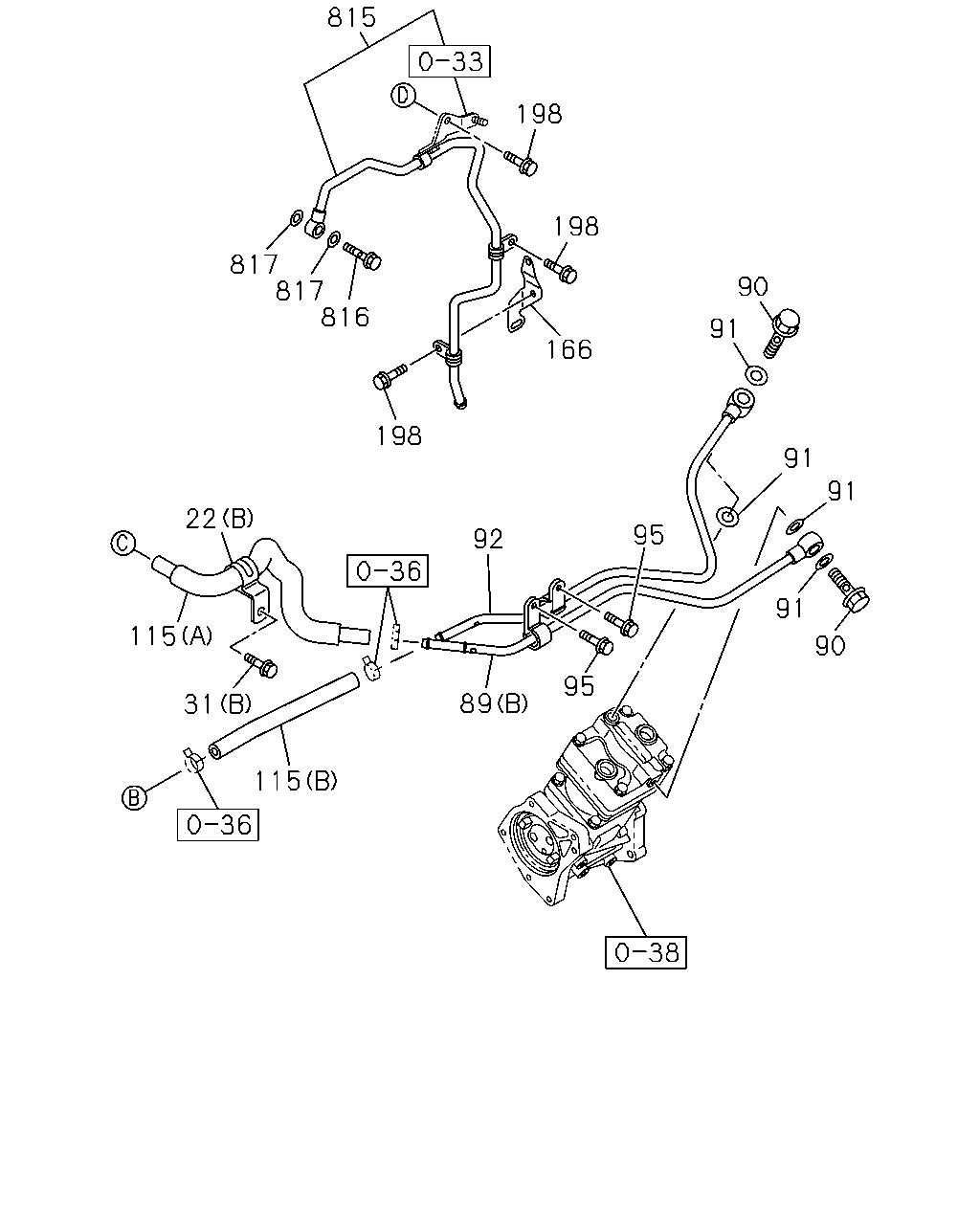

[032A] AIR COMPRESSOR SIDE (17 parça)
▶
148
148
17
2
10
22
22
89
24
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; WATER,BY-PASS
8-97379-228-1
01
1
1507-
10
PIPE; SUCTION
8-98200-774-2
01
1
1507-
17
BOLT; SUCTION PIPE
M8X48 FLANGE
8-94458-473-1
01
1
1507-
22
CLIP; WATER HOSE
(B) ID=25 H=30 L=35
1-09700-875-0
01
1
1507-
22
CLIP; WATER HOSE
(A) ID=14.2
8-97375-636-0
02
1
1507-
24
BRACKET; WATER PIPE
8-98209-357-1
01
1
1507-
33
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1507-
148
CLIP; BYPASS HOSE
ID=30
9-09915-315-1
02
1
1507-
31
31
29
202
29
29
202
29
29
212
49
49
212
29
29
202
154
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
8-98147-433-1
08
1
1507-
31
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
01
1
1507-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
02
1
1507-
49
NUT; WATER PIPE
M8 FLANGE
0-91180-108-0
02
1
1507-
154
CLIP; WATER HOSE
L=170.3
1-09987-182-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(A)
8-98028-171-0
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98200-803-1
01
1
1507-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98231-795-1
01
1
1507-
212
STUD; PIPE
M8X45 L=55
8-94217-227-0
02
1
1507-
815
198
198
166
198
817
817
816
22
115
31
115
89
92
95
95
91
90
91
91
90
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
CLIP; WATER HOSE
(B) ID=25 H=30 L=35
1-09700-875-0
01
1
1507-
22
CLIP; WATER HOSE
(A) ID=14.2
8-97375-636-0
02
1
1507-
31
BOLT; CLIP
(B) M8X12 FLANGE
0-28050-812-0
01
1
1507-
31
BOLT; CLIP
(A) M8X45 FLANGE
0-28050-845-0
02
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(A)
8-97358-699-0
01
1
1507-
89
PIPE; WATER,AIR CMPR,IN
(B)
8-98095-668-0
01
1
1507-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
02
1
1507-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
04
1
1507-
92
PIPE; WATER,AIR CMPR,OUT
8-98132-662-0
01
1
1507-
95
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1507-
115
HOSE; RUBBER
(B) L=130
8-98136-884-0
01
1
1507-
115
HOSE; RUBBER
(A)
8-98200-802-1
01
1
1507-
166
BRACKET; CLIP
8-98200-776-1
01
1
1507-
198
BOLT; PIPE
M8X16 FLANGE
0-28050-816-0
03
1
1507-
815
PIPE; WATER,DEF TANK FEED
8-98200-771-2
01
1
1507-
816
BOLT; EYE,DEF
M14X27 EYE-BOLT
1-09675-193-0
01
1
1507-
817
GASKET; DEF
ID=14.2 OD=19.2
8-98251-345-0
02
1
1507-
