Isuzu WW
▶
TRUCKS
▶
FRR
▶
11744 - FRR LHD EUROPE EURO6 SPACECAB LDWS
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#171104) — 42 parça
◀

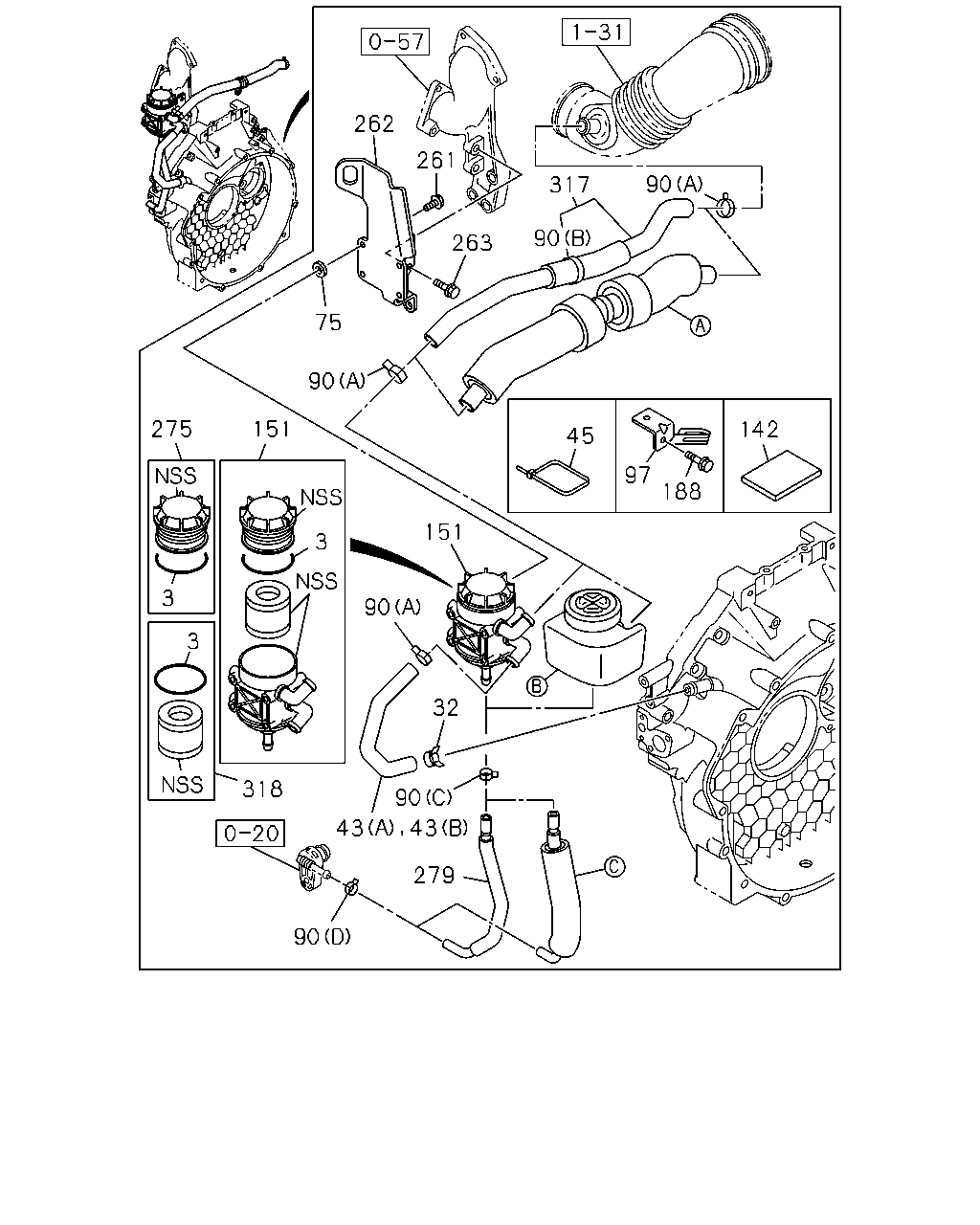

[028A] FIXING AND PIPING; OIL SEPARATOR (21 parça)

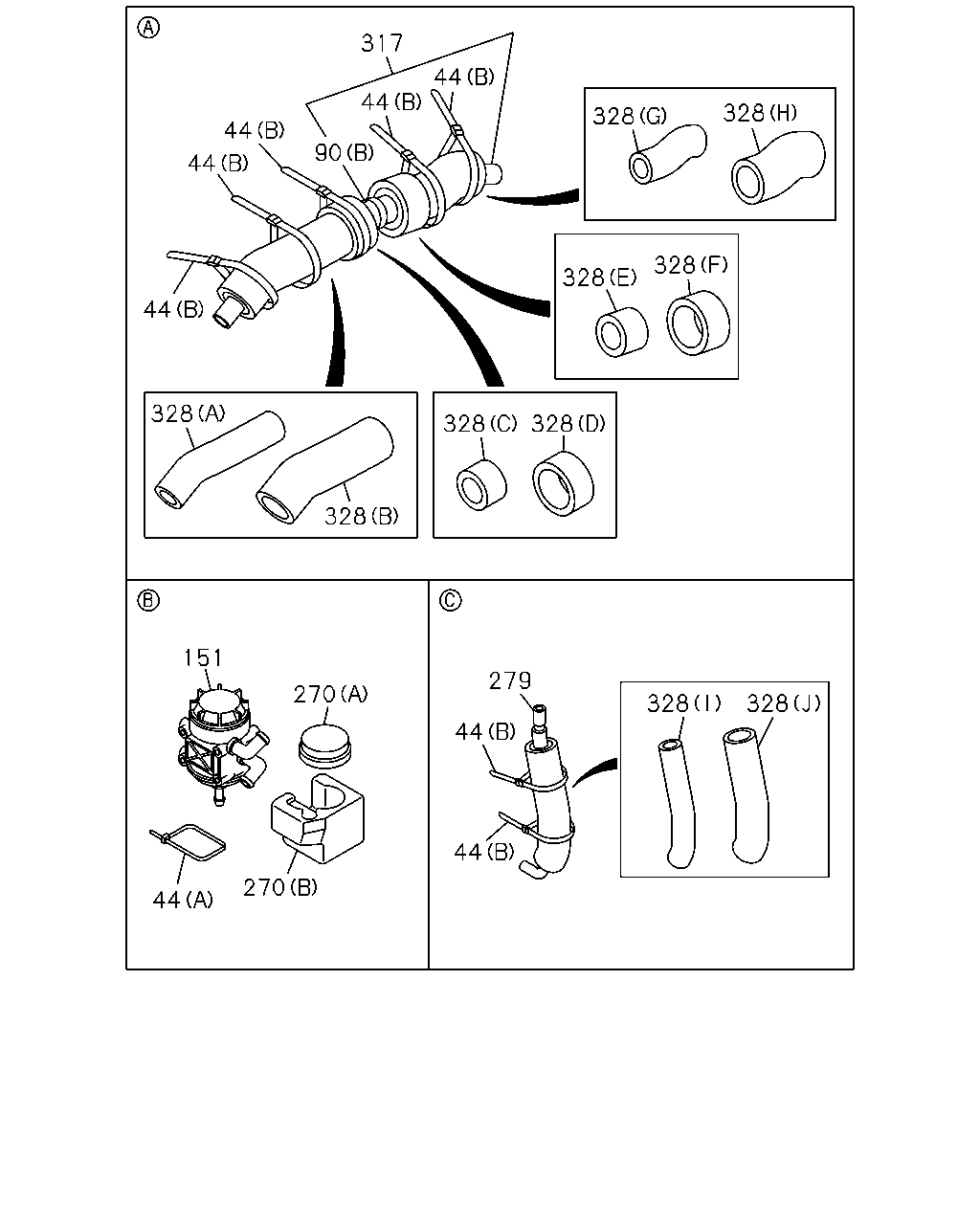

[028A] FRIGID ZONE KIT (21 parça)
▶
262
261
263
75
90
151
275
3
3
3
318
90
43
90
43
279
32
90
151
45
97
188
142
90
317
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
GASKET; BODY TO CAP
8-97385-921-0
01
1
1507-
32
CLIP; VENT HOSE
ID=21
8-94242-034-0
01
1
1507-
43
HOSE; PCV
FRIGID ZONE KIT<YL3> (B)
8-98195-078-0
01
1
1507-
43
HOSE; PCV
(A)
8-98057-033-0
01
1
1507-
45
CLIP; PCV HOSE
EXC. KD PREPARATORY PACK<6HF> L=250
8-98216-430-0
01
1
1507-
75
WASHER
ID=9 OD=18 T=5
9-14149-173-0
04
1
1507-
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1507-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
01
1
1507-
90
CLIP; RUBBER HOSE
(C) ID=13
8-94238-571-0
01
1
1507-
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1507-
97
BRACKET; HOSE
8-98093-946-3
01
1
1507-
142
COVER; PCV
EXC. KD PREPARATORY PACK<6HF>
8-98270-799-0
01
1
1507-
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1507-
188
BOLT; BRKT
M8X12 FLANGE
0-28050-812-0
01
1
1507-
261
BOLT; SEPARETOR
M8X30 FLANGE
0-28650-830-0
04
1
1507-
262
BRACKET; OIL SEPARETOR
8-98296-130-0
01
1
1507-
263
BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE
0-28151-230-0
03
1
1507-
275
CAP; PCV
8-97389-360-0
01
1
1507-
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1507-
317
HOSE; RUBBER,OIL SEPARATOR
8-98095-931-1
01
1
1507-
318
ELEMENT KIT; PCV
8-98002-346-0
01
1
1507-
317
44
44
44
44
90
44
328
151
270
44
270
328
328
328
328
328
328
328
279
44
44
328
328
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
CLIP; HOSE,PCV
FRIGID ZONE KIT<YL3> (A) L=700
1-09707-190-0
01
1
1507-
44
CLIP; HOSE,PCV
FRIGID ZONE KIT<YL3> (B) L=250
8-98216-430-0
13
1
1507-
90
CLIP; RUBBER HOSE
(A) ID=28
1-09707-124-0
03
1
1507-
90
CLIP; RUBBER HOSE
(B) L=212
8-94107-652-0
01
1
1507-
90
CLIP; RUBBER HOSE
(C) ID=13
8-94238-571-0
01
1
1507-
90
CLIP; RUBBER HOSE
(D) ID=11.5
8-97138-011-0
01
1
1507-
151
SEPARATOR; OIL,PCV
8-97324-682-1
01
1
1507-
270
COVER; VENTILATOR
FRIGID ZONE KIT<YL3> (B)
8-98139-613-0
01
1
1507-
270
COVER; VENTILATOR
FRIGID ZONE KIT<YL3> (A)
8-98172-779-0
01
1
1507-
279
HOSE; RUBBER,OIL DRAIN
8-97386-653-1
01
1
1507-
317
HOSE; RUBBER,OIL SEPARATOR
8-98095-931-1
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (A) INNER
8-98270-793-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (B) OUTER
8-98270-794-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (C) INNER
8-98270-795-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (D) OUTER
8-98270-796-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (E) INNER
8-98270-797-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (F) OUTER
8-98270-798-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (G) INNER
8-98270-799-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (H) OUTER
8-98270-800-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (I) INNER
8-98270-801-0
01
1
1507-
328
INSULATOR; PCV
FRIGID ZONE KIT<YL3> (J) OUTER
8-98270-802-0
01
1
1507-
