◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11731 - FTR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶
8-65 — CONTROL LEVER; HEATER AND AIR CON (#171087) — 8 parça

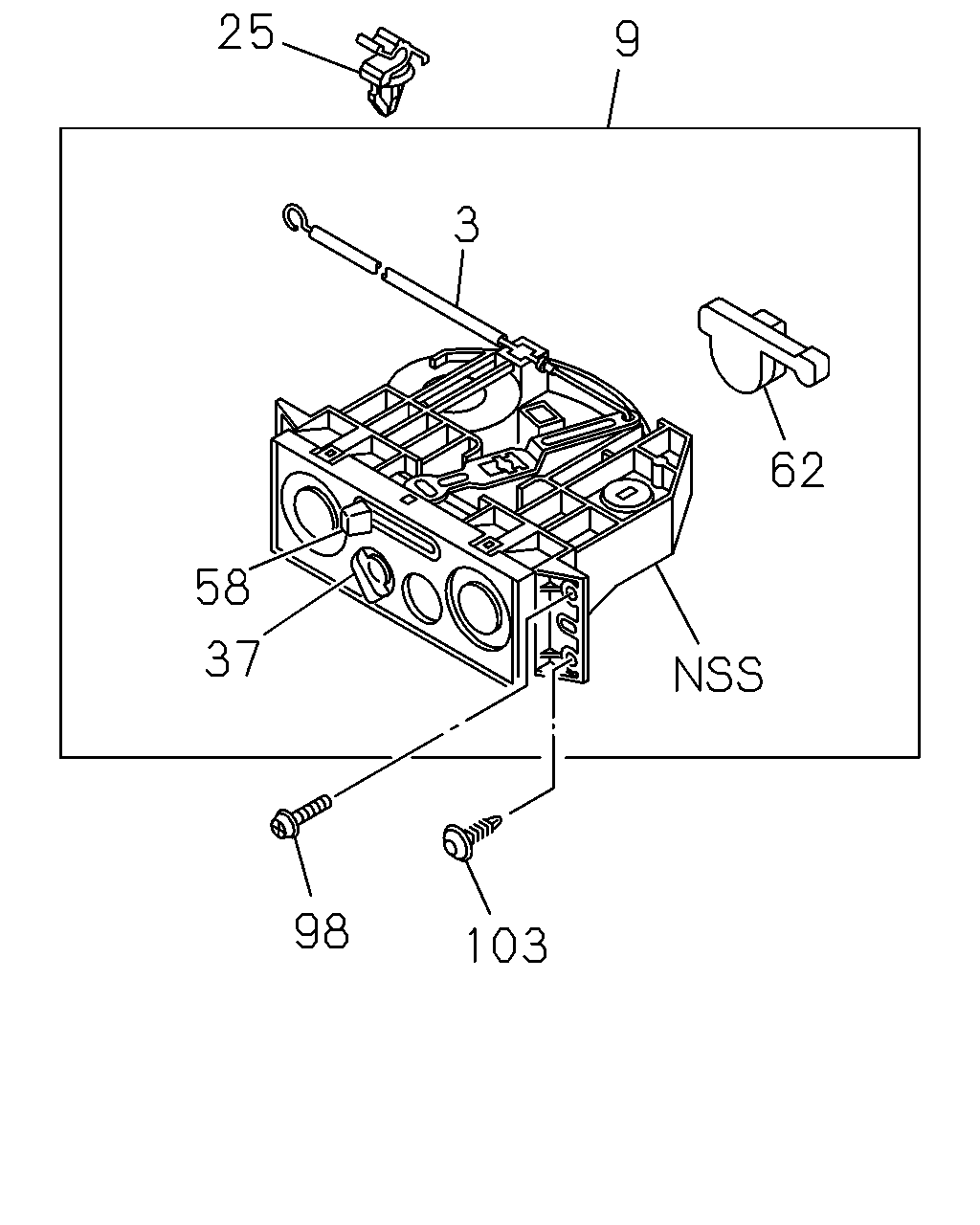

çizim 507833
25 9 3 62 103 98 37 58
BalonParca AdiParca NoAdetTipApplied Date
3 CABLE; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> RECIRCULATION/FRESH 		8-97927-125-0 01 1 1512-
9 LEVER ASM; HTR & A/C CONT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98255-068-0 01 1 1512-
25 CLIP; CABLE,CONT LEVER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> ID=4.8 		8-94128-483-0 03 1 1512-
37 KNOB; SW,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97926-674-0 01 1 1512-
58 KNOB; LVR,HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97926-675-0 01 1 1512-
62 BULB; HTR CONT LVR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-97926-676-0 01 1 1512-
98 SCREW; CONT PANEL
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1512-
103 CLIP
VENTILATOR & DEFROSTER WO/HEATER<SAZ> DARK GRAY 		8-97098-326-0 01 1 1512-
