◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11731 - FTR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#171084) — 21 parça
çizim 507667
223 476 50
BalonParca AdiParca NoAdetTipApplied Date
50 VALVE ASM; HTR
IDN 		8-97925-112-0 01 1 1512-
223 GROMMET; SCREW
D=7.9X7.9 L=20 M5 IDN 		8-94441-539-0 01 1 1512-
476 SCREW; VALVE
M5X16 TAPPING HEXALOBULAR IDN 		8-98062-675-0 01 1 1512-

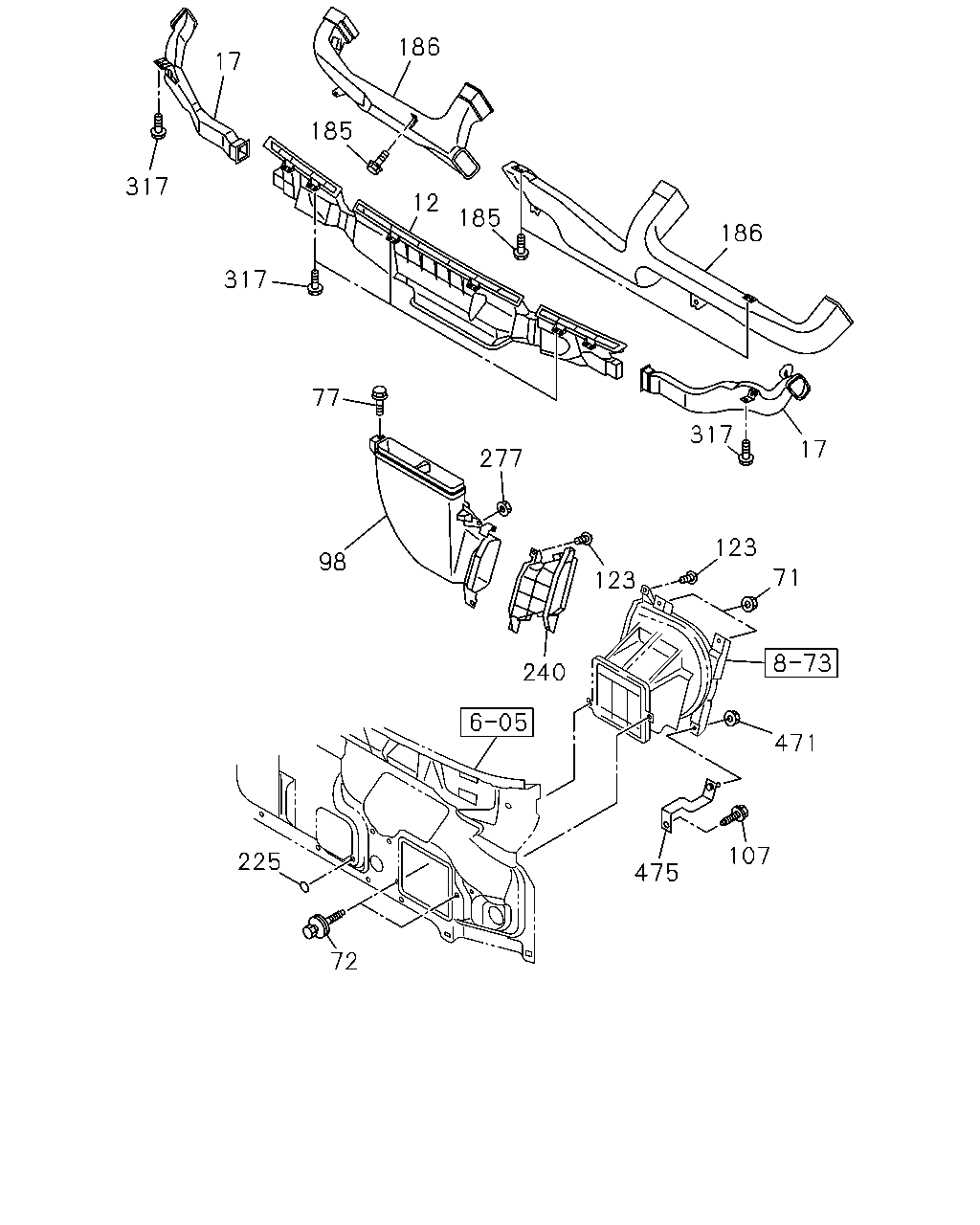

çizim 507907
317 317 77 98 277 123 240 123 71 471 107 475 72 225 317 17 186 185 12 185 186 17
BalonParca AdiParca NoAdetTipApplied Date
12 NOZZLE; DEFROSTER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-009-3 01 1 1512-
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-018-1 01 1 1512-
17 NOZZLE; DEFROSTER,SIDE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98040-013-1 01 1 1512-
71 NUT; BLOWER UNIT TO DASH
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 02 1 1512-
72 BOLT; BLOWER UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X20 W/LK&PL WASHER 		8-98081-175-0 02 1 1512-
77 BOLT; HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6X16 FLANGE 		0-28650-616-0 01 1 1512-
98 DUCT; BLOWER UNIT TO HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> IDN 		8-97520-909-0 01 1 1512-
107 BOLT; STAY,HTR UNIT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1512-
123 SCREW; DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1512-
185 SCREW; VENT DUCT
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1512-
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-574-0 01 1 1512-
186 DUCT; VENTILATOR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98285-571-0 01 1 1512-
225 SEAL; WATER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> OD=25 BLACK 		1-76798-019-0 03 1 1512-
240 DUCT; AIR,HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98041-402-1 01 1 1512-
277 NUT; HTR
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1512-
317 SCREW; DEFROSTER NOZZLE
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1512-
471 NUT; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> M6 FLANGE IDN 		0-91180-106-0 01 1 1512-
475 BRACKET; BLOWER
VENTILATOR & DEFROSTER WO/HEATER<SAZ> 		8-98043-500-1 01 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
