8-28 — CHASSIS ELECTRICAL
(#171083) — 20 parça
◀
[828A] RELAY; FRAME HARNESS (1 parça)
[828A] RELAY; CAB HARNESS (1 parça)
[828A] FRONT SIDE (7 parça)
[828A] CAB SIDE (3 parça)
[828A] VALVE; PTO (8 parça)
▶
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1512-
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
1512-
573
2
4
2
1
584
744
540
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

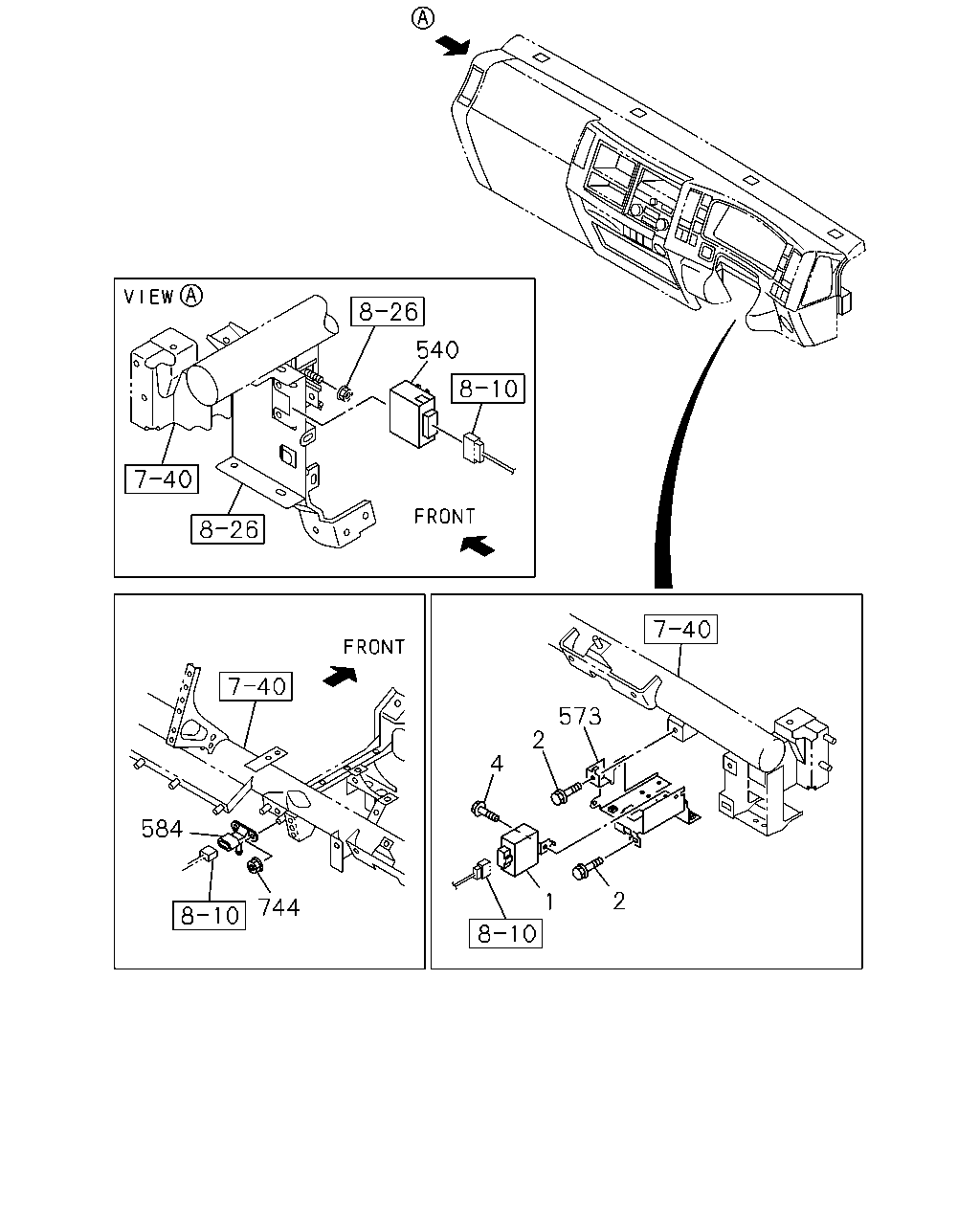

1
UNIT; FLASHER
IDN
8-98025-533-1
01
1
1512-
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
1512-
4
SCREW; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
01
1
1512-
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1512-
573
BRACKET; FLASHER UNIT
8-98246-458-0
01
1
1512-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
1512-
744
NUT; SENSOR
M6 FLANGE IDN
0-91180-106-0
02
1
1512-
45
51
50
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

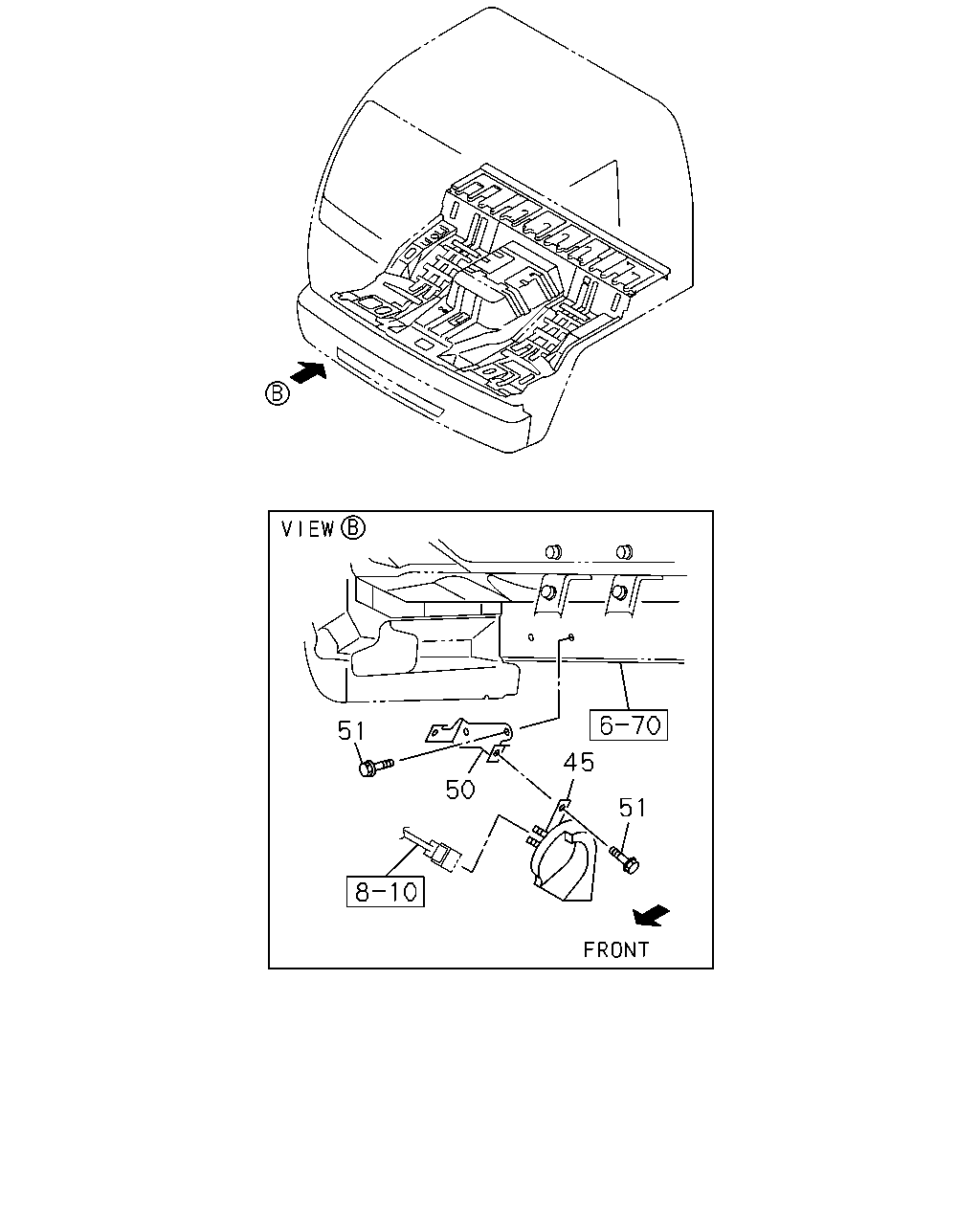

45
HORN; LOW NOTE
IDN
8-98022-023-0
01
1
1512-
50
BRACKET; HORN
8-97613-300-2
01
1
1512-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER IDN
8-97086-825-0
03
1
1512-
41
39
36
35
33
34
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6> IDN
8-97948-152-0
01
1
1512-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
1512-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) DIN8X2 & PT1/4 DOUBLE ELBOW
8-98179-708-0
01
1
1512-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98154-633-0
01
1
1512-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE IDN
0-28650-820-0
02
1
1512-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M8X35 FLANGE
0-28650-835-0
02
1
1512-
41
NUT; BRKT,MAG VLV
PTO CONTROL<SV6> M8 FLANGE IDN
0-91180-108-0
02
1
1512-
261
PLUG; MAG VLV
PTO CONTROL<SV6> PT1/4
9-99204-513-0
01
1
1512-
