◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11731 - FTR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#171082) — 16 parça

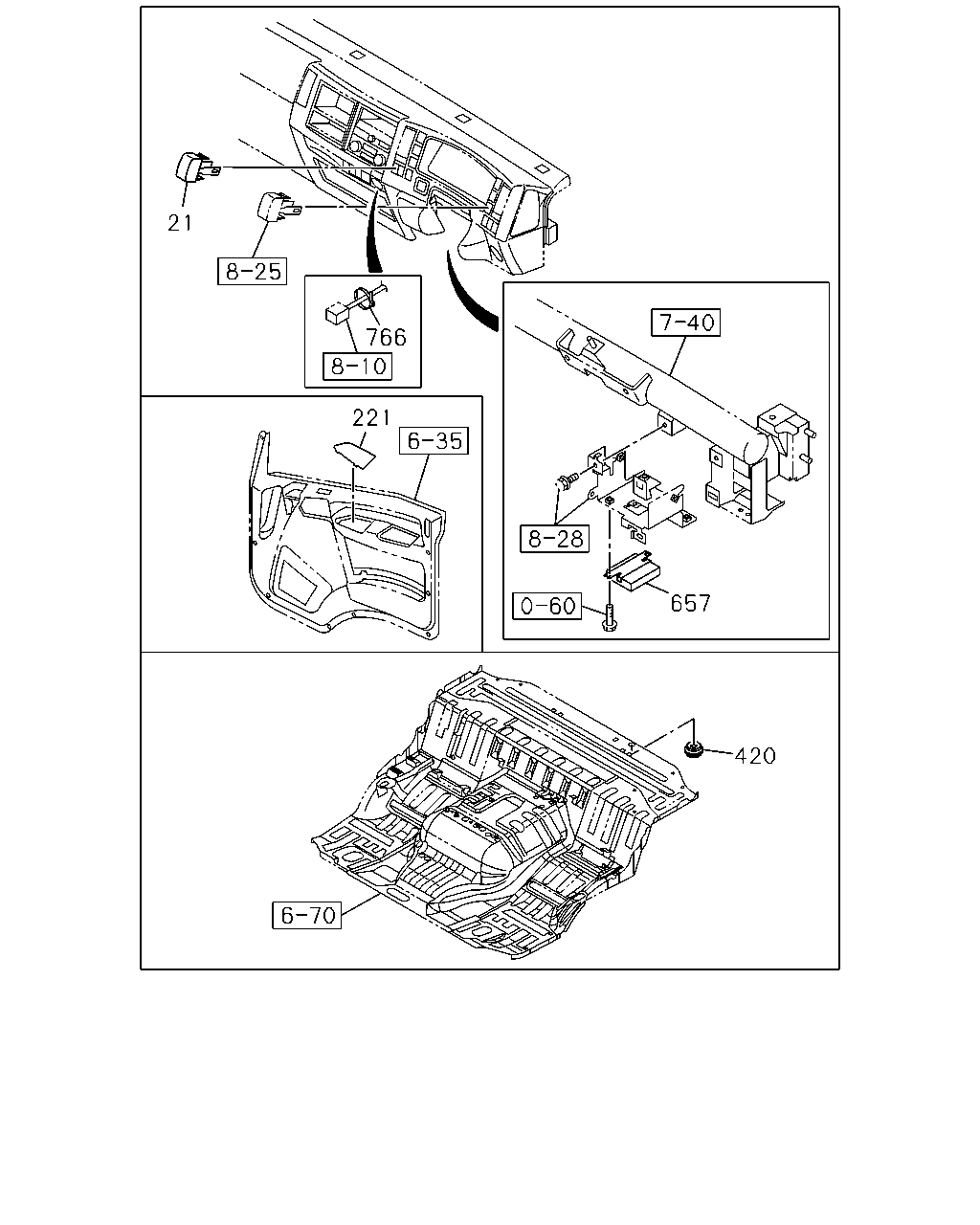

çizim 507807
21 221 766 657 420
BalonParca AdiParca NoAdetTipApplied Date
21 COVER; HOLE 8-98025-954-1 01 1 1512-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-915-2 01 1 1512-
221 COVER; HOLE,DOOR LOCK SW
IDN 		8-98029-916-2 01 1 1512-
420 PLUG; SWITCH
OD=35 IDN 		8-94122-971-0 01 1 1512-
657 CONTROL UNIT; MIMAMORI
IDN 		8-97948-260-2 01 1 1512-
766 BAND; CLIP
L=140 IDN 		5-09707-031-1 01 1 1512-

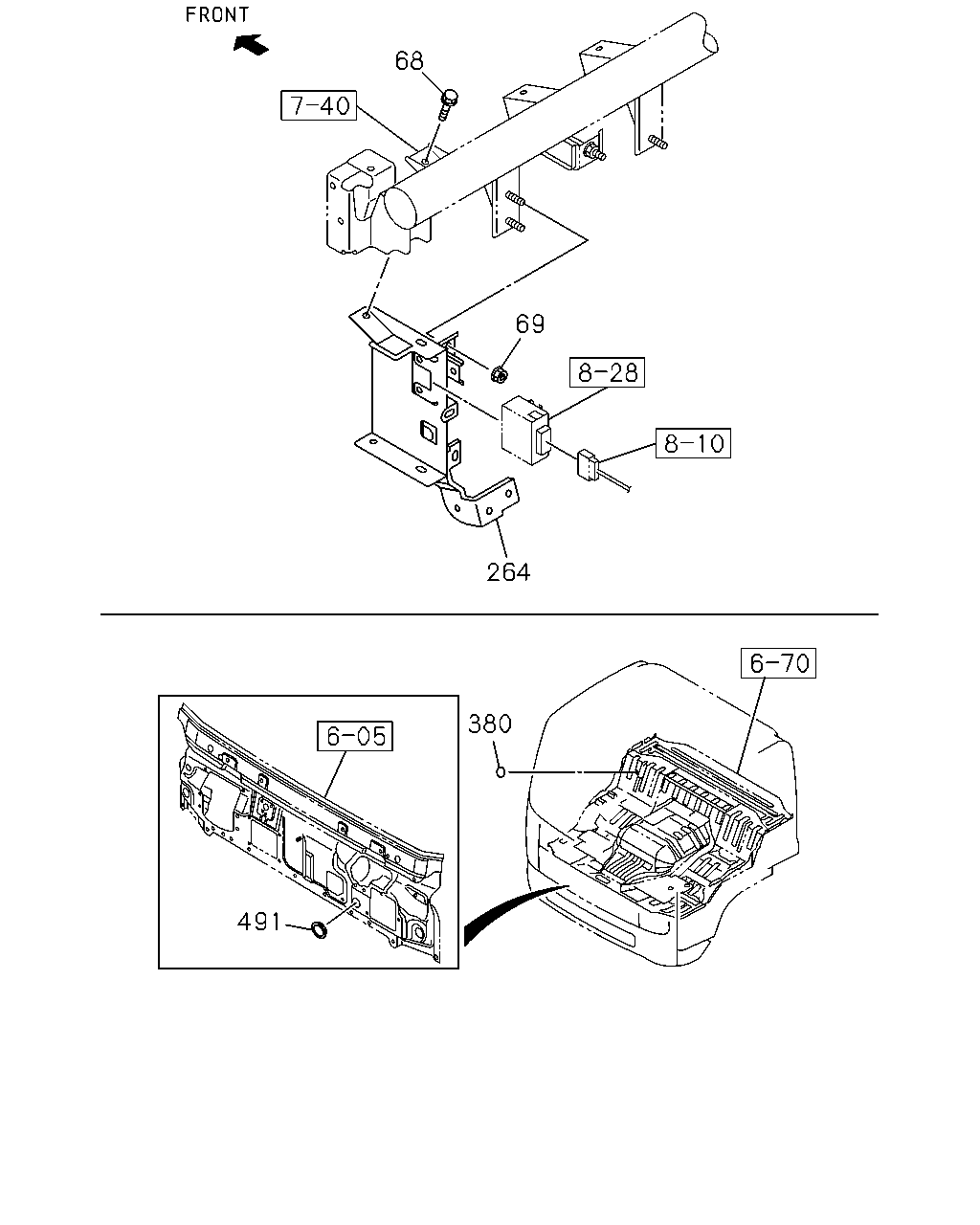

çizim 507816
68 69 264 380 491
BalonParca AdiParca NoAdetTipApplied Date
68 BOLT; BRKT
M6X16 FLANGE 		0-28650-616-0 01 1 1512-
69 NUT; BRKT
M6 FLANGE IDN 		0-91180-106-0 01 1 1512-
264 BRACKET; CONT UNIT 8-98246-453-0 01 1 1512-
380 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 1512-
491 PLUG; HOLE,CONT UNIT
OD=60 IDN 		8-98054-651-0 01 1 1512-

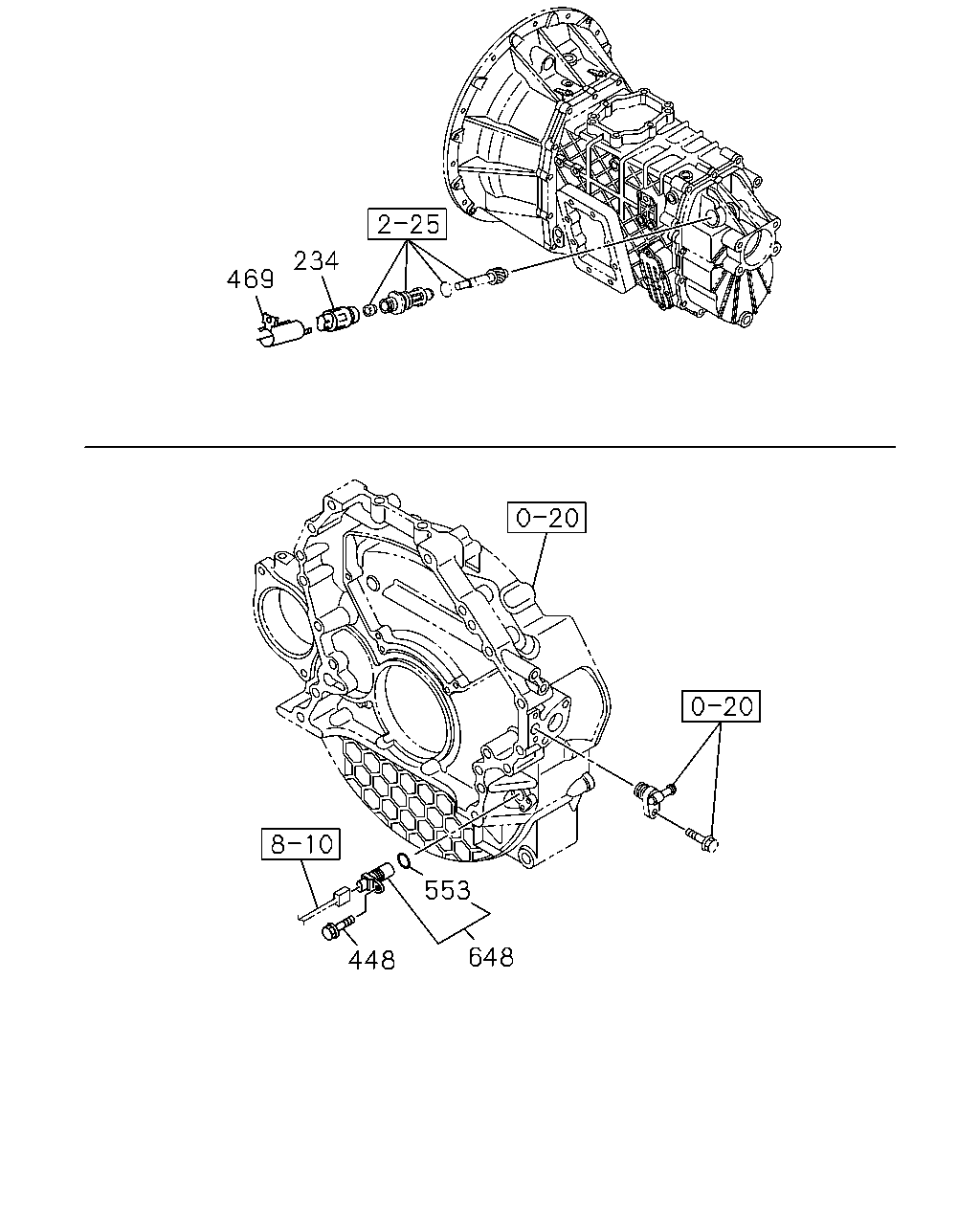

çizim 507826
648 553 448 234 469
BalonParca AdiParca NoAdetTipApplied Date
234 SENSOR; VEHICLE SPD
25 PULSE ALUMINUM 		8-97328-058-1 01 1 1512-
448 BOLT; SENSOR
M6X16 FLANGE IDN 		0-28050-616-0 01 1 1512-
469 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 1512-
553 GASKET
ID=14.2 OD=18.8 		8-97369-404-0 01 1 1512-
648 SENSOR; CRANK ANGLE 8-97606-943-0 01 1 1512-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
