Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#171081) — 30 parça
◀
[825A] RELAY; CAB HARNESS (6 parça)
[825A] SWITCH NO.1 (4 parça)
[825A] SWITCH NO.2 (12 parça)
[825A] SWITCH NO.3 (8 parça)
▶
317
610
606
595
606
610
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
317
RELAY; BLOWER MOTOR,HTR
24V 12.5A PANASONIC
8-97262-933-0
01
1
1512-
595
RELAY; IGNITION
24V 10A PANASONIC IDN
8-97173-035-1
01
1
1512-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 24V 10A PANASONIC IDN
8-97173-035-1
01
1
1512-
606
RELAY; PTO MAIN
TRANSMISSION SIDE PTO GEAR=36/16(C5L) 24V 10A PANASONIC IDN
8-97173-035-1
01
1
1512-
610
RELAY; KEY ON
(B) 24V 10A PANASONIC IDN
8-97173-035-1
01
1
1512-
610
RELAY; KEY ON
(A) 24V 12.5A PANASONIC
8-97262-933-0
01
1
1512-

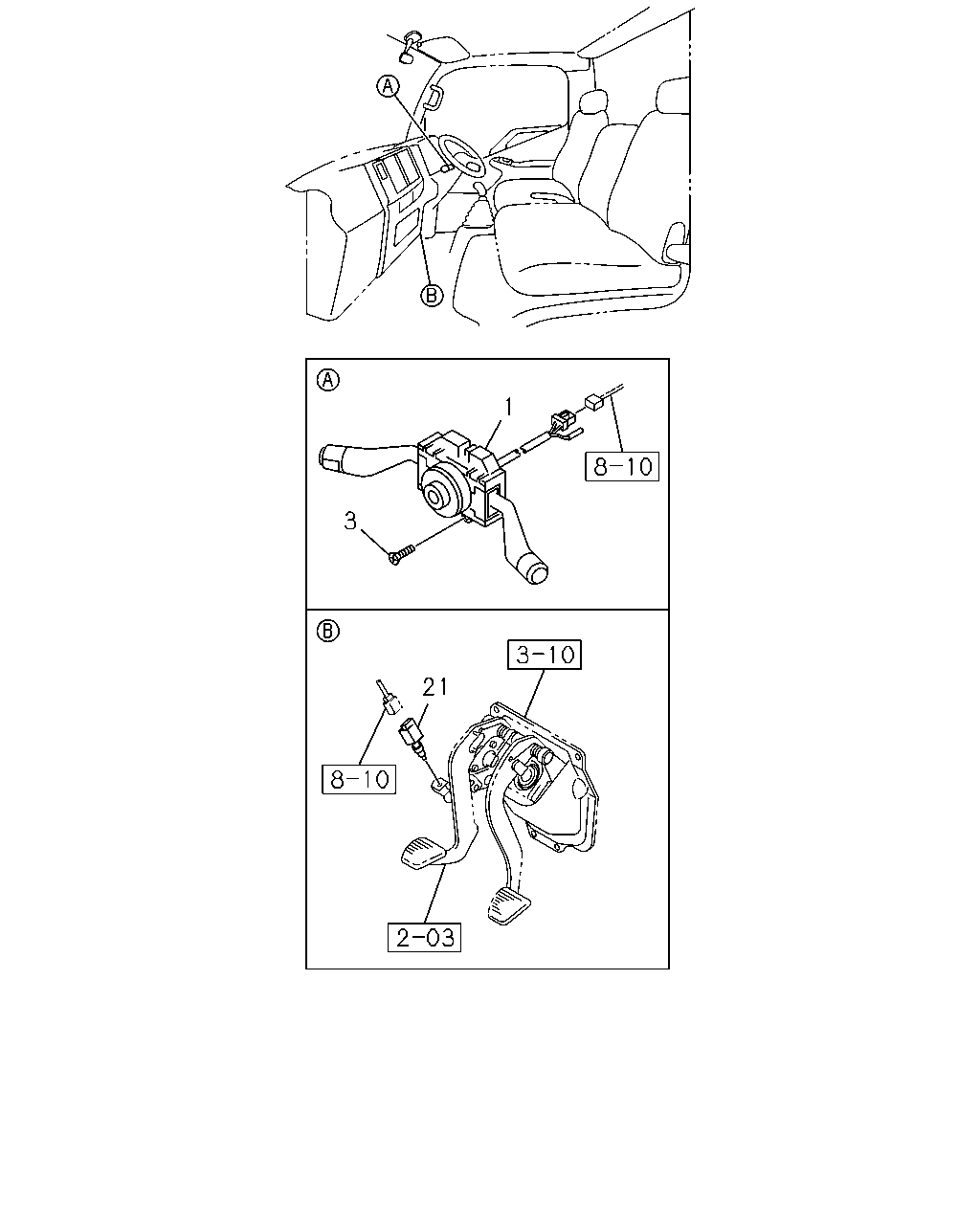

1
3
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
8-98243-704-0
01
1
1512-
3
SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES
8-98061-743-0
02
1
1512-
21
SWITCH; CLU
TRANSMISSION SIDE PTO GEAR=36/16(C5L)
8-94337-761-0
01
1
1512-
21
SWITCH; CLU
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L)
8-97358-248-0
01
1
1512-

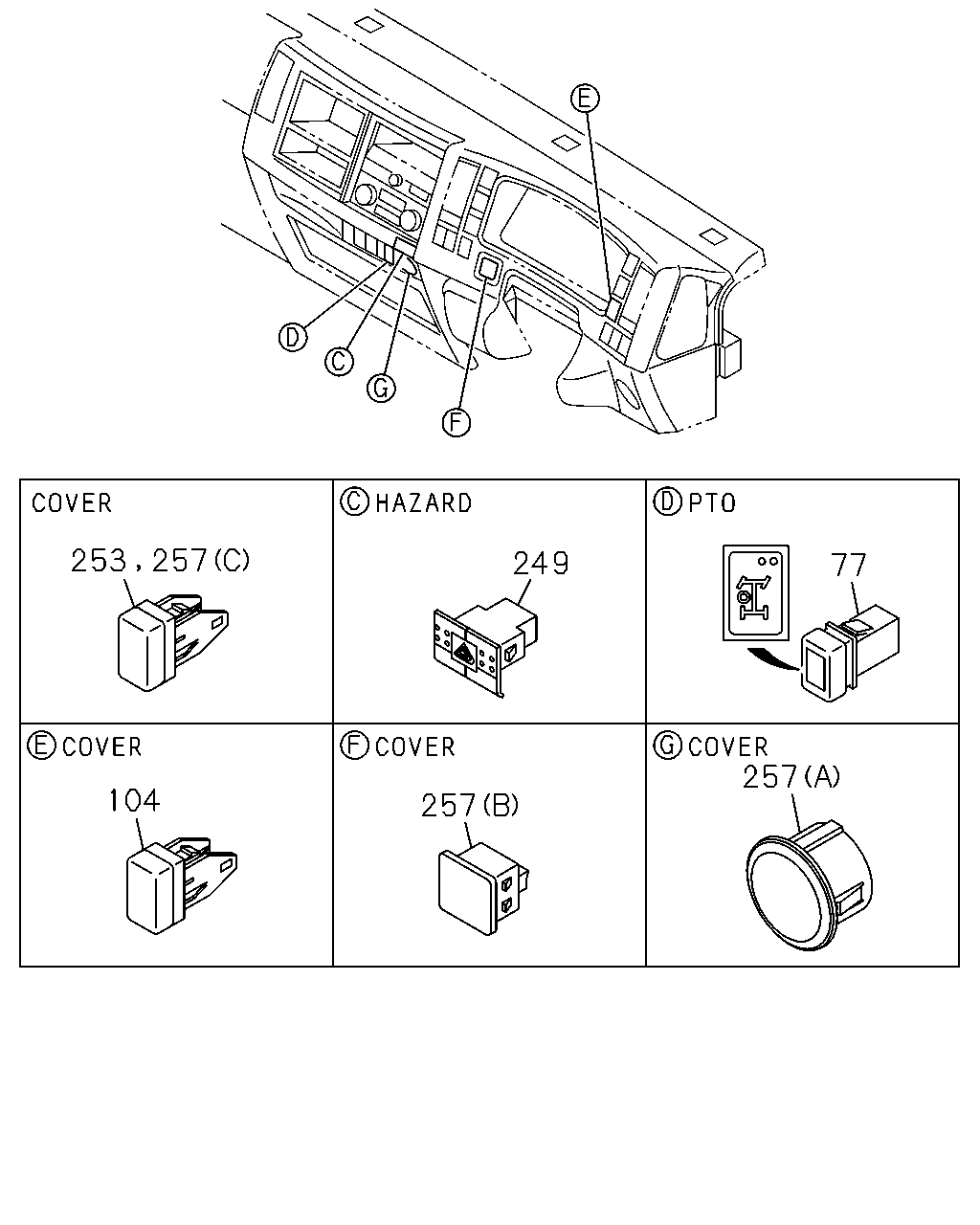

249
257
257
77
253
257
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
SWITCH; PTO
TRANSMISSION SIDE PTO GEAR=36/16(C5L)
8-97615-488-2
01
1
1512-
104
COVER; SW HOLE,FOG LAMP
8-98025-954-1
01
1
1512-
249
SWITCH; HAZARD
IDN
8-97948-258-0
01
1
1512-
253
COVER; SW HOLE
8-98025-954-1
02
1
1512-
253
COVER; SW HOLE
8-98025-954-1
01
1
1512-
253
COVER; SW HOLE
8-98025-954-1
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
07
1
1512-
257
COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
1512-
257
COVER; HOLE,SW
(D) IDN
8-98029-917-0
01
1
1512-
257
COVER; HOLE,SW
(A) IDN
8-98070-401-2
01
1
1512-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C)
8-98025-954-1
01
1
1512-

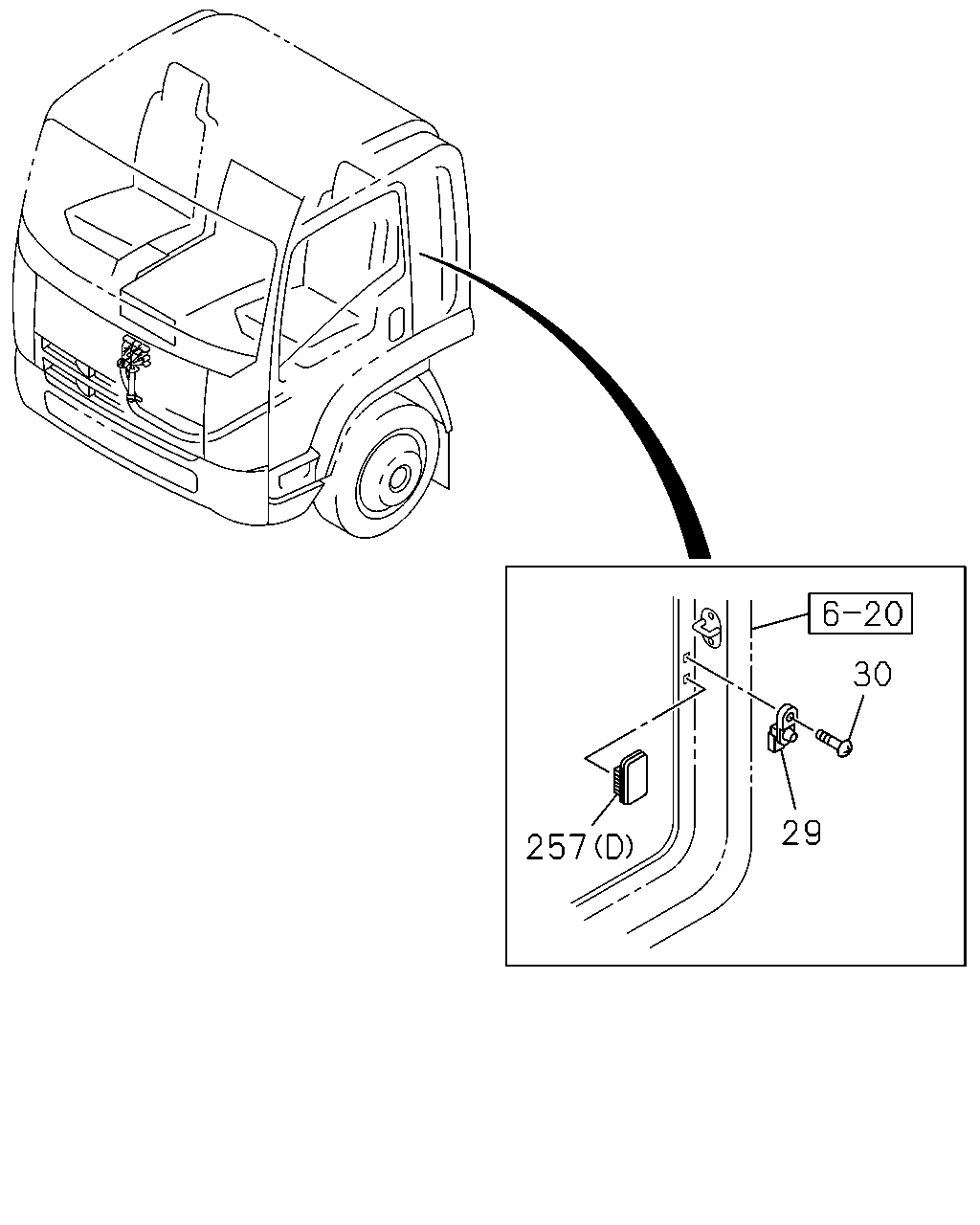

29
30
257
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
SWITCH; DOOR
BLACK IDN
8-98022-211-0
01
1
1512-
30
SCREW; DOOR SW
M5X18 IDN
8-98047-201-0
01
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
02
1
1512-
257
COVER; HOLE,SW
(C)
8-98025-954-1
07
1
1512-
257
COVER; HOLE,SW
(B) IDN
8-98029-914-1
01
1
1512-
257
COVER; HOLE,SW
(D) IDN
8-98029-917-0
01
1
1512-
257
COVER; HOLE,SW
(A) IDN
8-98070-401-2
01
1
1512-
257
COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO GEAR=36/16(C5L) (C)
8-98025-954-1
01
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
