7-43 — SUN VISOR AND ASSIST GRIP
(#171070) — 51 parça
◀

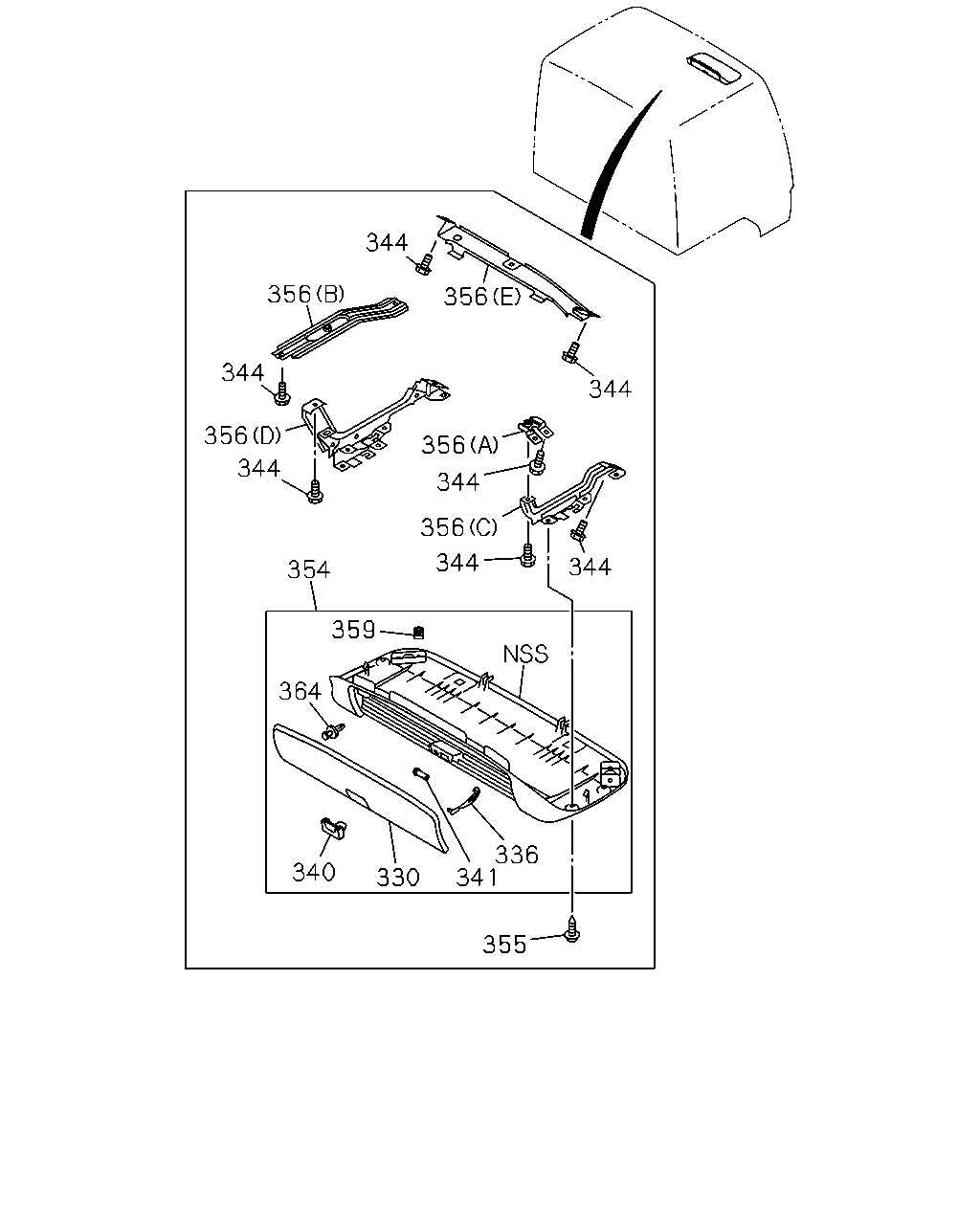

[743A] TRAY; HEADER ROOF (14 parça)

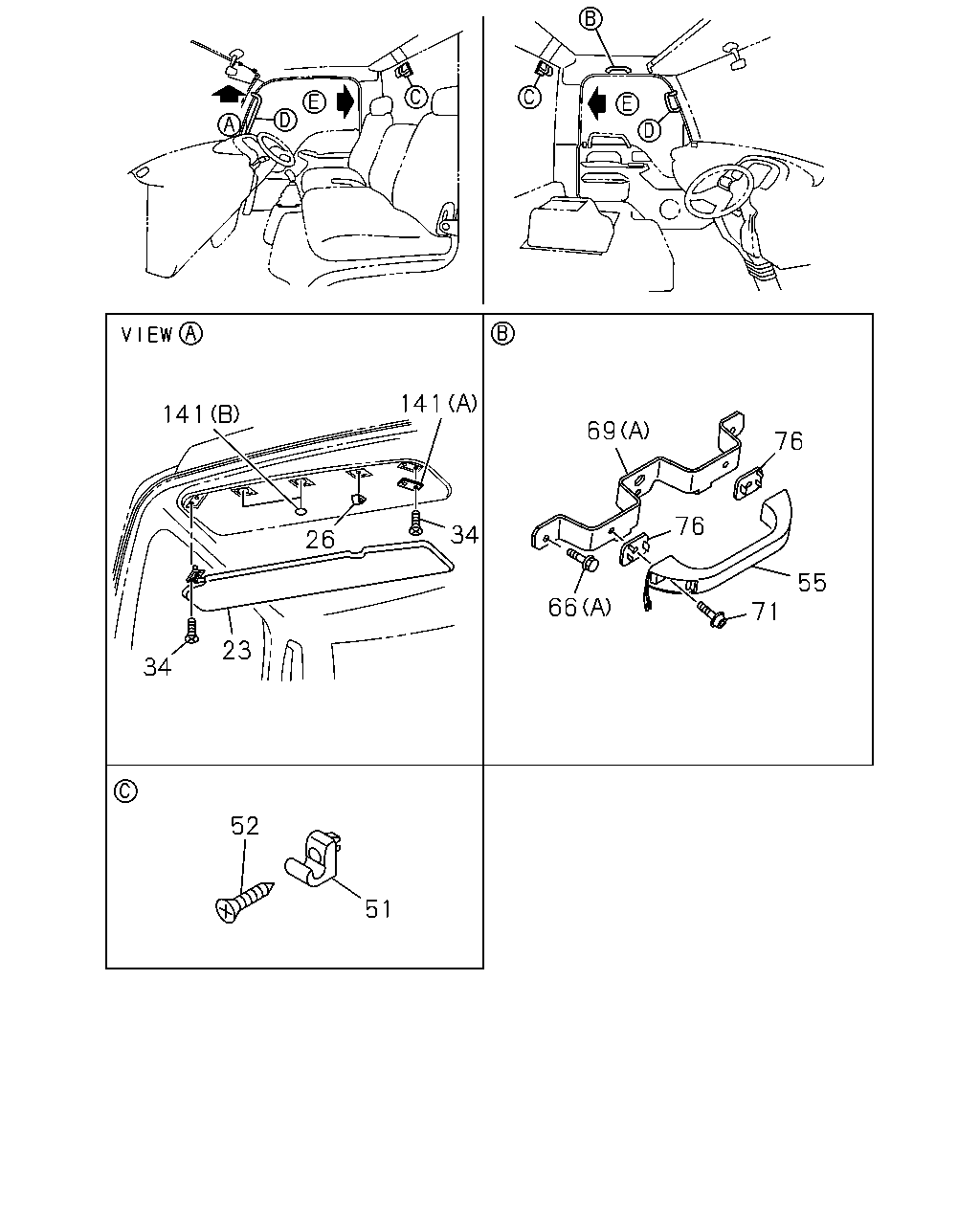

[743A] SUN VISOR AND ASSIST GRIP NO.1 (15 parça)

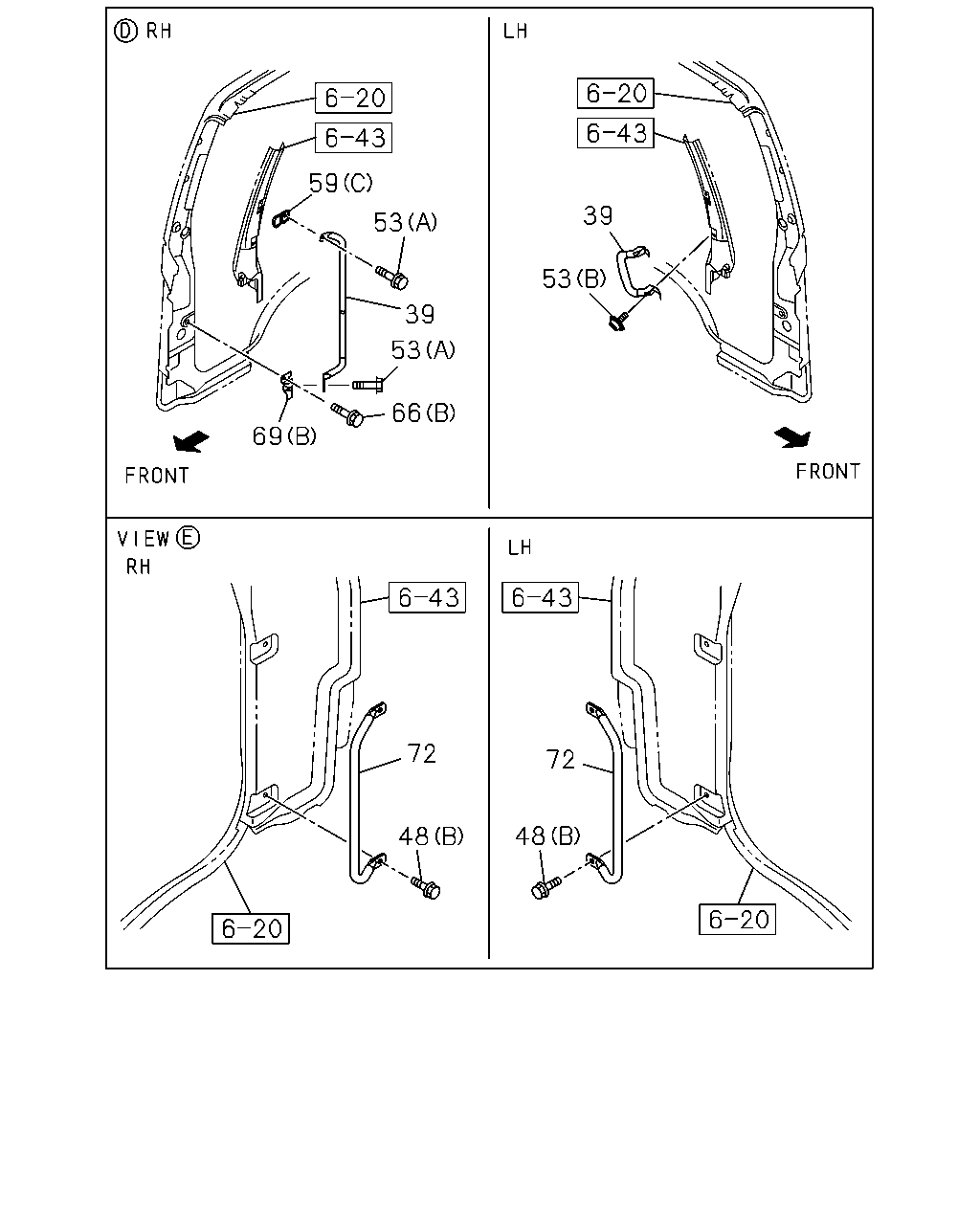

[743A] ASSIST GRIP NO.2 (15 parça)
[743A] ASSIST GRIP NO.3 (7 parça)
▶
344
344
344
344
356
356
356
344
356
344
344
356
354
359
364
336
341
330
355
340
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
330
LID; HEADER SHELF
DARK GRAY
8-97407-834-1
01
1
1512-
336
STAY; LID
1-72448-379-3
02
1
1512-
340
LOCK; HEADER SHELF
1-72448-376-0
01
1
1512-
341
HINGE; LID,HEADER SHELF
8-98025-428-2
02
1
1512-
344
BOLT; BRKT,FRT
M6X12 FLANGE
8-97108-669-0
10
1
1512-
354
TRAY; HEADER ROOF
DARK GRAY
8-97428-821-0
01
1
1512-
355
SCREW; TRAY
M5X16 TAPPING HEXALOBULAR IDN
0-72380-516-0
04
1
1512-
356
BRACKET; ROOF OUTER
(A)
8-97386-874-1
01
1
1512-
356
BRACKET; ROOF OUTER
(B)
8-98010-059-0
01
1
1512-
356
BRACKET; ROOF OUTER
(C)
8-98014-088-3
01
1
1512-
356
BRACKET; ROOF OUTER
(D)
8-98023-257-2
01
1
1512-
356
BRACKET; ROOF OUTER
(E)
8-98042-015-3
01
1
1512-
359
HOLDER; HEADER TRAY
8-98041-754-0
04
1
1512-
364
STOPPER; LID
IDN
8-98010-867-1
03
1
1512-
141
26
141
34
23
34
52
51
71
76
55
76
69
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
SUN VISOR
DARK GRAY IDN
8-97407-373-2
01
1
1512-
26
HOLDER; SUN VISOR
DARK GRAY
8-97405-171-0
01
1
1512-
34
SCREW; SUN VISOR
M6X26
8-98033-674-0
04
1
1512-
51
HOOK; COAT HANGER
DARK GRAY
8-97409-845-0
02
1
1512-
52
SCREW; HOOK
M4X20 TAPPING OVAL-HEAD IDN
0-70540-420-0
02
1
1512-
55
GRIP; ASSIST,CAB SIDE UPR
DARK GRAY
8-97405-285-2
01
1
1512-
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1512-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
03
1
1512-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
01
1
1512-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1512-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1512-
71
SCREW
M6X28
8-98004-344-0
02
1
1512-
76
SPACER; ASSIST GRIP
DARK GRAY
8-97405-286-0
02
1
1512-
141
COVER; SUN VISOR
(A) L=66 B=30 DARK GRAY
8-97408-029-0
01
1
1512-
141
COVER; SUN VISOR
(B) OD=30 T=0.05 DARK GRAY
8-97408-030-0
02
1
1512-
59
39
53
53
66
69
72
48
72
48
39
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
39
HANDLE; ASSIST,A-POST
DARK GRAY
8-97405-249-2
01
1
1512-
39
HANDLE; ASSIST,A-POST
DARK GRAY IDN
8-97407-942-2
01
1
1512-
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1512-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1512-
53
SCREW; ASSIST HANDLE
(B) M6X28
8-98004-344-0
02
1
1512-
53
SCREW; ASSIST HANDLE
(A) M8X20 FLANGE IDN
0-28650-820-0
02
1
1512-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
1512-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
1512-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
01
1
1512-
66
BOLT; ASSIST GRIP BRKT
(B) M8X16 FLANGE
0-28050-816-0
04
1
1512-
66
BOLT; ASSIST GRIP BRKT
(A) M6X12 FLANGE
8-97108-669-0
03
1
1512-
69
BRACKET; ASSIST GRIP
(A)
8-98014-094-0
01
1
1512-
69
BRACKET; ASSIST GRIP
(B)
8-98057-972-2
01
1
1512-
69
BRACKET; ASSIST GRIP
(B)
8-98057-971-2
01
1
1512-
72
GRIP; ASSIST,CAB ENTRY,BACK
IDN
8-98315-144-0
02
1
1512-
103
48
59
59
48
48
103
48
59
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(B) M8X16 FLANGE
0-28060-816-0
04
1
1512-
48
BOLT; ASSIST GRIP
(A) M8X30 FLANGE
0-28660-830-0
04
1
1512-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
1512-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
1512-
59
COVER; ASSIST GRIP
(C) DARK GRAY
8-97407-417-1
01
1
1512-
103
GRIP; ASSIST,FRT PNL
8-98036-565-1
01
1
1512-
103
GRIP; ASSIST,FRT PNL
8-98036-566-1
01
1
1512-
