Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

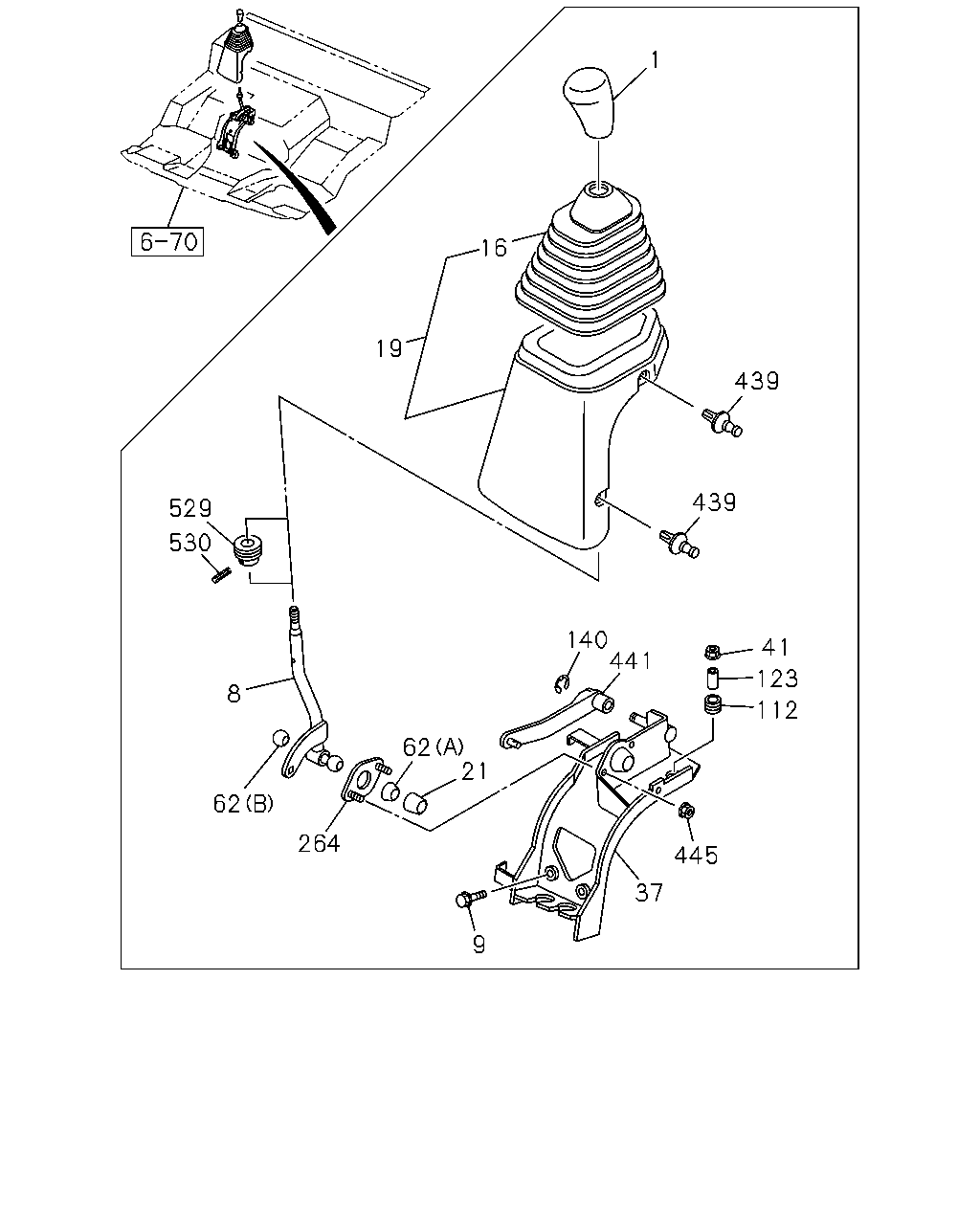

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#17107) — 19 parça
1
16
19
439
439
529
530
140
441
41
123
8
112
62
21
62
264
445
37
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
SOU
1-33611-070-1
01
1
1001-
8
LEVER; CHANGE
8-98093-457-0
01
1
1001-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER SOU
8-94412-342-0
02
1
1001-
16
BOOT; CHANGE LEVER
SOU
1-79998-751-4
01
1
1001-
19
COVER; CHANGE LEVER
GRAY
8-97407-954-0
01
1
1001-
21
SEAT; CHANGE LEVER
SOU
1-33619-429-0
01
1
1001-
37
BRACKET; CHANGE LEVER SUPPORT
8-98093-444-0
01
1
1001-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1001-
62
SEAT; BALL,CHANGE LEVER
(A) SOU
1-33619-427-0
01
1
1001-
62
SEAT; BALL,CHANGE LEVER
(B) SOU
8-97049-147-0
01
1
1001-
112
RUBBER; CUSHION
SOU
1-33619-442-0
04
1
1001-
123
COLLAR; DIST,CHANGE LEVER
SOU
1-33619-443-0
04
1
1001-
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1001-
264
PLATE; COVER
SOU
1-33619-430-0
01
1
1001-
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1001-
441
LEVER; SELECT
8-98093-449-0
01
1
1001-
445
NUT; PLATE
M6 FLANGE SOU
0-91180-106-0
02
1
1001-
529
RING; BOOT
SOU
1-33619-504-0
01
1
1001-
530
PIN; SPRING
SOU
1-33619-505-0
01
1
1001-
