2-26 — MANUAL TRANSMISSION GEAR (#17105) — 126 parça

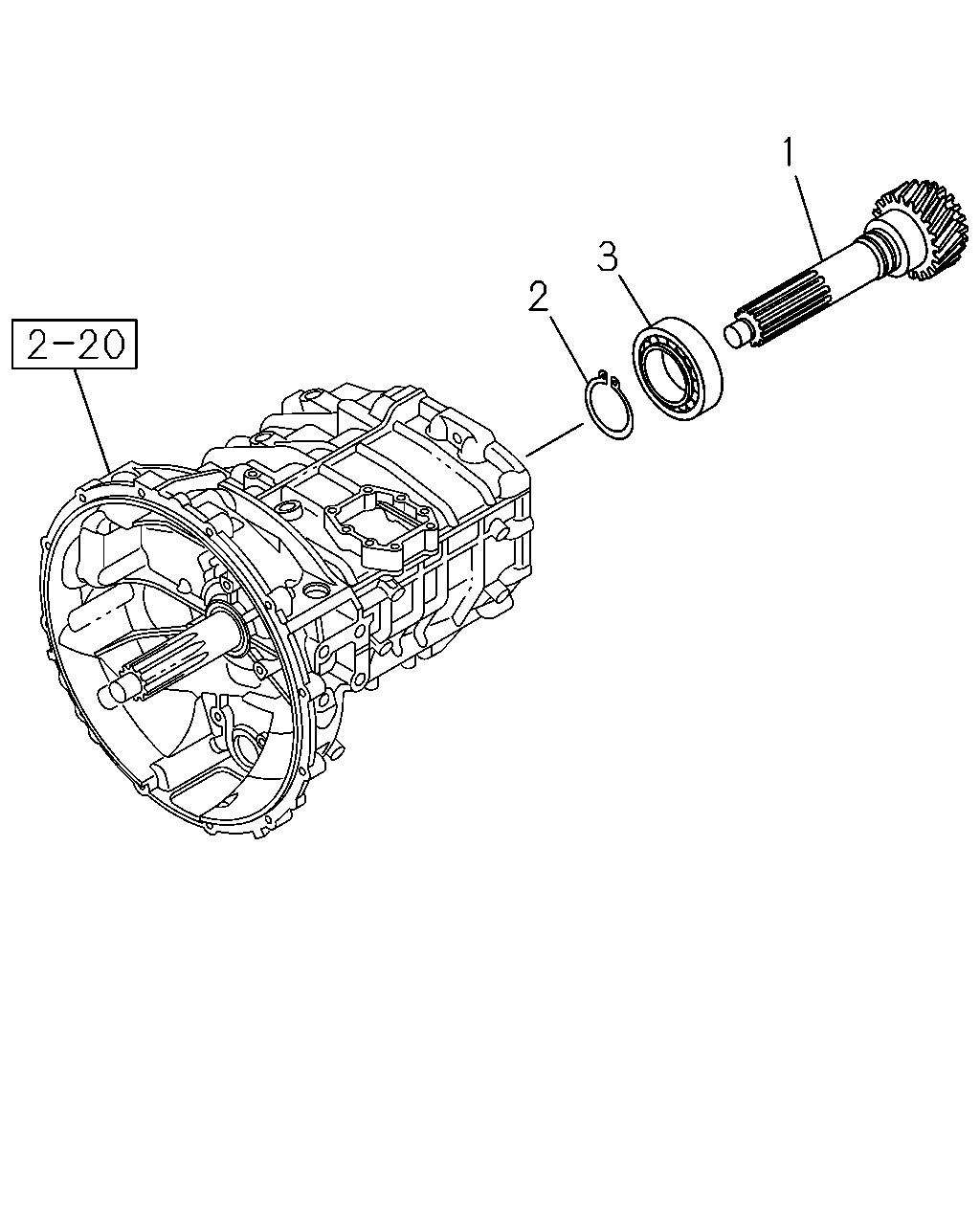

çizim 128051
1 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS 1-33215-037-0 01 1 1001-
2 RING; SNAP,TOP GEAR SHAFT 1-33219-325-0 01 1 1001-
3 BEARING; TOP GEAR SHAFT 1-33219-324-0 01 1 1001-

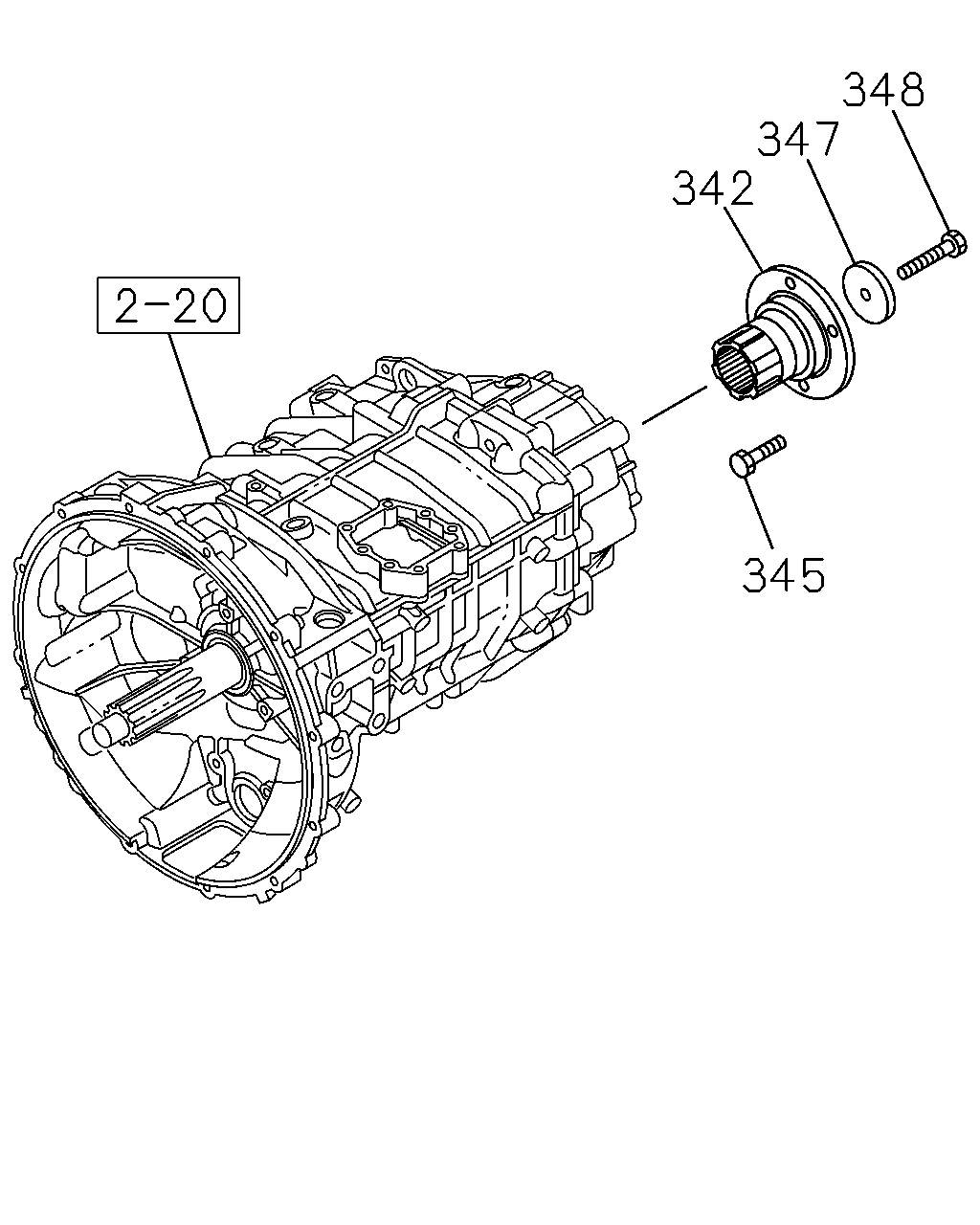

çizim 128054
348 347 342 345
BalonParca AdiParca NoAdetTipApplied Date
342 FLANGE; OUTPUT 1-37243-432-0 01 1 1001-1311
342 FLANGE; OUTPUT 1-37243-434-0 01 1 1312-
345 BOLT; FLANGE TO YOKE 1-37249-210-0 04 1 1001-
347 WASHER; FLANGE
PTO ZF TRANS RR(BDM) 		1-37249-208-0 01 1 1001-1311
347 WASHER; FLANGE
EXC. PTO ZF TRANS RR(BDM) 		1-37249-211-0 01 1 1001-1311
347 WASHER; FLANGE 1-37249-211-0 01 1 1312-
348 BOLT; SHAFT 1-36139-024-0 01 1 1001-1311
348 BOLT; SHAFT 1-36139-025-0 01 1 1312-

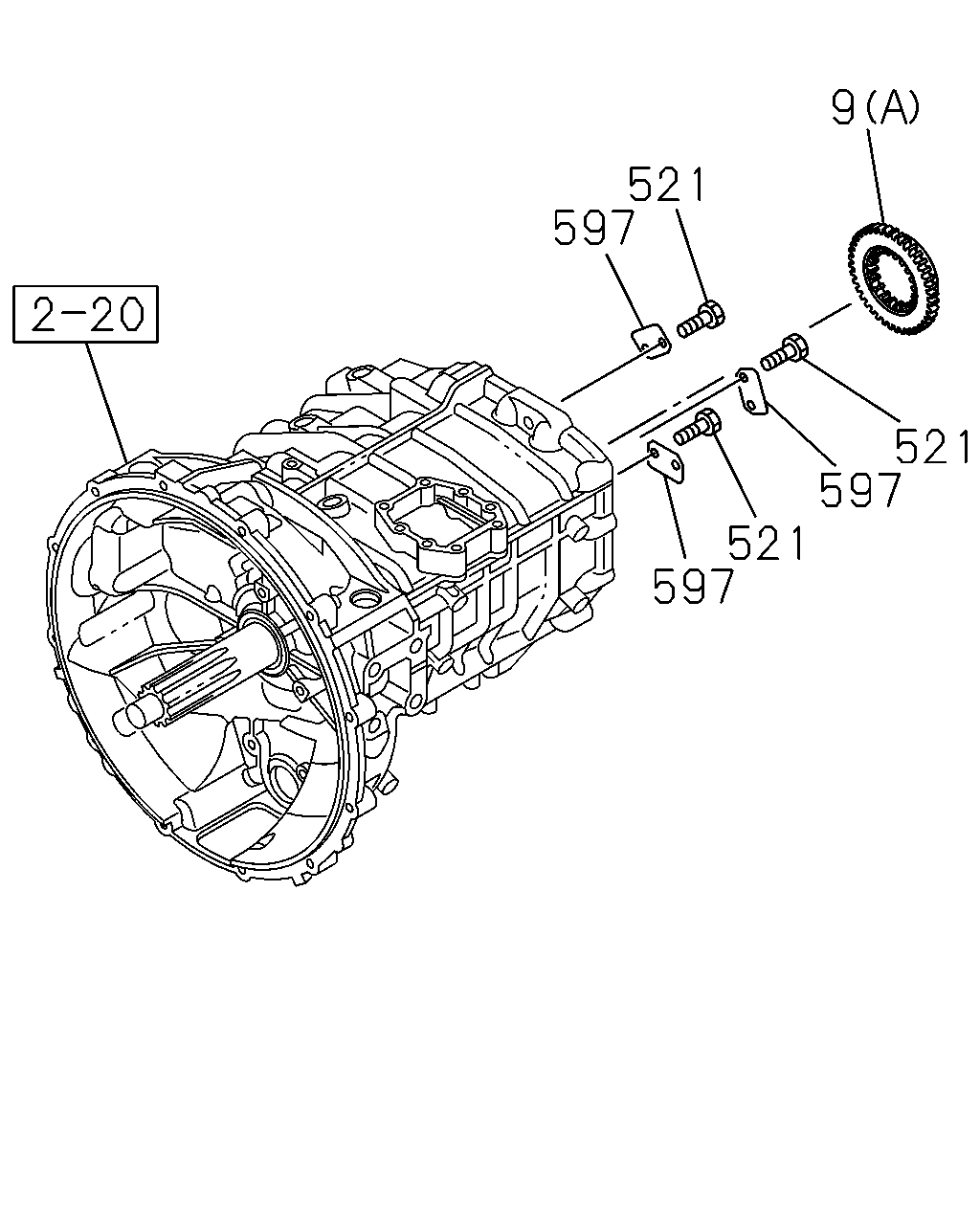

çizim 128056
9 521 597 521 597 521 597
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 1001-
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 1001-
521 BOLT 1-33129-003-0 06 1 1001-1311
521 BOLT 1-34129-134-0 06 1 1312-
597 WASHER; TAB 1-33219-329-0 03 1 1001-
çizim 128058
17 432 77 9 538 537 323 408 121 538 16 251 316 35 321 306 391 323 408 320 35 317 17 30 296 27 33 36
BalonParca AdiParca NoAdetTipApplied Date
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33219-326-0 01 1 1001-
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-326-0 01 1 1001-
16 BEARING; PILOT,MAINSHAFT 1-33239-362-0 01 1 1001-
17 RING; SNAP,4TH GEAR
(A) 		1-33259-115-0 01 1 1001-
17 RING; SNAP,4TH GEAR
(B) 		1-33259-118-0 01 1 1001-1311
17 RING; SNAP,4TH GEAR
(B) 		1-33259-143-0 01 1 1312-
27 BEARING; 4TH GEAR 1-33259-116-0 01 1 1001-1311
27 BEARING; 4TH GEAR 1-33259-142-0 01 1 1312-
30 GEAR; 4TH,MAINSHAFT 1-33251-440-0 01 1 1001-
33 BEARING; NEEDLE,3RD GEAR 1-33259-107-0 01 1 1001-1311
33 BEARING; NEEDLE,3RD GEAR 1-33259-136-0 01 1 1312-
35 RING; BLOCK,4TH & 3RD 1-33265-498-0 02 1 1001-
36 GEAR; 3RD,MAINSHAFT 1-33251-445-0 01 1 1001-
77 GEAR; 6TH,MAINSHAFT 1-33252-483-0 01 1 1001-
121 HUB; CLU,6TH 1-33261-299-0 01 1 1001-
251 RING; SNAP 1-33239-363-0 01 1 1001-
296 WASHER; THRUST 1-33259-117-0 01 1 1001-
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-111-0 01 1 1001-1311
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-141-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) 		1-38249-037-0 01 1 1001-
316 CLUTCH; DOG,3RD GEAR 1-33265-636-0 01 1 1001-
317 CLUTCH; DOG,4TH GEAR 1-33265-637-0 01 1 1001-
320 HUB; CLU,4TH & 3RD 1-33261-297-0 01 1 1001-
321 SLEEVE; SYN,4TH & 3RD 1-33262-241-0 01 1 1001-
323 INSERT
(A) 		1-33263-030-0 06 1 1001-
323 INSERT
(B) 		1-33263-043-0 03 1 1001-
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 1001-
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 1001-
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 1001-
408 SPRING
(A) 		1-33269-042-0 06 1 1001-
408 SPRING
(B) 		1-33269-099-0 03 1 1001-
432 BEARING; NEEDLE,4TH 1-33259-119-0 01 1 1001-1311
432 BEARING; NEEDLE,4TH 1-33259-138-0 01 1 1312-
537 SLEEVE; SYN,5TH & 6TH 1-33259-120-0 01 1 1001-1311
537 SLEEVE; SYN,5TH & 6TH 1-33259-139-0 01 1 1312-
538 RING; BLOCK,5TH & 6TH 1-33259-121-0 02 1 1001-

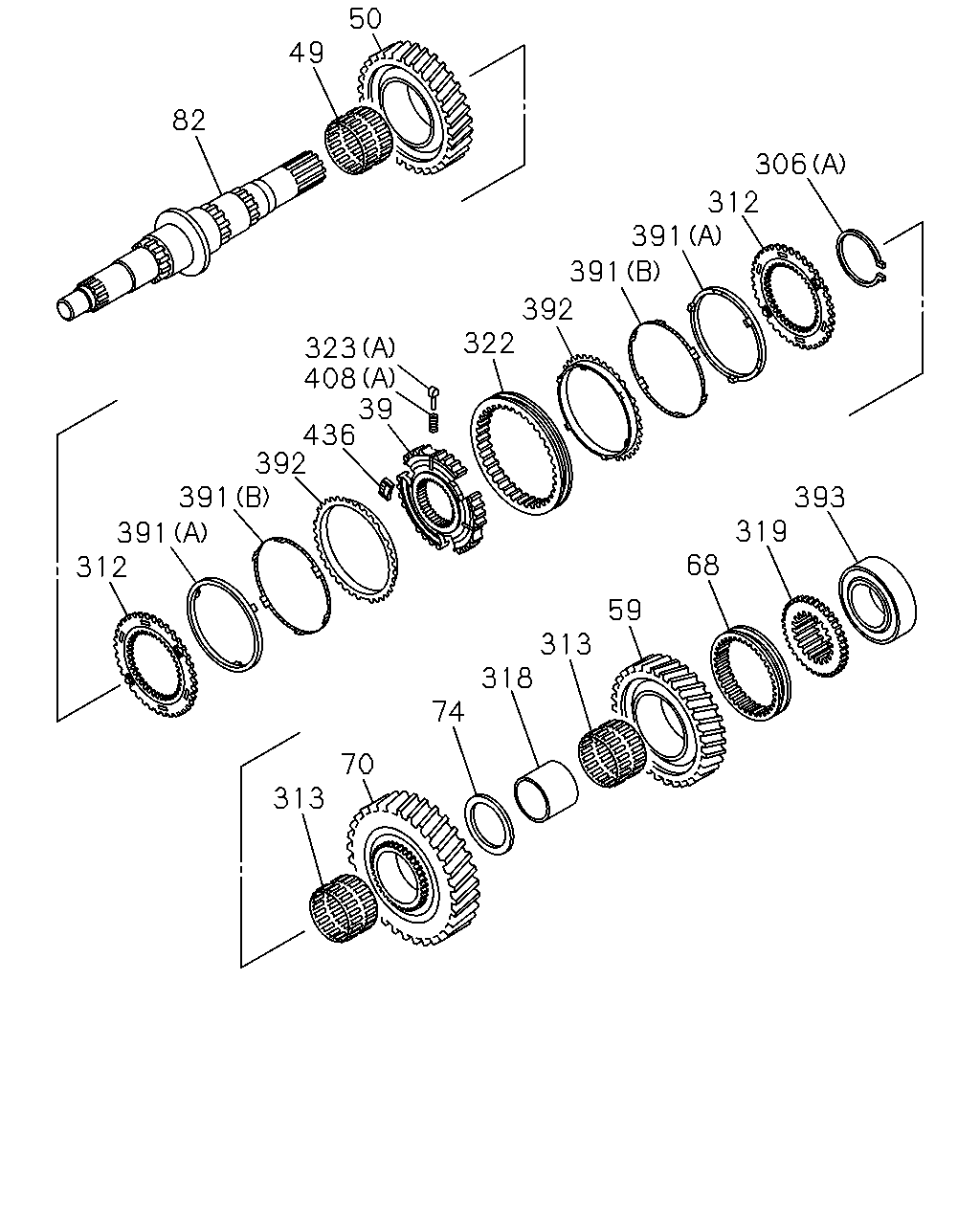

çizim 128063
50 49 82 306 312 391 391 392 322 323 408 39 436 392 391 393 319 391 312 68 59 313 318 74 70 313
BalonParca AdiParca NoAdetTipApplied Date
39 HUB; CLU,LOW & 2ND 1-33261-296-0 01 1 1001-
49 BEARING; NEEDLE,2ND GEAR 1-33259-107-0 01 1 1001-1311
49 BEARING; NEEDLE,2ND GEAR 1-33259-136-0 01 1 1312-
50 GEAR; 2ND,MAINSHAFT 1-33251-437-0 01 1 1001-
59 GEAR; REV MAINSHAFT
PTO ZF TRANS RR(BDM) 		1-33252-482-0 01 1 1001-1311
59 GEAR; REV MAINSHAFT
EXC. PTO ZF TRANS RR(BDM) 		1-33252-484-0 01 1 1001-1311
59 GEAR; REV MAINSHAFT 1-33252-484-0 01 1 1312-
68 SLEEVE; 1ST TO REV 1-33259-075-0 01 1 1001-
70 GEAR; 1ST,MAINSHAFT 1-33252-481-0 01 1 1001-
74 WASHER; THRUST,REV GEAR 1-33259-113-0 01 1 1001-
82 SHAFT; MAIN,TRANS 1-33231-341-0 01 1 1001-
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-111-0 01 1 1001-1311
306 RING; SNAP,MAINSHAFT
(A) 		1-33259-141-0 01 1 1312-
306 RING; SNAP,MAINSHAFT
(B) 		1-38249-037-0 01 1 1001-
312 CLUTCH; DOG,1ST GEAR 1-33265-634-0 02 1 1001-
313 BEARING; NEEDLE,LOW GEAR 1-33259-112-0 02 1 1001-
318 COLLAR; DIST,REV GEAR 1-33259-114-0 01 1 1001-
319 CLUTCH; SLIDING 1-33265-635-0 01 1 1001-1311
319 CLUTCH; SLIDING 1-33265-648-0 01 1 1312-
322 SLEEVE; SYN,LOW & 2ND 1-33262-240-0 01 1 1001-
323 INSERT
(A) 		1-33263-030-0 06 1 1001-
323 INSERT
(B) 		1-33263-043-0 03 1 1001-
391 RING; INSIDE,SYN
(B) 		1-33259-109-0 02 1 1001-
391 RING; INSIDE,SYN
(C) 		1-33259-122-0 01 1 1001-
391 RING; INSIDE,SYN
(A) 		1-33259-132-0 02 1 1001-
392 RING; OUTSIDE,SYN 1-33259-110-0 02 1 1001-
393 BEARING; MAINSHAFT END 1-33219-330-0 01 1 1001-
408 SPRING
(A) 		1-33269-042-0 06 1 1001-
408 SPRING
(B) 		1-33269-099-0 03 1 1001-
436 KEY; LOW & 2ND 1-33269-046-0 03 1 1001-

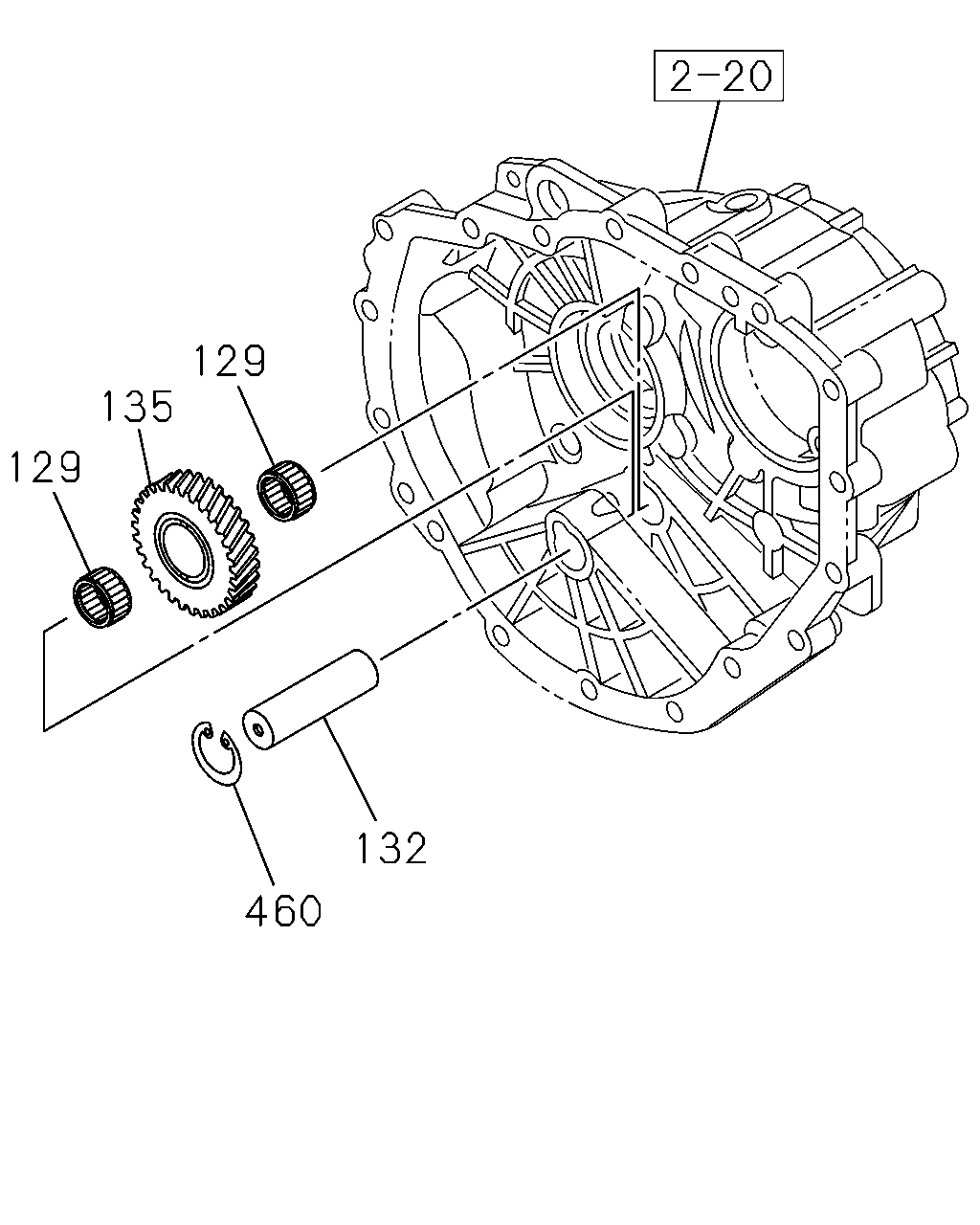

çizim 128075
129 135 129 132 460
BalonParca AdiParca NoAdetTipApplied Date
129 BEARING; NEEDLE,IDLER 1-33369-025-0 02 1 1001-
132 SHAFT; REV 1-33351-043-0 01 1 1001-
135 GEAR; REV IDLER
PTO ZF TRANS RR(BDM) 		1-33361-093-0 01 1 1001-1311
135 GEAR; REV IDLER
EXC. PTO ZF TRANS RR(BDM) 		1-33361-094-0 01 1 1001-1311
135 GEAR; REV IDLER 1-33361-095-0 01 1 1312-
460 RING; SNAP,REV SHAFT 1-34119-044-0 01 1 1001-

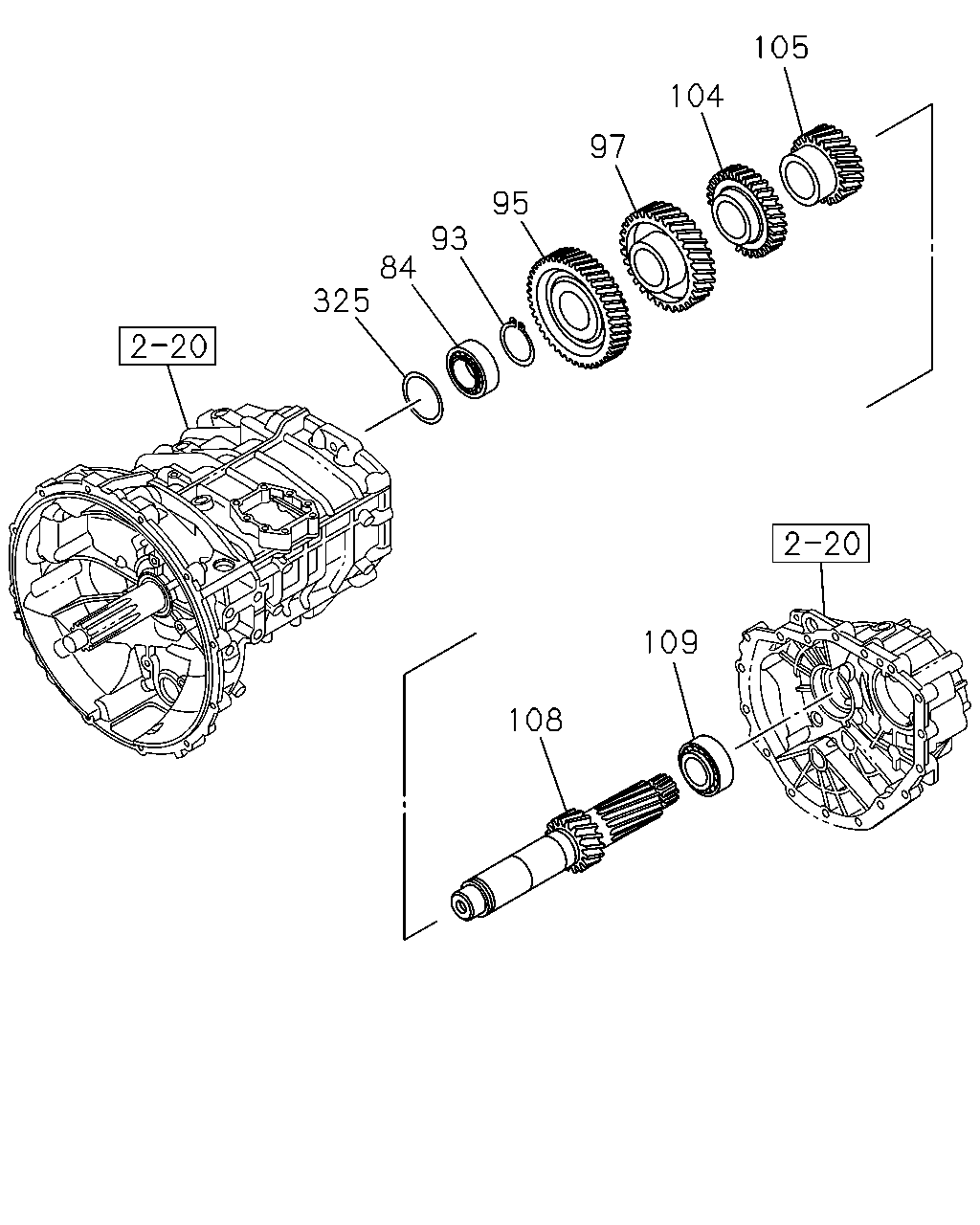

çizim 128081
105 104 97 95 93 84 325 109 108
BalonParca AdiParca NoAdetTipApplied Date
84 BEARING; COUNTER SHAFT,FRT 1-33239-360-0 01 1 1001-
93 RING; SNAP,COUNTER FRT BRG 1-33319-257-0 01 1 1001-
95 GEAR; REV,COUNTER 1-33338-404-0 01 1 1001-
97 GEAR; 5TH,COUNTER 1-33338-403-0 01 1 1001-
104 GEAR; 4TH,COUNTER 1-33338-401-0 01 1 1001-
105 GEAR; 3RD,COUNTER 1-33338-399-0 01 1 1001-
108 SHAFT; COUNTER 1-33311-349-0 01 1 1001-
109 BEARING; COUNTER SHAFT,RR 1-33239-361-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.60 		1-33389-047-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		1-33389-049-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.40 		1-33389-051-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.30 		1-33389-053-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		1-33389-056-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.10 		1-33389-058-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=2.00 		1-33389-073-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.90 		1-33389-074-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		1-33389-075-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
T=1.70 		1-33389-076-0 01 1 1001-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.55 		1-33389-048-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.55 		1-33389-048-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.45 		1-33389-050-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.45 		1-33389-050-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.35 		1-33389-052-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.35 		1-33389-052-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.25 		1-33389-055-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.25 		1-33389-055-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.15 		1-33389-057-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.15 		1-33389-057-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.65 		1-33389-077-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.65 		1-33389-077-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.75 		1-33389-078-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.75 		1-33389-078-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.85 		1-33389-079-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.85 		1-33389-079-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=1.95 		1-33389-080-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=1.95 		1-33389-080-0 01 1 1312-
325 SHIM; COUNTER SHAFT BRG
EXC. PTO ZF TRANS RR(BDM) T=2.05 		1-33389-081-0 01 1 1001-1311
325 SHIM; COUNTER SHAFT BRG
T=2.05 		1-33389-081-0 01 1 1312-
