4-50 — FRONT SUSPENSION (#171033) — 29 parça

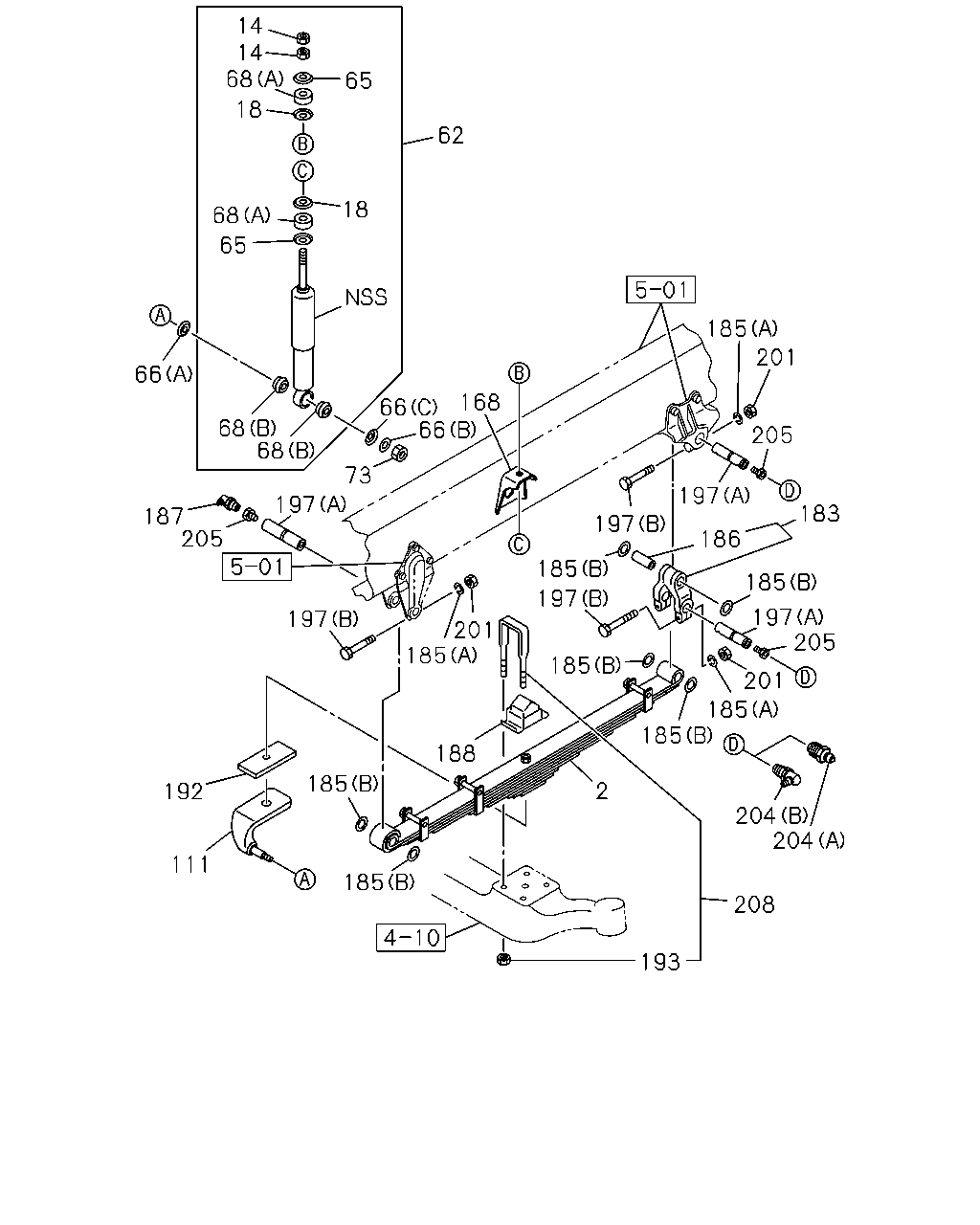

çizim 507531
14 68 65 62 18 68 18 14 65 66 68 187 205 197 68 66 168 66 73 197 185 185 197 197 185 205 183 186 185 185 201 185 197 205 185 204 204 208 2 188 185 185 111 192 201 201 197 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. IDN 		1-51130-343-0 02 1 1512-
14 NUT; S/ABS,UPR
M12 		8-98010-412-0 04 1 1512-
18 WASHER; CENTERING,S/ABS
ID=16.8 		1-51631-022-0 04 1 1512-
62 ABSORBER ASM; SHOCK,FRT
IDN 		8-97924-225-0 02 1 1512-
65 WASHER; S/ABS
ID=14.5 		9-51631-051-0 04 1 1512-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1512-
66 WASHER; LK,S/ABS SETTING
(A) ID=23 		1-51631-019-0 02 1 1512-
66 WASHER; LK,S/ABS SETTING
(C) ID=17 		1-51631-020-0 02 1 1512-
68 BUSHING; S/ABS
(B) 		1-51631-009-1 04 1 1512-
68 BUSHING; S/ABS
(A) 		9-51631-050-0 04 1 1512-
73 NUT; BRKT,SHOCK
M16 IDN 		0-91110-516-0 02 1 1512-
111 SUPPORTER; S/ABS,FRT SUSP
IDN 		8-97948-499-0 01 1 1512-
111 SUPPORTER; S/ABS,FRT SUSP
IDN 		8-97948-500-0 01 1 1512-
168 BRACKET; S/ABS,FRT SUSP
IDN 		1-51681-306-0 02 1 1512-
183 SHACKLE; FRT SUSP 1-51162-029-5 02 1 1512-
185 WASHER; LK,PIN
(B) ID=32.4 		1-51169-018-0 12 1 1512-
185 WASHER; LK,PIN
(A) ID=12.2 		8-98179-315-0 12 1 1512-
186 BUSHING; SHACKLE
OD=38 		8-98081-829-0 02 1 1512-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1512-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-096-2 02 1 1512-
192 PIECE; DIST
80X144 ID=17.5 		1-51177-284-1 AR 1 1512-
193 NUT; U BOLT
M22 		8-98179-318-0 08 1 1512-
197 PIN; FRT SPR,FRT
(B) M12X80 		0-10856-280-0 12 1 1512-
197 PIN; FRT SPR,FRT
(A) IDN 		8-97948-141-0 06 1 1512-
201 NUT; PIN LK
M12 		0-91110-512-0 12 1 1512-
204 NIPPLE; GREASE,RR
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1512-
204 NIPPLE; GREASE,RR
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1512-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 1512-
208 U-BOLT SET; FRT SPRING
L=210 		1-87870-498-0 04 1 1512-
