4-35 — POWER STEERING CONTROL; CHASSIS SIDE
(#171029) — 51 parça
◀

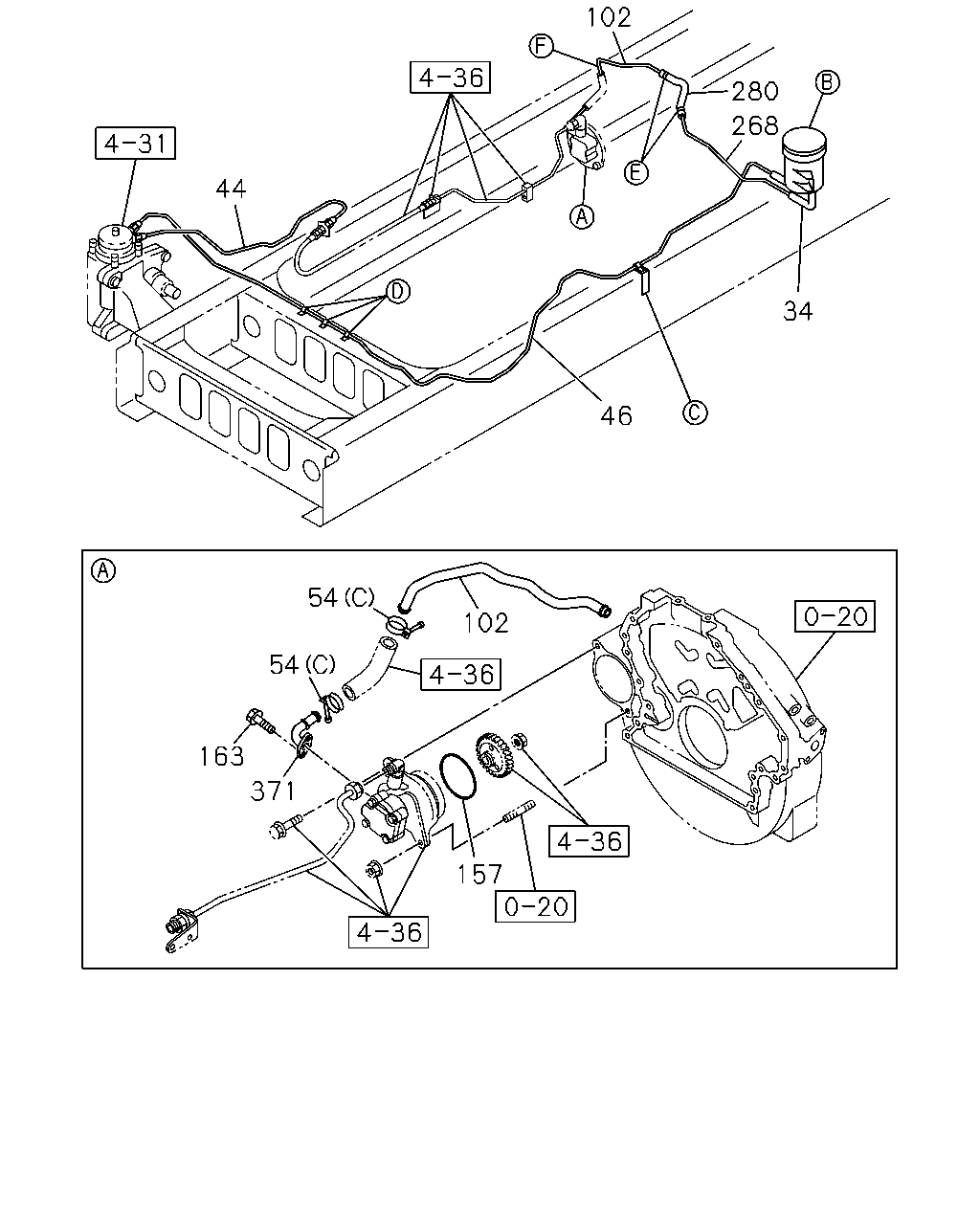

[435A] NO.1 (12 parça)

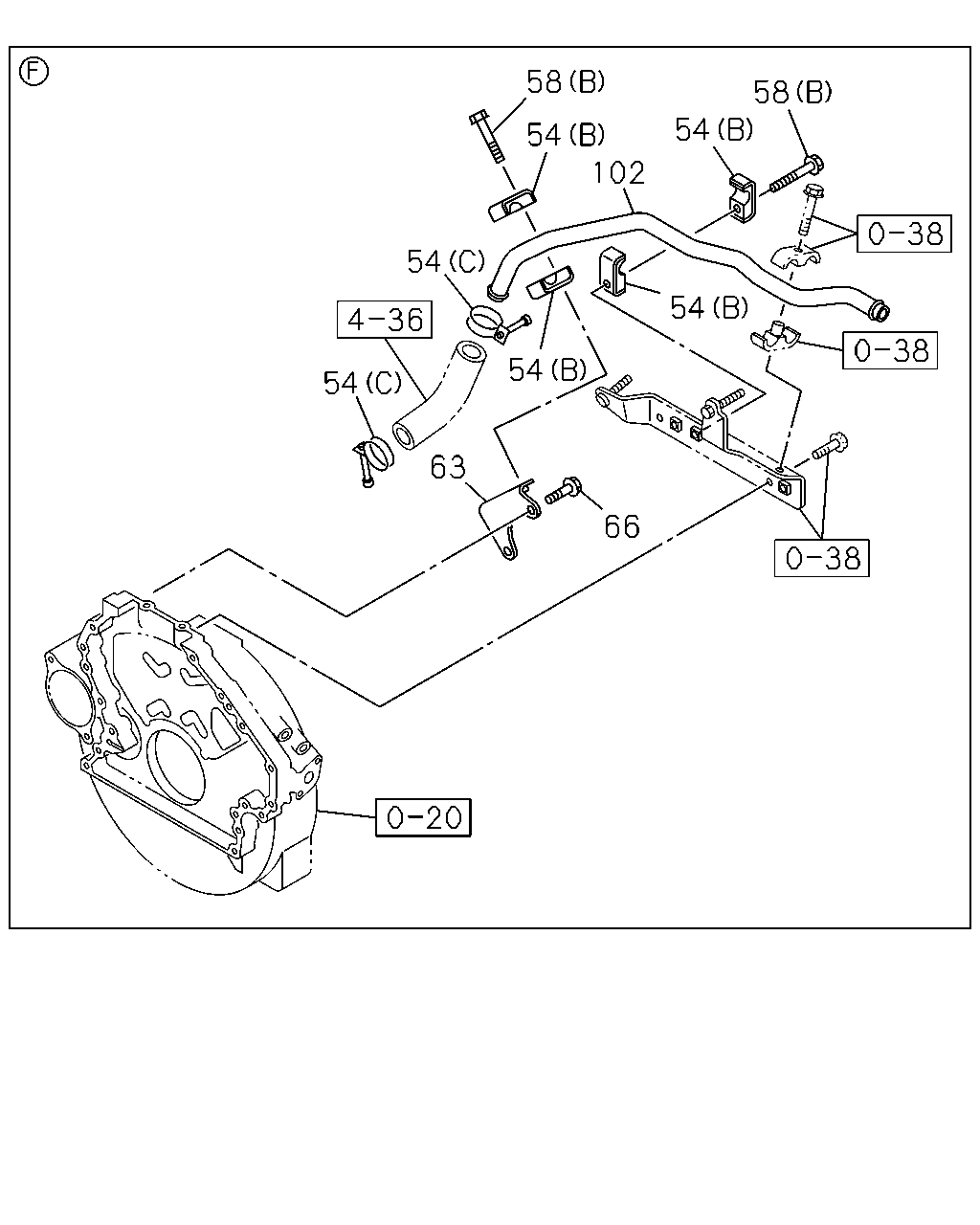

[435A] NO.3 (9 parça)

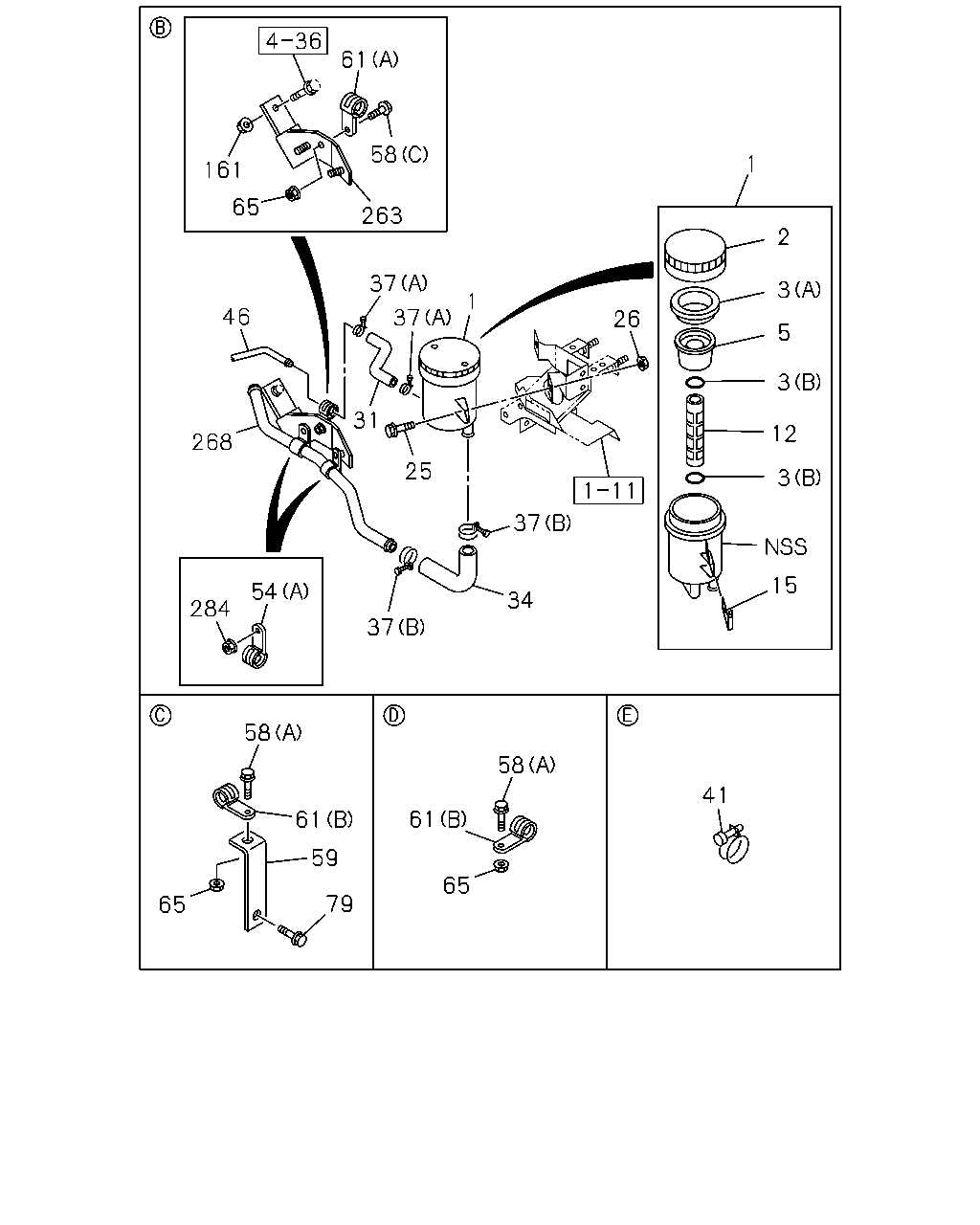

[435A] NO.2 (30 parça)
▶
44
102
280
268
34
46
54
54
163
371
157
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
HOSE; P/S OIL TANK,OUTLET
8-98194-565-0
01
1
1512-
44
PIPE; OIL,P/S UNIT TO NIPPLE
8-98188-211-0
01
1
1512-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=3000
8-98183-562-0
01
1
1512-
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
1512-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
04
1
1512-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
1512-
102
PIPE; SUCTION,P/S
8-98080-186-2
01
1
1512-
157
GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6
8-97386-295-0
01
1
1512-
163
BOLT; OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1512-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98194-491-0
01
1
1512-
280
HOSE; P/S OIL PUMP,INL
8-98179-991-0
01
1
1512-
371
PIPE; OIL,INLET
8-98072-089-1
01
1
1512-
58
54
102
54
54
63
66
54
54
54
58
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
1512-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
04
1
1512-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
1512-
58
BOLT; CLIP
(B) M8X45 FLANGE
0-28050-845-0
02
1
1512-
58
BOLT; CLIP
(A) M8X20 FLANGE IDN
0-28650-820-0
04
1
1512-
58
BOLT; CLIP
(C) M8X30 FLANGE
0-28650-830-0
01
1
1512-
63
BRACKET; CLIP,P/S
8-97375-107-0
01
1
1512-
66
BOLT; BRKT,OIL PIPE
M8X16 FLANGE
0-28050-816-0
02
1
1512-
102
PIPE; SUCTION,P/S
8-98080-186-2
01
1
1512-
161
65
61
58
263
37
37
1
26
1
2
3
5
3
12
3
15
41
58
61
65
61
59
79
65
58
284
54
31
25
37
34
37
268
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; OIL,P/S
IDN
8-97948-302-2
01
1
1512-
2
CAP; OIL TANK,P/S
IDN
8-97948-291-0
01
1
1512-
3
GASKET; OIL TANK,P/S
(A) IDN
8-97948-295-0
01
1
1512-
3
GASKET; OIL TANK,P/S
(B) IDN
8-97948-298-0
02
1
1512-
5
STRAINER; OIL TANK,P/S
IDN
8-97948-979-0
01
1
1512-
12
FILTER; MICROBON,OIL TANK,P/S
IDN
8-97948-300-0
01
1
1512-
15
PLATE; FILTER,OIL TANK
IDN
8-97948-297-0
02
1
1512-
25
BOLT; OIL TANK BRKT
M8X25 FLANGE IDN
0-28650-825-0
02
1
1512-
26
NUT; OIL TANK TO BRKT
M8 FLANGE IDN
0-91180-108-0
02
1
1512-
31
HOSE; P/S OIL TANK,INL
8-98196-261-0
01
1
1512-
34
HOSE; P/S OIL TANK,OUTLET
8-98194-565-0
01
1
1512-
37
CLIP; HOSE,P/S
(A) ID=26
1-09704-082-0
02
1
1512-
37
CLIP; HOSE,P/S
(B) ID=32
1-09704-085-0
02
1
1512-
41
CLIP; HOSE,P/S
ID=32
1-09704-085-0
02
1
1512-
46
PIPE; OIL,P/S UNIT TO OIL TANK
L=3000
8-98183-562-0
01
1
1512-
54
CLIP; OIL PIPE
(A) ID=19 L=20
0-95235-836-0
02
1
1512-
54
CLIP; OIL PIPE
(B) ID=17 L=17
1-09701-284-0
04
1
1512-
54
CLIP; OIL PIPE
(C) ID=32
1-09704-085-0
02
1
1512-
58
BOLT; CLIP
(B) M8X45 FLANGE
0-28050-845-0
02
1
1512-
58
BOLT; CLIP
(A) M8X20 FLANGE IDN
0-28650-820-0
04
1
1512-
58
BOLT; CLIP
(C) M8X30 FLANGE
0-28650-830-0
01
1
1512-
59
BRACKET; CLIP,OIL PIPE
L=95
1-82699-085-0
01
1
1512-
61
CLIP; OIL PIPE
(A) ID=13 L=50
0-95235-286-0
01
1
1512-
61
CLIP; OIL PIPE
(B) ID=16 L=20
0-95235-536-0
04
1
1512-
65
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
04
1
1512-
79
BOLT; BRKT
M8X25 FLANGE IDN
0-28650-825-0
01
1
1512-
161
NUT; P/S PIPE
M8 FLANGE IDN
0-91180-108-0
01
1
1512-
263
BRACKET; P/S PIPE
8-98188-572-0
01
1
1512-
268
PIPE; OIL,FLEX HOSE TO FLEX HOSE
8-98194-491-0
01
1
1512-
284
NUT; PIPE
M8 FLANGE IDN
0-91180-108-0
02
1
1512-
