Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶

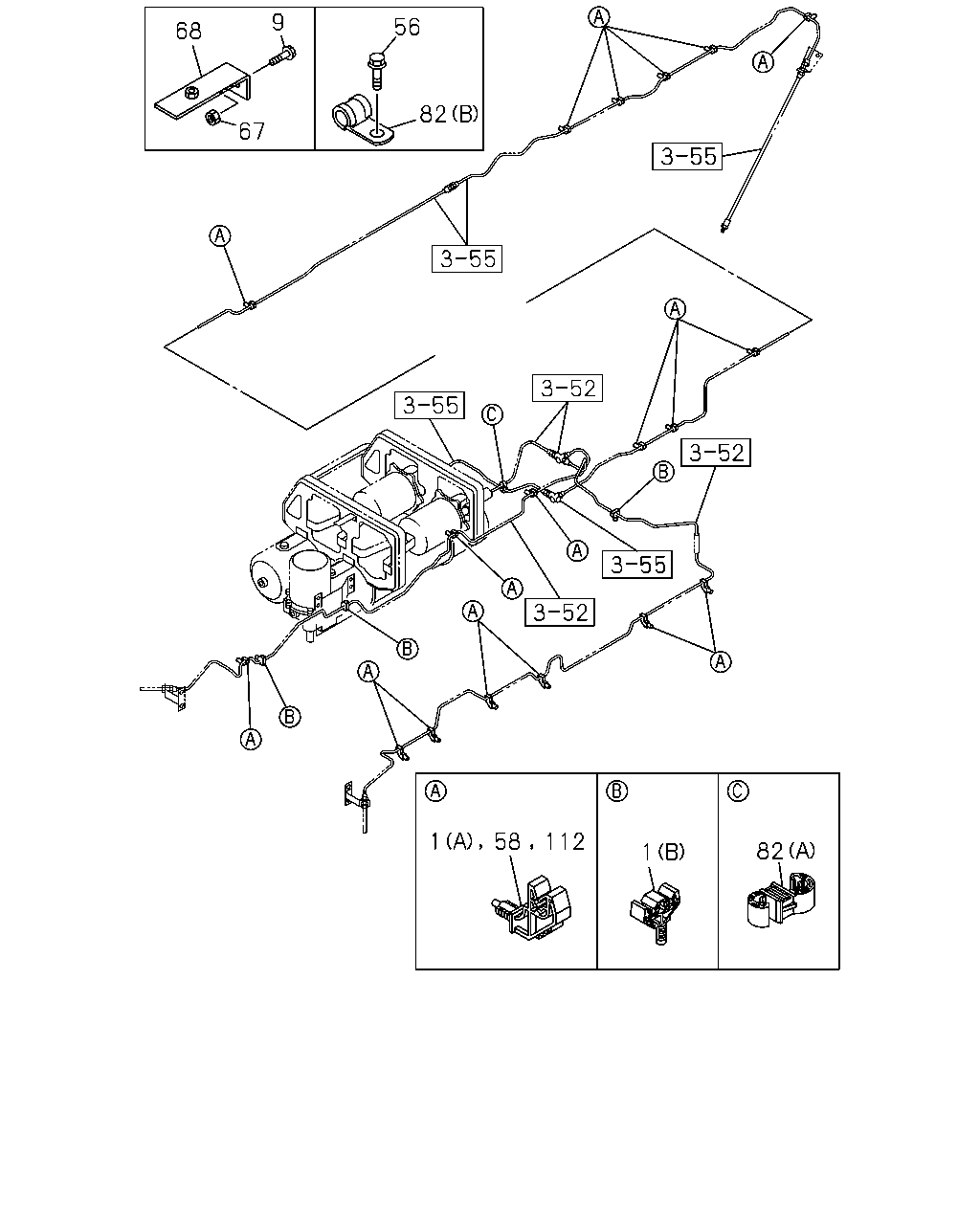

3-58 — FIXING PARTS; OIL PIPING
(#171016) — 15 parça
◀
[358A] NO.1 (13 parça)
[358A] NO.2 (2 parça)
▶
68
9
56
82
67
1
112
58
1
82
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A) ID=6.35
1-09701-247-1
06
1
1512-
1
CLIP; OIL PIPE TO BODY
(B)
8-98012-254-1
04
1
1512-
9
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
1512-
56
BOLT; CLIP
M8X20 FLANGE IDN
0-28650-820-0
01
1
1512-
58
CLIP; OIL PIPE
ID=6.35
1-09701-247-1
06
1
1512-
67
NUT; BRKT
M8 FLANGE IDN
0-91180-108-0
01
1
1512-
68
BRACKET; CLIP
1-47475-519-0
01
1
1512-
82
CLIP; OIL PIPE
(B) ID=7 L=16
0-95234-625-0
01
1
1512-
82
CLIP; OIL PIPE
(A) ID=6.35 & 6.35
1-09709-273-1
01
1
1512-
112
CLIP; OIL PIPE
WHEEL BASE 4200MM(42W) ID=6.35
1-09701-247-1
03
1
1512-
112
CLIP; OIL PIPE
WHEEL BASE 5000MM(50W) ID=6.35
1-09701-247-1
05
1
1512-
112
CLIP; OIL PIPE
WHEEL BASE 6000MM(60W) ID=6.35
1-09701-247-1
07
1
1512-
112
CLIP; OIL PIPE
WHEEL BASE 6500MM(65W) ID=6.35
1-09701-247-1
09
1
1512-
59
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
04
1
1512-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
04
1
1512-
