Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶
3-52 — BRAKE PIPING; OIL,FRONT
(#171014) — 19 parça
◀

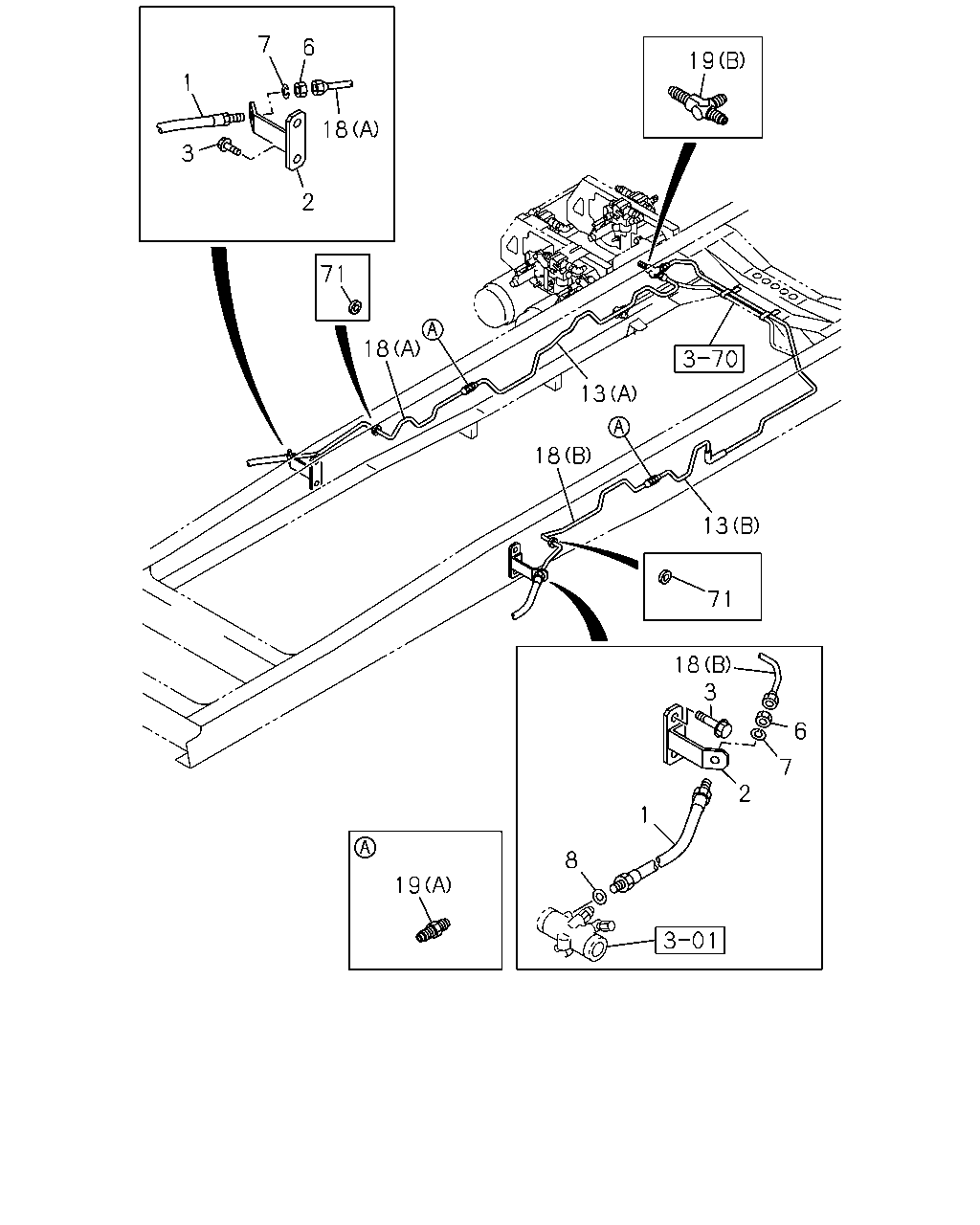

[352A] FRAME SIDE (13 parça)

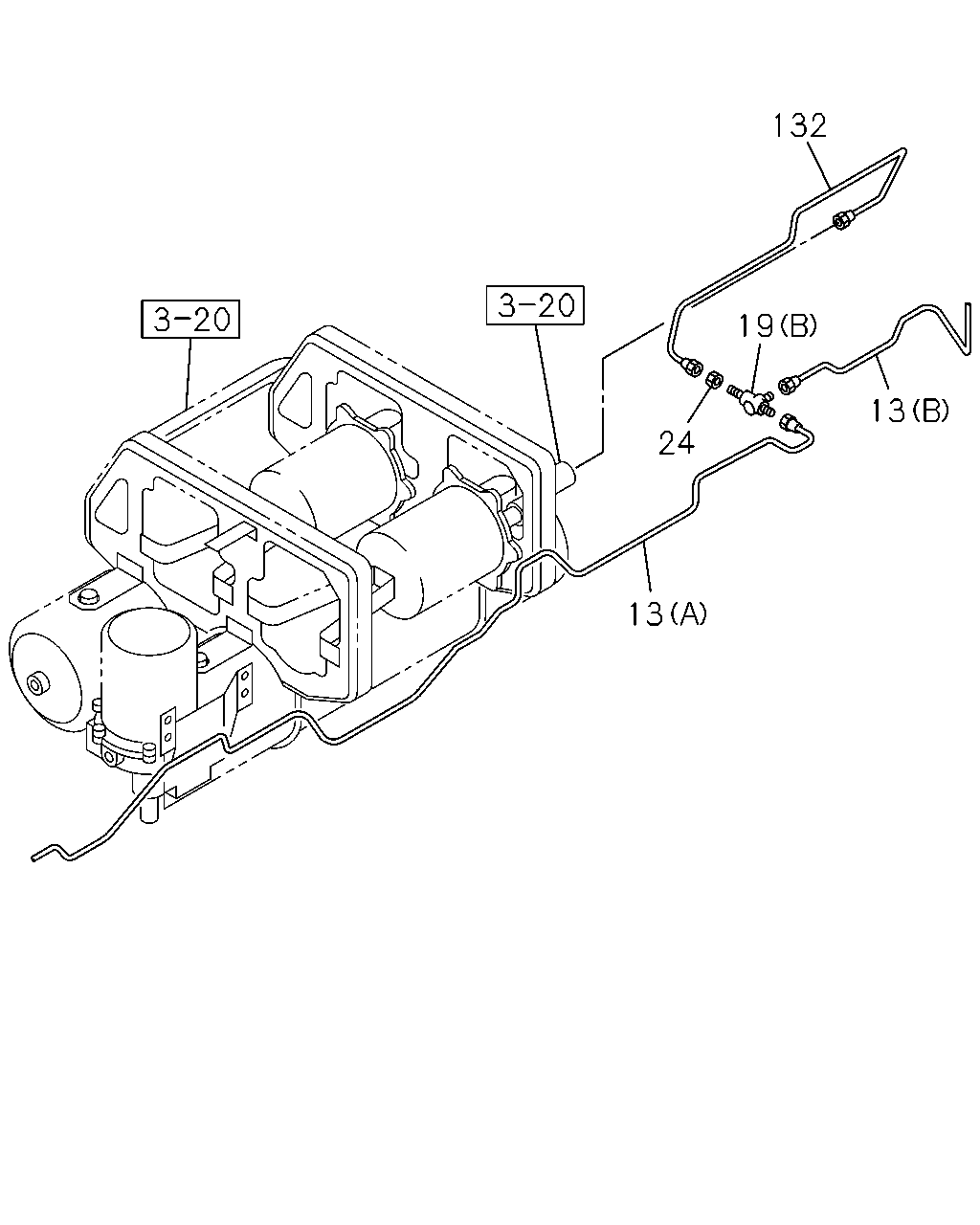

[352A] AIR TANK SIDE (6 parça)
▶
1
3
2
18
6
7
71
18
13
18
71
13
18
3
2
7
6
1
8
19
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,FRT BRK
L=610
0-05212-610-0
02
1
1512-
2
BRACKET; FLEX HOSE,FRT BRK
8-98180-131-0
02
1
1512-
3
BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE IDN
0-28650-825-0
04
1
1512-
6
NUT; FLEX HOSE,FRT BRK
M12
9-09840-280-0
02
1
1512-
7
WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2
0-91510-512-0
02
1
1512-
8
GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17
9-09920-472-0
02
1
1512-
13
PIPE; OIL,UNION TO UNION
(A) L=921 SERVICED BY L=1000
1-47428-730-0
01
1
1512-
13
PIPE; OIL,UNION TO UNION
(B) L=2547 SERVICED BY L=2650
1-47428-743-0
01
1
1512-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=643 SERVICED BY L=650
1-47428-726-0
01
1
1512-
18
PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=745 SERVICED BY L=800
1-47428-728-0
01
1
1512-
19
UNION; OIL PIPE
(A) M12 L=40
0-92113-006-0
02
1
1512-
19
UNION; OIL PIPE
(B) M12 3WAY
0-92138-906-0
01
1
1512-
71
GROMMET; OIL PIPE
ID=24 OD=30 T=17
9-09956-092-1
02
1
1512-
24
13
19
132
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
PIPE; OIL,UNION TO UNION
(A) L=921 SERVICED BY L=1000
1-47428-730-0
01
1
1512-
13
PIPE; OIL,UNION TO UNION
(B) L=2547 SERVICED BY L=2650
1-47428-743-0
01
1
1512-
19
UNION; OIL PIPE
(A) M12 L=40
0-92113-006-0
02
1
1512-
19
UNION; OIL PIPE
(B) M12 3WAY
0-92138-906-0
01
1
1512-
24
NUT; UNION,OIL PIPE
M12
9-09840-280-0
01
1
1512-
132
PIPE; OIL,BRK,HYD UNIT
L=895 SERVICED BY L=900
1-47428-729-0
01
1
1512-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
