Isuzu WW
▶
TRUCKS
▶
FTR
▶
11731 - FTR INDONESIA
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#171013) — 36 parça
◀

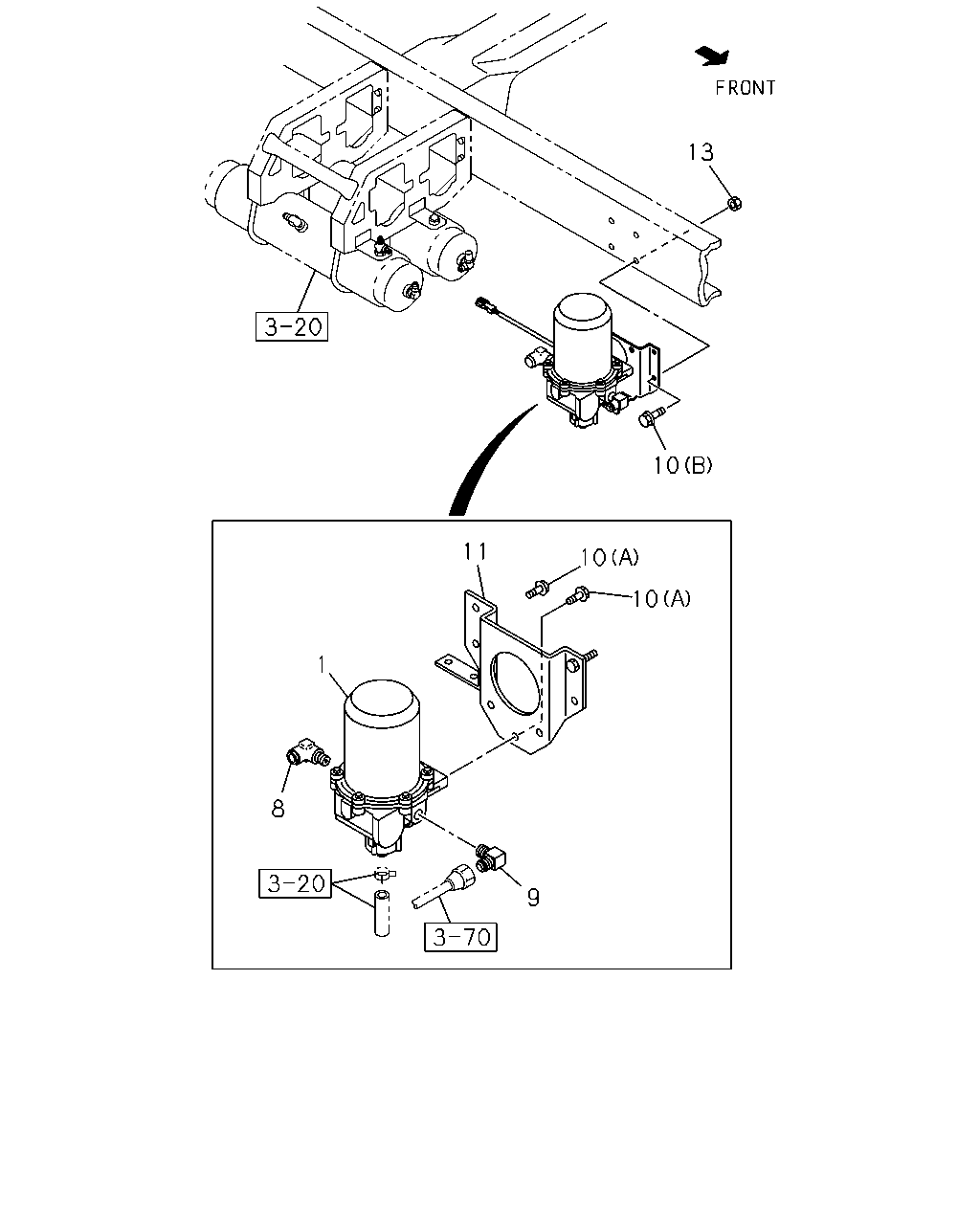

[346A] FIXING (7 parça)
[346A] COMPONENT (22 parça)
[346A] REPAIR AND PISTON KIT (7 parça)
▶
13
10
10
10
11
1
8
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
IDN
8-98242-140-1
01
1
1512-
8
CONNECTOR; OUT,AIR DRYER
DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
1512-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW IDN
0-92134-315-0
01
1
1512-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE IDN
0-28051-025-0
03
1
1512-
10
BOLT; AIR DRYER
(B) M10X35 FLANGE IDN
0-28651-035-0
03
1
1512-
11
BRACKET; AIR DRYER
8-98180-369-0
01
1
1512-
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
02
1
1512-

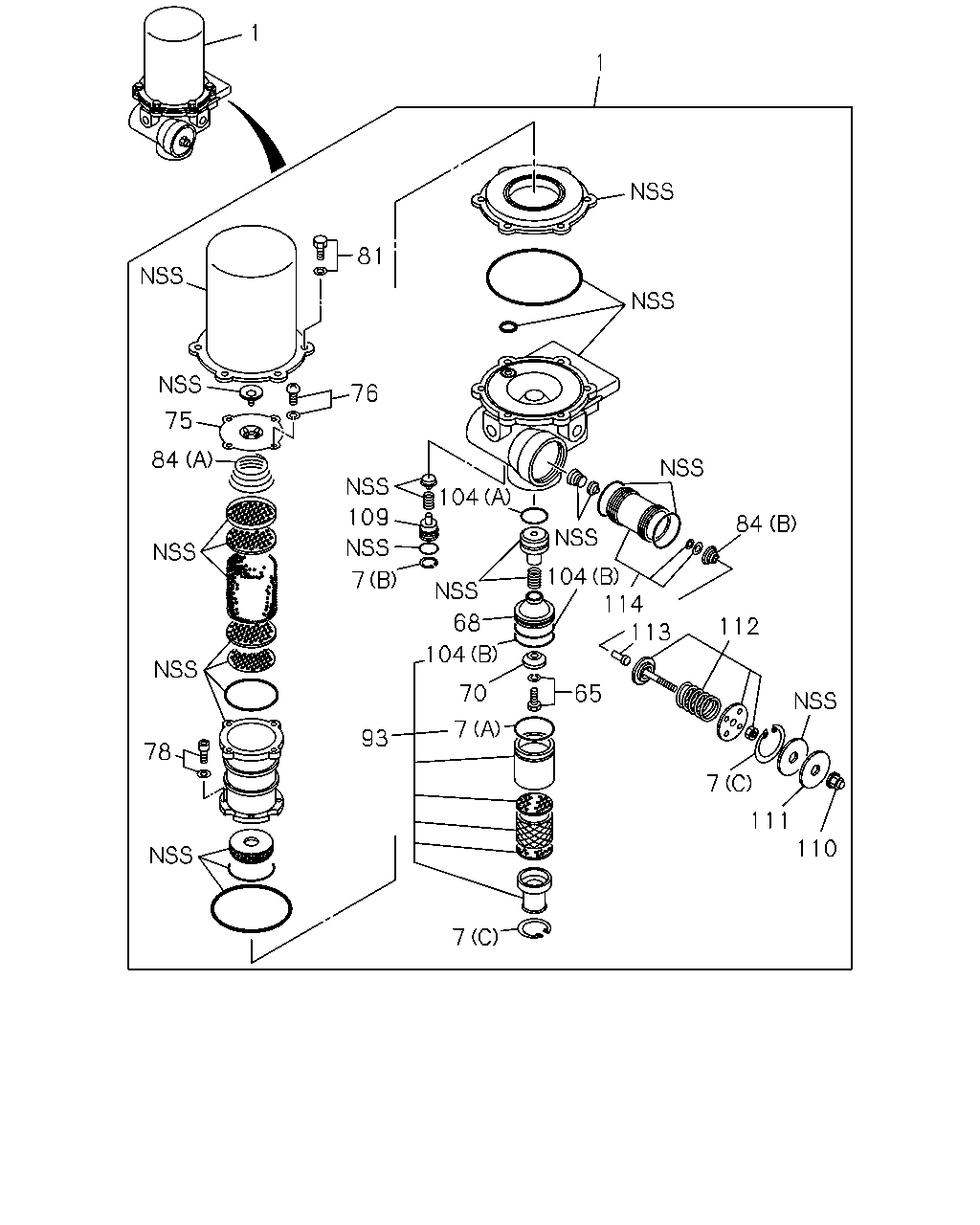

1
1
75
84
76
109
78
93
104
70
7
7
68
7
104
104
114
113
65
112
7
111
110
84
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
IDN
8-98242-140-1
01
1
1512-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1512-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1512-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1512-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1512-
68
BODY; VALVE
1-48199-515-0
01
1
1512-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1512-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1512-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1512-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1512-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1512-
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1512-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1512-
93
SILENCER; AIR DRYER
1-48199-619-0
01
1
1512-
104
GASKET
(B)
1-48199-496-0
02
1
1512-
104
GASKET
(A)
8-98226-321-0
01
1
1512-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1512-
110
NUT; CAP
1-48199-527-0
01
1
1512-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1512-
112
SCREW & SPRING ASM; AIR DRYER
IDN
8-98292-687-0
01
1
1512-
113
STEM; EXHAUST
1-48199-522-0
01
1
1512-
114
PISTON ASM; GOVERNOR
IDN
8-98292-688-0
01
1
1512-

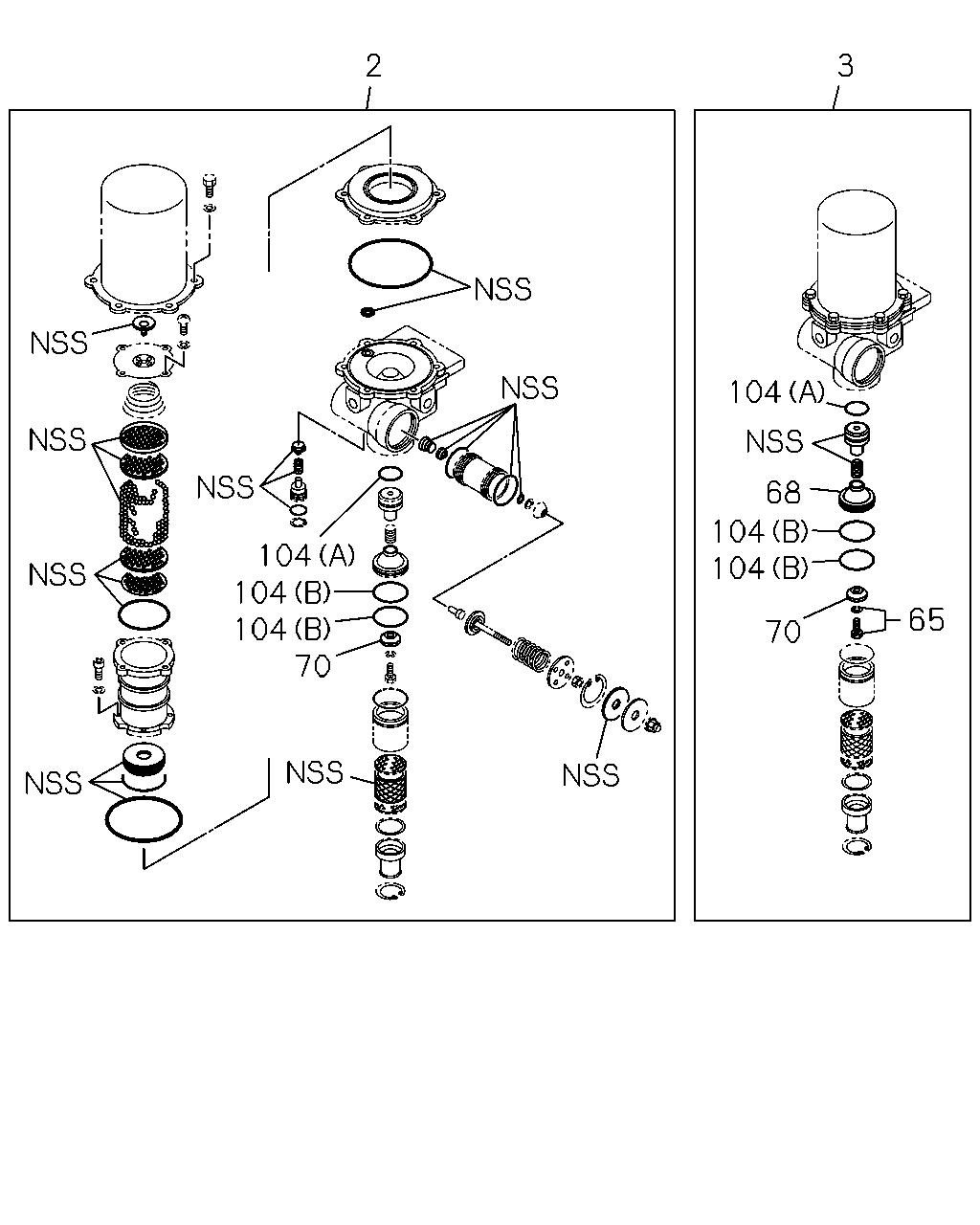

2
3
104
104
104
70
104
68
104
104
70
65
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-323-0
01
1
1512-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1512-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1512-
68
BODY; VALVE
1-48199-515-0
01
1
1512-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1512-
104
GASKET
(B)
1-48199-496-0
02
1
1512-
104
GASKET
(A)
8-98226-321-0
01
1
1512-
