◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11731 - FTR INDONESIA ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#171005) — 26 parça

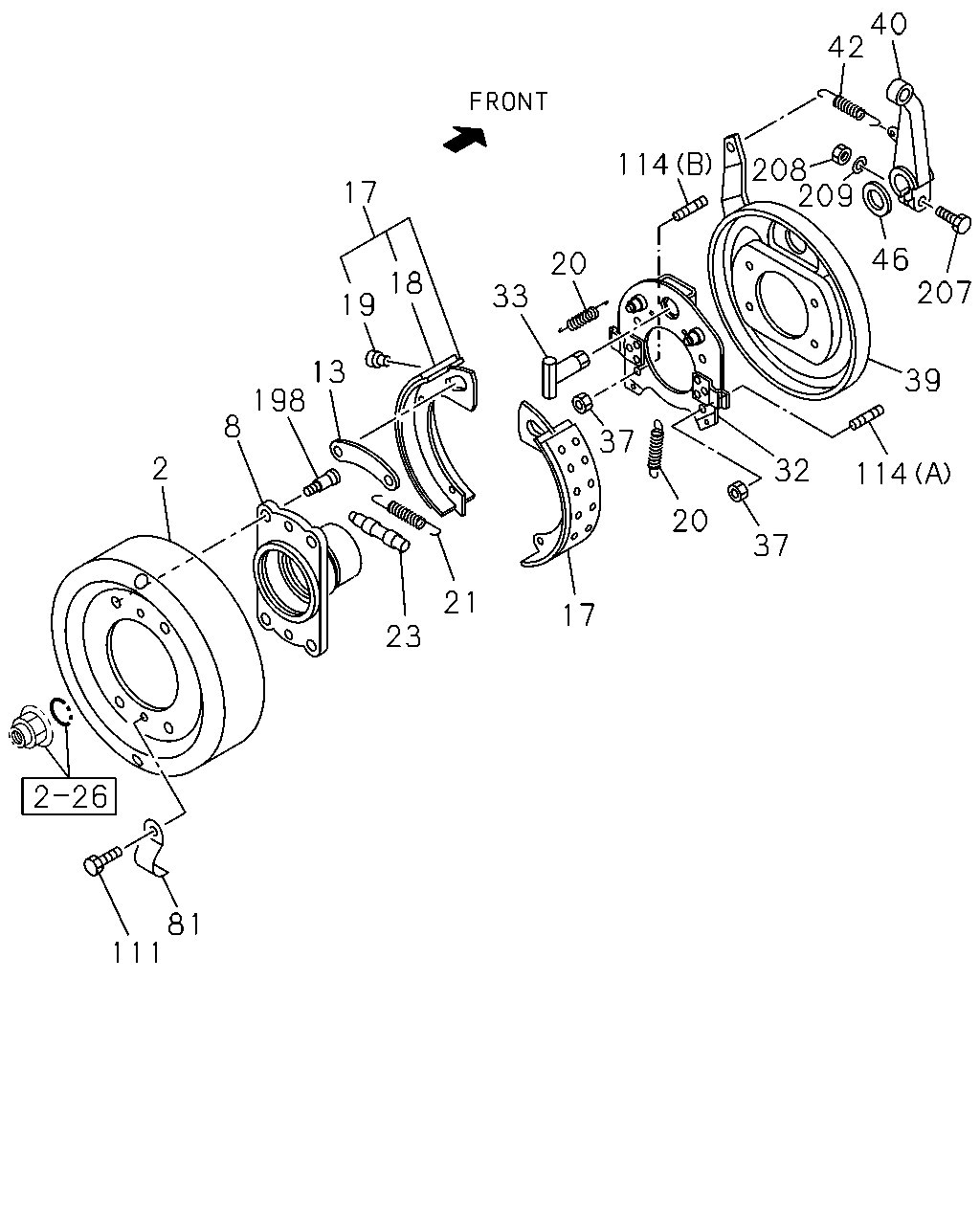

çizim 507465
40 42 209 46 207 39 114 32 37 20 17 21 23 198 13 19 17 18 8 2 33 20 114 81 111 208 37
BalonParca AdiParca NoAdetTipApplied Date
2 DRUM; PARKING BRK 1-46211-019-0 01 1 1512-
8 FLANGE; PARKING BRK 8-98153-193-0 01 1 1512-
13 BRACE; PARKING BRK 9-46239-002-0 01 1 1512-
17 SHOE; PARKING BRK 1-46220-022-1 02 1 1512-
18 LINING; BRK,PARKING 1-46225-023-0 02 1 1512-
19 RIVET; LINING,PARKING BRK 1-09732-058-0 32 1 1512-
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-434-0 02 1 1512-
21 SPRING; RETURN,PARKING BRK SHOE 9-09942-516-0 01 1 1512-
23 SCREW; ADJ,PARKING BRK SHOE 1-46240-003-0 01 1 1512-
32 PLATE; SUPPORT,PARKING BRK 1-46213-039-0 01 1 1512-
33 SHAFT; CAM,PARKING BRK 1-46251-010-0 01 1 1512-
37 NUT; SUPPORT PLATE
M14 FLANGE 		8-97365-444-0 04 1 1512-
39 COVER; DUST,PARKING BRK 1-46213-038-0 01 1 1512-
40 LEVER; CM/SHF,PARKING BRK 1-46252-046-0 01 1 1512-
42 SPRING; RETURN,LEVER 1-09583-104-0 01 1 1512-
46 WASHER; LEVER 9-09855-362-0 01 1 1512-
81 COVER; CHECK HOLE,PARKING BRK 1-46219-030-0 02 1 1512-
111 BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER 		0-50740-820-0 02 1 1512-
114 STUD; SUPPORT PLATE
(B) M14X22 WO/DRY-ROCK 		8-98014-137-0 03 1 1512-
114 STUD; SUPPORT PLATE
(A) M14X22 W/DRY-ROCK 		8-98014-138-0 01 1 1512-
198 BOLT; KNURL
M16X55 		8-98023-172-0 04 1 1512-
207 BOLT; LEVER 8-98061-595-0 01 1 1512-
208 NUT; LEVER
M10 		0-91111-510-0 01 1 1512-
209 WASHER; SP,LEVER
ID=10.2 		0-91510-510-0 01 1 1512-
çizim 507483
130 197
BalonParca AdiParca NoAdetTipApplied Date
130 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 1512-
197 BRACKET; CENTER BRAKE CABLE 8-98009-002-1 01 1 1512-
