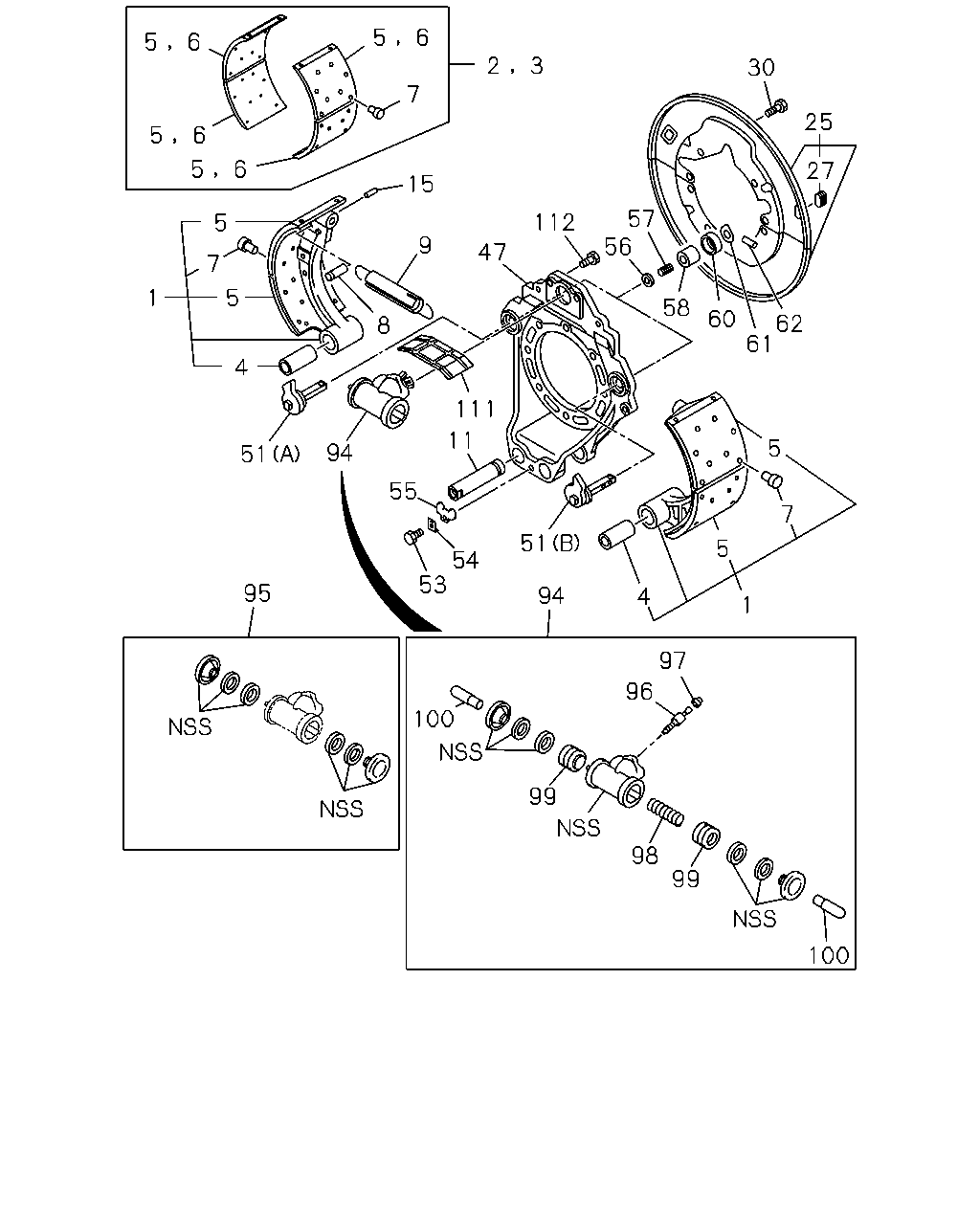

1 |
SHOE; BRK,RR
|
1-47170-441-0 |
04 |
1 |
1512- |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88311-353-1 |
02 |
1 |
1512- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88311-354-1 |
02 |
1 |
1512- |
| |
4 |
BUSHING; BRK SHOE,RR WHEEL
|
1-47112-011-0 |
04 |
1 |
1512- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47126-758-0 |
08 |
1 |
1512- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47126-759-0 |
08 |
1 |
1512- |
| |
7 |
RIVET; LINING,RR BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
1512- |
| |
8 |
PIN; RETURN SPRING,RR BRK SHOE
L=73.5
|
1-47119-017-1 |
04 |
1 |
1512- |
| |
9 |
SPRING; RETURN,BRK SHOE
|
1-09583-185-2 |
02 |
1 |
1512- |
| |
11 |
PIN; ANCHOR,RR WHEEL BRK
L=106.5
|
1-47131-038-0 |
04 |
1 |
1512- |
| |
15 |
PIN; GUIDE,ADJ CAM,RR WHEEL BRK
|
1-47116-002-0 |
04 |
1 |
1512- |
| |
25 |
COVER SET; RR BRK DRUM
|
1-47151-458-1 |
02 |
1 |
1512- |
| |
27 |
COVER; CHECK HOLE,DRUM COVER
|
1-09333-151-0 |
04 |
1 |
1512- |
| |
30 |
BOLT; DRUM COVER
M10X12
|
1-47159-187-0 |
12 |
1 |
1512- |
| |
47 |
BRACKET; ANCHOR PIN,RR WHEEL BRK
|
1-47137-112-4 |
02 |
1 |
1512- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
(A)
|
1-47165-058-1 |
02 |
1 |
1512- |
| |
51 |
CAM ASM; SHOE ADJ,RR WHEEL BRK
(B)
|
1-47165-059-1 |
02 |
1 |
1512- |
| |
53 |
BOLT; LOCK PLATE
M10X16
|
0-20851-016-0 |
02 |
1 |
1512- |
| |
54 |
WASHER; LK,ANCHOR PIN,RR BRK
|
1-47133-011-0 |
02 |
1 |
1512- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47133-005-0 |
02 |
1 |
1512- |
| |
56 |
WASHER; ADJ CAM,RR WHEEL BRK
|
1-47169-033-0 |
04 |
1 |
1512- |
| |
57 |
SPRING; ADJ CAM,RR WHEEL BRK
|
1-47169-046-0 |
04 |
1 |
1512- |
| |
58 |
BOOT; ADJ CAM,RR WHEEL BRK
|
1-47169-034-0 |
04 |
1 |
1512- |
| |
60 |
COVER; ADJ CAM BOOT,RR WHEEL BRK
|
1-47169-031-0 |
04 |
1 |
1512- |
| |
61 |
INDICATOR; WEAR,RR BRK SHOE
|
1-47169-032-1 |
04 |
1 |
1512- |
| |
62 |
PIN; ADJ CAM SPINDLE,RR WHEEL BRK
|
1-47169-030-0 |
04 |
1 |
1512- |
| |
94 |
CYLINDER; WHEEL,RR BRK
|
1-47601-220-0 |
02 |
1 |
1512- |
| |
95 |
CUP SET; RR WHEEL CYL
|
1-87830-886-0 |
02 |
1 |
1512- |
| |
96 |
SCREW; BLEEDER,RR BRK
L=66.5
|
1-47615-005-0 |
02 |
1 |
1512- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
OD=12
|
1-47619-011-0 |
02 |
1 |
1512- |
| |
98 |
SPRING; RR WHEEL CYL
|
1-09580-019-0 |
02 |
1 |
1512- |
| |
99 |
PISTON; RR WHEEL CYL
|
1-47624-302-0 |
04 |
1 |
1512- |
| |
100 |
ROD; PUSH,RR WHEEL CYL
|
1-47621-009-0 |
04 |
1 |
1512- |
| |
111 |
COVER; WHEEL CYL
|
1-47159-080-0 |
02 |
1 |
1512- |
| |
112 |
BOLT; WHEEL CYL SETTING
M12X32 W/LK WASHER
|
0-50551-232-0 |
04 |
1 |
1512- |
