0-13 — OIL PAN AND LEVEL GAUGE (#1710) — 27 parça

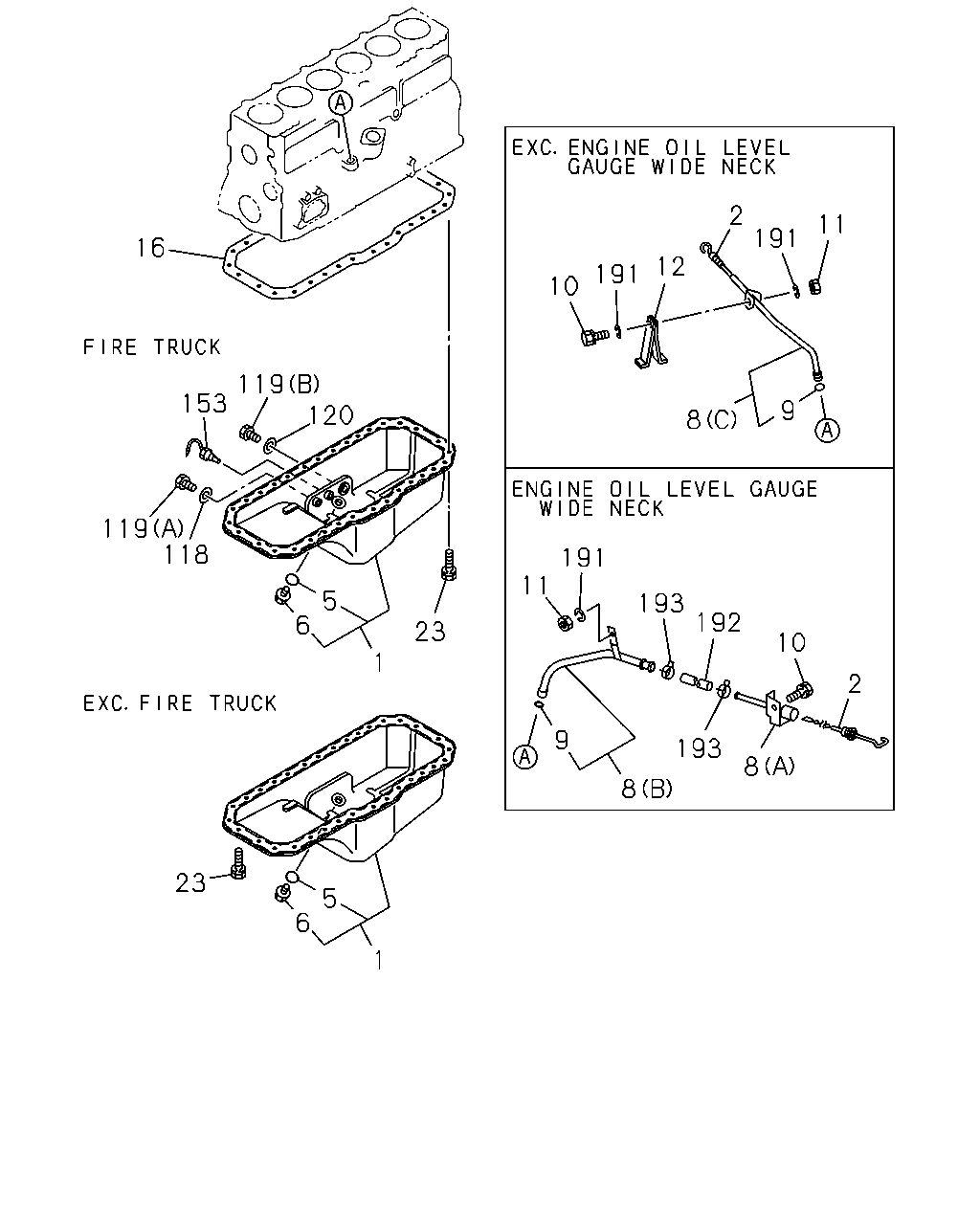

çizim 94762
2 11 191 16 12 191 10 119 120 153 9 8 119 118 191 11 5 193 192 6 23 10 1 2 9 193 8 8 23 5 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAN ASM; OIL
FIRE TRUCK(RA9) 		5-11360-401-2 01 1 9207-
1 PAN ASM; OIL
EXC. FIRE TRUCK(RA9) 		5-11360-377-1 01 1 9207-
2 GAUGE; OIL LEVEL
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-11760-328-0 01 1 9207-
2 GAUGE; OIL LEVEL
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-11760-281-0 01 1 9207-
5 GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.4 		1-09623-057-0 01 1 9207-
6 PLUG; OIL DRAIN 9-09662-012-0 01 1 9207-
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B) 		1-11766-339-1 01 1 9207-
8 TUBE; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (A) 		1-11766-363-0 01 1 9207-
8 TUBE; GUIDE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (C) 		1-11766-248-1 01 1 9207-
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 01 1 9207-
10 BOLT; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M10X20 W/LK WASHER 		0-50041-020-0 01 1 9207-
10 BOLT; GUIDE TUBE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9207-
11 NUT; GUIDE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8 		9-09110-508-0 01 1 9207-
11 NUT; GUIDE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> M8 		9-09110-508-0 02 1 9207-
12 BRACKET; TUBE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		1-11769-127-1 01 1 9207-
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-096-1 01 1 9207-9510
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-11367-100-0 01 1 9511-
23 BOLT; OIL PAN
M8X18 W/LK WASHER 		0-50040-818-0 32 1 9207-
118 GASKET; PLUG,OIL HTR
FIRE TRUCK(RA9) ID=16.2 OD=24 		9-09571-416-0 01 1 9207-
119 PLUG; OIL HTR BLIND
FIRE TRUCK(RA9) (A) 		5-09600-009-0 01 1 9207-
119 PLUG; OIL HTR BLIND
FIRE TRUCK(RA9) (B) 		5-09600-010-0 01 1 9207-
120 GASKET; PLUG,OIL HTR BLIND
ALSO INCLUDED IN GASKET SET(ENGINE). FIRE TRUCK(RA9) ID=36.5 OD=44 		9-09571-436-0 01 1 9207-
153 THERMOMETER UNIT; OIL
FIRE TRUCK(RA9) W/OIL GAUGE 		1-83161-006-0 01 1 9207-
191 WASHER; LK,GUIDE TUBE,OIL LEVEL GAUGE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=8.2 		9-09150-508-0 01 1 9207-
191 WASHER; LK,GUIDE TUBE,OIL LEVEL GAUGE
EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=8.2 		9-09150-508-0 02 1 9207-
192 HOSE; GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> 		0-02311-400-0 01 1 9207-
193 CLIP; HOSE,GUIDE TUBE
ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> ID=17 		1-09707-158-0 02 1 9207-
