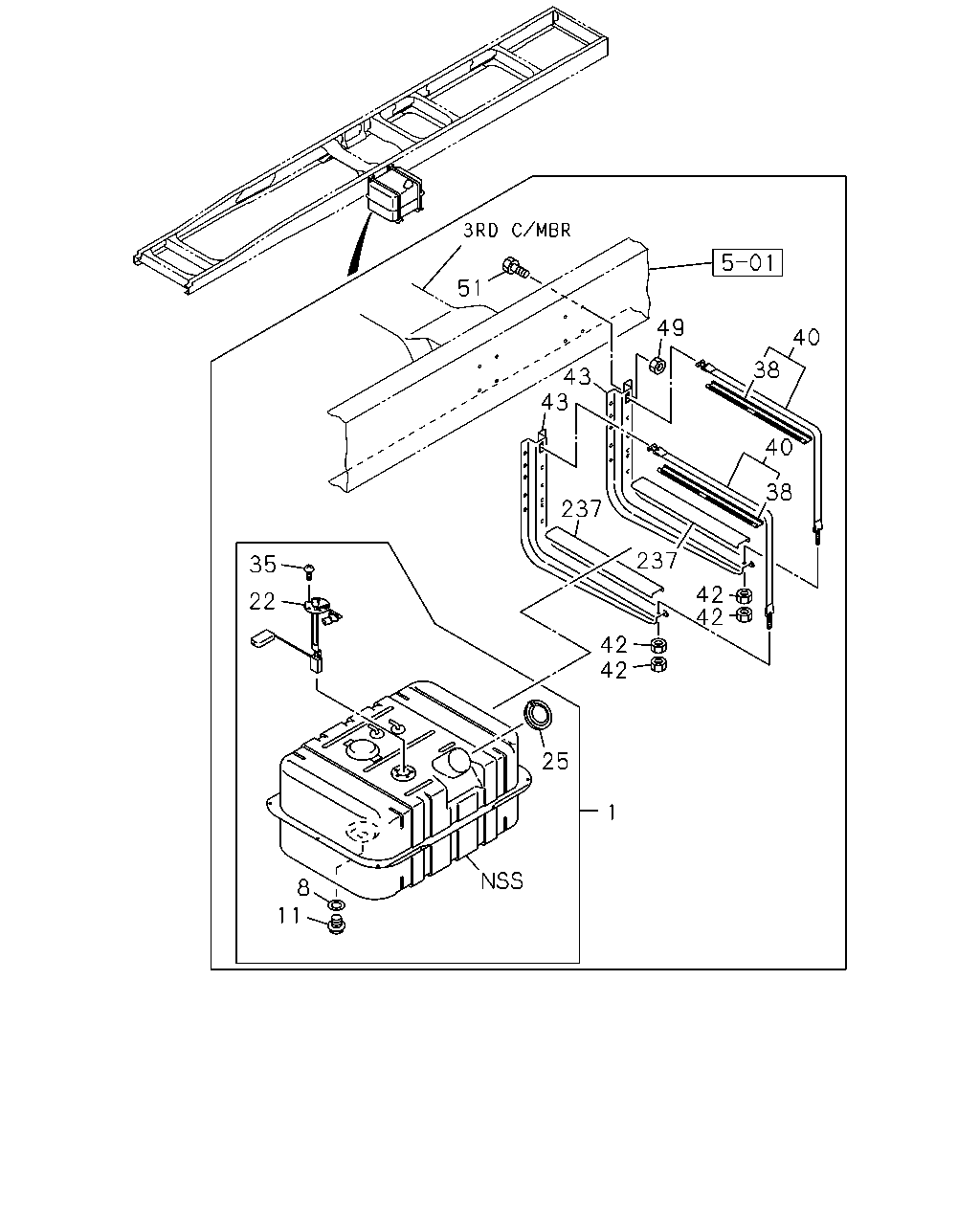

1-40 — FUEL TANK (#171) — 83 parça

330 329 329 331 331 331 331 330 324

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
324	PROTECTOR; FUEL SEDIMENTER	1-19759-012-0	01	1	9212-	●	●
329	JOINT ASM; EYE,FUEL PIPE	5-15411-472-0	02	1	9212-	●	●
330	BOLT; EYE,JOINT M14X27 FLANGE	1-09675-086-0	02	1	9212-	●	●
331	GASKET; EYE JOINT ID=14.2 OD=19.2	1-09630-085-0	04	1	9212-	●	●

51 43 43 49 40 38 40 38 237 237 35 42 42 22 42 42 25 1 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22400-790-3	01	1	9212-9502	●	●
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9503-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9212-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9212-9502	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9503-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9212-9502	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9503-	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9212-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9212-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	1-22419-008-0	05	1	9212-9502	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9503-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9212-	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9212-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22550-206-1	02	1	9212-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-22550-206-1	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=755	1-22550-182-2	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9212-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=775	1-22550-211-1	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=790	1-22550-186-2	02	1	9405-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9212-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-202-6	02	1	9212-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9212-	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-412-0	08	1	9212-9307	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9308-	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-412-0	12	1	9212-9307	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 W/LK WASHER	0-50041-235-0	08	1	9212-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 FLANGE	0-28081-235-0	08	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9212-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=480	1-22553-002-0	02	1	9212-9301	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9302-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9212-9301	●	●

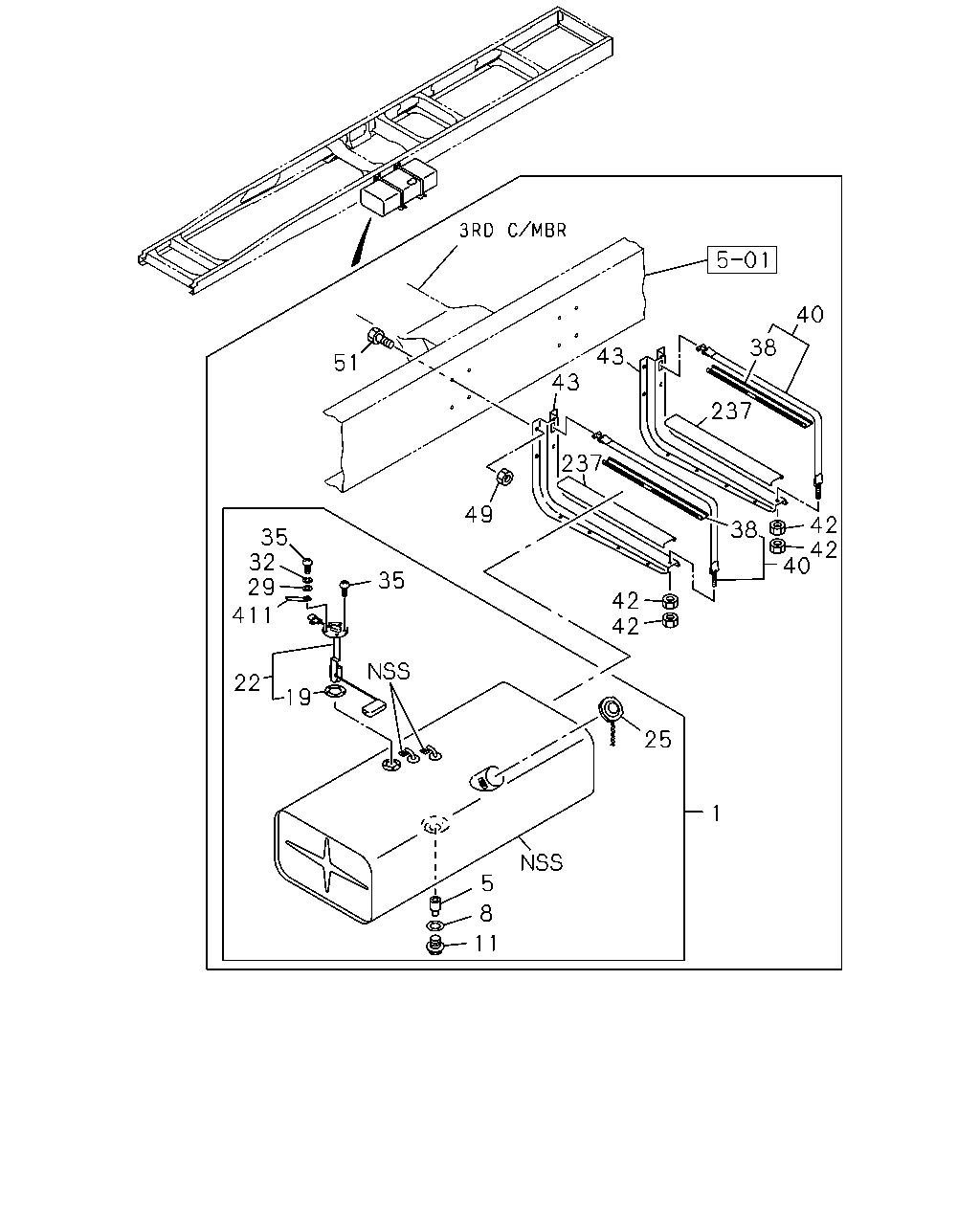

40 38 43 51 43 237 237 49 42 42 40 38 35 32 29 35 42 42 411 22 19 25 1 5 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22400-790-3	01	1	9212-9502	●	●
1	TANK; FUEL FUEL TANK 100L FRAME SIDE<N02> 690X502X316 100L	1-22401-016-0	01	1	9503-	●	●
1	TANK; FUEL FUEL TANK 200L FRAME SIDE<N20> 1220X532.4X322.4 200L	1-22400-508-3	01	1	9212-	●	●
5	STRAINER; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22460-001-1	01	1	9212-9402	●	●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	9212-9502	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> T=2.0	9-09923-030-0	01	1	9503-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> ID=14.2 OD=23.0	9-09572-014-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	9212-9502	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-09604-052-0	01	1	9503-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> M14X14	9-09862-156-0	01	1	9503-	●	●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=42	9-83135-011-0	01	1	9212-	●	●
22	UNIT; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-83141-069-0	01	1	9212-	●	●
22	UNIT; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-83141-031-0	01	1	9212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22440-046-0	01	1	9212-	●	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-22440-028-0	01	1	9212-	●	●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.3	9-09160-505-0	01	1	9212-	●	●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> ID=5.1	9-09150-505-0	01	1	9212-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02>	1-22419-008-0	05	1	9212-9502	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 100L FRAME SIDE<N02> M5X10 W/LK WASHER	9-03910-510-0	05	1	9503-	●	●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L FRAME SIDE<N20> M5X10	9-93497-510-0	05	1	9212-	●	●
38	INSULATION; SUPPORT BELT L=540	1-22553-014-2	02	1	9212-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-22550-206-1	02	1	9212-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2)	1-22550-206-1	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 100L FRAME SIDE<N02> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=755	1-22550-182-2	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=775	1-22550-211-1	02	1	9212-9404	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) L=775	1-22550-211-1	02	1	9405-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L FRAME SIDE<N20> EXC. CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB), CHINA EQUIPMENT(YT2) L=790	1-22550-186-2	02	1	9405-	●	●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	9212-	●	●
43	BRACKET; FUEL TANK FUEL TANK 100L FRAME SIDE<N02>	1-53461-202-6	02	1	9212-	●	●
43	BRACKET; FUEL TANK FUEL TANK 200L FRAME SIDE<N20>	1-53461-206-1	02	1	9212-	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-412-0	08	1	9212-9307	●	●
49	NUT; BRKT FUEL TANK 100L FRAME SIDE<N02> M12	9-99110-512-0	08	1	9308-	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-412-0	12	1	9212-9307	●	●
49	NUT; BRKT FUEL TANK 200L FRAME SIDE<N20> M12	9-99110-512-0	12	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 W/LK WASHER	0-50041-235-0	08	1	9212-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 100L FRAME SIDE<N02> M12X35 FLANGE	0-28081-235-0	08	1	9308-	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 W/LK WASHER	0-50041-235-0	12	1	9212-9307	●	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L FRAME SIDE<N20> M12X35 FLANGE	0-28081-235-0	12	1	9308-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 100L FRAME SIDE<N02> L=480	1-22553-002-0	02	1	9212-9301	●	●
237	GASKET; BRKT TO FUEL TANK L=480	1-22553-002-0	02	1	9302-	●	●
237	GASKET; BRKT TO FUEL TANK FUEL TANK 200L FRAME SIDE<N20> L=580	1-22553-003-0	02	1	9212-9301	●	●
411	CLIP; FUEL TANK UNIT HARNESS FUEL TANK 200L FRAME SIDE<N20> L=50	1-09700-416-0	01	1	9212-	●	●
