8-15 — FIXING PARTS; WIRING HARNESS (#17090) — 202 parça

48 48 194 206 217 225 530 14 14 48 208 48 538 503 1 1 225 503 178 178

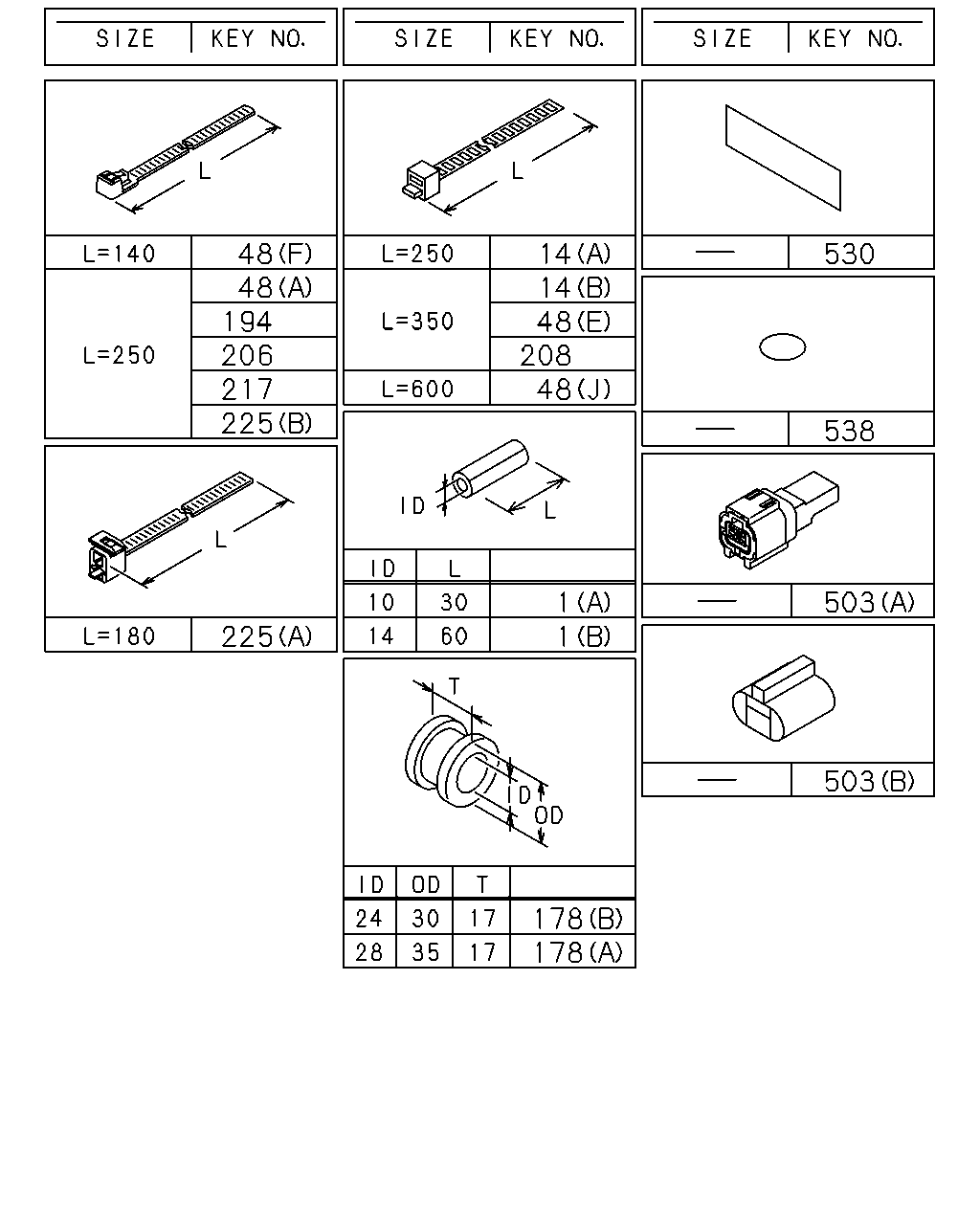

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1001-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1001-
14	CLIP; BAND,HARNESS (B) L=350	1-09707-183-0	01	1	1001-
14	CLIP; BAND,HARNESS (A) L=250 SOU	5-09707-030-1	08	1	1001-1205
14	CLIP; BAND,HARNESS (A) L=250	8-98216-430-0	08	1	1206-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1001-
48	CLIP; FRAME HARNESS (J) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	14	1	1001-1007
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	02	1	1202-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-
194	CLIP; BAND L=250 SOU	5-09707-030-1	01	1	1001-
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	03	1	1001-
208	CLIP; HARNESS,MAG VLV L=350	1-09707-183-0	01	1	1001-
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
225	CLIP; AIR TANK HARNESS (A) L=180 SOU	1-09707-162-1	01	1	1001-
225	CLIP; AIR TANK HARNESS (B) L=250 SOU	5-09707-030-1	01	1	1001-1011
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) SOU	1-82690-668-0	01	1	1001-
503	CONNECTOR EXC. AIR DRYER<PS7> (B) SOU	1-82690-666-0	01	1	1001-
503	CONNECTOR EXC. H.S.A SYSTEM<6EP> (A)	1-82691-191-0	01	1	1001-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-

16 171 171 305 305 16 81 171 223 235 305 470 48 16 48 171 223 171 235 16 48 16 116 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

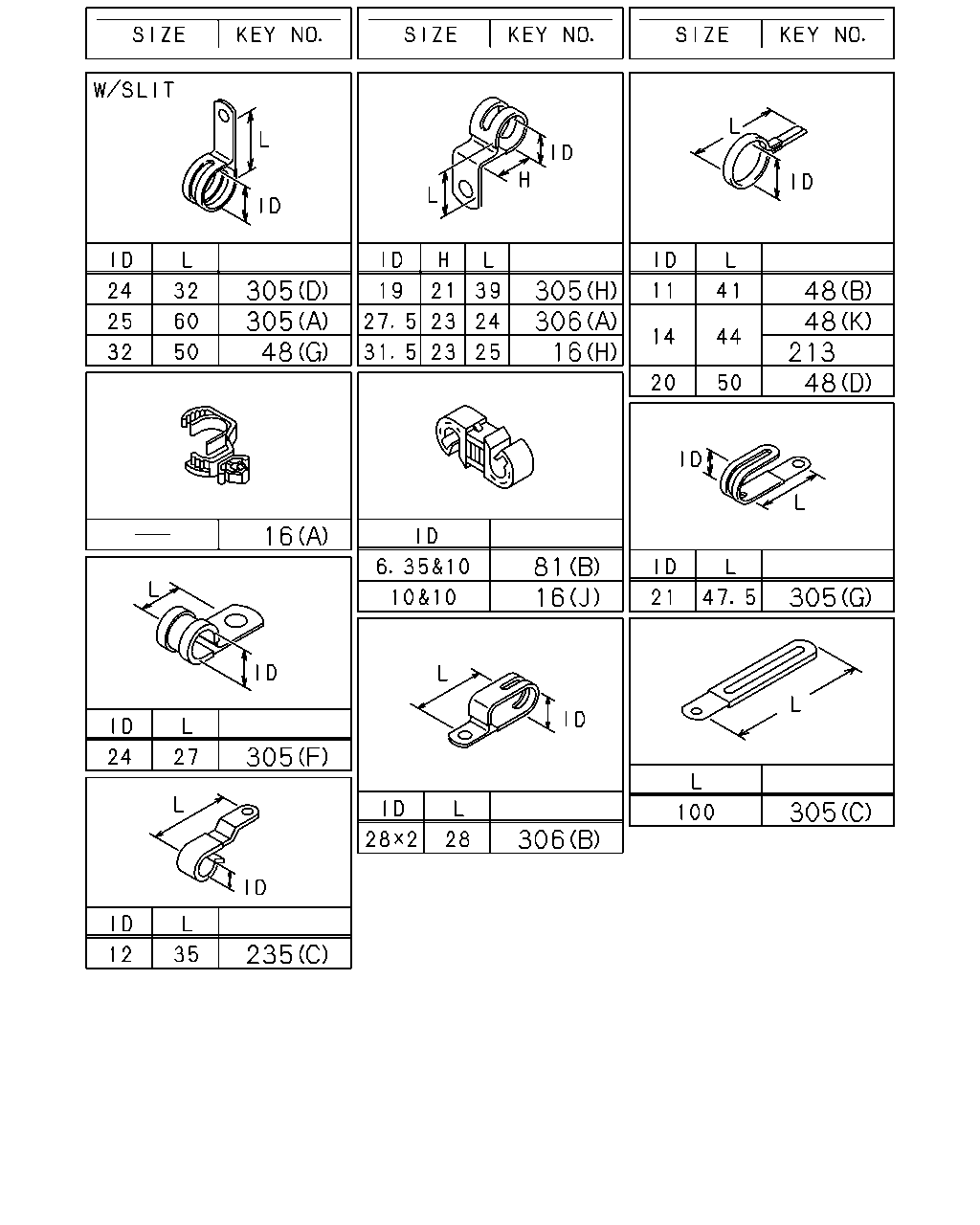

16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-
16	CLIP; HARNESS (G) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (F) ID=11X2 L=16	1-09700-734-0	01	1	1001-
16	CLIP; HARNESS (H) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-
16	CLIP; HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (D) OD=9 H=6	1-09709-178-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1001-
48	CLIP; FRAME HARNESS (J) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	14	1	1001-1007
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	02	1	1202-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1010
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1011-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (A) ID=11 L=28	0-95235-055-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (B) ID=16 L=28	0-95235-556-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (C) OD=9 H=6	1-09709-178-0	02	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (D) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
171	CLIP; STARTER HARNESS MLD6S M/T(X7W) (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	04	1	1002-
223	CLIP; AIR TANK HARNESS (B) OD=9 H=6	1-09709-178-0	03	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6S M/T(X7W) (C) ID=12 L=35	5-09700-206-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1001-

305 305 48 305 306 16 48 48 213 48 16 81 16 305 305 305 306 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (J) ID=10 & 10	1-09709-277-1	04	1	1001-
16	CLIP; HARNESS (G) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (F) ID=11X2 L=16	1-09700-734-0	01	1	1001-
16	CLIP; HARNESS (H) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1001-
16	CLIP; HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS (I) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. H.S.A SYSTEM<6EP> (D) OD=9 H=6	1-09709-178-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (G) ID=32 L=50	1-09701-055-1	01	1	1001-
48	CLIP; FRAME HARNESS (J) L=600	1-09707-107-1	01	1	1001-
48	CLIP; FRAME HARNESS (E) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	1001-
48	CLIP; FRAME HARNESS (I) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
48	CLIP; FRAME HARNESS (H) ID=17.5X2 L=25	5-09700-358-0	01	1	1001-
48	CLIP; FRAME HARNESS (A) L=250 SOU	5-09707-030-1	04	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	14	1	1001-1007
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	14	1	1008-
48	CLIP; FRAME HARNESS (D) ID=20 L=50 SOU	9-09917-430-0	02	1	1001-1201
48	CLIP; FRAME HARNESS (K) ID=14 L=44	9-09917-427-0	02	1	1202-
81	CLIP; HARNESS (B) ID=6.35 & 10.0	1-09709-274-1	02	1	1001-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> (A) OD=9 H=6	1-09709-178-0	01	1	1001-1010
81	CLIP; HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	1011-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) OD=9 H=6	1-09709-178-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS (A) ID=13-18 L=14.5	1-09709-290-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6S M/T(X7W) (C) ID=12 L=35	5-09700-206-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (I) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (D) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (F) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (H) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (E) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (C) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-

139 38 304 304 304 516 139 524 219 294 525 294 47 38 38 139 150 139 313 139 139 38 313 139 38 386 516 377 386 38 84 184 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE SOU	0-28050-816-0	03	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	03	1	1001-
38	BOLT; CLIP,HARNESS (E) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
38	BOLT; CLIP,HARNESS (F) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201
38	BOLT; CLIP,HARNESS (G) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
38	BOLT; CLIP,HARNESS MLD6S M/T(X7W) (D) M10X20 FLANGE	0-28751-020-0	01	1	1001-
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-
84	WASHER; LK BRKT,HARNESS ID=14.2 SOU	0-91510-814-0	02	1	1001-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
139	BOLT; BRKT (G) M10X30 FLANGE SOU	0-28651-030-0	02	1	1001-
139	BOLT; BRKT (D) M8X25 FLANGE SOU	0-28050-825-0	02	1	1001-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-
150	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1001-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	01	1	1001-
219	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	06	1	1001-1107
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	05	1	1108-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	01	1	1001-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1001-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	04	1	1001-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1001-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1001-
313	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
313	BOLT; BRKT (B) M10X30 FLANGE SOU	0-28651-030-0	01	1	1001-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS (B) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1001-
516	BOLT; HARNESS MLD6S M/T(X7W) (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
524	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	04	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-

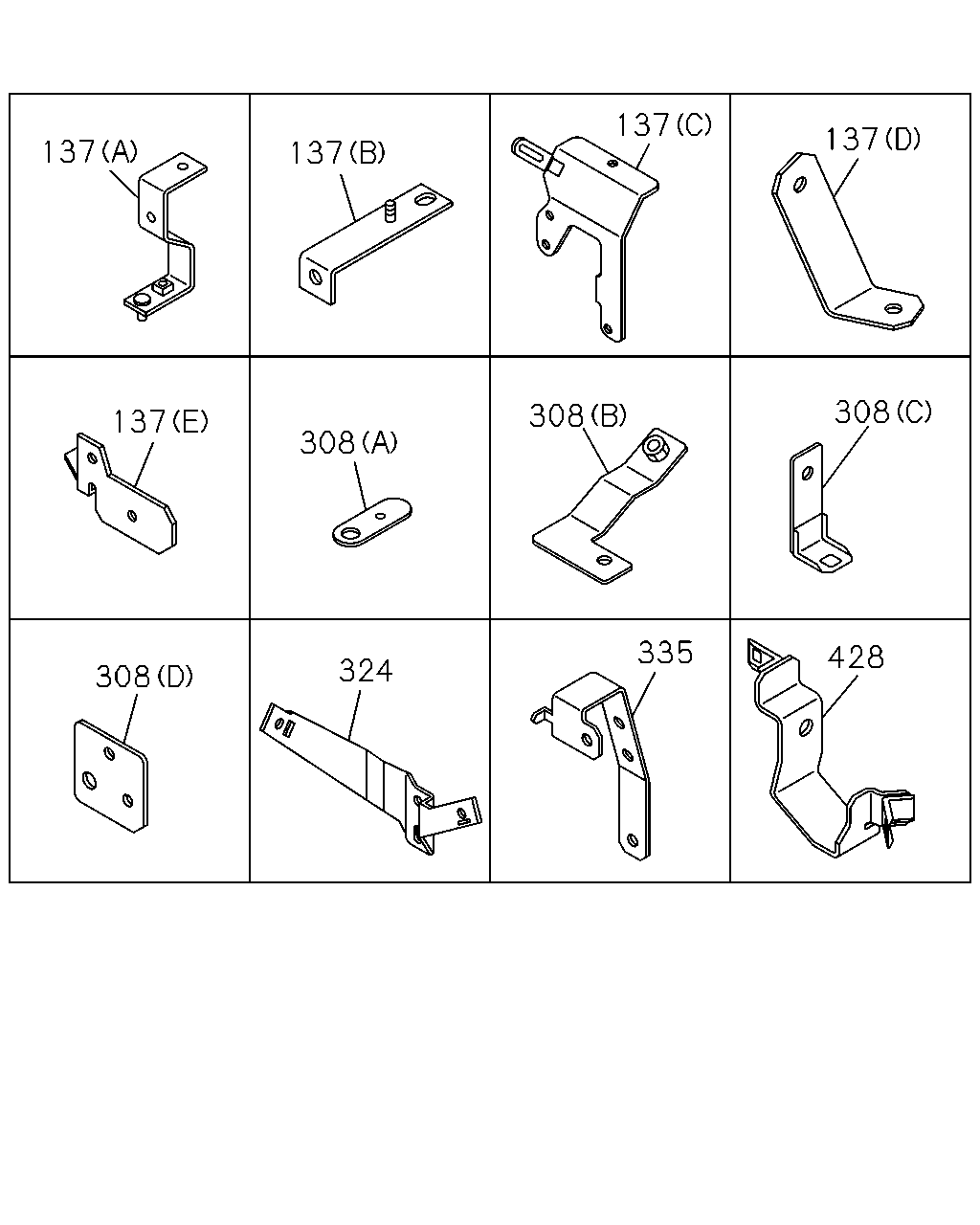

137 137 137 137 308 308 137 308 335 428 324 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
137	BRACKET; HARNESS CLAMP (D)	8-97614-728-1	01	1	1001-
137	BRACKET; HARNESS CLAMP (C)	8-97618-098-2	01	1	1001-
137	BRACKET; HARNESS CLAMP (B)	8-97624-013-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (E)	8-98065-904-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (A)	8-98059-231-1	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1001-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1001-
324	BRACKET; CLIP	8-98061-654-2	01	1	1001-
324	BRACKET; CLIP	8-98061-653-2	01	1	1001-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1001-
428	BRACKET	8-98090-952-0	01	1	1001-

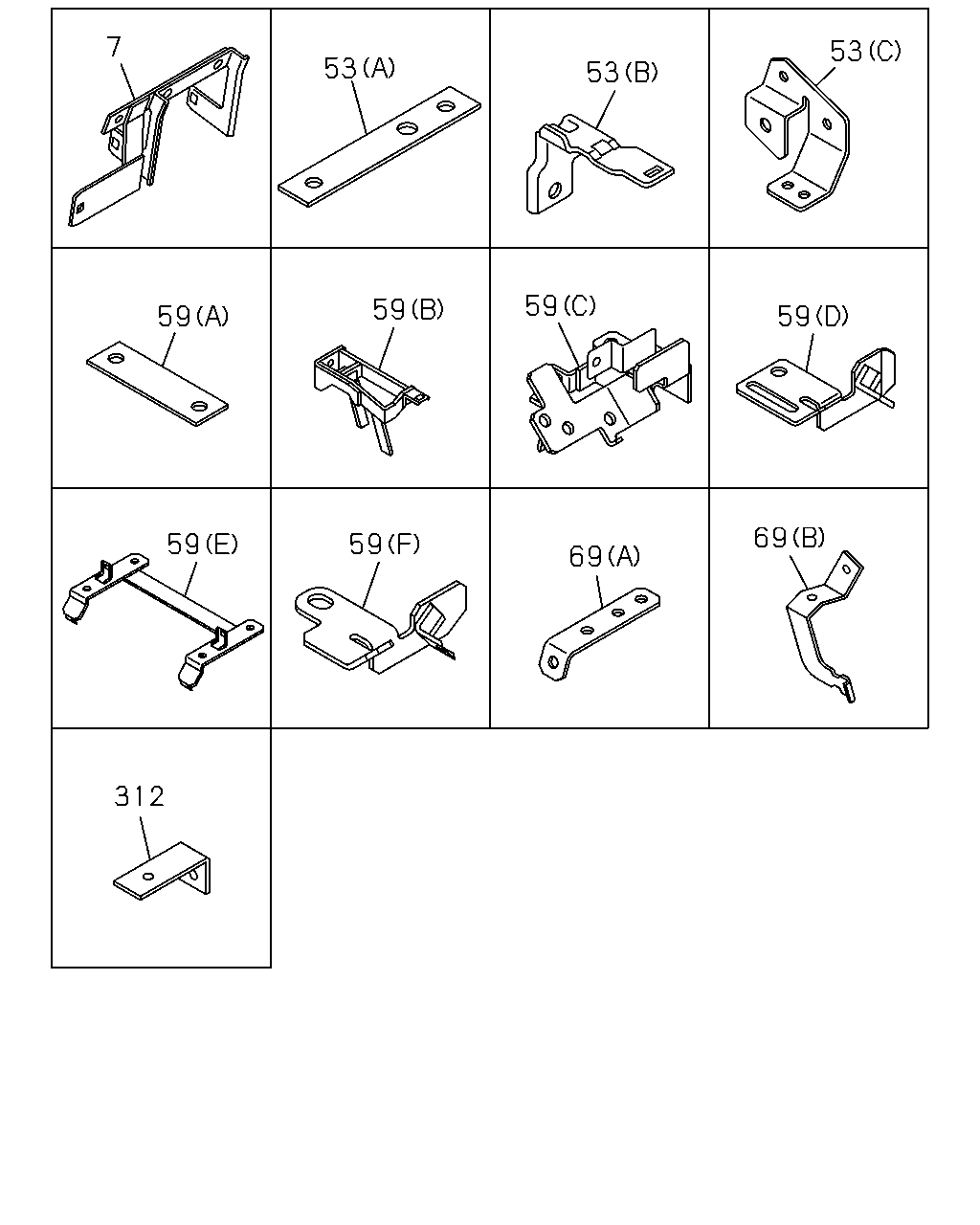

7 53 53 53 59 59 59 59 59 59 69 69 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-
53	BRACKET; HARNESS (A) L=170	1-47479-380-0	01	1	1001-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	1001-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C)	8-98084-590-0	01	1	1001-
59	BRACKET; FRAME HARNESS (E)	8-97619-533-0	01	1	1001-
59	BRACKET; FRAME HARNESS (A) L=85	8-98044-743-0	01	1	1001-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1001-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97619-534-0	01	1	1001-
59	BRACKET; FRAME HARNESS MLD6S M/T(X7W) (B)	8-97627-325-0	01	1	1001-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B)	8-97609-264-2	01	1	1001-
69	BRACKET; CLIP (A)	1-82698-167-0	01	1	1001-
69	BRACKET; CLIP (B)	8-97616-357-3	01	1	1001-
312	BRACKET; CLIP HARNESS L=55	1-47475-304-0	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
