8-10 — WIRING HARNESS AND FUSE (#17089) — 139 parça
çizim 127142
1 2 2 314 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-852-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-852-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-931-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-931-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98083-930-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98083-930-2 01 1 1110-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P SOU 		1-82699-703-0 01 1 1001-
2 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A SOU 		8-94422-639-1 02 1 1001-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-

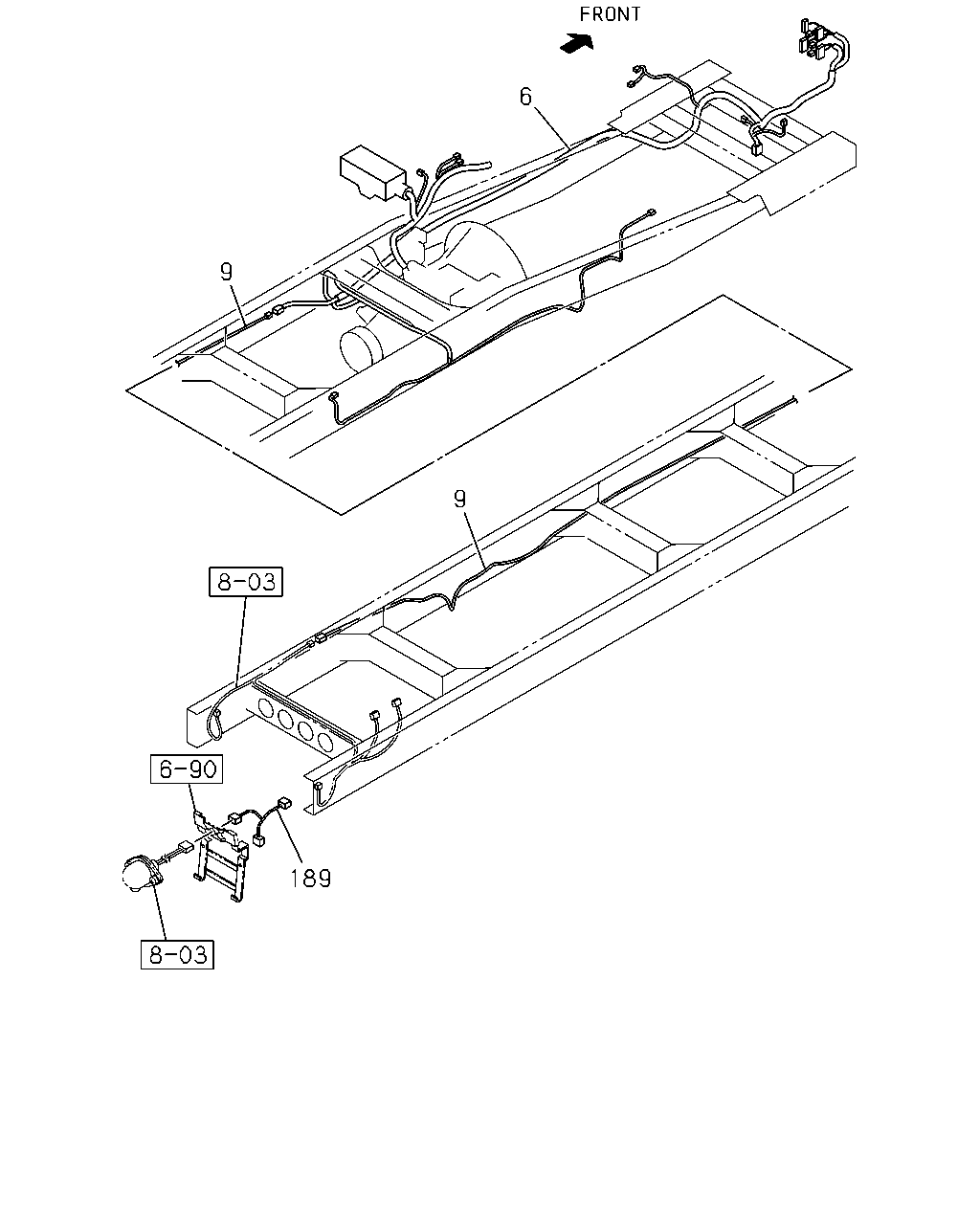

çizim 127146
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
9 HARNESS; FRAME,RR 8-98064-316-1 01 1 1001-1007
9 HARNESS; FRAME,RR 8-98168-571-1 01 1 1008-
189 HARNESS; EXT 8-98131-066-0 01 1 1001-

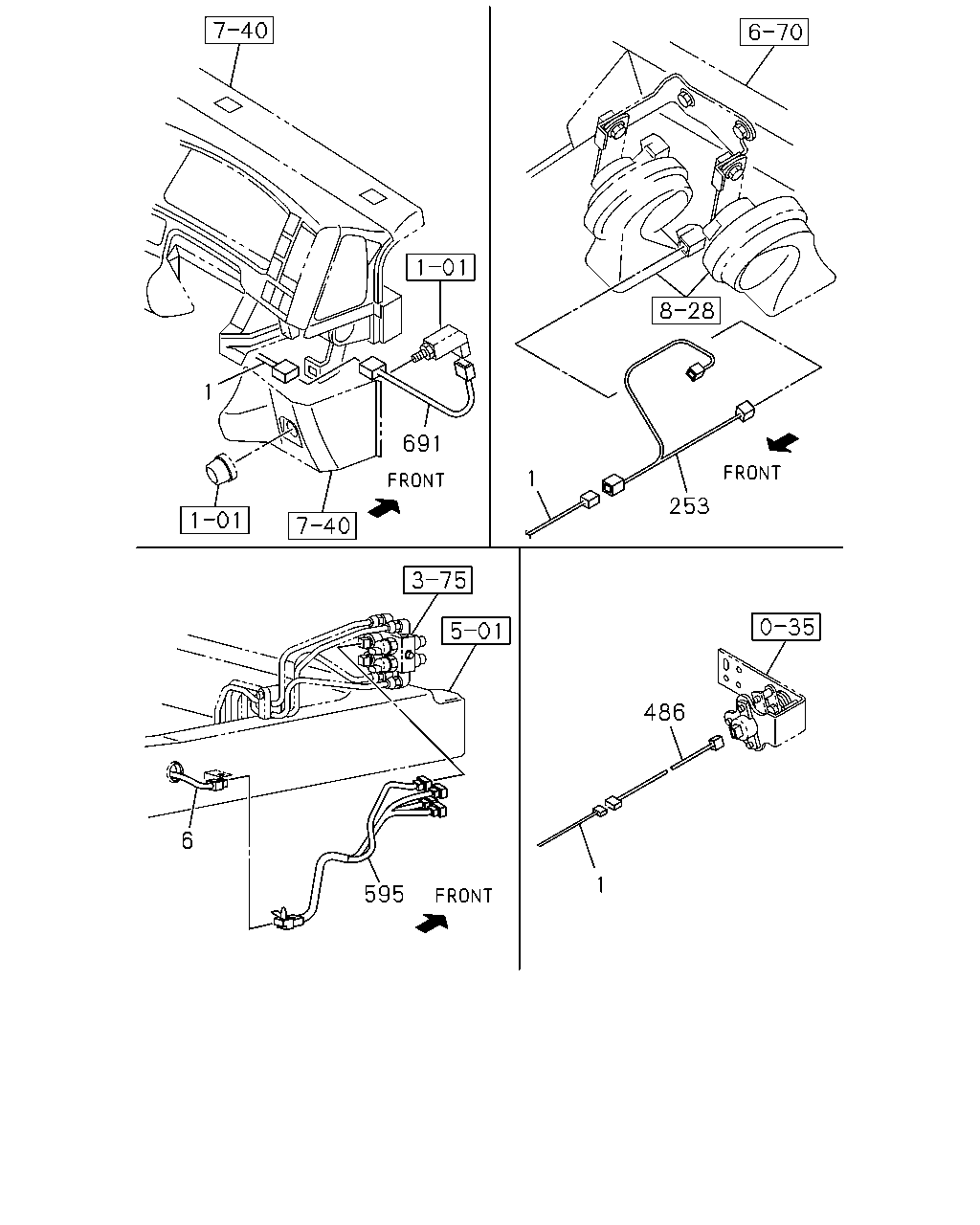

çizim 127148
1 691 1 253 486 6 1 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-852-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-852-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-931-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-931-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98083-930-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98083-930-2 01 1 1110-1209
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1001-
486 HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) 		1-82675-898-0 01 1 1001-
595 HARNESS; WARNING,BRK 8-97621-003-3 01 1 1001-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1001-

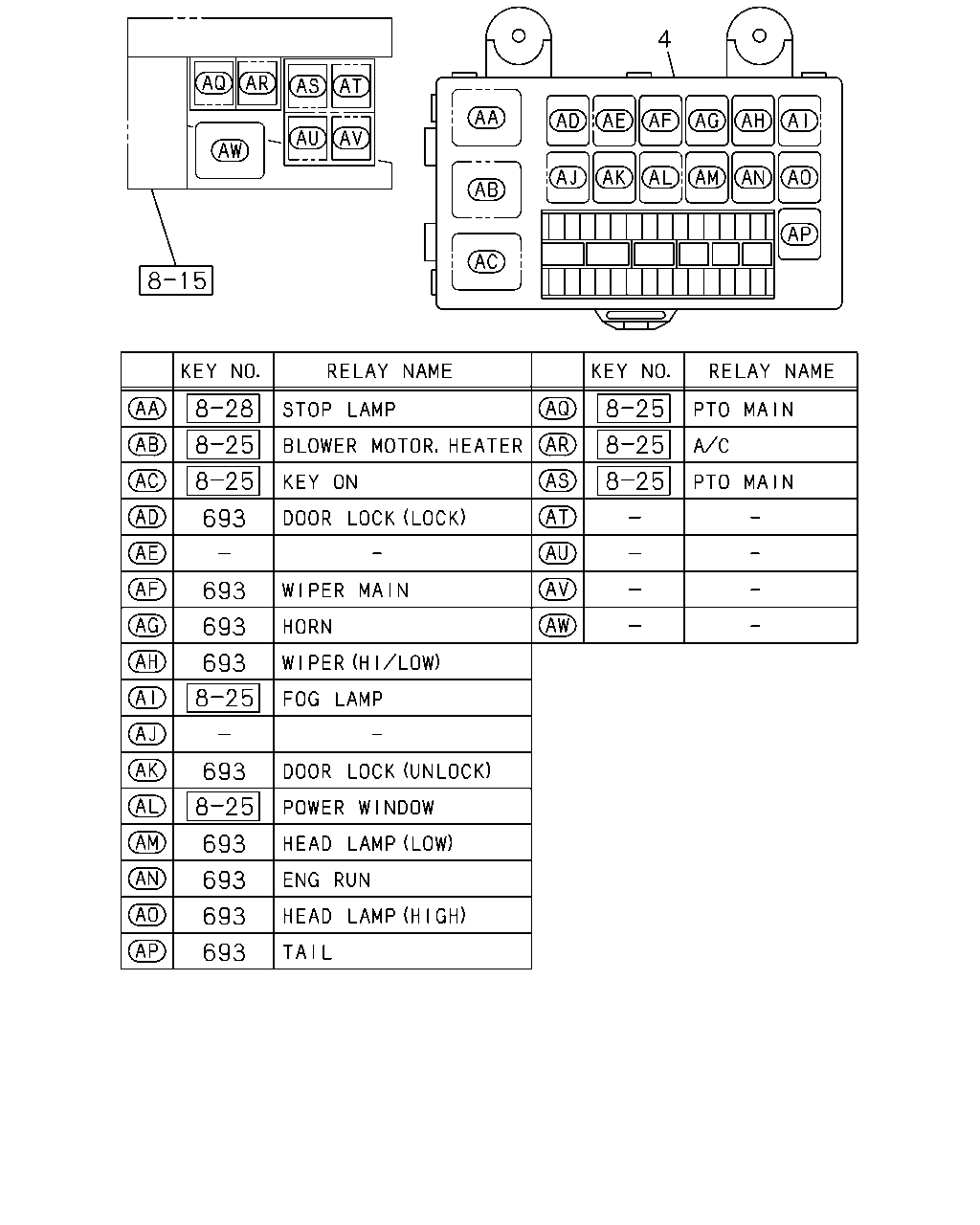

çizim 127151
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-

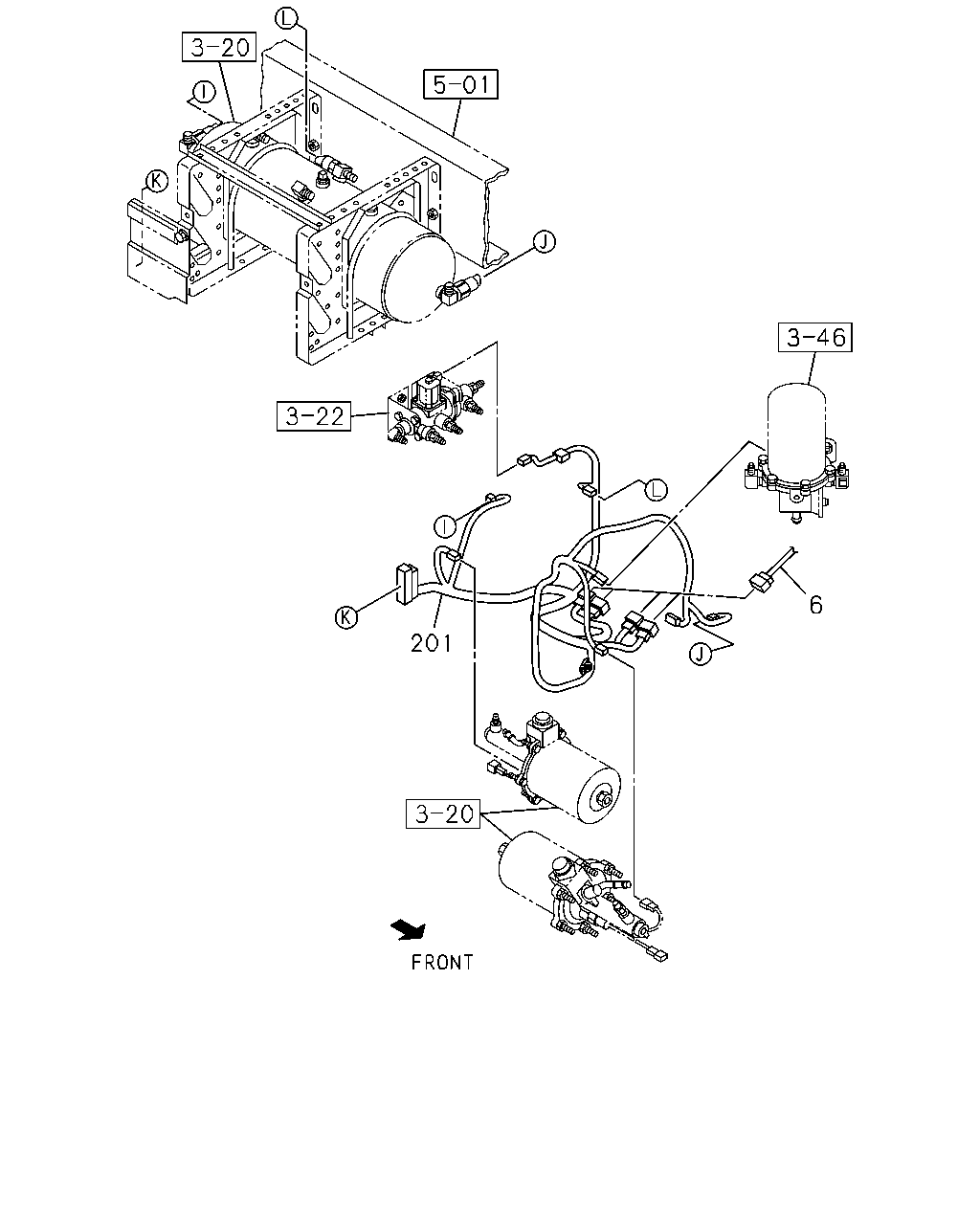

çizim 127153
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98111-494-0 01 1 1001-1001
201 HARNESS; AIR TANK
THROTTLE CONTROL SYSTEM(6XH) 		8-98156-711-2 01 1 1002-
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98111-493-0 01 1 1001-1001
201 HARNESS; AIR TANK
EXC. THROTTLE CONTROL SYSTEM(6XH) 		8-98156-710-2 01 1 1002-

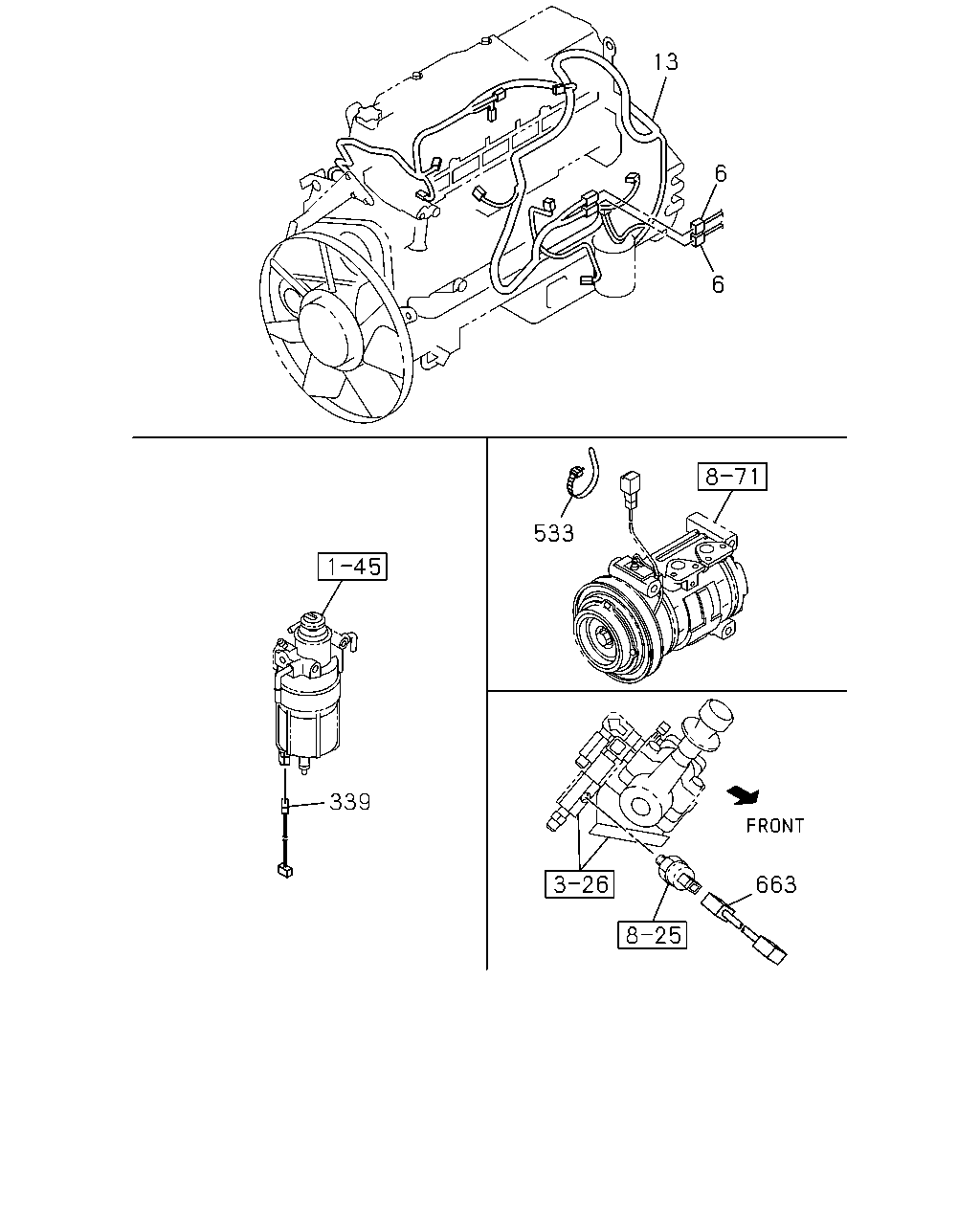

çizim 127157
13 6 6 533 339 663
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-770-5 01 1 1001-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-771-5 01 1 1001-
339 HARNESS; EXT,FUEL 8-98124-757-0 01 1 1001-
533 CLIP
L=180 SOU 		1-09707-162-1 01 1 1001-1206
533 CLIP
AIR CONDITIONER MANUAL CONTROL(C60) L=180 SOU 		1-09707-162-1 01 1 1207-
663 HARNESS; EXTENSION,RR WHEEL PARKING 8-98126-779-2 01 1 1008-

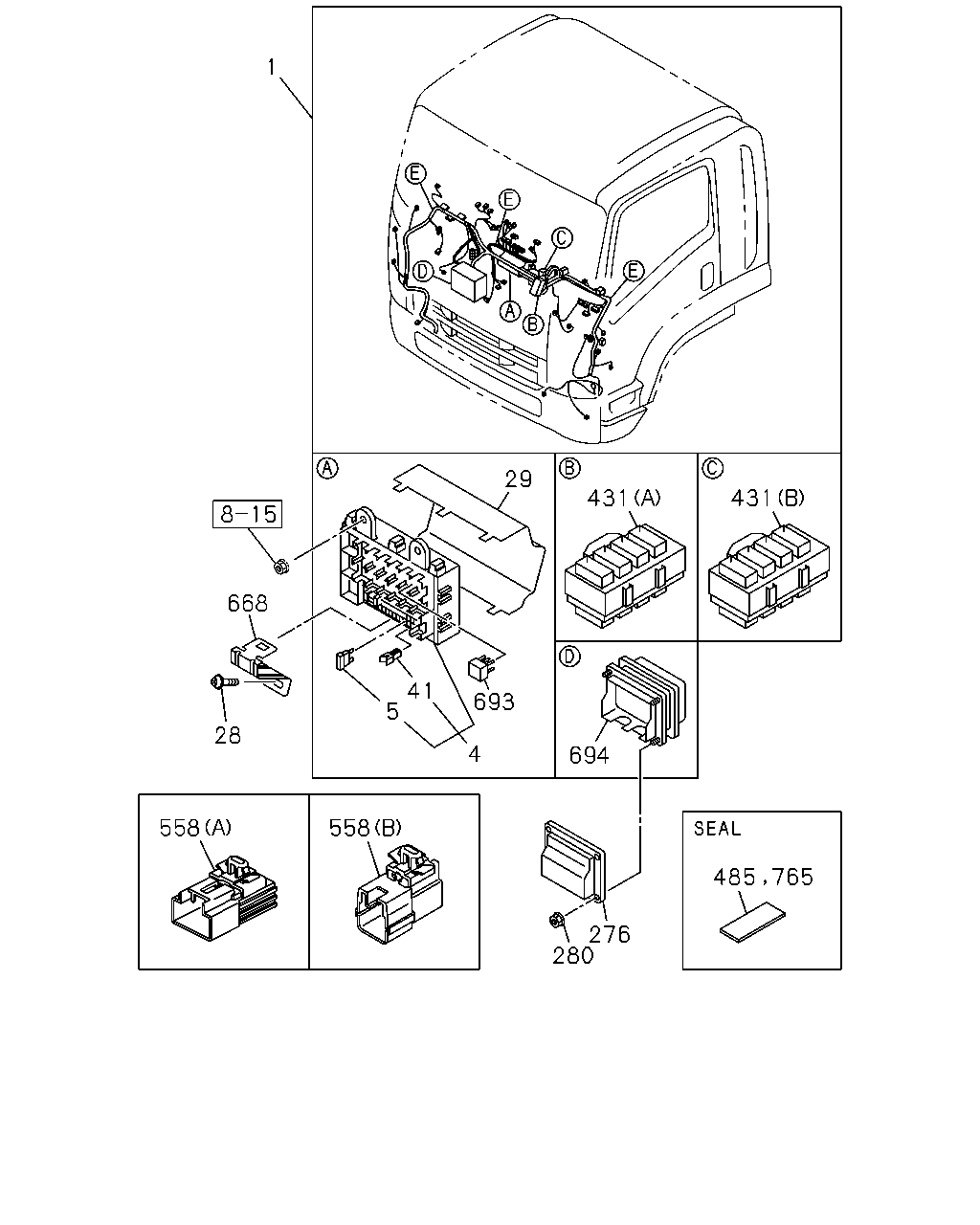

çizim 127161
558 558 280 276 485 765 694 4 693 41 5 28 668 1 29 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-852-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-852-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-851-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98083-931-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98083-931-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98083-930-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98083-930-2 01 1 1110-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 1001-
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 1001-
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 1001-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 01 1 1001-
28 SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR 		8-98081-722-0 01 1 1001-
28 SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1001-
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1001-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1001-
280 NUT; BOX ASM FIX
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1001-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1001-
765 TAPE
100X40 SOU 		1-72498-022-1 01 1 1409-

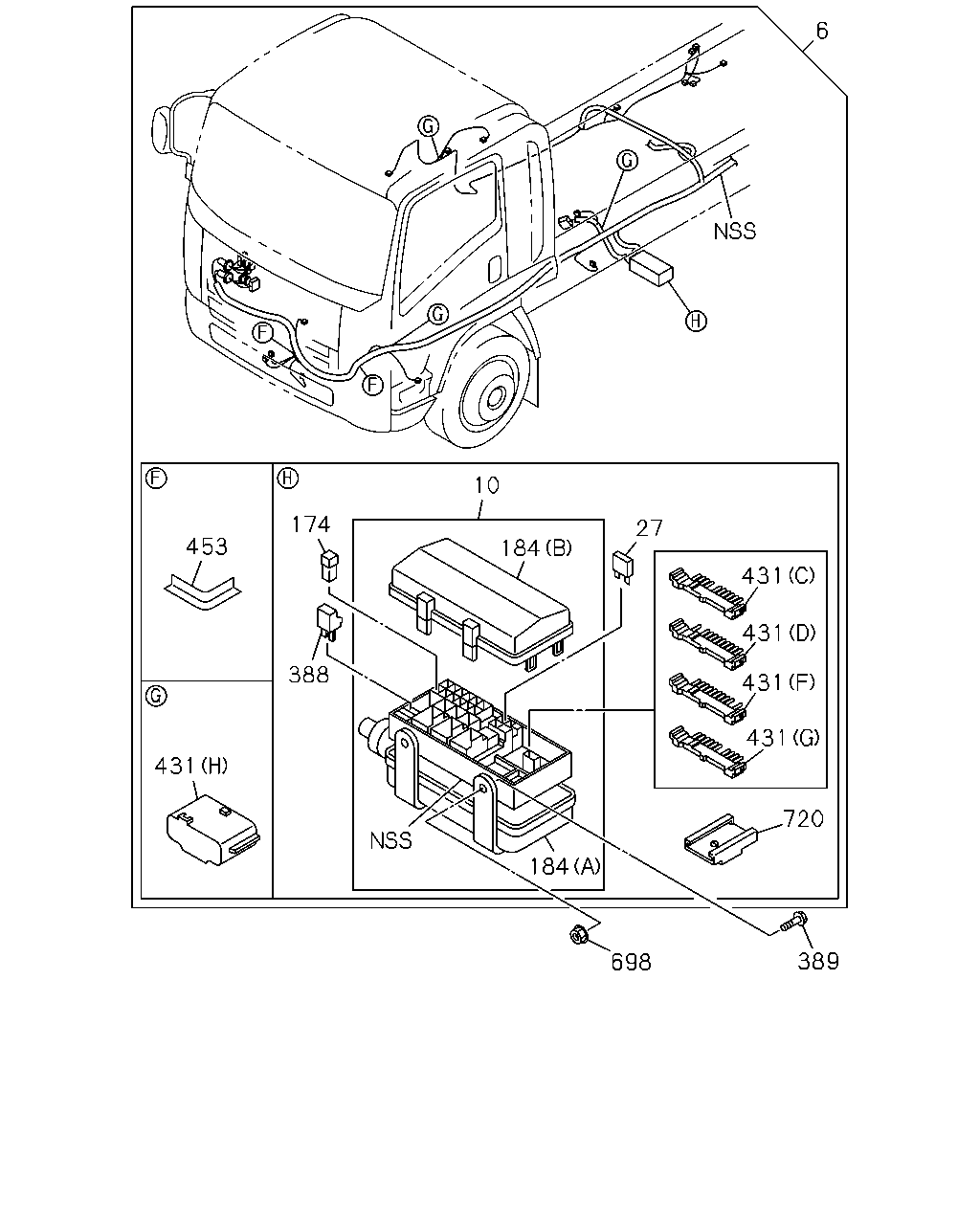

çizim 127166
6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1001-
27 FUSE UNIT
15A BLUE SOU 		8-98054-258-0 02 1 1001-
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 01 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 04 1 1107-1405
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 01 1 1406-
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 02 1 1001-
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 02 1 1001-
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 03 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 03 1 1001-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1001-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-1 01 1 1001-
388 DIODE; RELAY BOX
BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 1001-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 01 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 02 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
453 PROTECTOR; HARNESS 1-82699-709-0 02 1 1001-
698 NUT; COVER,RELAY BOX
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1001-

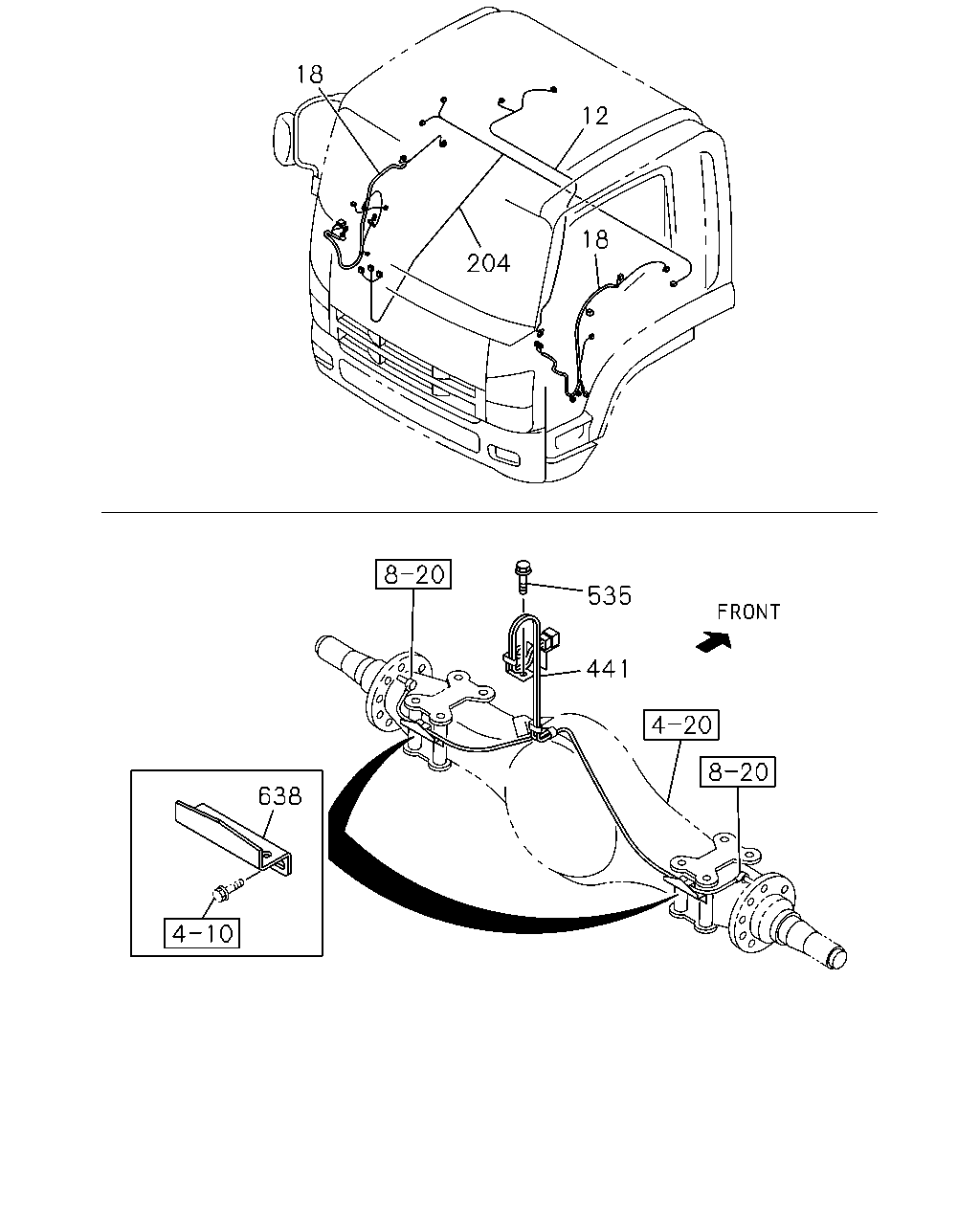

çizim 127175
18 12 18 204 535 441 638
BalonParca AdiParca NoAdetTipApplied Date
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-98084-247-0 01 1 1001-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98041-948-2 01 1 1001-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-288-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-283-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1203-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98084-194-0 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98084-195-1 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) 		8-98084-188-0 01 1 1001-
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3) 		8-98084-191-1 01 1 1001-
441 HARNESS; CABLE,SPEED SENSOR 8-98061-652-0 01 1 1001-
535 BOLT; BRKT FIX
M8X10 W/LK WASHER 		8-98029-928-0 02 1 1001-
638 BRACKET; SPD SENSOR 8-98012-580-1 02 1 1001-

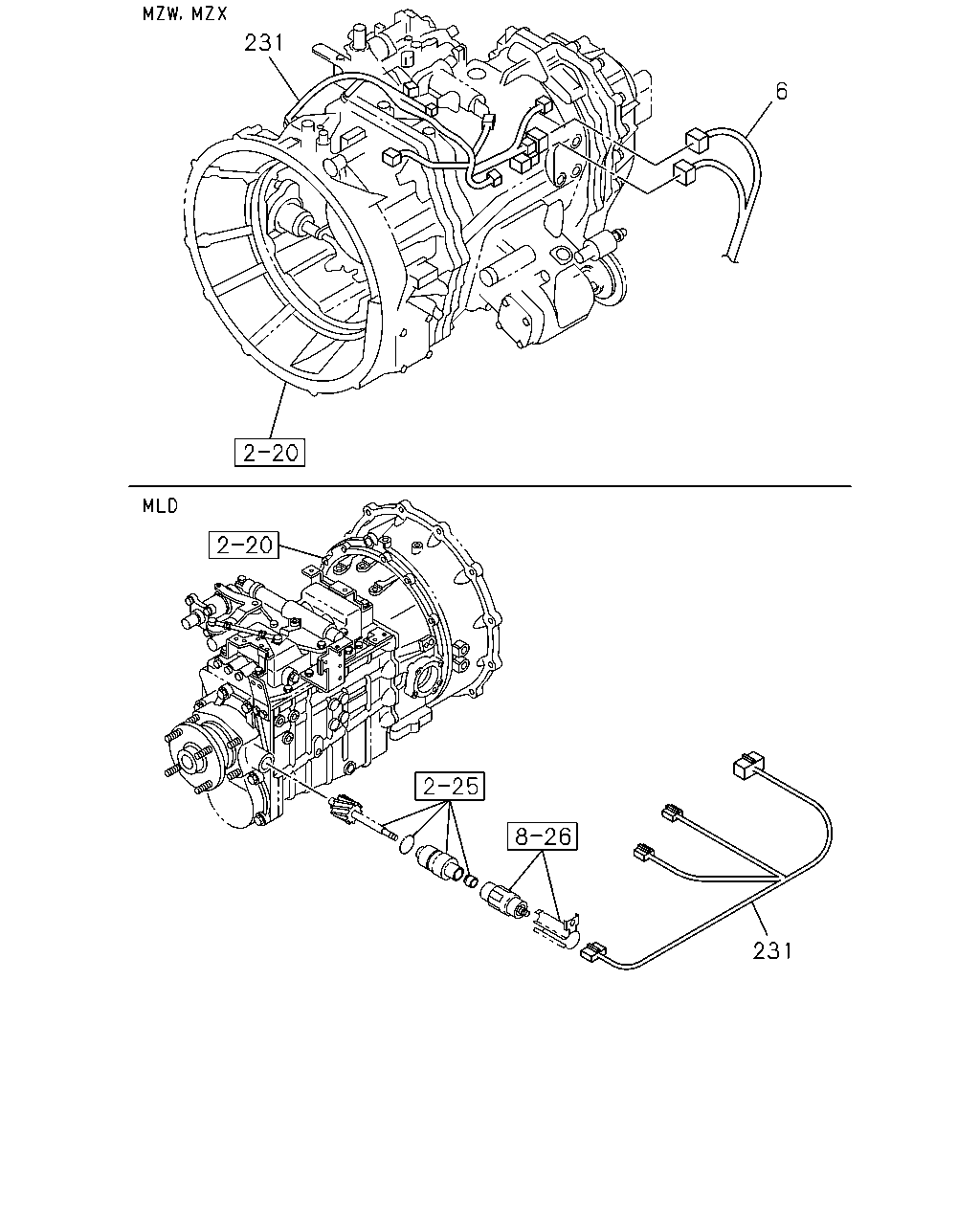

çizim 127181
231 6 231
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME 8-98064-960-4 01 1 1001-
231 HARNESS; TRANS
MLD6S M/T(X7W) 		8-97626-769-1 01 1 1001-
231 HARNESS; TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) 		8-97618-932-2 01 1 1001-
