0-11 — CYLINDER HEAD (#1708) — 29 parça

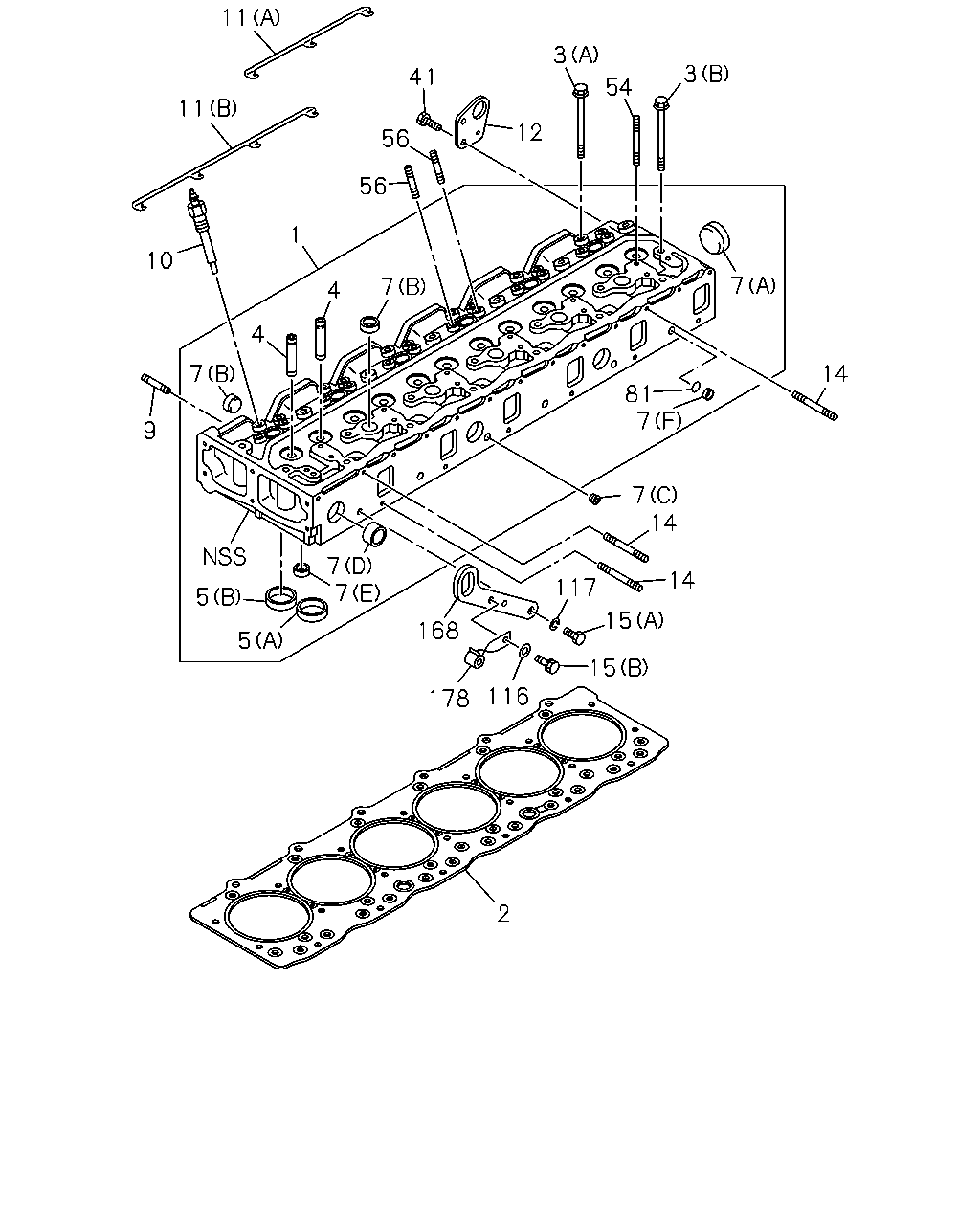

çizim 28347
11 3 3 41 54 11 12 56 56 1 10 7 7 4 4 7 14 81 7 9 7 14 7 7 14 117 5 15 168 5 15 116 178 2
BalonParca AdiParca NoAdetTipApplied Date
1 HEAD ASM; CYL 1-11110-694-1 01 1 9207-
2 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-11141-196-0 01 1 9207-
3 BOLT; CYL HD TO BLOCK
(B) 		1-09070-100-0 06 1 9207-
3 BOLT; CYL HD TO BLOCK
(A) 		1-09070-101-0 20 1 9207-
4 GUIDE; VLV 5-11721-001-0 12 1 9207-
5 SEAT; VLV INSERT
(B) 		1-11711-043-0 06 1 9207-
5 SEAT; VLV INSERT
(A) 		1-11715-050-0 06 1 9207-
7 CUP; SEALING,CYL HEAD
(A) OD=45 		1-09600-005-1 01 1 9207-
7 CUP; SEALING,CYL HEAD
(B) OD=25 		1-09600-016-0 11 1 9207-
7 CUP; SEALING,CYL HEAD
(F) OD=12.3 		5-09600-013-0 06 1 9207-
7 CUP; SEALING,CYL HEAD
(D) OD=32 		5-11219-015-0 03 1 9207-
7 CUP; SEALING,CYL HEAD
(E) OD=20 		9-11129-128-0 03 1 9207-
7 CUP; SEALING,CYL HEAD
(C) OD=12.5 		9-11129-601-0 05 1 9207-
9 STUD; INL MANIF
M8X25 L=37 		9-04110-825-0 03 1 9207-
10 PLUG; GLOW 9-82513-928-9 06 1 9207-
11 CONNECTOR; GLOW PLUG
(A) L=236 		5-19732-001-1 01 1 9207-
11 CONNECTOR; GLOW PLUG
(B) L=354 		5-19732-002-1 01 1 9207-
12 HANGER; ENG,RR 1-11777-084-0 01 1 9207-
14 STUD; EXH MANIF
M8X86 L=99 		9-09630-026-0 12 1 9207-
15 BOLT; HANGER,FRT
(A) M14X25 		0-20801-425-0 01 1 9207-
15 BOLT; HANGER,FRT
(B) M10X22 W/LK WASHER 		0-50041-022-0 01 1 9207-
41 BOLT; ENG HANGER
M10X22 W/LK WASHER 		0-50041-022-0 02 1 9207-
54 STUD; ROCKER ARM
M8X83 L=96 		9-09830-163-0 04 1 9207-
56 STUD; NOZZLE HOLDER
M8X40 L=58 		1-09300-018-0 12 1 9207-
81 PLUG; PLATE,DRILLED PASSAGE
OD=11.9 		9-09660-034-0 06 1 9207-
116 WASHER; LK,BRKT,ENG CONT
ID=6.1 		9-09150-506-0 01 1 9207-
117 WASHER; LK,HANGER
ID=14.2 		9-09150-514-0 01 1 9207-
168 HANGER; ENG,FRT 5-11777-055-1 01 1 9207-
178 CLIP; ENG HARNESS 1-09700-821-0 01 1 9207-
