◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UCR ▶ 51520 - UCR/UCS(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#170626) — 30 parça

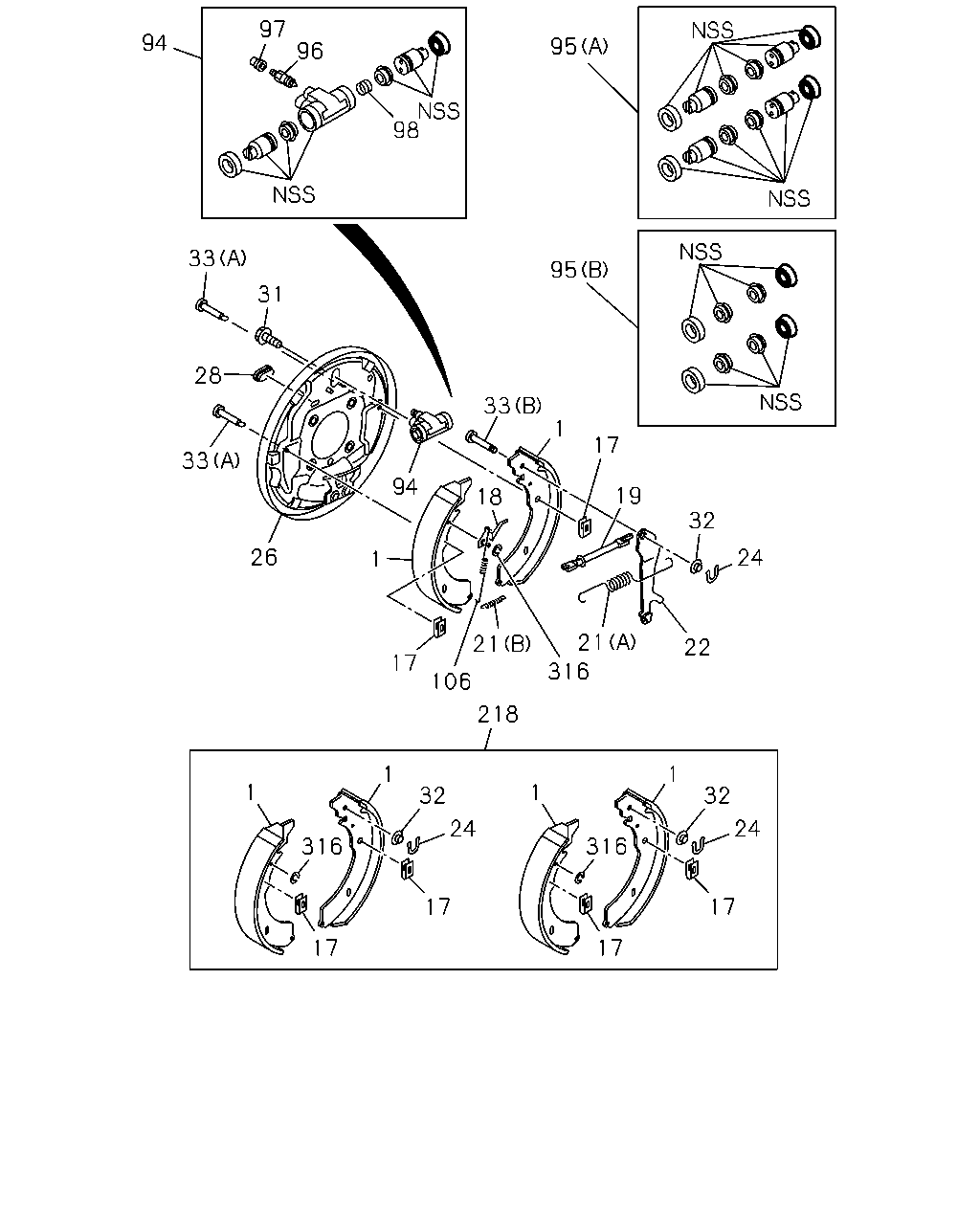

çizim 501805
17 17 316 1 32 24 1 24 17 17 316 1 32 1 218 106 316 22 21 17 1 24 32 21 19 17 33 18 94 26 33 28 31 33 95 95 98 96 97 94 1
BalonParca AdiParca NoAdetTipApplied Date
1 05.017 SHOE; BRK,RR
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> TRAILING 		8-97947-766-0 02 1 1511-
1 05.017 SHOE; BRK,RR
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> LEADING 		8-97947-767-0 01 1 1511-
1 05.017 SHOE; BRK,RR
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> LEADING 		8-97947-768-0 01 1 1511-
17 04.043 SPRING; SHOE HOLD DOWN
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98164-787-0 04 1 1511-
18 05.103 LEVER; AUTO ADJ
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-474-0 01 1 1511-
18 05.103 LEVER; AUTO ADJ
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-475-0 01 1 1511-
19 05.110 ADJUSTER; RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-402-0 01 1 1511-
19 05.110 ADJUSTER; RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-403-0 01 1 1511-
21 05.026 SPRING; SHOE,RET
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (A) 		8-97947-413-0 02 1 1511-
21 05.026 SPRING; SHOE,RET
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (B) 		8-98008-002-0 02 1 1511-
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-392-0 01 1 1511-
22 05.149 LEVER; PARKING BRK,WHEEL BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-393-0 01 1 1511-
24 05.158 RETAINER; PARKING BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97301-493-0 02 1 1511-
26 05.001 PLATE; BACK,RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-406-2 01 1 1511-
26 05.001 PLATE; BACK,RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-407-2 01 1 1511-
28 05.117 COVER; ADJ HOLE
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97301-477-0 04 1 1511-
31 04.665 BOLT; RR WHEEL CYL
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> M6X14 		8-97947-469-0 04 1 1511-
32 05.056 WASHER; LK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-470-0 02 1 1511-
33 05.043 PIN; SHOE HOLD DOWN
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (A) 		8-97301-509-0 04 1 1511-
33 05.043 PIN; SHOE HOLD DOWN
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (B) 		8-98008-034-0 02 1 1511-
94 04.665 CYLINDER; WHEEL,RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97319-300-0 02 1 1511-
95 04.665 CUP SET; RR WHEEL CYL
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (A) W/PISTON 		5-87832-068-0 01 1 1511-
95 04.665 CUP SET; RR WHEEL CYL
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> (B) WO/PISTON 		5-87832-247-0 01 1 1511-
96 04.666 SCREW; BLEEDER,RR BRK
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97301-484-0 02 1 1511-
97 04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97301-485-0 02 1 1511-
98 04.669 SPRING; RR WHEEL CYL
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97301-483-0 02 1 1511-
106 05.107 SPRING; ADJ LEVER
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98008-006-0 01 1 1511-
106 05.107 SPRING; ADJ LEVER
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-98008-007-0 01 1 1511-
218 05.017 SHOE KIT; BRK,RR
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97947-802-0 01 1 1511-
316 05.125 RING; SNAP
EXC. ABS W/EBD BRAKE ASSIST<JE5>,VAC POWER 4 WHL DISC BRAKE<JF8> 		8-97330-511-0 02 1 1511-
