Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#170624) — 12 parça
◀

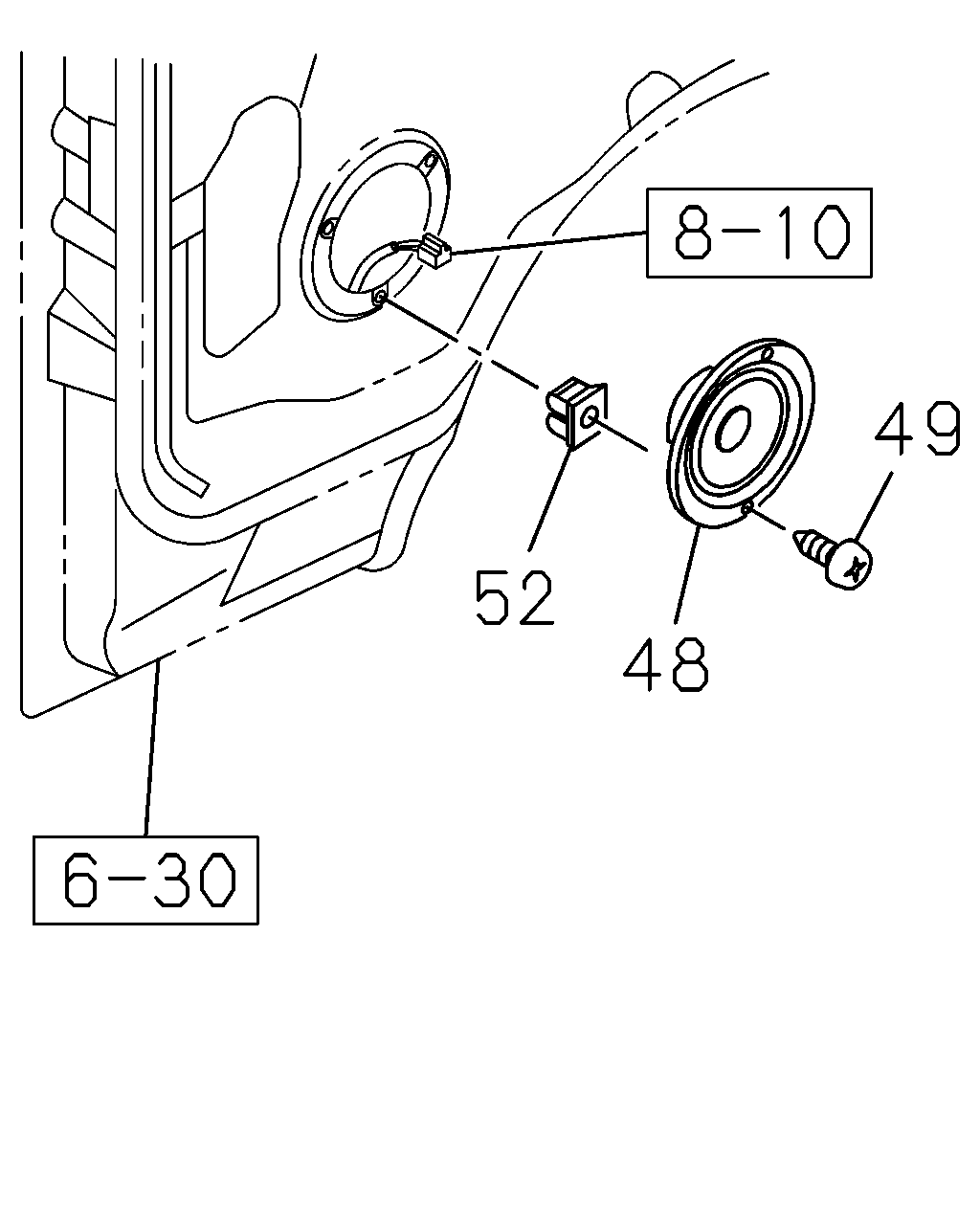

[890A] NO.2 (3 parça)
[890A] NO.1 (9 parça)
▶
52
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95>
8-97317-001-1
02
1
1511-
49
SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES
8-98061-856-0
06
1
1511-
52
GROMMET; SCREW,SPEAKER
2-SPEAKER SYSTEM BASE<U95> D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1511-
80
10
294
224
101
6
36
6
7
36
7
33
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
BRACKET; RADIO TO PANEL
8-97585-617-0
02
1
1511-
7
SCREW; RADIO
M5X20 TAPPING HEXALOBULAR
0-72180-520-0
02
1
1511-
10
SCREW; ANTENNA CABLE
M5X11
1-09981-536-1
02
1
1511-
33
COVER; RADIO
BLACK
8-97407-896-2
01
1
1511-
36
SCREW; COVER
T25 L=10 HEXALOBULAR
8-98058-632-0
02
1
1511-
80
ANTENNA
8-98139-014-0
01
1
1511-
101
CLIP; FEEDER TO BRKT
ID=4.8
8-94128-483-0
03
1
1511-
224
CABLE; EXT,FEEDER
8-98063-002-1
01
1
1511-
294
CAP; ANTENNA CABLE
8-98095-617-1
01
1
1511-
