Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

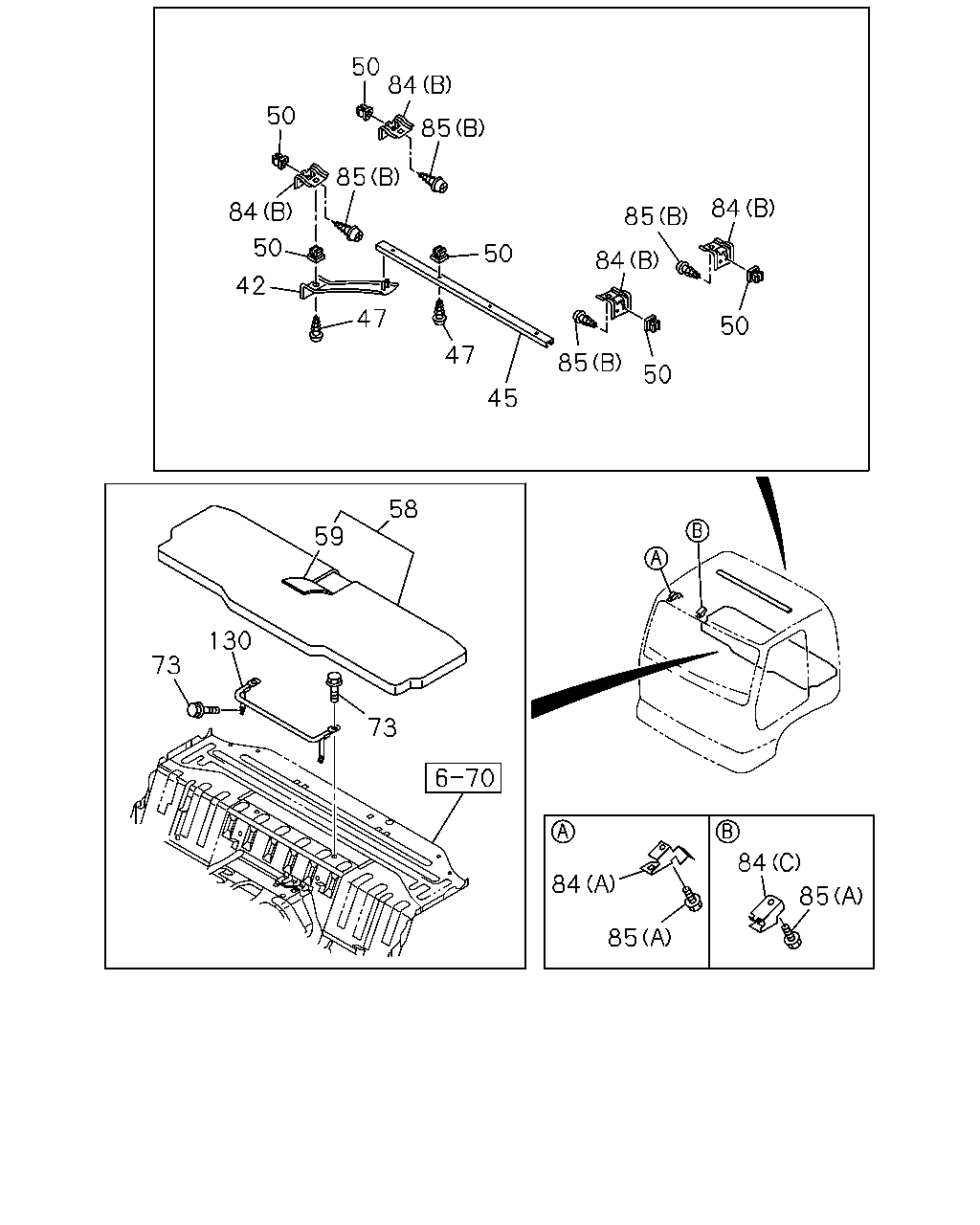

7-70 — SEPARATER AND BED
(#170604) — 17 parça
50
50
84
85
85
84
50
85
84
84
50
50
85
45
47
47
42
50
58
59
130
73
73
84
85
84
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1511-
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1511-
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-485-0
01
1
1511-
47
SCREW; CURTAIN RAIL
M5X20
5-09981-059-0
06
1
1511-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
04
1
1511-
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5
8-94279-078-0
06
1
1511-
58
BED; MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97407-382-2
01
1
1511-
58
BED; MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-772-1
01
1
1511-
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> SEAT CLOTH<7FL> DARK GRAY
8-97412-045-1
01
1
1511-
59
COVER ASM; TRIM,BED MAT
VINYL SEAT<A83> MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-106-0
01
1
1511-
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1511-
84
BRACKET; CURTAIN RAIL
(B)
8-98042-152-0
04
1
1511-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-289-1
01
1
1511-
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (C)
8-98074-739-0
01
1
1511-
85
SCREW; BRKT
(B) M5X20
5-09981-059-0
04
1
1511-
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE
8-97108-669-0
02
1
1511-
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1511-
