Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-45 - CONSOLE BOX
▶

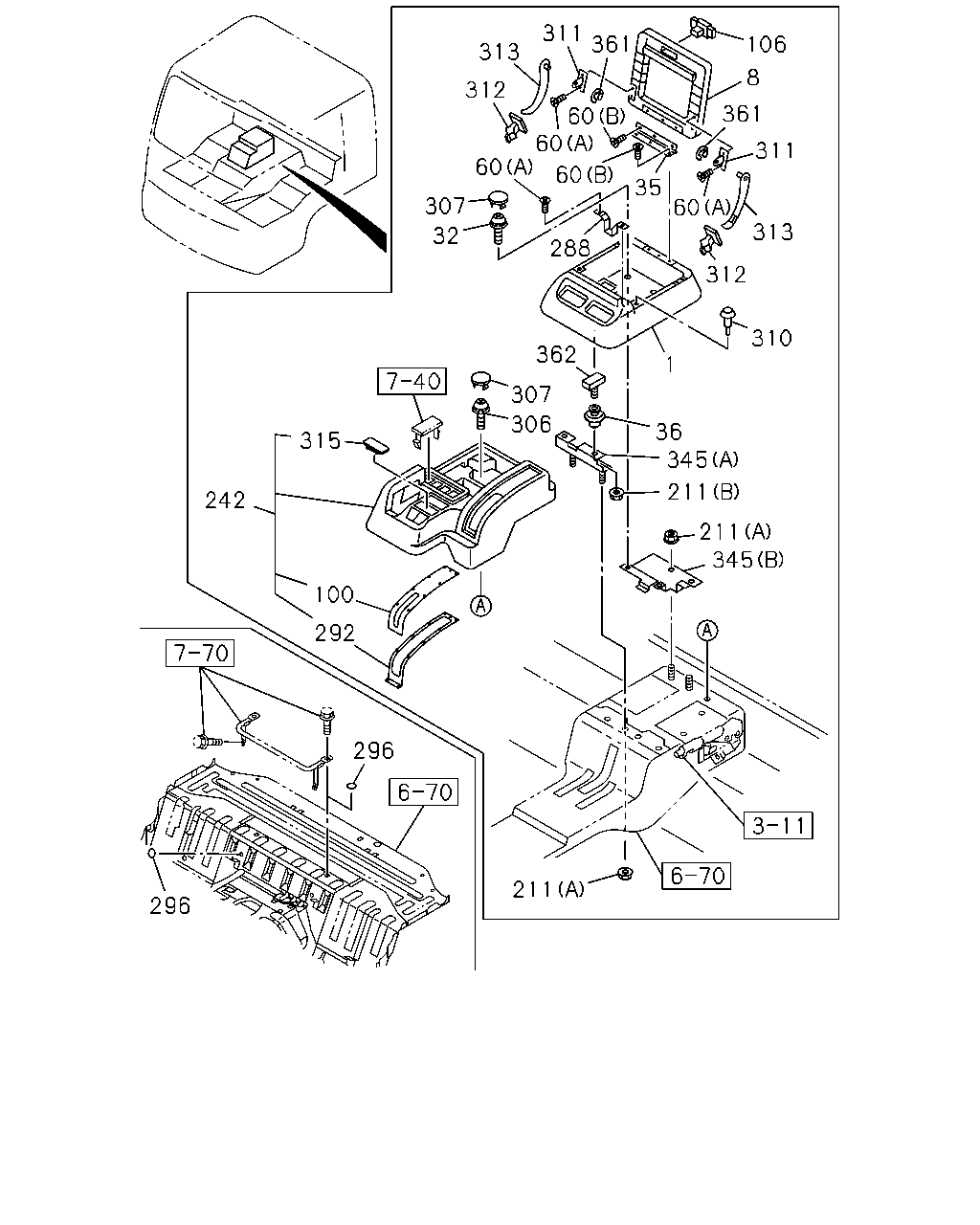

7-45 — CONSOLE BOX
(#170601) — 28 parça
211
211
345
36
1
310
312
313
60
311
361
8
106
35
60
60
60
361
311
313
312
307
60
32
315
242
100
292
306
307
362
345
211
296
296
288
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY
8-97408-710-0
01
1
1511-
8
LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97408-712-0
01
1
1511-
32
SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16
0-38050-616-0
02
1
1511-
35
HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-182-1
01
1
1511-
36
FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9>
1-09984-190-0
02
1
1511-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD
0-70040-514-0
06
1
1511-
60
SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14
8-94279-325-0
04
1
1511-
100
RUBBER; CONSOLE,FRT
1-72538-161-3
01
1
1511-
106
LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9>
1-72538-312-0
01
1
1511-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE
0-91180-108-0
04
1
1511-
211
NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (B) M8 FLANGE
8-94279-518-0
02
1
1511-
242
TRAY ASM; CTR CONSOLE
GRAY
8-97409-818-1
01
1
1511-
288
STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-190-0
01
1
1511-
292
RETAINER; COVER
1-72538-162-1
01
1
1511-
296
SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK
1-76798-019-0
04
1
1511-
306
SCREW; TRAY
M6X16
0-38050-616-0
03
1
1511-
307
COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY
8-97407-951-0
02
1
1511-
307
COVER; HOLE,CTR CONSOLE
GRAY
8-97407-951-0
02
1
1511-
310
CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-187-0
02
1
1511-
311
HOLDER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-188-2
02
1
1511-
312
STOPPER; CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-186-1
02
1
1511-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-184-3
01
1
1511-
313
ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9>
1-72538-185-3
01
1
1511-
315
COVER; HOLE,SW
GRAY
8-97409-339-0
01
1
1511-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A)
1-72538-232-1
01
1
1511-
345
BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B)
1-72538-233-0
01
1
1511-
361
RING; SNAP
CENTER SEAT DELETE<SP9> ID=5
9-09185-405-0
02
1
1511-
362
STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9>
1-72538-308-0
02
1
1511-
