◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11729 - FSR MIDDLE EAST EURO1 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#170598) — 106 parça

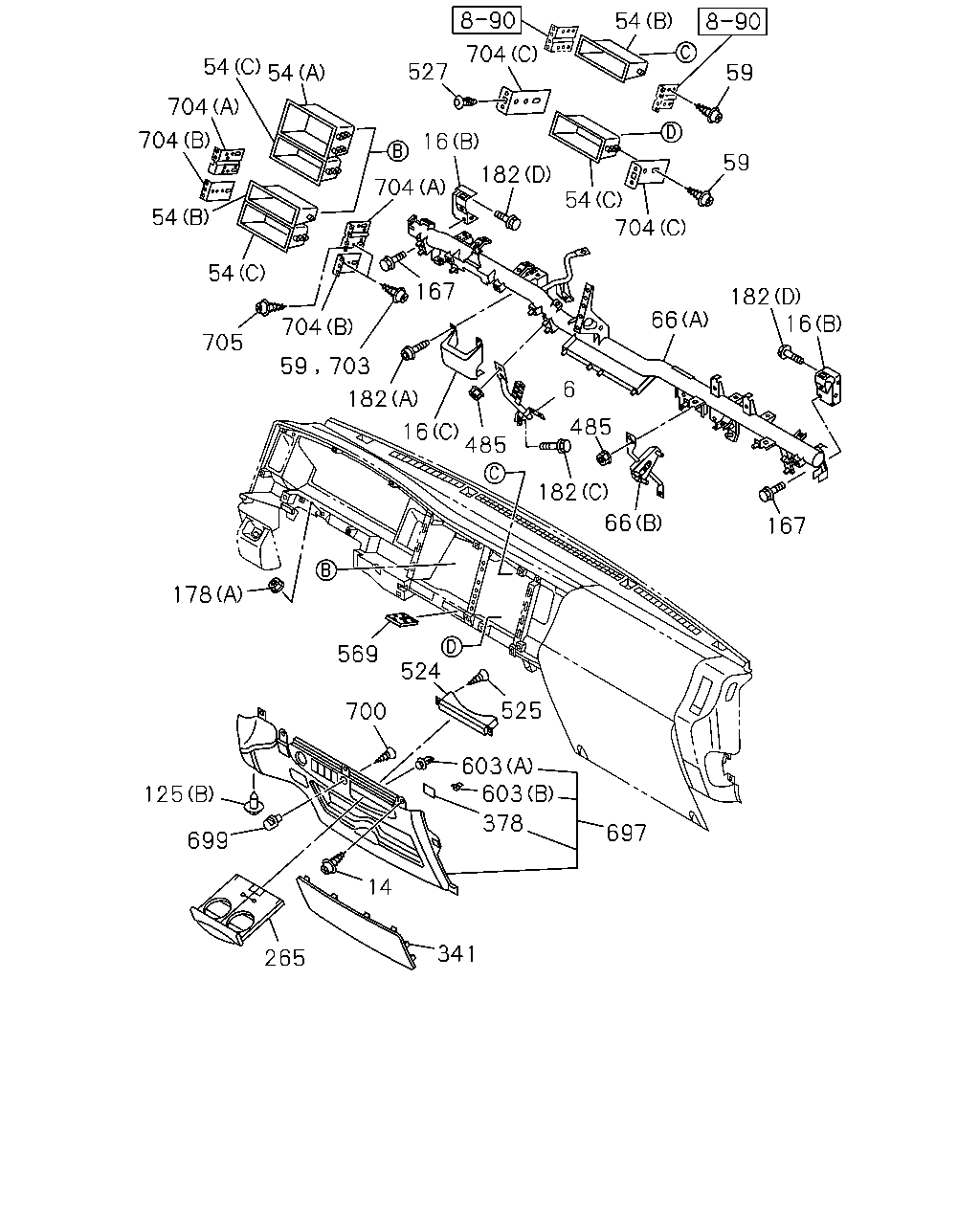

çizim 501545
54 704 704 54 54 705 704 59 703 182 16 485 182 66 167 16 182 66 704 54 182 16 704 527 704 54 59 59 167 6 485 178 569 524 525 603 603 378 697 341 14 700 125 699 265 54
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 8-98064-936-1 01 1 1511-
14 SCREW; INST PNL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1511-
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1511-
54 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK 		8-97408-864-3 01 1 1511-
54 POCKET; CENTER CLUSTER
TACHOGRAPH 140KM/H<WC7> (B) H=58.4 BLACK 		8-97408-864-3 01 1 1511-
54 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK 		8-97408-865-3 01 1 1511-
54 POCKET; CENTER CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) H=69.8 BLACK 		8-97408-865-3 01 1 1511-
54 POCKET; CENTER CLUSTER
EXC. TACHOGRAPH 140KM/H<WC7> (A) H=108.4 BLACK 		8-97407-129-3 01 1 1511-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1511-
59 SCREW; CLUSTER POCKET
TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511-
59 SCREW; CLUSTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1511-
66 REINFORCEMENT; INST PANEL
(A) 		8-98240-606-0 01 1 1511-
66 REINFORCEMENT; INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98082-466-1 01 1 1511-
66 REINFORCEMENT; INST PANEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98139-662-0 01 1 1511-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1511-
167 BOLT; REINF TO INST
M8X23 FLANGE 		8-97264-766-0 04 1 1511-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
265 HOLDER; CUP
GRAY 		8-97418-528-0 01 1 1511-
341 LID; FUSE BOX
GRAY 		8-97422-209-0 01 1 1511-
378 SEAL; INST PANEL
5X30 		8-98176-199-0 01 1 1511-
485 NUT; SUPPORT CLIP,HARNESS
M6 FLANGE 		0-91180-106-0 04 1 1511-
524 STAND ASM; CUP,INST 8-98054-414-0 01 1 1511-
525 SCREW; CUP STAND
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
527 CLIP; INST CLUSTER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) DARK GRAY 		8-97098-326-0 01 1 1511-
569 HOLDER; CARD 8-97410-276-1 01 1 1511-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511-
697 PANEL; INST CENTER
GRAY 		8-97422-208-1 01 1 1511-
699 HOOK; INST PANEL
GRAY 		8-97408-927-0 01 1 1511-
700 BOLT; HOOK
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
703 SCREW; CENTER POCKET
EXC. TACHOGRAPH 140KM/H<WC7> T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1511-
704 BRACKET; CENTER POCKET
(B) 		8-97585-616-2 02 1 1511-
704 BRACKET; CENTER POCKET
(A) 		8-97585-618-2 02 1 1511-
704 BRACKET; CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (C) 		8-98107-549-0 02 1 1511-
705 SCREW; BRACKET CENTER POCKET
M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 08 1 1511-
705 SCREW; BRACKET CENTER POCKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1511-

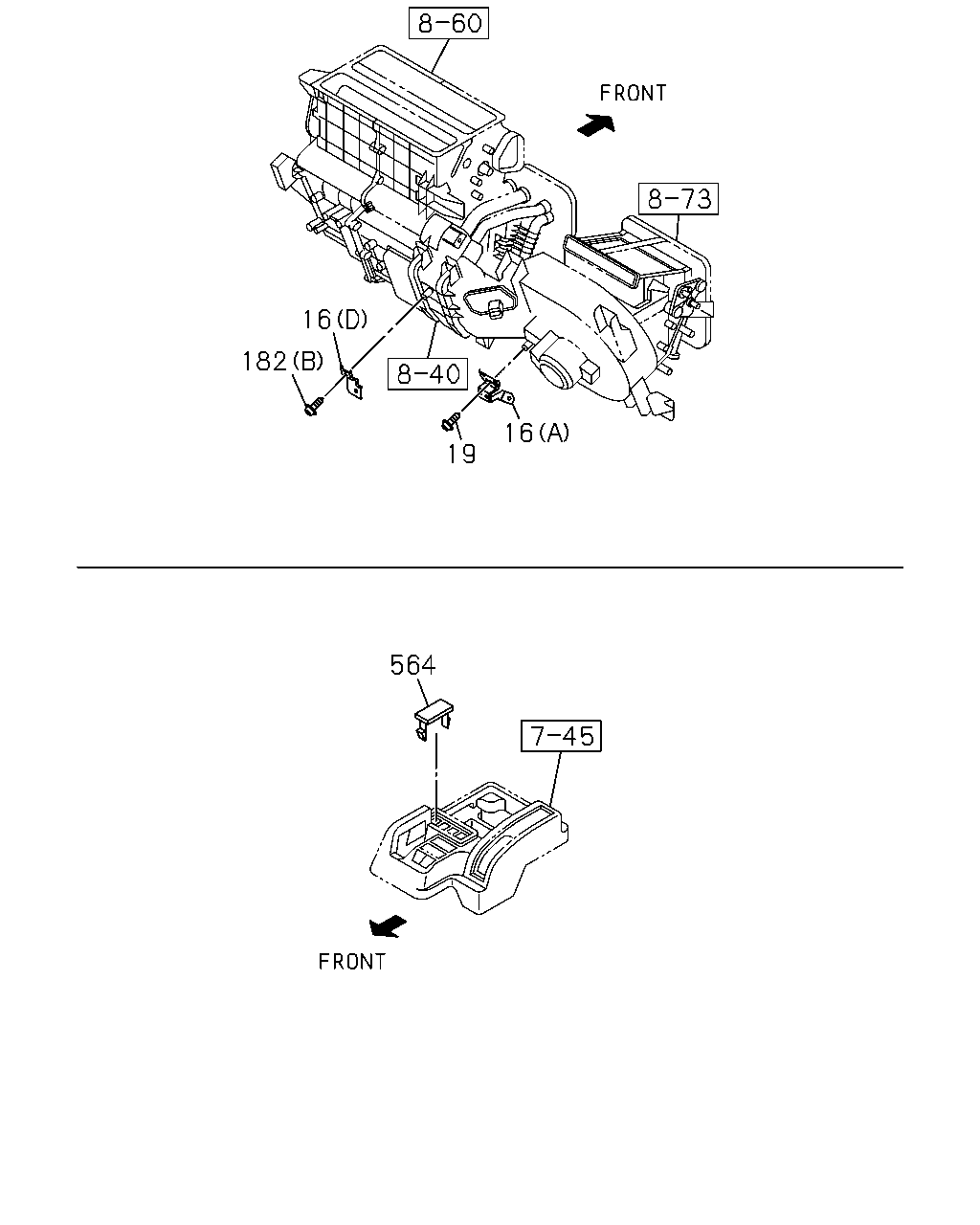

çizim 501674
16 182 19 16 564
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(C) 		8-98063-326-0 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-204-1 01 1 1511-
16 BRACKET; INST PNL
(B) 		8-98017-202-1 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-97585-612-2 01 1 1511-
16 BRACKET; INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) 		8-98017-527-0 01 1 1511-
19 SCREW; BRKT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
(D) M8X16 FLANGE 		0-28050-816-0 04 1 1511-
182 BOLT; BRKT,INST PANEL
(A) M6X12 W/LK&PL WASHER 		0-52000-612-0 02 1 1511-
182 BOLT; BRKT,INST PANEL
(C) M8X25 W/LK&PL WASHER 		8-98018-439-0 01 1 1511-
182 BOLT; BRKT,INST PANEL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
564 COVER; SW 8-97043-732-1 04 1 1511-

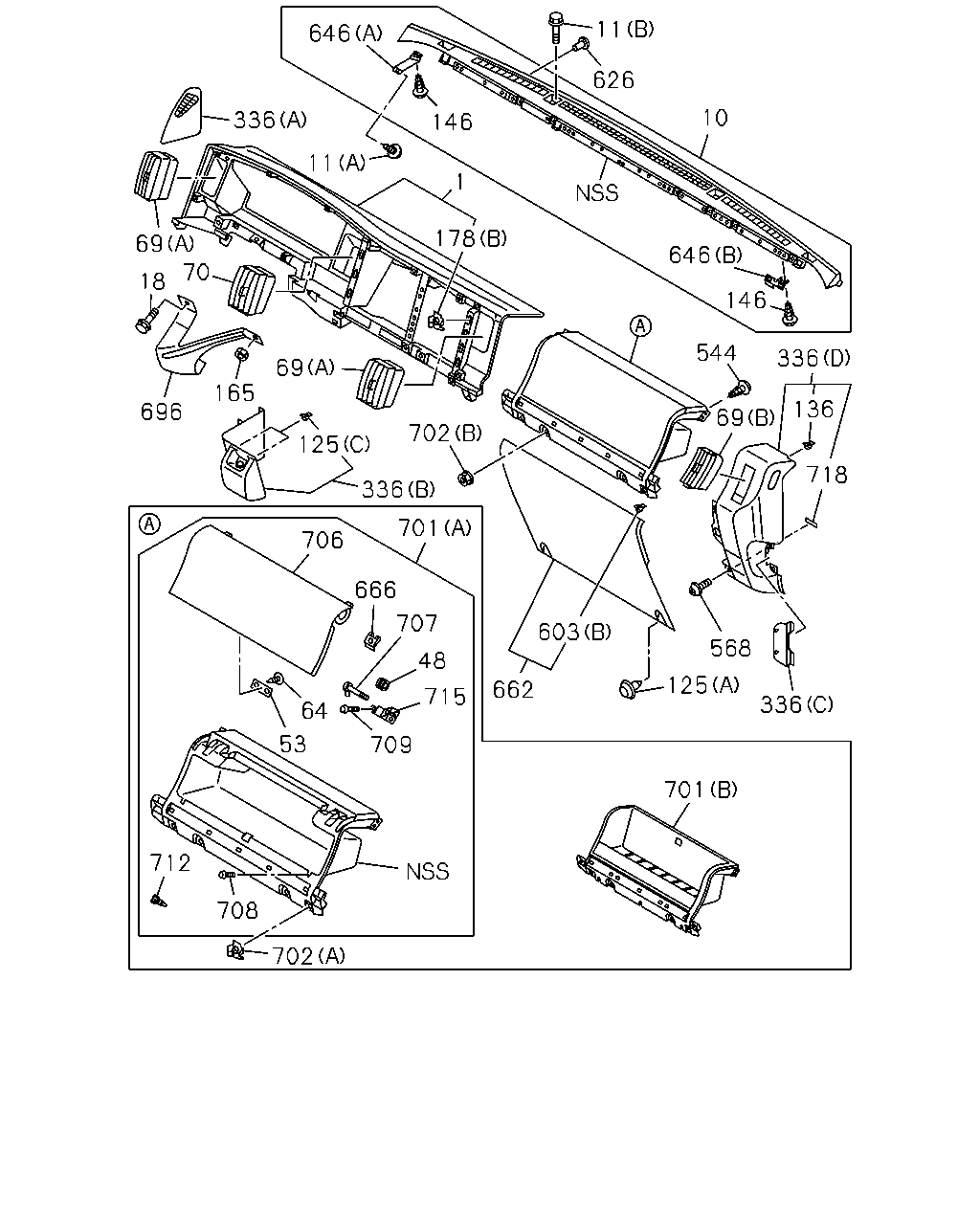

çizim 502690
11 626 10 146 646 336 11 1 178 69 165 70 69 18 696 125 336 701 702 544 336 136 718 568 336 125 603 662 707 666 48 715 709 64 53 712 708 702 701 69 146 646 706
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
GRAY 		8-97409-777-3 01 1 1511-
10 PANEL ASM; GARNISH
GRAY 		8-97422-096-1 01 1 1511-
11 BOLT; INST PNL
(A) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1511-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1511-
18 BOLT; BRKT
M6X12 W/LK&PL WASHER 		0-52000-612-0 01 1 1511-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-763-0 01 1 1511-
48 SPRING; GLOVE BOX LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-764-0 01 1 1511-
53 STRIKER; GLOVE BOX
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98270-765-0 01 1 1511-
64 SCREW; STRIKER
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M4X85 		8-97926-404-0 02 1 1511-
69 GRILLE; SIDE,AIR OUTLET
(B) 		8-98028-562-2 01 1 1511-
69 GRILLE; SIDE,AIR OUTLET
(A) 		8-98028-563-2 02 1 1511-
70 GRILLE; CENTER,AIR OUTLET 8-98028-561-2 01 1 1511-
125 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 04 1 1511-
125 CLIP; INST PANEL
(A) GRAY 		8-97419-968-1 02 1 1511-
125 CLIP; INST PANEL
(C) 		8-98021-271-0 02 1 1511-
136 CLIP; INST COVER 8-98076-254-0 02 1 1511-
146 SCREW; TAP
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
165 NUT; BRKT KNEE PAD
M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(A) M6 FLANGE 		0-91180-106-0 01 1 1511-
178 NUT; INST PANEL
(B) 		8-98037-629-0 15 1 1511-
336 COVER; INST PANEL SIDE
(A) GRAY 		8-97409-779-0 01 1 1511-
336 COVER; INST PANEL SIDE
(C) GRAY 		8-97411-635-2 01 1 1511-
336 COVER; INST PANEL SIDE
(B) 		8-97422-220-3 01 1 1511-
336 COVER; INST PANEL SIDE
(D) GRAY 		8-97424-712-0 01 1 1511-
544 SCREW; TRAY
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1511-
568 BOLT; COVER
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1511-
603 CLIP; COVER
(A) 		8-98004-025-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 01 1 1511-
603 CLIP; COVER
(B) 		8-98021-271-0 05 1 1511-
626 RETAINER
OD=15 BLACK 		8-94279-804-0 02 1 1511-
646 BRACKET; GARNISH PANEL
(A) 		8-98066-952-1 01 1 1511-
646 BRACKET; GARNISH PANEL
(B) 		8-98066-953-1 01 1 1511-
662 COVER; LWR,INST PANEL
GRAY 		8-97407-428-2 01 1 1511-
666 INSERT; INST PANEL
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5 		8-97926-400-0 04 1 1511-
696 BRACKET; KNEE 8-98098-126-1 01 1 1511-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> (A) GRAY 		8-97429-703-1 01 1 1511-
701 TRAY; INST
COMPARTMENT - I/P ASSIST SIDE WITHOUT LID<JDP> (B) GRAY 		8-97421-976-1 01 1 1511-
702 NUT; TRAY
(B) M6 FLANGE 		0-91180-106-0 02 1 1511-
702 NUT; TRAY
(A) 		8-98037-629-0 01 1 1511-
706 LID; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> GRAY 		8-97429-992-0 01 1 1511-
707 SHAFT; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-393-0 02 1 1511-
708 STOPPER; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98010-867-1 02 1 1511-
709 SCREW; TRAY INST
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> M5X16 TAPPING 		0-71040-516-0 04 1 1511-
712 LOCK; TRAY INST LID
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-98031-846-0 01 1 1511-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-396-0 01 1 1511-
715 SUPPORT; TRAY,HINGE
COMPARTMENT - I/P ASSIST SIDE WITH LID<JDN> 		8-97926-397-0 01 1 1511-
718 SEAL; COVER 8-98185-153-0 01 1 1511-
