Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

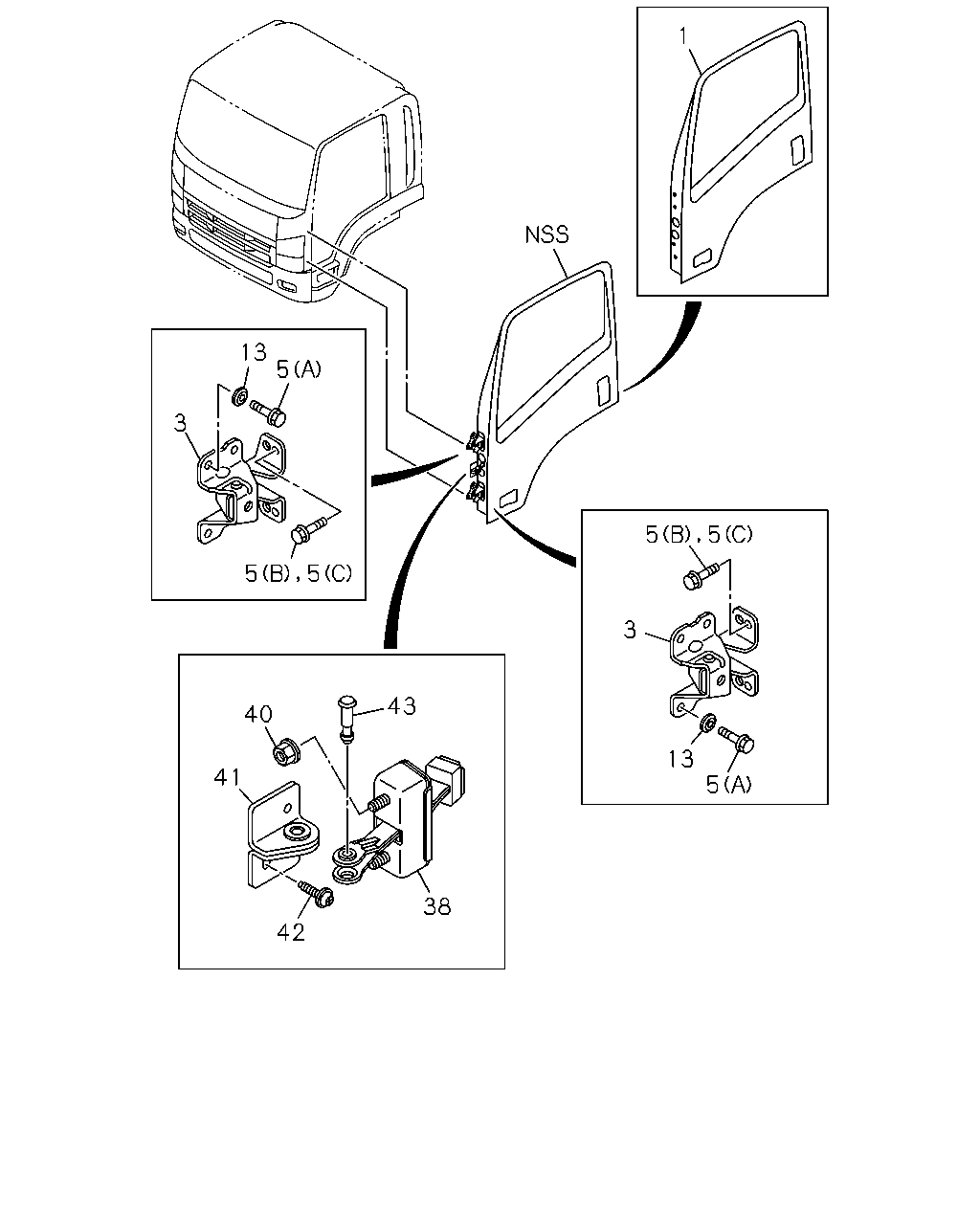

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#170578) — 12 parça
1
5
5
3
13
5
38
42
41
40
43
5
5
3
13
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; FRT,WO/TRIM
8-98260-598-0
01
1
1511-
1
DOOR ASM; FRT,WO/TRIM
8-98260-597-0
01
1
1511-
3
HINGE; DOOR FRT
8-98191-302-0
04
1
1511-
5
BOLT; HINGE
KD PREPARATORY PACK VAR.4<7TV> (C) M8X20 FLANGE
8-98049-756-0
08
1
1511-
5
BOLT; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) M8X23 FLANGE
8-98029-440-0
08
1
1511-
5
BOLT; HINGE
(A) M8X20 FLANGE
8-98049-756-0
12
1
1511-
13
WASHER; HINGE
EXC. KD PREPARATORY PACK VAR.4<7TV> ID=8.1 W/SEAL
8-97890-584-1
04
1
1511-
38
CHECKER ASM; DOOR
8-98296-602-0
02
1
1511-
40
NUT; CHECKER
M8 W/DISHED WASHER
8-98302-918-0
04
1
1511-
41
BRACKET; CHECKER
8-98029-290-3
02
1
1511-
42
BOLT; BRKT
M6X20 W/PL WASHER
8-98032-159-2
04
1
1511-
43
PIN
8-98037-152-2
02
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
