6-20 — SIDE PANEL AND STEP (#170577) — 46 parça

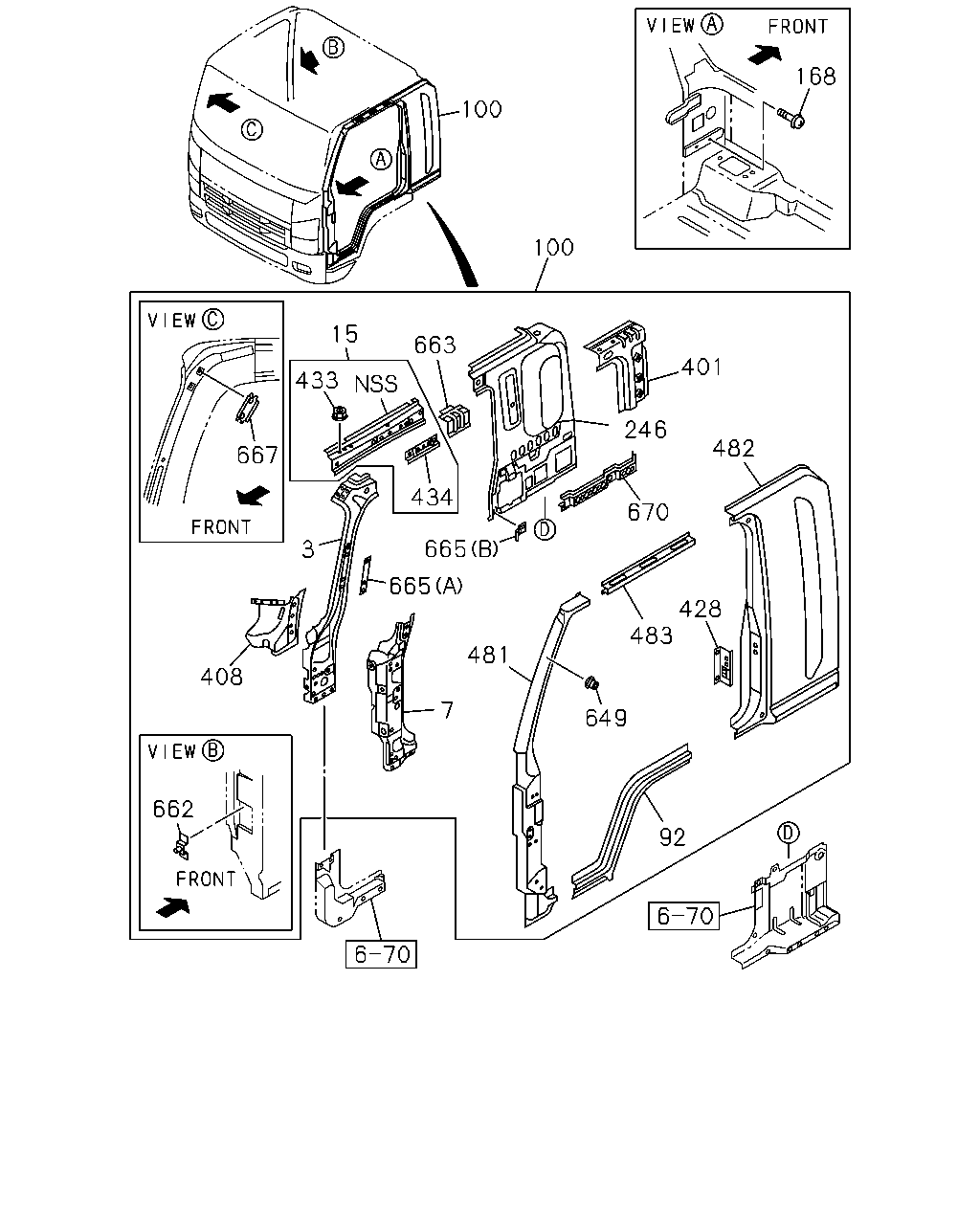

çizim 502964
100 100 663 15 433 667 3 434 665 665 481 670 482 246 401 408 662 7 649 483 428 92 168
BalonParca AdiParca NoAdetTipApplied Date
3 PANEL; CLOSING,FRT PILLAR 8-98058-237-1 01 1 1511-
3 PANEL; CLOSING,FRT PILLAR 8-98058-236-1 01 1 1511-
7 REINFORCEMENT; HINGE 8-97585-244-4 01 1 1511-
7 REINFORCEMENT; HINGE 8-97585-240-3 01 1 1511-
15 PANEL; CANT RAIL SIDE 8-97585-293-2 01 1 1511-
15 PANEL; CANT RAIL SIDE 8-97585-292-2 01 1 1511-
92 PANEL; SIDE SILL,CAB 8-98055-462-1 01 1 1511-
92 PANEL; SIDE SILL,CAB 8-98055-461-1 01 1 1511-
100 PANEL ASM; BODY SIDE 8-98088-588-4 01 1 1511-
100 PANEL ASM; BODY SIDE
MIRROR O/S UNDER VIEW<RR9> 		8-98059-479-7 01 1 1511-
100 PANEL ASM; BODY SIDE
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-97586-067-5 01 1 1511-
168 BOLT; BODY SIDE PANEL
T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 08 1 1511-
246 PANEL; RR PILLAR,INNER 8-97586-158-5 01 1 1511-
246 PANEL; RR PILLAR,INNER 8-97586-156-5 01 1 1511-
401 PATCH; CLOSING,FRT PILLAR 8-97586-161-2 01 1 1511-
401 PATCH; CLOSING,FRT PILLAR 8-97586-160-2 01 1 1511-
408 GUSSET; PILLAR 8-97586-194-2 01 1 1511-
408 GUSSET; PILLAR 8-97586-193-3 01 1 1511-
428 REINFORCEMENT; DOOR STRIKER 8-97585-261-4 01 1 1511-
428 REINFORCEMENT; DOOR STRIKER 8-97585-260-4 01 1 1511-
433 NUT; HEADER SHELF
M6 		9-09114-086-0 02 1 1511-
434 PATCH; ASSIST GRIP 8-98039-020-0 01 1 1511-
434 PATCH; ASSIST GRIP 8-98039-019-0 01 1 1511-
481 PANEL; SIDE FRT PILLAR 8-98072-802-0 01 1 1511-
481 PANEL; SIDE FRT PILLAR
MIRROR O/S UNDER VIEW<RR9> 		8-98092-912-0 01 1 1511-
481 PANEL; SIDE FRT PILLAR
EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98072-787-0 01 1 1511-
482 PANEL; SIDE RR PILLAR 8-98092-925-0 01 1 1511-
482 PANEL; SIDE RR PILLAR 8-98055-468-0 01 1 1511-
483 PANEL; SIDE CANTRAIL 8-98055-460-0 01 1 1511-
483 PANEL; SIDE CANTRAIL 8-98055-458-0 01 1 1511-
649 NUT; POP
M5 POP NUT 		8-97249-574-0 02 1 1511-
662 BRACKET; DUCT 8-97584-611-1 01 1 1511-
663 BRACKET; AIR 8-97585-208-2 01 1 1511-
663 BRACKET; AIR 8-97585-207-2 01 1 1511-
665 REINFORCEMENT; GRIP,ASSIST
(A) 		8-97585-314-0 01 1 1511-
665 REINFORCEMENT; GRIP,ASSIST
(B) 		8-98012-287-1 01 1 1511-
667 BRACKET; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-98109-948-0 01 1 1511-
670 STIFFENER; PANEL,SIDE 8-98015-044-1 01 1 1511-

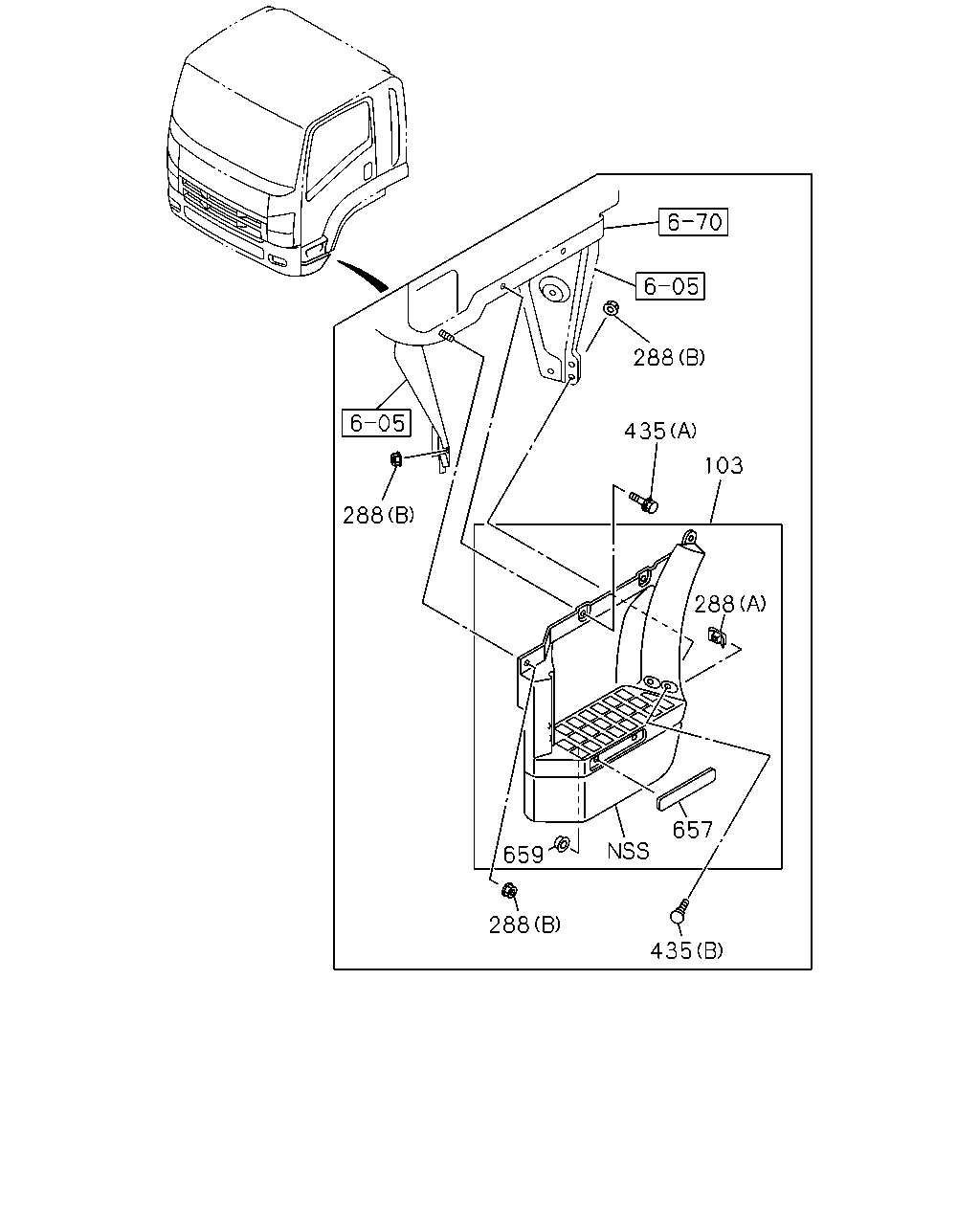

çizim 503073
288 435 103 288 657 288 659 435 288
BalonParca AdiParca NoAdetTipApplied Date
103 PLATE; STEP 8-98037-326-3 01 1 1511-
103 PLATE; STEP 8-98037-325-3 01 1 1511-
288 NUT; STEP
(B) M8 FLANGE 		0-91180-108-0 10 1 1511-
288 NUT; STEP
(A) M8 		8-98040-792-0 02 1 1511-
435 BOLT; RR STEP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 04 1 1511-
435 BOLT; RR STEP
(B) M8X18 		8-98146-670-0 08 1 1511-
657 REFLECTOR; REFLEX 8-97378-910-0 02 1 1511-
659 CLIP; SPRING NUT 8-97811-510-0 04 1 1511-
