5-01 — FRAME AND OTHER PARTS
(#170567) — 41 parça
◀

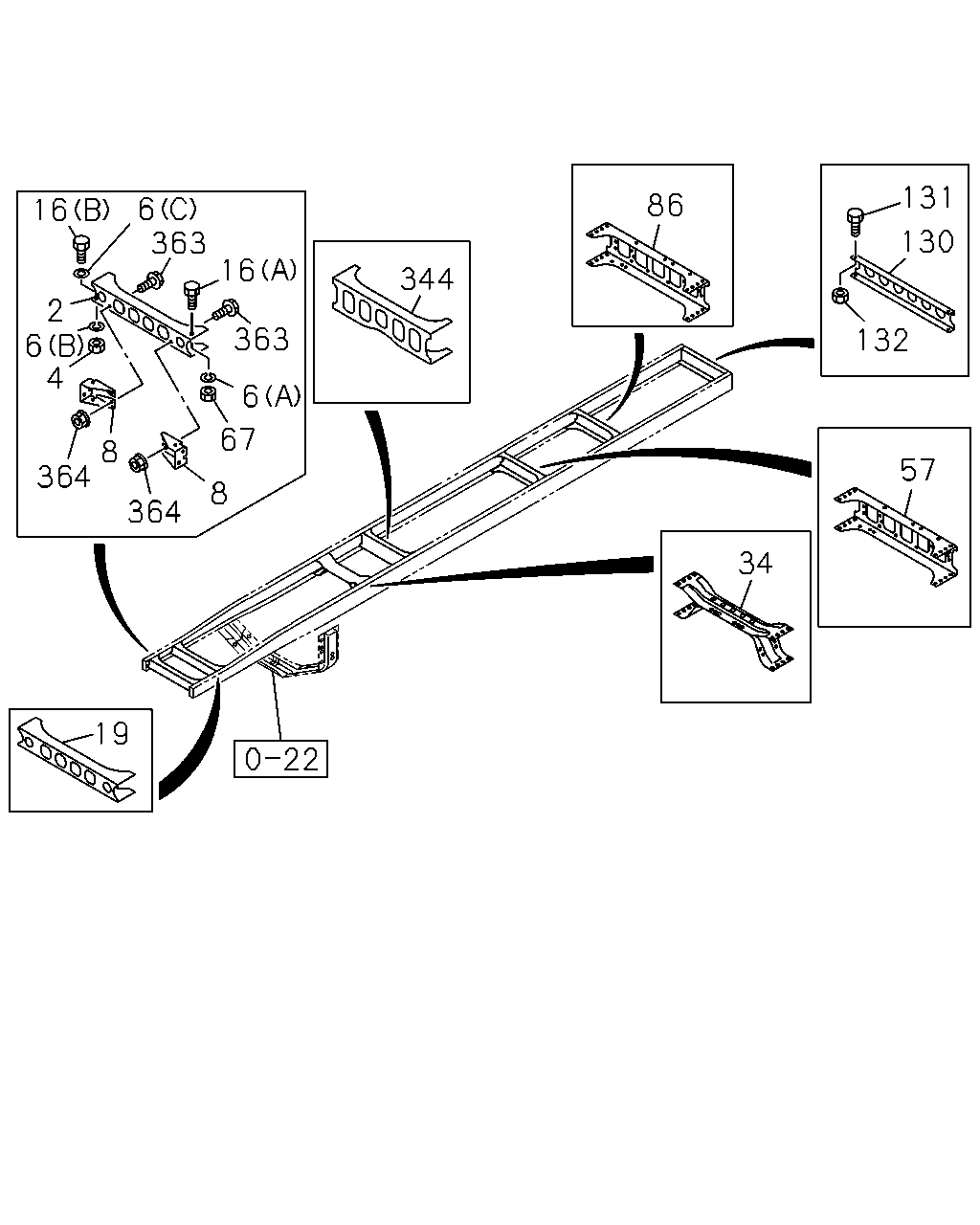

[501A] CROSS MEMBER (20 parça)

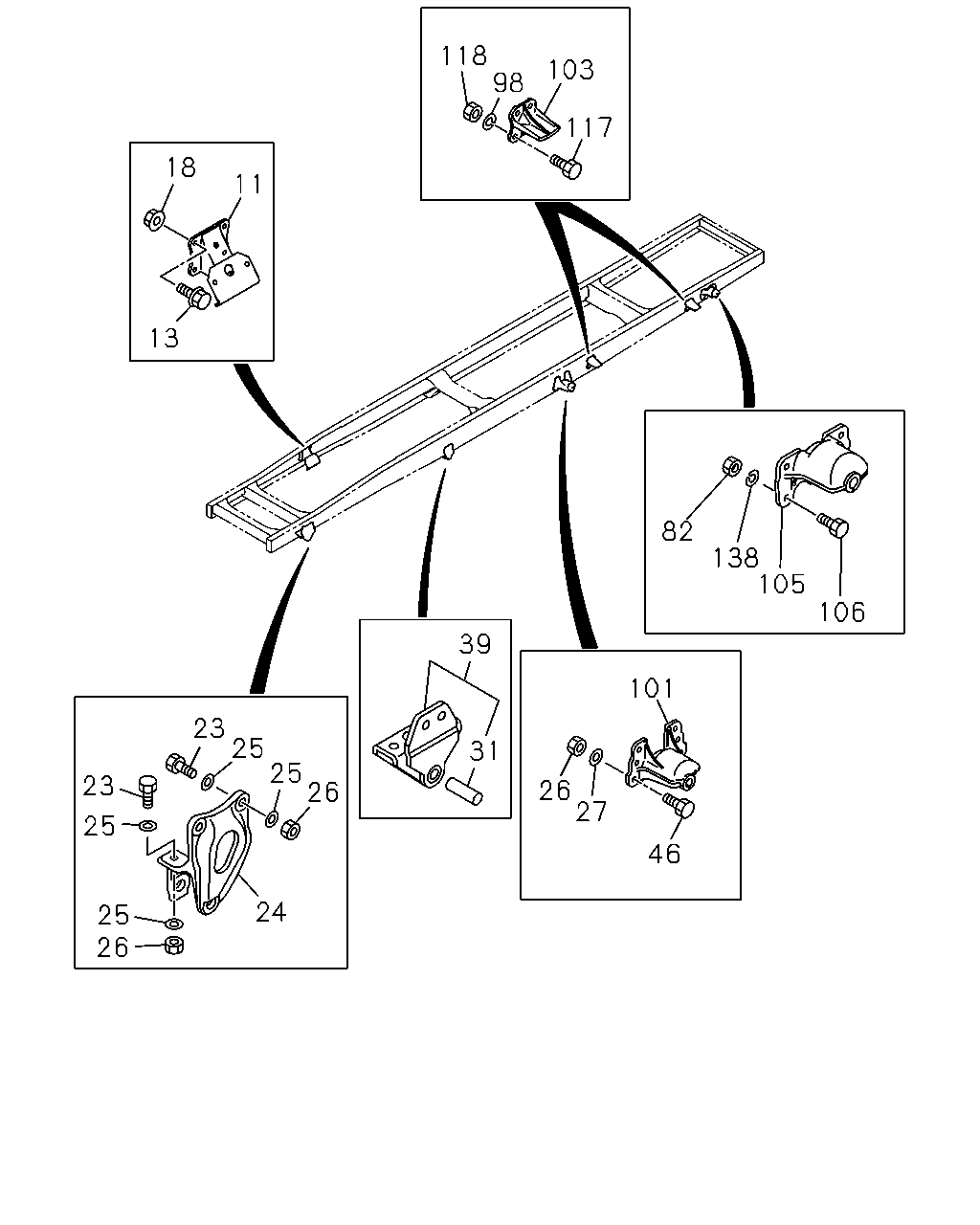

[501A] BRACKET AND OTHER PARTS (21 parça)
▶
16
2
6
363
6
363
16
6
67
8
364
364
8
4
344
86
131
130
132
57
34
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-97647-710-1
01
1
1511-
4
NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14
0-91110-514-0
02
1
1511-
6
WASHER; LK,1ST C/MBR
(A) ID=12.2
0-91510-512-0
02
1
1511-
6
WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2
0-91510-814-0
02
1
1511-
6
WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15
8-98010-627-1
02
1
1511-
8
GUSSET; 1ST C/MBR
8-97617-910-2
01
1
1511-
8
GUSSET; 1ST C/MBR
8-97617-911-3
01
1
1511-
16
BOLT; 1ST C/MBR TO S/MBR
(A) M12X30
0-20851-230-0
02
1
1511-
16
BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40
0-20851-440-0
02
1
1511-
19
MEMBER; CROSS,2ND
8-97620-866-6
01
1
1511-
34
MEMBER; CROSS,3RD
8-97609-754-0
01
1
1511-
57
MEMBER; CROSS,RR SUSP FRT
8-97610-935-1
01
1
1511-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
1511-
86
MEMBER; CROSS,RR SUSP RR
8-97610-935-1
01
1
1511-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
1511-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
1511-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
1511-
344
MEMBER; CROSS,4TH
8-97609-472-2
01
1
1511-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
1511-
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
1511-
101
46
27
26
31
39
106
105
138
82
117
103
98
118
11
18
13
25
25
23
26
24
26
25
25
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97619-830-0
02
1
1511-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1511-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1511-
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
1511-
24
BRACKET; FRT SPR,FRT
1-53351-262-1
01
1
1511-
24
BRACKET; FRT SPR,FRT
1-53351-263-1
01
1
1511-
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1511-
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
1511-
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
1511-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
1511-
39
BRACKET; FRT SPR,RR
1-53352-126-2
02
1
1511-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
1511-
82
NUT; BRKT
M14
0-91110-514-0
10
1
1511-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
1511-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
1511-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
1511-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
1511-
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
1511-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1511-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1511-
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
1511-
