◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11729 - FSR MIDDLE EAST EURO1 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#170562) — 29 parça

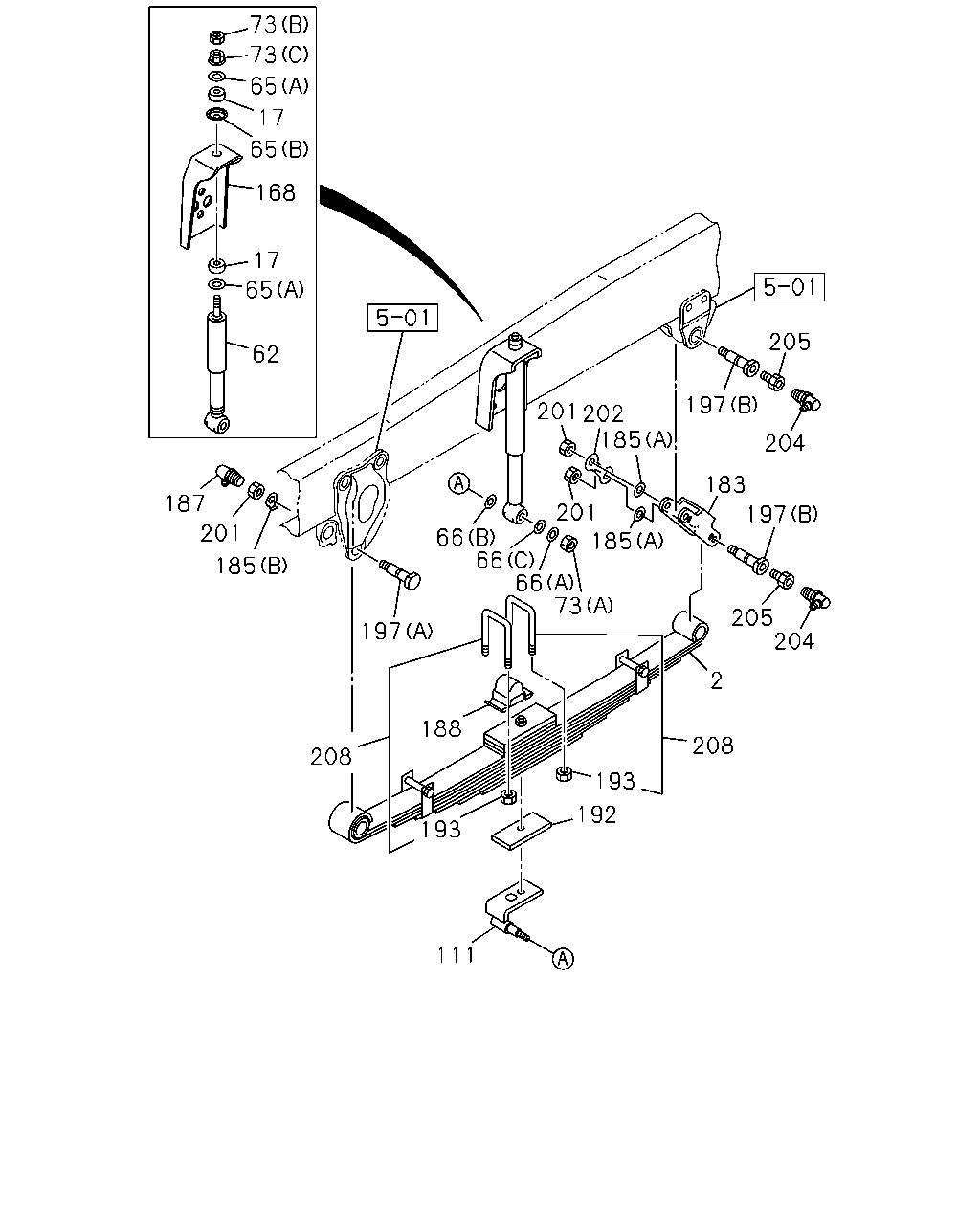

çizim 501041
73 65 73 17 65 168 17 65 62 187 185 201 66 197 66 66 73 201 201 202 197 205 183 204 197 205 204 2 208 193 192 111 208 188 185 185 193
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-559-0 01 1 1511-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-558-0 01 1 1511-
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1511-
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1511-
65 WASHER; S/ABS
(B) 		1-51631-023-0 02 1 1511-
65 WASHER; S/ABS
(A) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1511-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1511-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1511-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1511-
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1511-
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1511-
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1511-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 1511-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 1511-
168 BRACKET; S/ABS,FRT SUSP 1-51681-494-0 02 1 1511-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1511-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1511-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1511-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1511-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1511-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1511-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1511-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1511-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1511-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1511-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1511-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 04 1 1511-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1511-
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 1511-
