4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#170558) — 38 parça

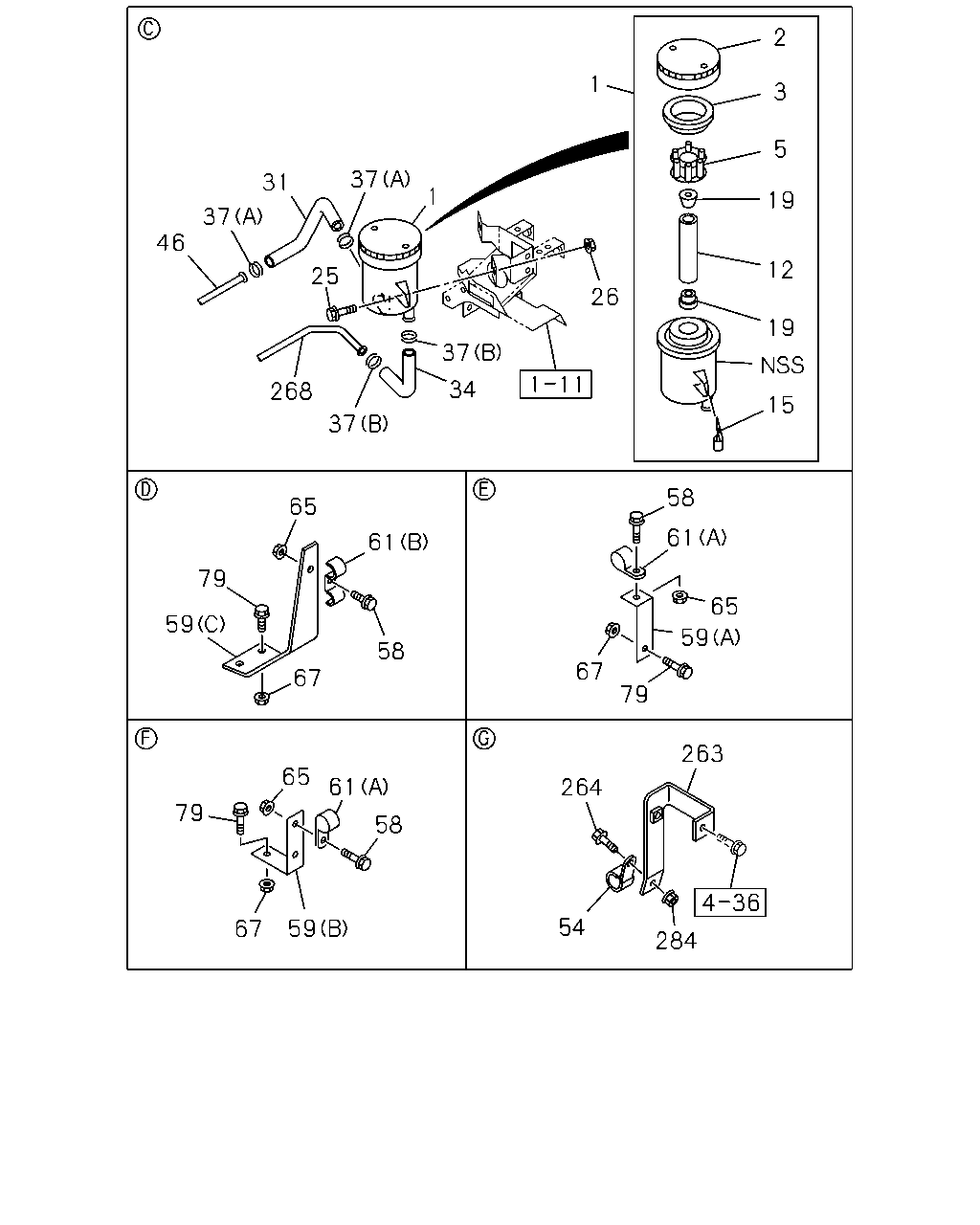

46 37 31 37 1 25 268 37 34 37 26 1 2 3 5 19 12 19 15 59 79 65 61 58 67 79 65 61 58 67 59 264 263 284 54 67 79 59 65 61 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1511-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1511-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1511-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1511-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1511-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1511-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1511-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	1511-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1511-
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1511-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1511-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1511-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1511-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1806	8-98178-348-0	01	1	1511-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	01	1	1511-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	03	1	1511-
59	BRACKET; CLIP,OIL PIPE (B)	1-21464-481-0	01	1	1511-
59	BRACKET; CLIP,OIL PIPE (C)	8-98144-992-1	01	1	1511-
59	BRACKET; CLIP,OIL PIPE (A)	8-98189-356-0	01	1	1511-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	02	1	1511-
61	CLIP; OIL PIPE (B) ID=19 & 16 L=25 & 20	1-09700-806-1	01	1	1511-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1511-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	1511-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	04	1	1511-
263	BRACKET; P/S PIPE	8-98079-444-0	01	1	1511-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1511-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98199-731-0	01	1	1511-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1511-

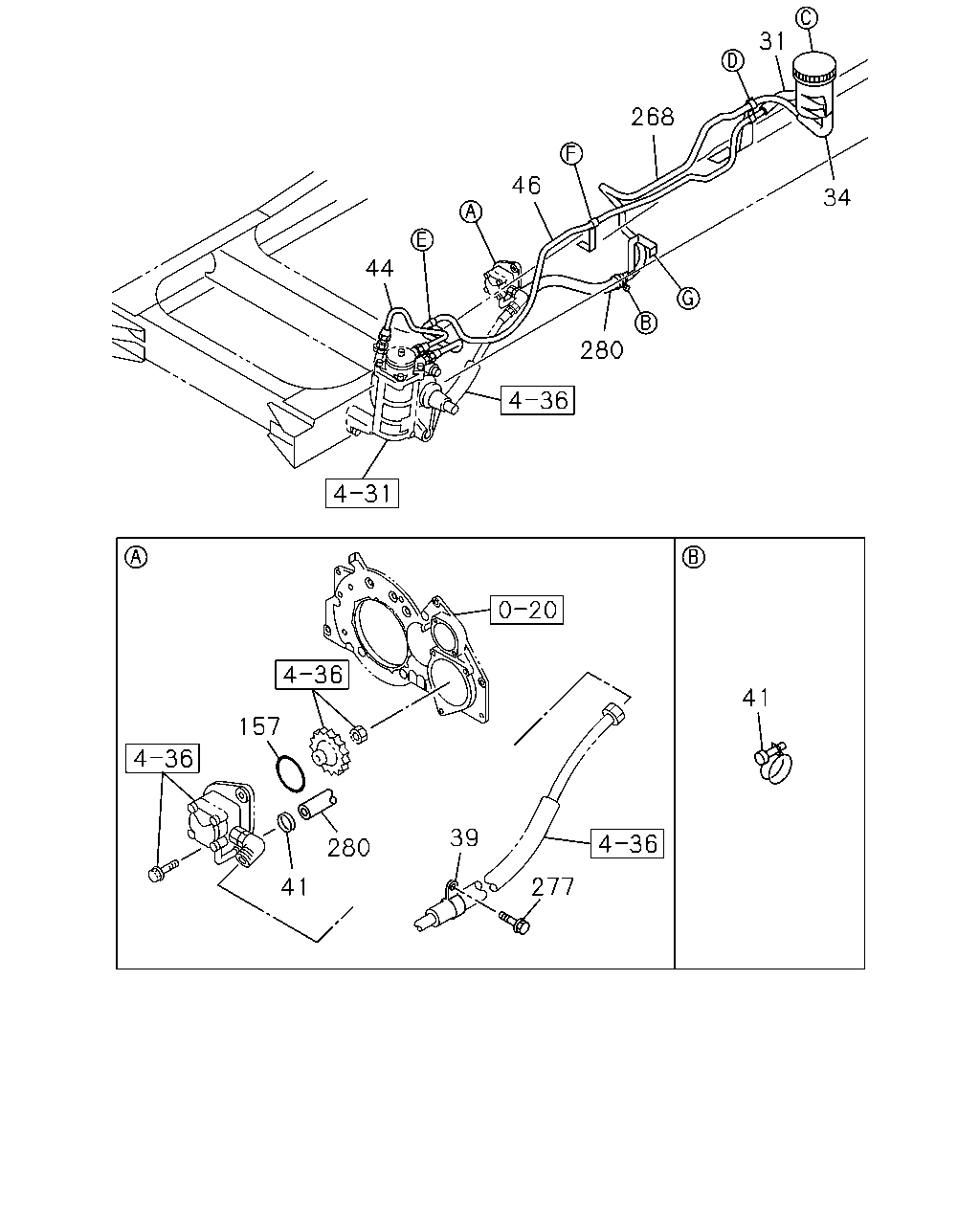

44 46 268 31 34 280 41 277 39 280 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98093-500-0	01	1	1511-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	1511-
39	CLIP; FLEX HOSE ID=40	8-94226-553-0	01	1	1511-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1511-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98112-952-0	01	1	1511-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1806	8-98178-348-0	01	1	1511-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	1511-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98199-731-0	01	1	1511-
277	BOLT; HOSE CLIP M8X16 FLANGE	0-28050-816-0	01	1	1511-
280	HOSE; P/S OIL PUMP,INL	8-98094-167-0	01	1	1511-
