Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

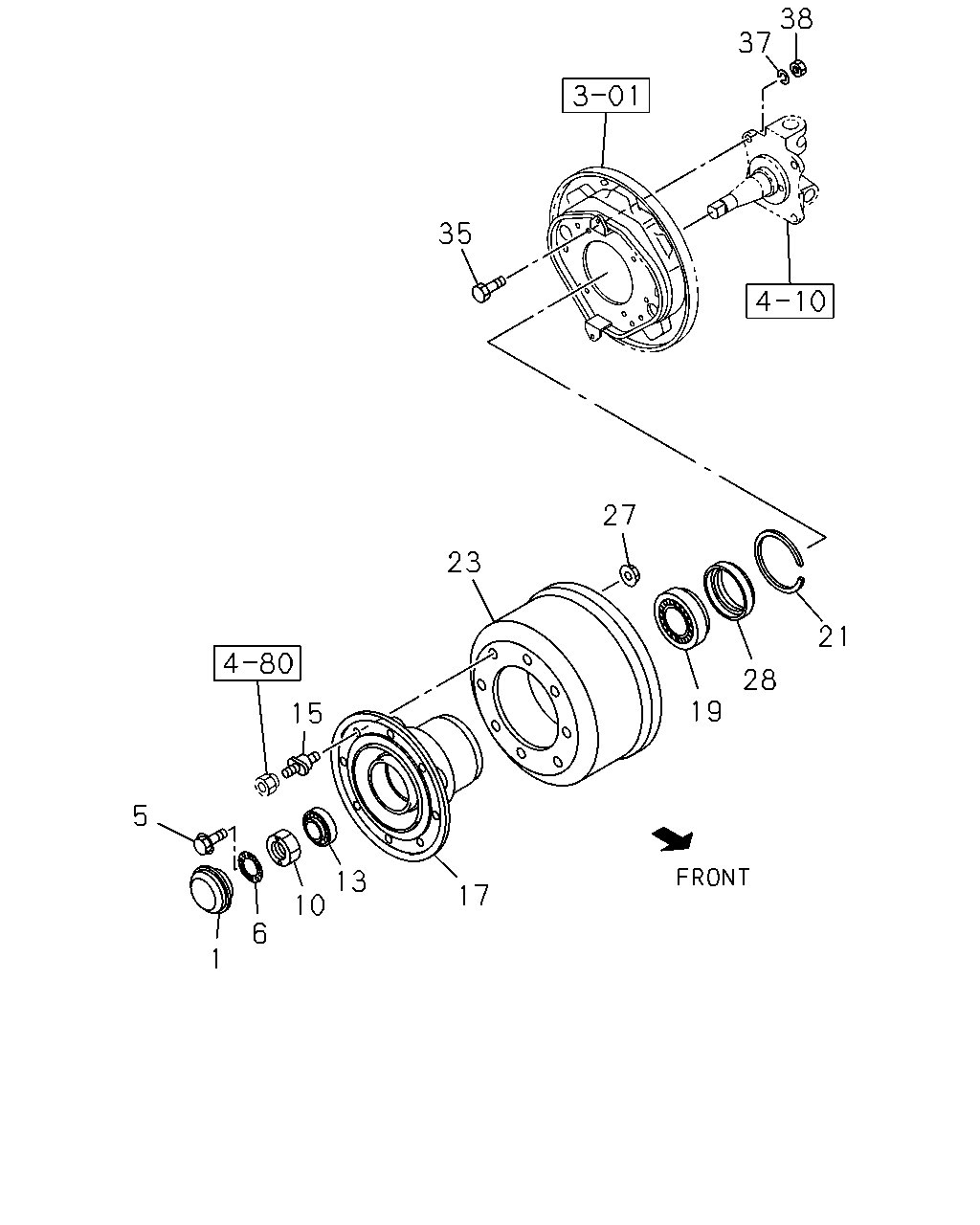

4-11 — FRONT HUB AND DRUM OR ROTOR
(#170552) — 17 parça
35
37
38
5
15
23
27
21
28
19
1
13
17
10
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-030-0
02
1
1511-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
1511-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
1511-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
1511-
13
BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-064-0
02
1
1511-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-065-0
02
1
1511-
15
PIN; WHEEL,FRT AXLE
M24X37.5,M22X55.5 RH THREAD
1-42331-132-1
08
1
1511-
15
PIN; WHEEL,FRT AXLE
M24X37.5 LH THREAD,M22X55.5 RH THREAD
1-42332-132-1
08
1
1511-
17
HUB; FRT AXLE
1-42312-036-2
02
1
1511-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-206-0
02
1
1511-
21
RING; SNAP,HUB
OD=117
1-09587-001-0
02
1
1511-
23
DRUM; BRK,FRT
1-42315-278-1
02
1
1511-
27
NUT; WHEEL PIN,FRT AXLE
M22 FLANGE
1-09440-065-0
16
1
1511-
28
SEAL; OIL,FRT HUB
1-09625-568-0
02
1
1511-
35
BOLT; DRUM COVER
M14X45
0-20951-445-0
08
1
1511-
37
WASHER; LK,BACK PLATE
ID=14.2
0-91510-814-0
08
1
1511-
38
NUT; BACK PLATE
M14
0-91110-514-0
08
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
