4-10 — FRONT AXLE (#170551) — 74 parça

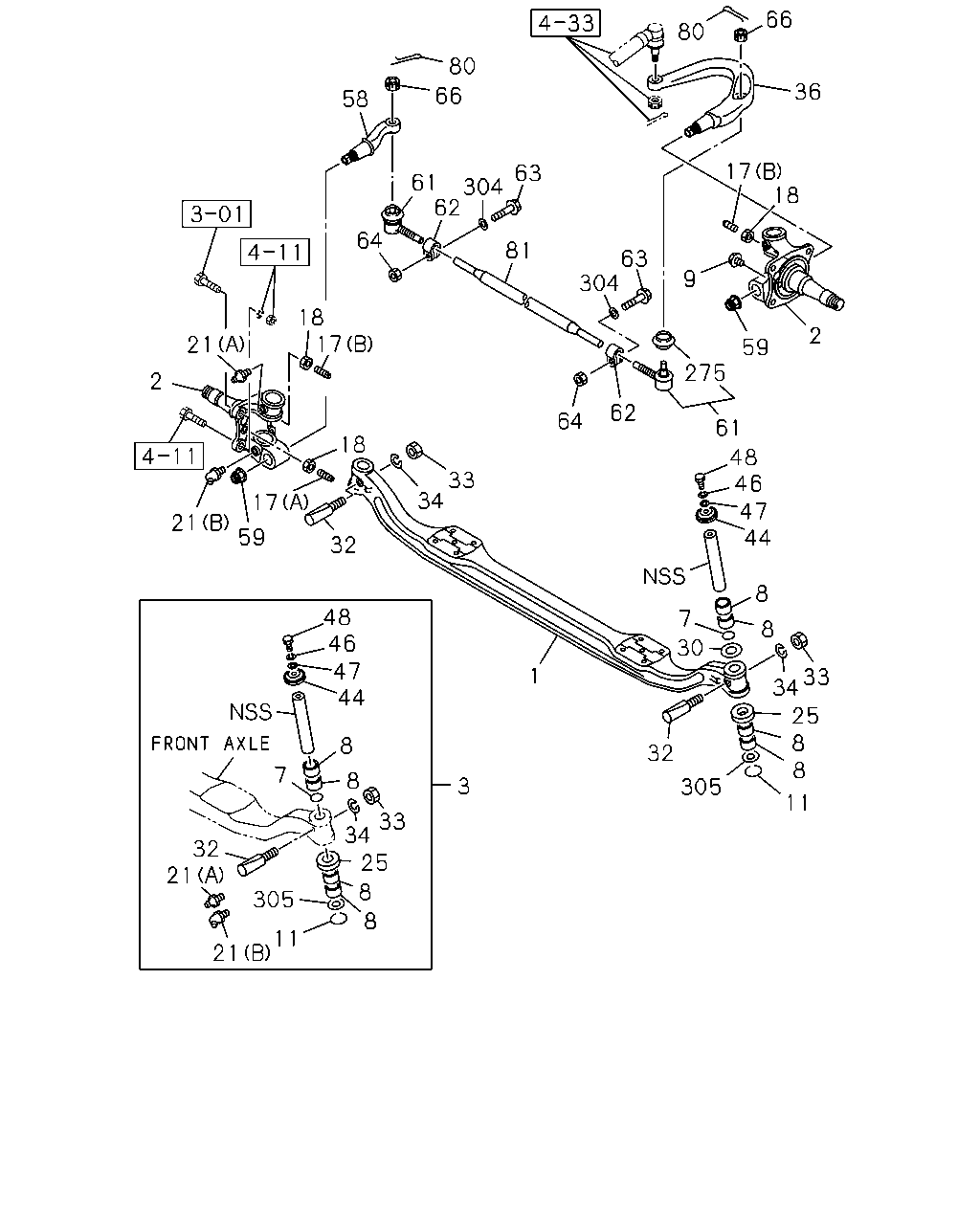

çizim 501802
80 58 66 61 64 21 2 18 18 17 17 21 59 32 33 34 48 46 47 44 7 8 33 34 25 3 32 21 305 8 8 11 8 1 32 305 11 25 33 8 8 34 8 8 30 44 46 48 47 7 21 61 62 64 304 63 275 59 2 9 81 62 304 63 80 66 36 17 18
BalonParca AdiParca NoAdetTipApplied Date
1 AXLE; FRT 8-98057-479-2 01 1 1511-
2 KNUCKLE; FRT AXLE 8-98172-431-1 01 1 1511-
2 KNUCKLE; FRT AXLE 8-98172-432-1 01 1 1511-
3 KING PIN SET 1-87831-295-2 01 1 1511-
3 KING PIN SET 1-87831-296-2 01 1 1511-
7 SEAL; OIL,KING PIN 1-09625-005-1 02 1 1511-
8 BEARING; NEEDLE,KING PIN
NSK 		1-09811-339-0 08 1 1511-
9 PLUG; KNUCKLE
M14X14 		8-97329-621-0 01 1 1511-
11 RING; SNAP,KNUCKLE PLUG 1-09589-017-1 02 1 1511-
17 BOLT; STOPPER KNUCKLE
(A) M14X47 		1-09009-191-0 01 1 1511-
17 BOLT; STOPPER KNUCKLE
(B) M14X60 		8-98075-155-0 02 1 1511-
18 NUT; STOPPER BOLT,KNUCKLE
M14 		0-91112-814-0 03 1 1511-
21 NIPPLE; GREASE,KING PIN
(A) PT1/8 STRAIGHT 		0-90301-410-0 02 1 1511-
21 NIPPLE; GREASE,KING PIN
(B) PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 1511-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-031-0 01 1 1511-
25 BEARING; THRUST,KING PIN
NSK 		1-09829-033-1 01 1 1511-
30 WASHER; THRUST,KING PIN
T=3.900 		1-43171-261-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.912 		1-43171-262-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.925 		1-43171-263-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.937 		1-43171-264-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.950 		1-43171-265-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.962 		1-43171-266-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.975 		1-43171-267-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=3.987 		1-43171-268-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.000 		1-43171-269-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.012 		1-43171-270-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.025 		1-43171-271-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.037 		1-43171-272-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.050 		1-43171-273-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.062 		1-43171-274-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.075 		1-43171-275-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.087 		1-43171-276-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.100 		1-43171-277-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.112 		1-43171-278-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.125 		1-43171-279-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.137 		1-43171-280-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.150 		1-43171-281-1 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.162 		1-43171-311-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.175 		1-43171-312-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.187 		1-43171-313-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.200 		1-43171-314-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.212 		1-43171-315-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.225 		1-43171-316-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.237 		1-43171-317-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.250 		1-43171-318-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.262 		1-43171-319-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.275 		1-43171-320-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.287 		1-43171-321-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.300 		1-43171-322-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.312 		1-43171-323-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.325 		1-43171-324-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.337 		1-43171-325-0 AR 1 1511-
30 WASHER; THRUST,KING PIN
T=4.350 		1-43171-326-0 AR 1 1511-
32 BOLT; KEY,KING PIN 1-43116-013-1 02 1 1511-
33 NUT; KEY BOLT
M10 		0-91110-510-0 02 1 1511-
34 WASHER; LK,KEY BOLT
ID=10.2 		0-91510-510-0 02 1 1511-
36 ARM; KNUCKLE 1-43133-055-8 01 1 1511-
44 COVER; KING PIN 1-43175-031-0 02 1 1511-
46 WASHER; LK,COVER
ID=12.2 		0-91510-812-0 02 1 1511-
47 WASHER; PL,COVER,KING PIN
ID=12.5 OD=32 		0-91614-712-0 02 1 1511-
48 BOLT; COVER
M12X25 		1-09009-081-0 02 1 1511-
58 ARM; TIE ROD 1-43134-034-4 01 1 1511-
59 NUT; TIE ROD ARM
M27 FLANGE 		1-09449-082-0 02 1 1511-
61 ROD END; TIE ROD 1-43150-761-1 01 1 1511-
61 ROD END; TIE ROD 1-43150-762-1 01 1 1511-
62 CLAMP; TIE ROD 1-43159-002-3 02 1 1511-
63 BOLT; CLAMP TIE ROD
M12X45 FLANGE 		0-28061-245-0 02 1 1511-
64 NUT; CLAMP
M12 		0-91110-512-0 02 1 1511-
66 NUT; TIE ROD END
M16 SLOTTED 		1-09442-031-0 02 1 1511-
80 PIN; SPLIT,ROD END
OD=3.7 L=22 		0-81124-022-0 02 1 1511-
81 ROD; TIE 1-43151-133-0 01 1 1511-
275 BOOT; ROD END,TIE 1-85574-046-0 02 1 1511-
304 WASHER; PL
ID=12.5 		0-91614-512-0 02 1 1511-
305 COVER; KNUCKLE 1-43175-030-0 02 1 1511-
