Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶

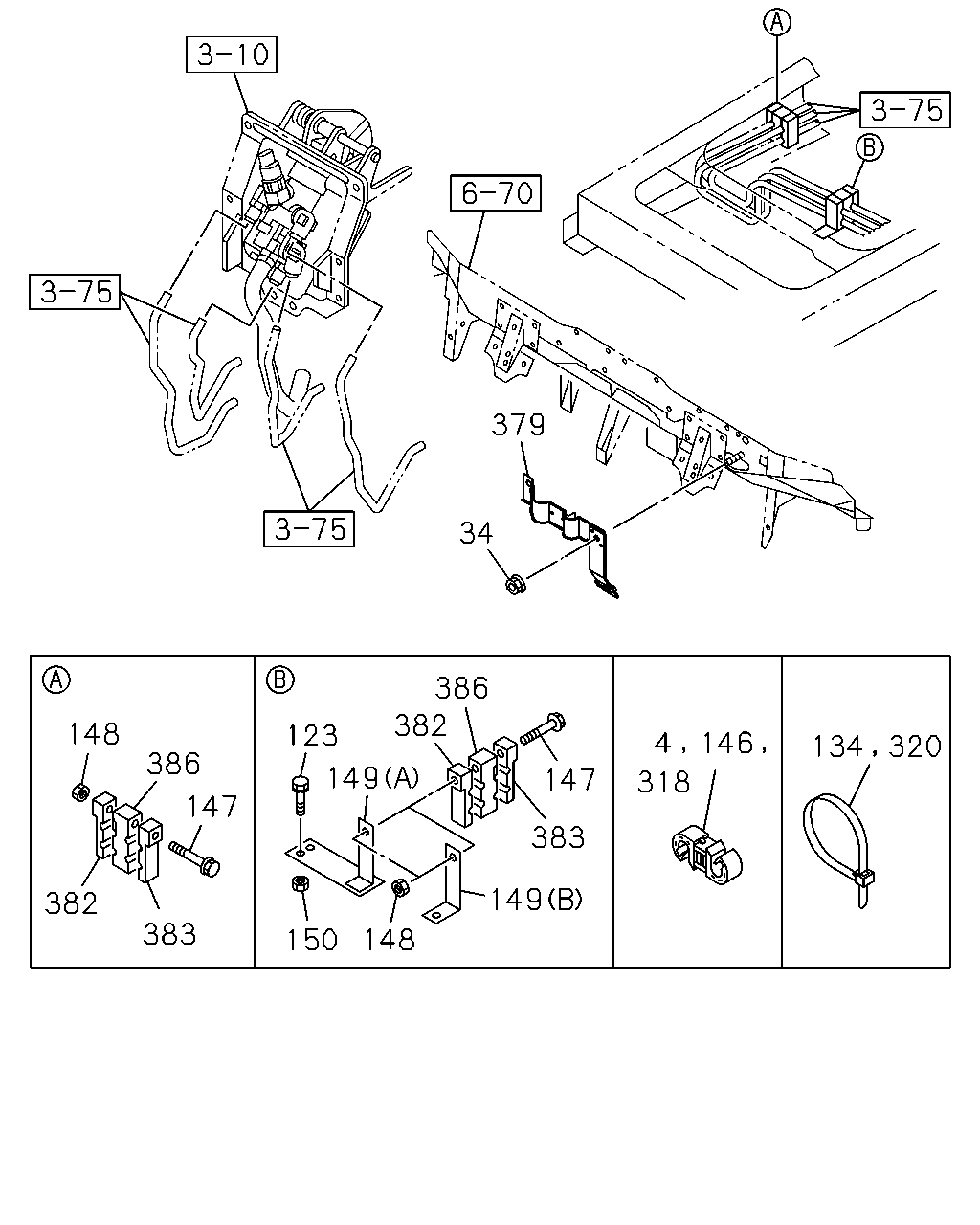

3-78 — FIXING PARTS; AIR PIPING
(#170549) — 20 parça
379
34
148
386
147
383
382
150
148
149
386
382
123
149
383
147
146
318
134
320
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
1511-
4
CLIP; AIR PIPE
ID=6.35 & 12
1-09709-275-1
02
1
1511-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1511-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
02
1
1511-
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1511-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1511-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1511-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
07
1
1511-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
05
1
1511-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
05
1
1511-
149
BRACKET; PIPE CLIP
(A)
8-98090-114-0
01
1
1511-
149
BRACKET; PIPE CLIP
(B)
8-98116-193-0
01
1
1511-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
1511-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
01
1
1511-
318
CLIP; AIR PIPE
ID=6.35 & 15
1-09709-276-1
01
1
1511-
320
CLIP; BAND,FLEX FIX
L=250
5-09707-030-1
01
1
1511-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
1511-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
05
1
1511-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
05
1
1511-
386
CLIP; CENTER
ID=10
1-09709-242-0
05
1
1511-
