3-52 — BRAKE PIPING; OIL,FRONT (#170543) — 20 parça

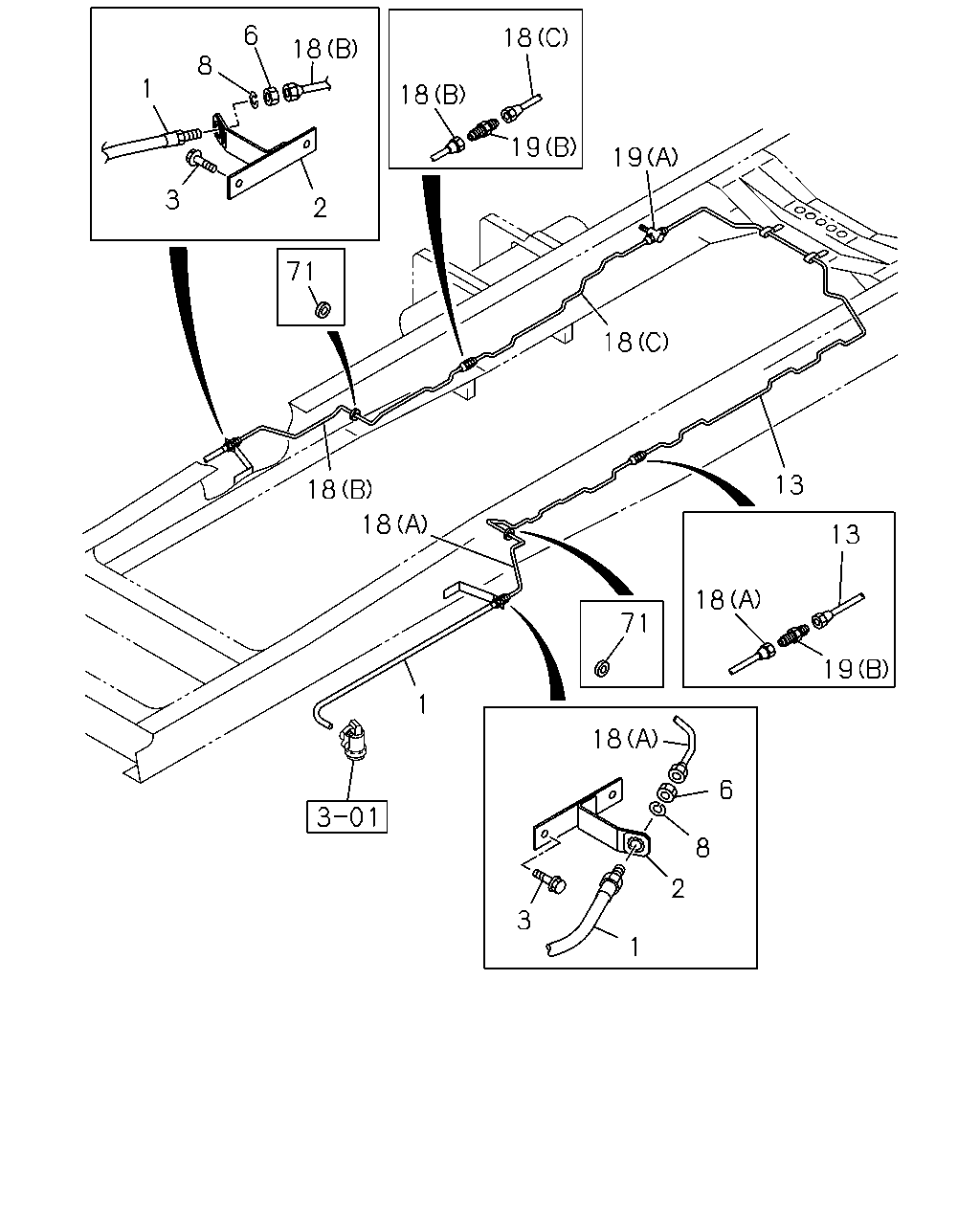

çizim 502173
1 2 3 8 6 18 18 18 19 71 18 18 18 19 13 13 18 19 71 18 6 8 2 1 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK 8-98187-085-0 02 1 1511-
2 BRACKET; FLEX HOSE,FRT BRK 8-98119-698-1 02 1 1511-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1511-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1511-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1511-
13 PIPE; OIL,UNION TO UNION
L=2281 SERVICED BY L=2350 		1-47428-741-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=584 SERVICED BY L=600 		1-47428-725-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=527 SERVICED BY L=550 		1-47428-724-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) L=1319 SERVICED BY L=1370 		1-47428-734-0 01 1 1511-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1511-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-606-0 01 1 1511-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1511-

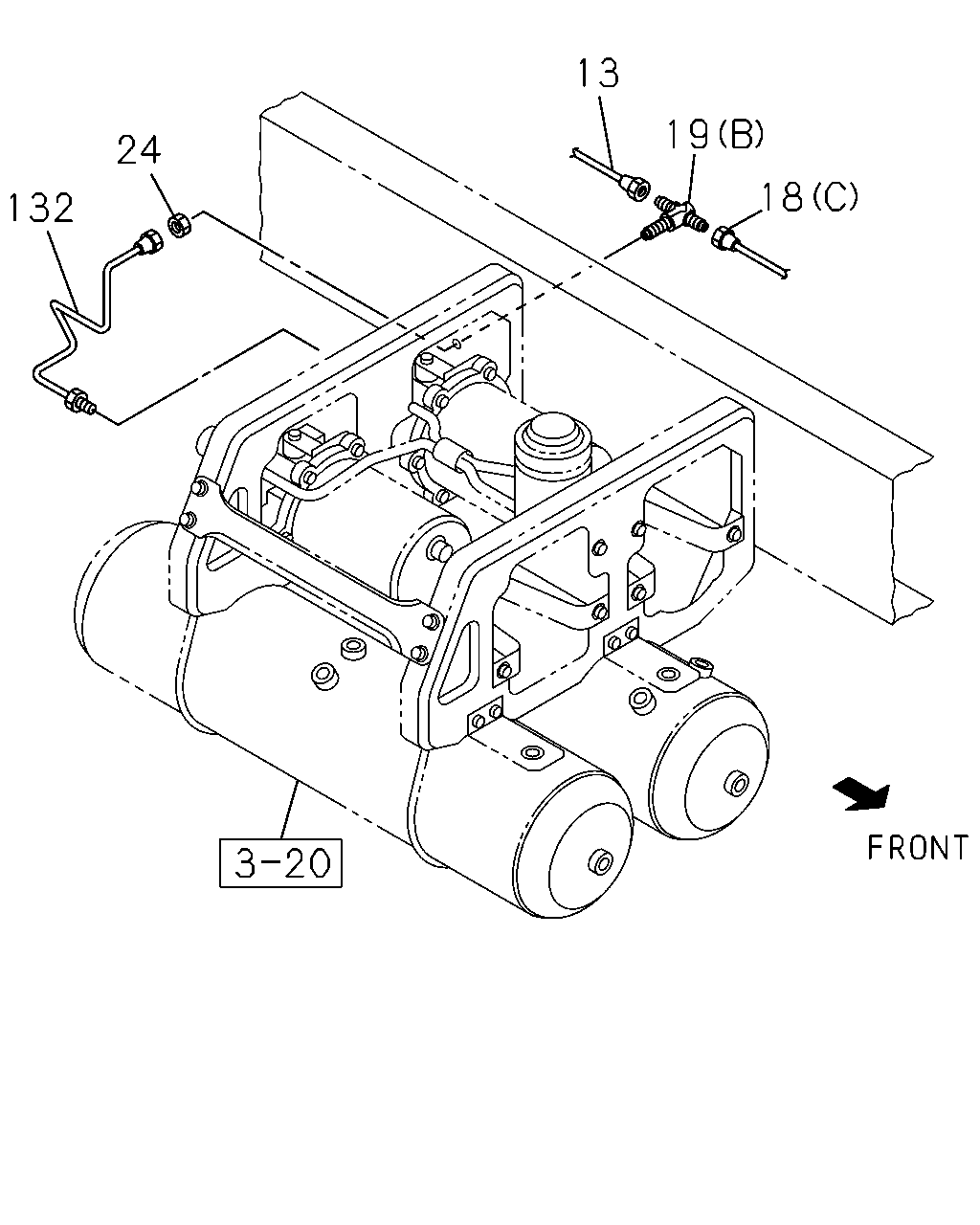

çizim 502202
132 24 13 19 18
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
L=2281 SERVICED BY L=2350 		1-47428-741-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=584 SERVICED BY L=600 		1-47428-725-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=527 SERVICED BY L=550 		1-47428-724-0 01 1 1511-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) L=1319 SERVICED BY L=1370 		1-47428-734-0 01 1 1511-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1511-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-606-0 01 1 1511-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1511-
132 PIPE; OIL,BRK,HYD UNIT
L=407 		8-98120-162-0 01 1 1511-
