◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10634 - FSS/FTS-RHD ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#1705) — 85 parça
çizim 93741
1 9 12 13 17 19 20 21 22 23 29 29 45 47 49 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 9207- ● ● ● ● ●
9 WRENCH; WHEEL PIN
B=41X21 L=440 		1-85113-015-1 01 1 9207- ● ● ● ● ●
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 9207- ● ● ● ● ●
13 WRENCH; MONKEY 1-85117-003-1 01 1 9207-9304 ● ● ● ● ●
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 9305- ● ● ● ● ●
17 HAMMER 9-85121-406-0 01 1 9207- ● ● ● ● ●
19 WRENCH; 7X8
7X8 		9-09592-107-0 01 1 9207- ● ● ● ● ●
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 9207- ● ● ● ● ●
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 9207- ● ● ● ● ●
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 9207- ● ● ● ● ●
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 9207- ● ● ● ● ●
29 DRIVER; SCREW
<+> L=205 		9-09595-022-0 01 1 9207- ● ● ● ● ●
29 DRIVER; SCREW
<+> L=275 		9-09595-023-0 01 1 9207- ● ● ● ● ●
29 DRIVER; SCREW
<-> L=205 		9-09595-126-0 01 1 9207- ● ● ● ● ●
29 DRIVER; SCREW
<-> L=325 		9-09595-129-0 01 1 9207- ● ● ● ● ●
45 WRENCH; FRT NUT 1-85111-001-0 01 1 9207- ● ● ● ● ●
47 WRENCH ASM; UNIVERSAL,INJ PUMP 9-85113-702-0 01 1 9207- ● ● ● ● ●
49 REPLACER ASM; VALVE
(A) 		1-85235-006-0 01 1 9207- ● ● ● ● ●
49 REPLACER ASM; VALVE
(B) 		9-85231-818-0 01 1 9207- ● ● ● ● ●
çizim 93988
179 180 186 208 193 230 232 237 268 209 274 271
BalonParca AdiParca NoAdetTipApplied Date A B C D E
179 PULLER; SPD METER GEAR 9-85210-181-0 01 1 9207- ● ● ●
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 9207- ● ● ●
186 ADJUSTER; BRAKE 1-85261-001-0 01 1 9207- ● ● ● ● ●
193 JACK ASM
10TON 		1-85510-013-1 01 1 9207- ● ● ● ● ●
208 HANDLE; JACK
L=680 		1-85515-004-0 01 1 9207-9405 ● ● ● ● ●
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 9406- ● ● ● ● ●
209 CLIP; JACK HANDLE
ID=12 		1-73638-008-2 02 1 9207- ● ● ● ● ●
230 PUMP; GREASE 1-85556-007-2 01 1 9207- ● ● ● ● ●
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE(SG4) 		1-09360-245-1 01 1 9207- ● ● ● ● ●
237 BAG; TOOL 8-94367-102-0 01 1 9207-9509 ● ● ● ● ●
237 BAG; TOOL 8-97130-902-0 01 1 9510- ● ● ● ● ●
268 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9207- ● ● ● ●
268 SCREW; CLIP
M5X16 W/PL WASHER 		1-09981-532-0 02 1 9207- ●
271 CLIP; TIRE HANGER
ID=14 		1-73638-009-2 02 1 9207- ● ● ● ● ●
274 SCREW; CLIP
M6X16 TAPPING 		9-07066-616-0 02 1 9207- ● ● ● ●
274 SCREW; CLIP
M5X16 W/PL WASHER 		1-09981-532-0 02 1 9207- ●
çizim 94060
157 160 161 162 162 166 167 169 170 171 172 177 183 183 185 189
BalonParca AdiParca NoAdetTipApplied Date A B C D E
157 REPLACER KIT; RETURN SPR 1-85237-002-0 01 1 9207- ● ● ●
160 REMOVER; NEEDLE BRG
L=228 		1-85238-010-0 01 1 9207- ● ● ●
161 REMOVER; TIE ROD ARM 9-85141-603-0 01 1 9207- ● ● ●
162 SETTING TOOL; NEEDLE BRG
(B) L=181 		1-85238-008-0 01 1 9207- ● ● ●
162 SETTING TOOL; NEEDLE BRG
(A) L=213 		1-85238-009-0 01 1 9207- ● ● ●
166 ALIGNER; CLU RELEASE LEVER
L=480 		1-85253-011-0 01 1 9207- ● ● ●
167 ALIGNER; CLU PILOT
L=185 		1-85253-008-0 01 1 9207- ● ● ●
169 BRACKET; SPLINE YOKE 9-85221-243-1 01 1 9207- ● ● ●
170 HANDLE; TURNING,FINAL 9-85251-121-0 01 1 9207- ● ● ●
171 PULLER ASM; PINION BRG 9-85210-172-0 01 1 9207- ● ● ●
172 PULLER ASM; BRG DIFF PILOT 9-85210-173-0 01 1 9207- ● ● ●
177 SETTING TOOL KIT
L=220 		9-85221-323-0 01 1 9207- ● ● ●
183 PULLER; MAINSHAFT BRG
(A) 		9-85210-145-0 01 1 9207- ● ● ●
183 PULLER; MAINSHAFT BRG
(B) 		9-85210-192-0 01 1 9207- ● ● ●
185 WRENCH; MAINSHAFT NUT 1-85111-004-0 01 1 9207- ● ● ●
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 9207- ● ● ● ● ●
çizim 94249
51 52 53 55 59 60 70 76 93 87 84 80 79 77 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E
51 PULLER ASM; WATER PUMP 9-85210-120-0 01 1 9207- ● ● ● ● ●
52 REMOVER; WATER PUMP 9-85210-097-0 01 1 9207- ● ● ● ● ●
53 PULLER; TAPER BUSHING 9-85210-122-0 01 1 9207- ● ● ● ● ●
55 SETTING TOOL; TIMING GEAR 9-85220-033-0 01 1 9207- ● ● ● ● ●
59 PULLER ASM; TIMING GEAR 9-85210-141-0 01 1 9207- ● ● ● ● ●
60 PULLER; TIMING GEAR 9-85210-505-0 01 1 9207- ● ● ● ● ●
70 TOOL; SETTING,OIL SEAL 5-85220-044-0 01 1 9207- ● ● ● ● ●
76 TOOL; SETTING,SEAL 9-85220-034-0 01 1 9207- ● ● ● ● ●
77 TOOL; SETTING,CYL LINER 5-85221-018-0 01 1 9207- ● ● ● ● ●
79 RETAINER; AUTO TIMER 9-85111-930-0 01 1 9207- ● ● ● ● ●
80 PULLER ASM; AUTO TIMER 9-85210-154-0 01 1 9207- ● ● ● ● ●
84 REPLACER; VALVE SEAL 1-85221-005-0 01 1 9207- ● ● ● ● ●
87 TOOL; PISTON 9-85221-173-0 01 1 9207- ● ● ● ● ●
93 SETTING KIT; VALVE GUIDE 1-85220-001-0 01 1 9207- ● ● ● ● ●
99 WRENCH; CYL HD BOLT 1-85111-003-0 01 1 9207- ● ● ● ● ●

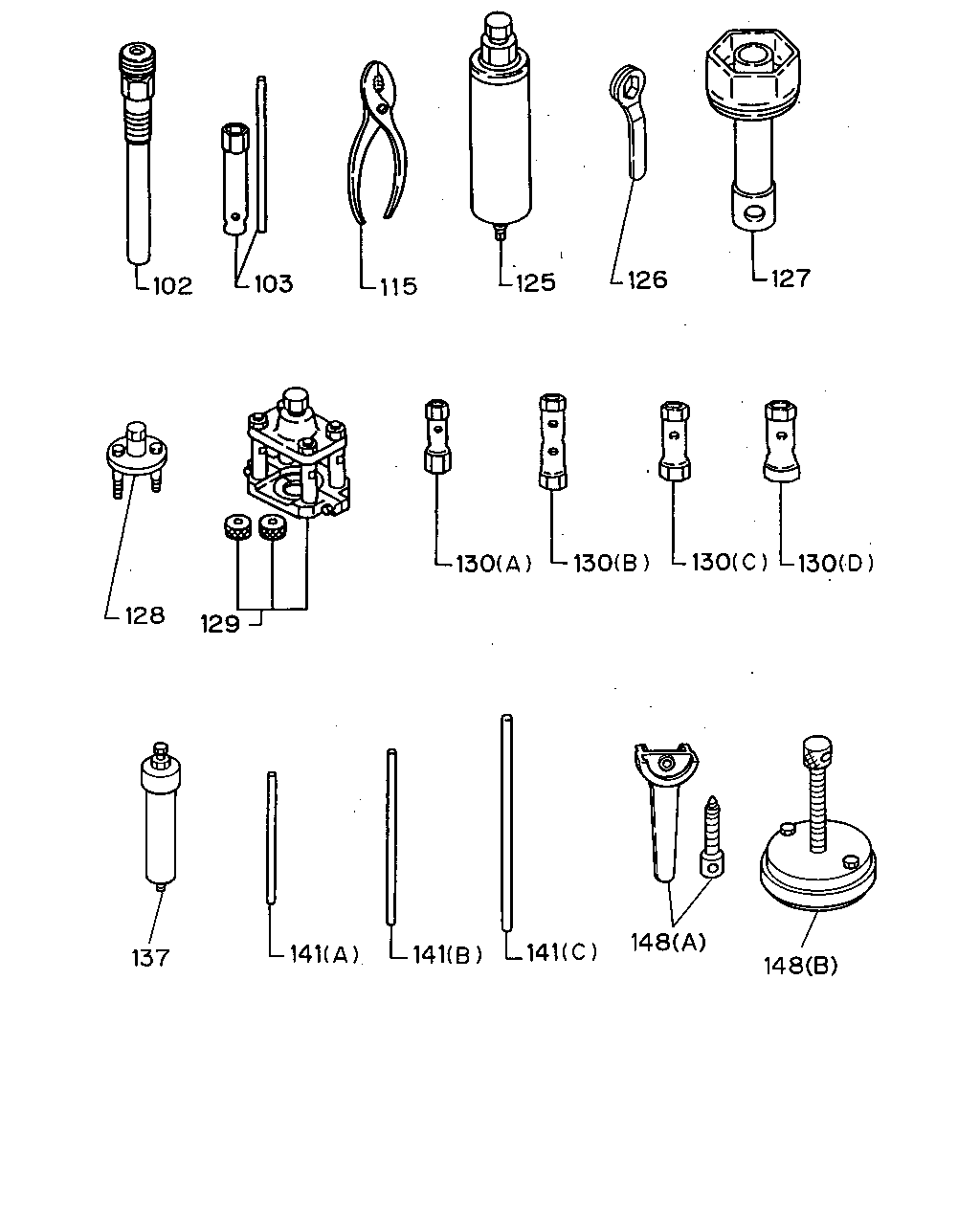

çizim 95538
102 103 115 125 126 127 128 129 130 130 130 130 137 141 141 141 148 148
BalonParca AdiParca NoAdetTipApplied Date A B C D E
102 ADAPTER; COMP GAGE 5-85317-001-0 01 1 9207- ● ● ● ● ●
103 SPANNER; BOX,OIL PRESSURE 9-85163-102-0 01 1 9207- ● ● ● ● ●
115 PLIER 5-85171-001-0 01 1 9207- ● ● ● ● ●
125 PULLER ASM; KING PIN
L=360 		9-85210-151-0 01 1 9207- ● ● ●
126 WRENCH; FRT HUB BRG NUT
L=257 B=63 		9-85111-373-0 01 1 9207- ● ● ●
127 WRENCH ASM; HUB BRG NUT
B=98 L=305 		9-85113-533-0 01 1 9207- ● ● ●
128 PULLER ASM; STRG WHEEL 9-85210-099-0 01 1 9207- ● ● ●
129 PULLER ASM; PITMAN ARM 9-85210-147-0 01 1 9207- ● ● ●
130 WRENCH; BOX
(D) B=46 & 54 L=165 		9-85112-320-0 01 1 9207- ● ● ●
130 WRENCH; BOX
(A) B=32 & 41 L=150 		9-85112-322-0 01 1 9207- ● ● ●
130 WRENCH; BOX
(B) B=36 & 41 L=200 		9-85112-330-0 01 1 9207- ● ● ●
130 WRENCH; BOX
(C) B=41 & 46 L=165 		9-85113-401-0 01 1 9207- ● ● ●
137 PLIER; SHOE,RETURN SPRING 1-85210-025-0 01 1 9207- ● ● ●
141 HANDLE; WRENCH
(B) L=400 		9-09593-919-0 01 1 9207- ● ● ● ● ●
141 HANDLE; WRENCH
(C) L=480 		1-85116-011-0 01 1 9207- ● ● ●
141 HANDLE; WRENCH
(B) L=400 		9-85114-306-0 01 1 9207- ● ● ●
141 HANDLE; WRENCH
(A) L=300 		9-85114-307-0 01 1 9207- ● ● ●
148 PULLER; COUNTER SHAFT BRG
(A) 		9-85210-129-1 01 1 9207- ● ● ●
148 PULLER; COUNTER SHAFT BRG
(B) 		9-85210-186-0 01 1 9207- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
