Sayfa 0-65 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11729 - FSR MIDDLE EAST EURO1 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-65 - STARTER ▶

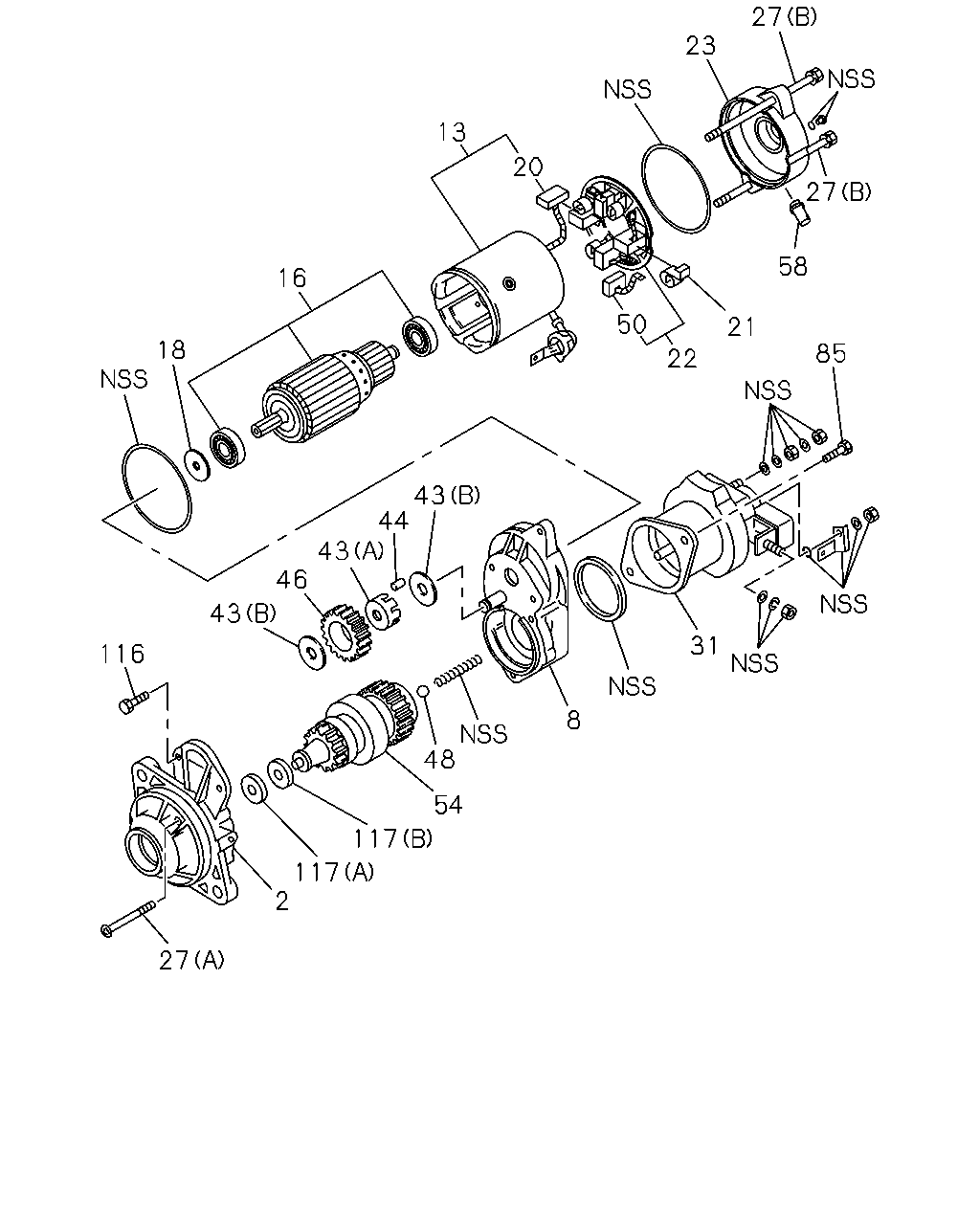

0-65 — STARTER (#170498) — 26 parça

27 23 27 58 85 21 22 50 20 13 16 18 116 46 43 43 44 43 31 8 48 54 117 117 2 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-323-1	1-81123-049-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-323-1	1-81118-059-0	01	1	-
13	YOKE; STARTER ASM PART: A = 1-81100-323-1	8-98197-520-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-323-1	1-81121-062-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-323-1	5-81129-156-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-323-1	8-98197-175-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-323-1	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-323-1	8-98155-174-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-323-1	1-81115-221-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-323-1	1-81129-706-0	04	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-323-1	1-81129-708-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-323-1	1-81151-132-0	01	1	-
43	RETAINER; PINION STARTER (A) ASM PART: A = 1-81100-323-1	1-81118-060-0	01	1	-
43	RETAINER; PINION STARTER (B) ASM PART: A = 1-81100-323-1	1-81129-709-0	02	1	-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-323-1	1-81129-715-0	05	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-323-1	1-81129-714-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-323-1	1-81129-713-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: A = 1-81100-323-1	8-98197-176-0	02	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-323-1	8-98146-940-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-323-1	1-81129-757-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: A = 1-81100-323-1	1-81129-722-0	02	1	-
116	BOLT; BRKT ASM PART: A = 1-81100-323-1	1-81129-722-0	02	1	-
117	WASHER; CLUTCH (A) ASM PART: A = 1-81100-323-1	1-81129-710-0	01	1	-
117	WASHER; CLUTCH (B) ASM PART: A = 1-81100-323-1	1-81129-711-0	01	1	-

1 58

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

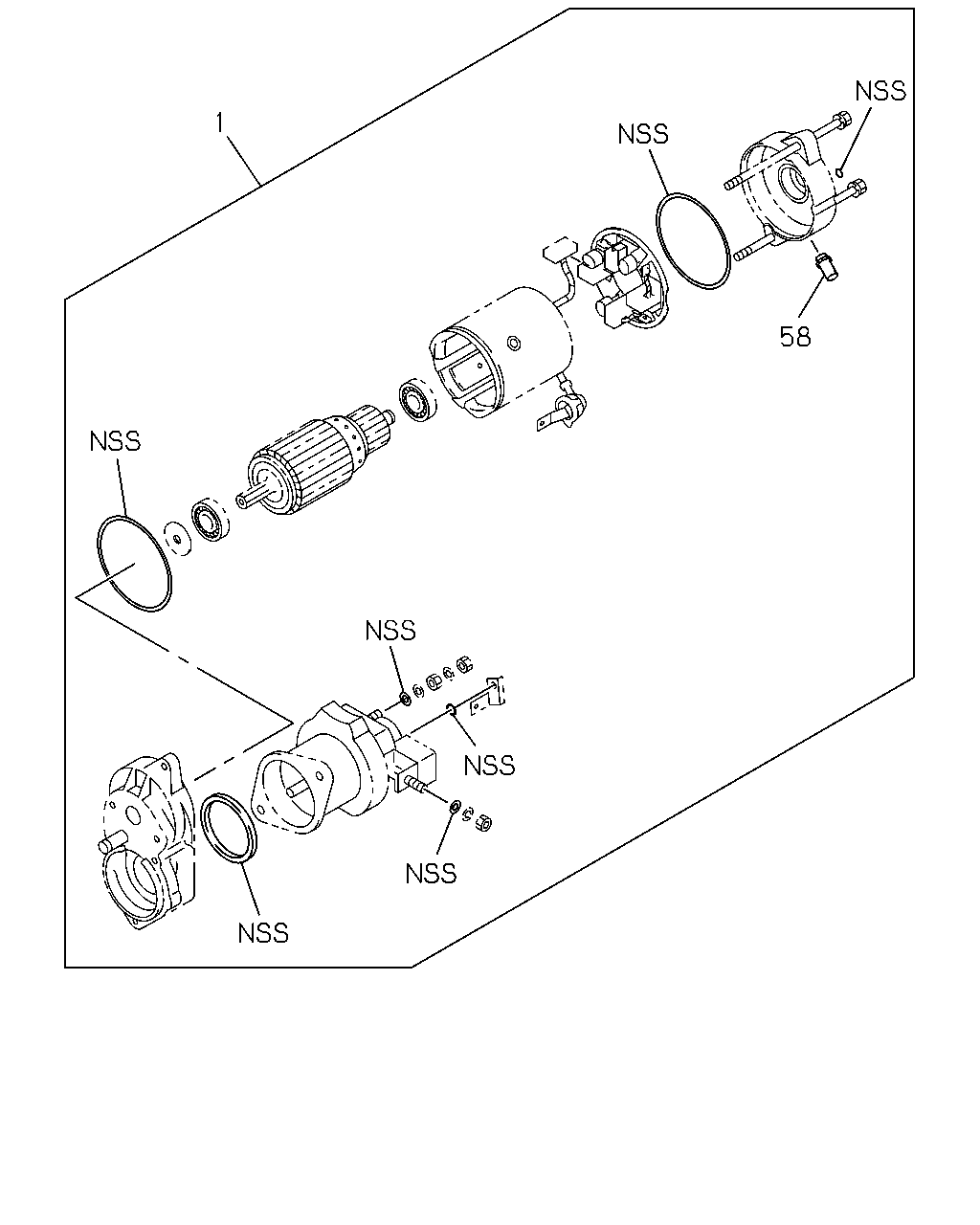

	1	SEAL KIT; STARTER ASM PART: A = 1-81100-323-1	1-81129-716-0	01	1	-
	58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-323-1	1-81129-757-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
