0-42 — FUEL PUMP AND PIPE (#170491) — 14 parça

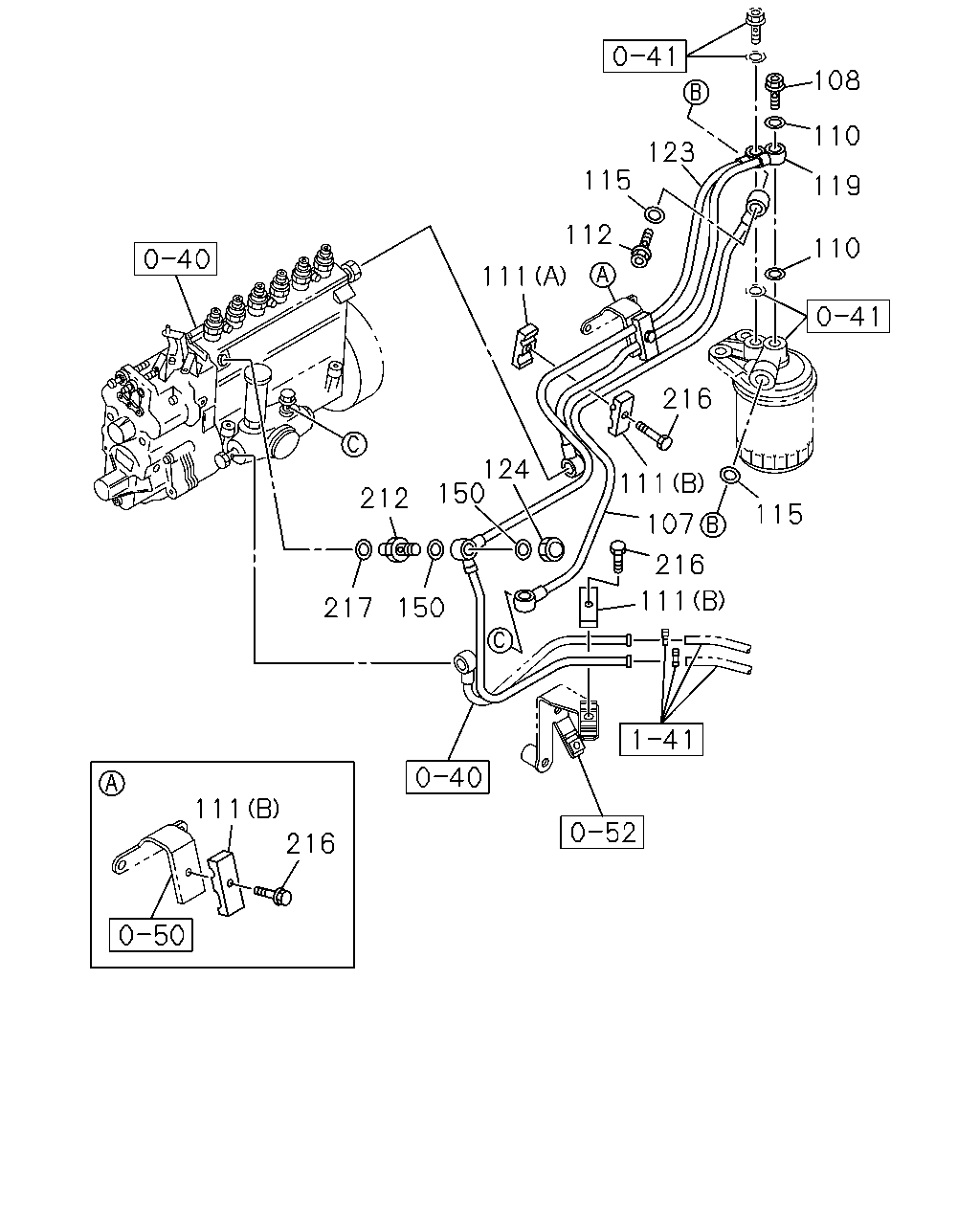

çizim 500383
111 216 150 217 111 212 150 124 111 115 107 216 216 112 111 115 123 108 119 110 110
BalonParca AdiParca NoAdetTipApplied Date
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 8-94396-681-0 01 1 1511-
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 1511-
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511-
111 CLIP; FUEL PIPE
(B) L=48 		5-09709-103-0 03 1 1511-
111 CLIP; FUEL PIPE
(A) L=45 		5-09709-104-0 01 1 1511-
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 1511-
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511-
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 8-94390-343-0 01 1 1511-
123 PIPE; FUEL,FUEL FILTER LEAK OFF 8-94394-556-1 01 1 1511-
124 NUT; CAP,FUEL PIPE
M14 		1-09468-002-1 01 1 1511-
150 GASKET; FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1511-
212 VALVE; OVERFLOW 8-94399-087-0 01 1 1511-
216 BOLT; CLIP,FUEL PIPE
M6X30 W/LK WASHER 		0-50540-630-0 03 1 1511-
217 GASKET; OVERFLOW VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2 		8-98251-345-0 01 1 1511-
