Isuzu WW
▶
TRUCKS
▶
FSR
▶
11729 - FSR MIDDLE EAST EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

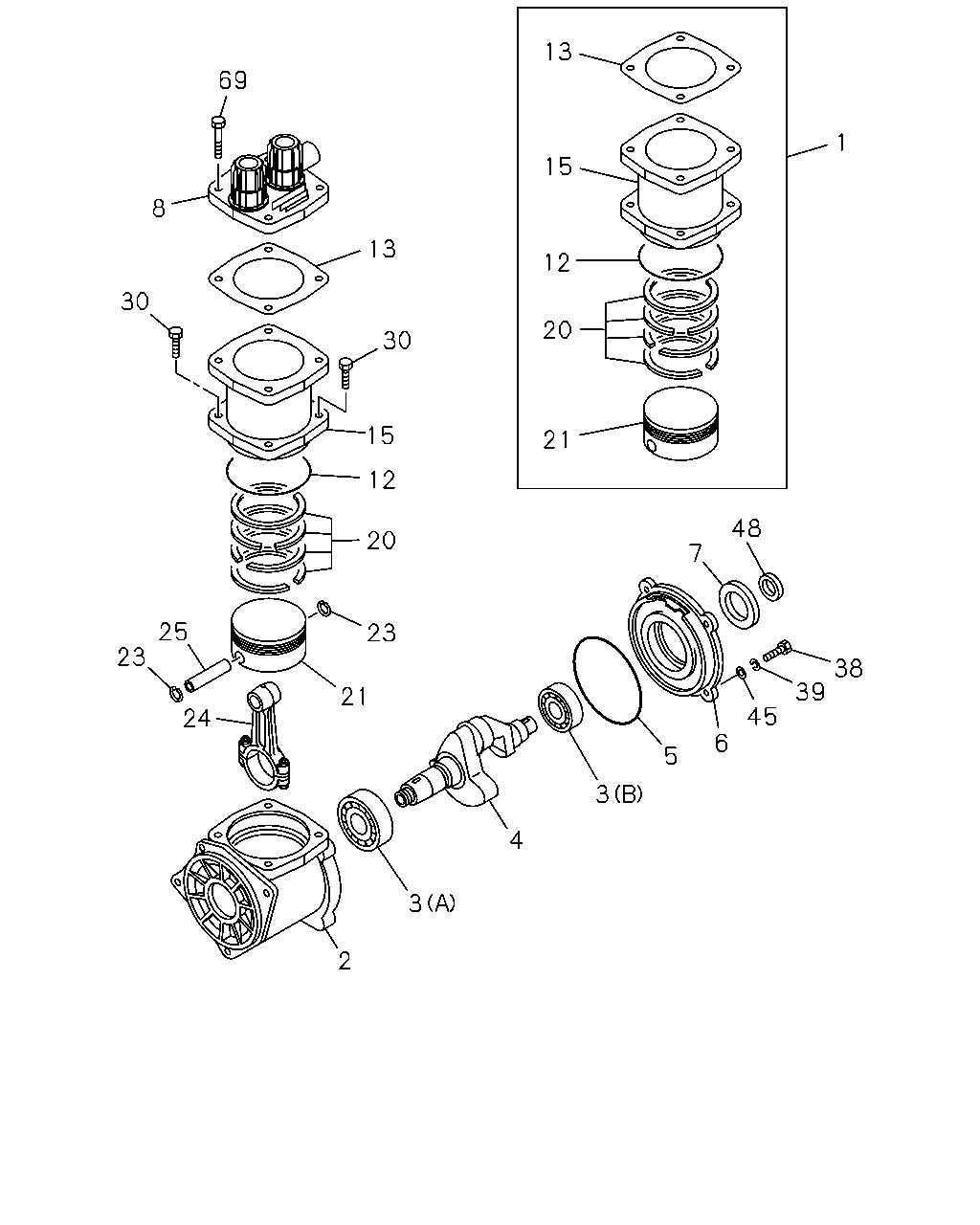

0-39 — AIR COMPRESSOR; BRAKE
(#170488) — 23 parça
69
8
30
13
30
15
12
20
23
21
25
23
24
2
3
4
3
5
6
45
39
38
48
7
21
20
12
15
13
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-050-1
01
1
1511-
2
CRANKCASE; AIR CMPR
1-19151-266-1
01
1
1511-
3
BEARING; AIR CMPR
(B)
9-00006-206-0
01
1
1511-
3
BEARING; AIR CMPR
(A)
9-00090-152-0
01
1
1511-
4
CRANKSHAFT; AIR CMPR
1-19171-047-1
01
1
1511-
5
GASKET; AIR CMPR
8-98192-460-0
01
1
1511-
6
COVER ASM; BRG,AIR CMPR
1-19156-058-1
01
1
1511-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-19158-026-0
01
1
1511-
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
1511-
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1511-
13
GASKET; AIR CMPR
8-98113-036-0
01
1
1511-
15
CYLINDER; AIR CMPR
1-19151-250-0
01
1
1511-
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
1511-
21
PISTON; AIR CMPR
1-19161-021-0
01
1
1511-
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1511-
24
ROD ASM; CONN,AIR CMPR
1-19173-017-0
01
1
1511-
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
1511-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
1511-
38
BOLT; COVER FIX
9-81385-023-0
04
1
1511-
39
WASHER; LK,COVER FIX
ID=8.2
9-09150-608-0
04
1
1511-
45
WASHER; PL,COVER FIX,AIR CMPR
ID=8.4
9-09160-508-0
04
1
1511-
48
SLEEVE; CR/SHF
1-19179-014-0
01
1
1511-
69
BOLT ASM; AIR COMP
1-19119-031-0
04
1
1511-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
